Samsung QM50C / LH50QMCEPGCXEN 50” 4K UHD Smart Large Format Digital Signage Display

Maximum impact in minimum space
Ultra Slim Depth

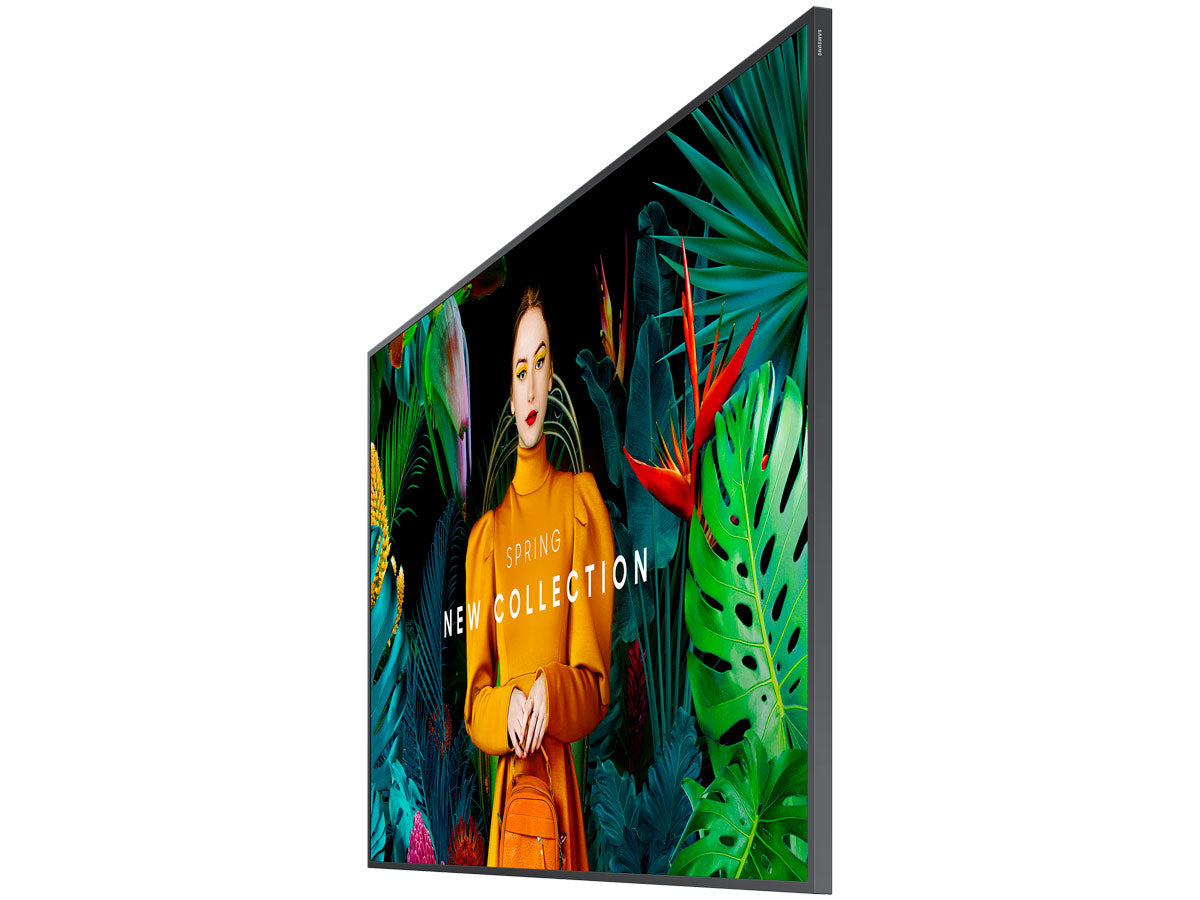

The QMC's unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QMC optimizes space with its sleek design that blends seamlessly into your business.

Clean visuals in landscape or portrait mode
Even Bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.

Secure and even mounting
Centered VESA Holes

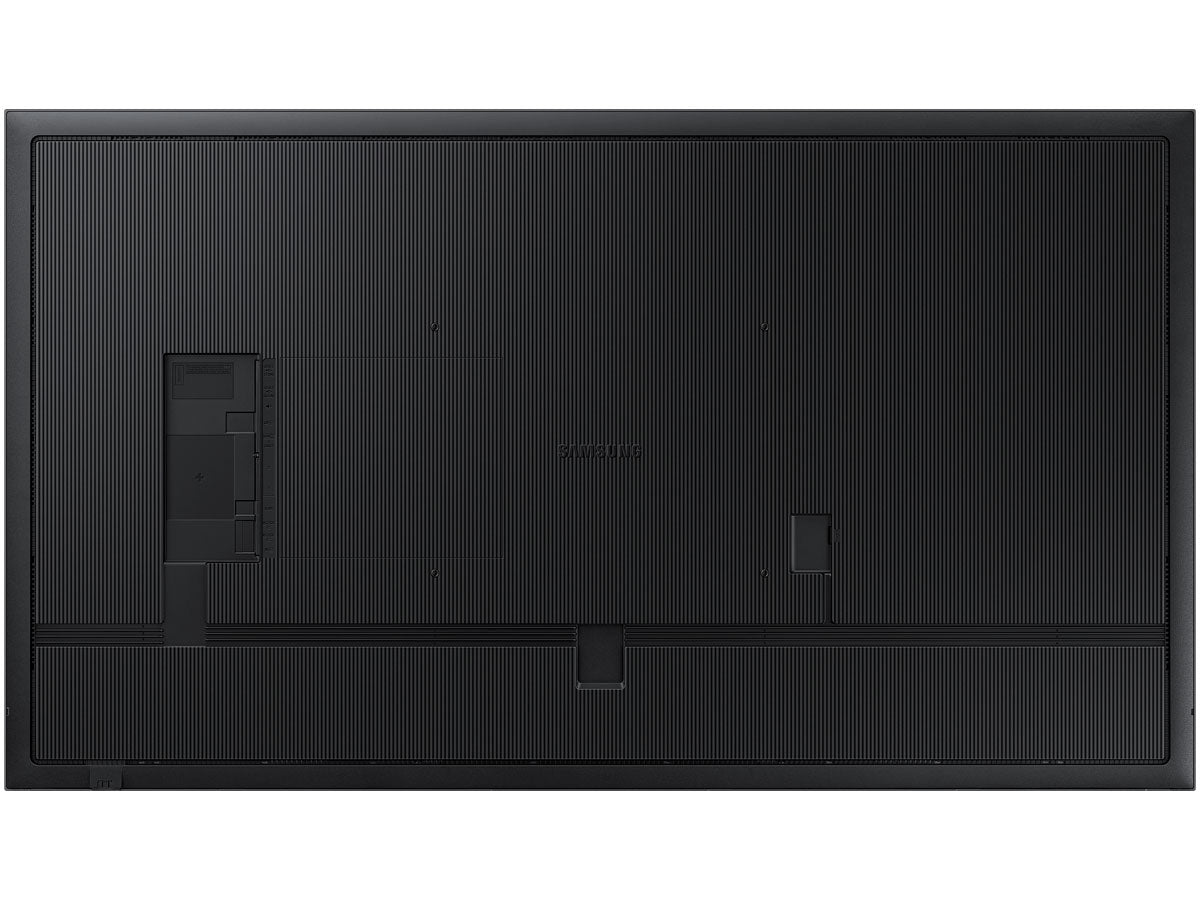

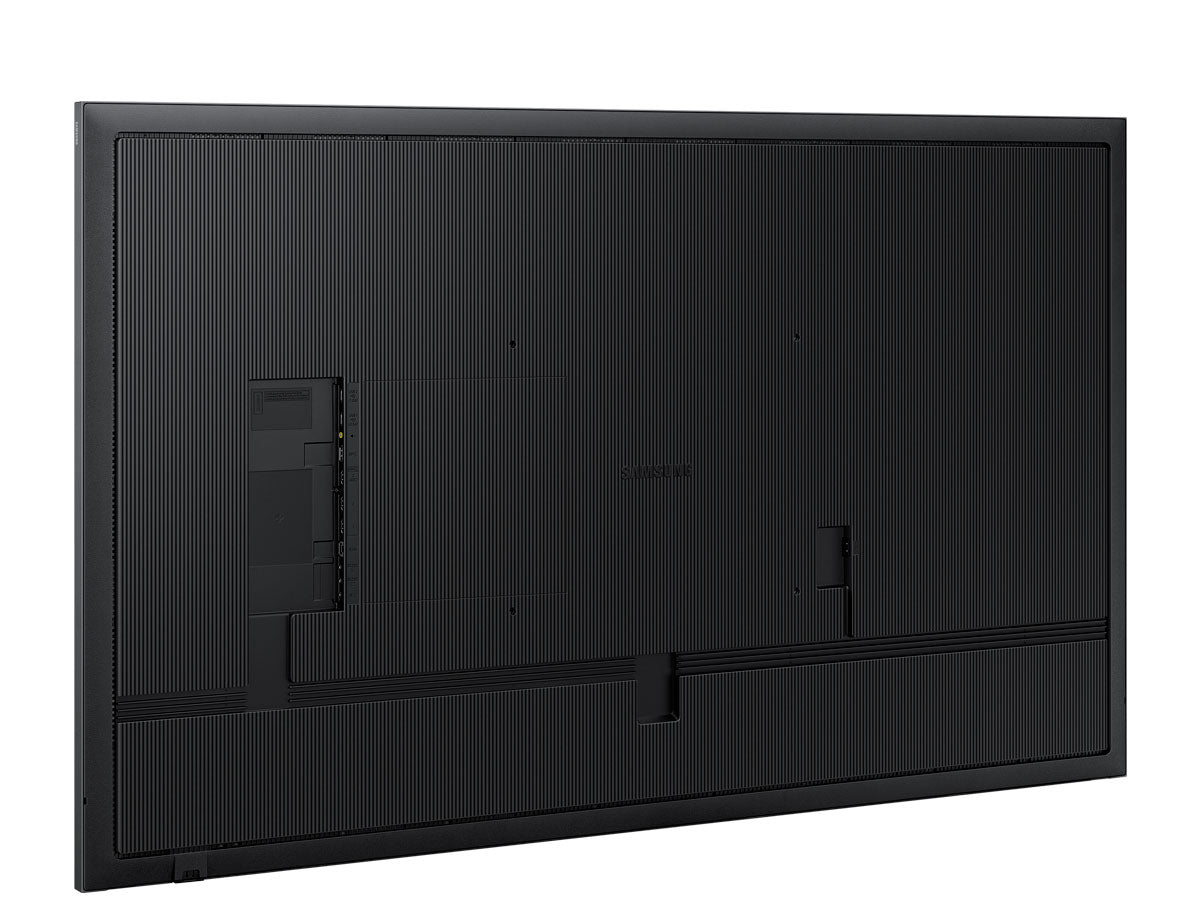

The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.

Lifelike colour, born in a pure state with fine crystal
Dynamic Crystal Colour
Every picture is more immersive with one billion shades of colour. Dynamic Crystal Colour delivers true-to-life variations, allowing customers to see every subtlety.

View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.

Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.

Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.

Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.

Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full grayscale standards

Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

Everyday Sustainability
Energy Star / EPEAT / TÜV Rheinland Carbon Footprint
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.

Category	Details
Display
Diagonal Size	50"
Panel Type	IPS
Resolution	3,840 x 2,160
Pixel Pitch (HxV)	0.285 x 0.285mm
Brightness (Typ)	500 nit
Contrast Ratio	1,200:1
Viewing Angle (Horizontal/Vertical)	178°/178°
Response Time	8ms
Colour Gamut	72% (NTSC)
Glass Haze	25%
H-Scanning Frequency	30~81kHz
Maximum Pixel Frequency	594MHz
V-Scanning Frequency	48~75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	24/7

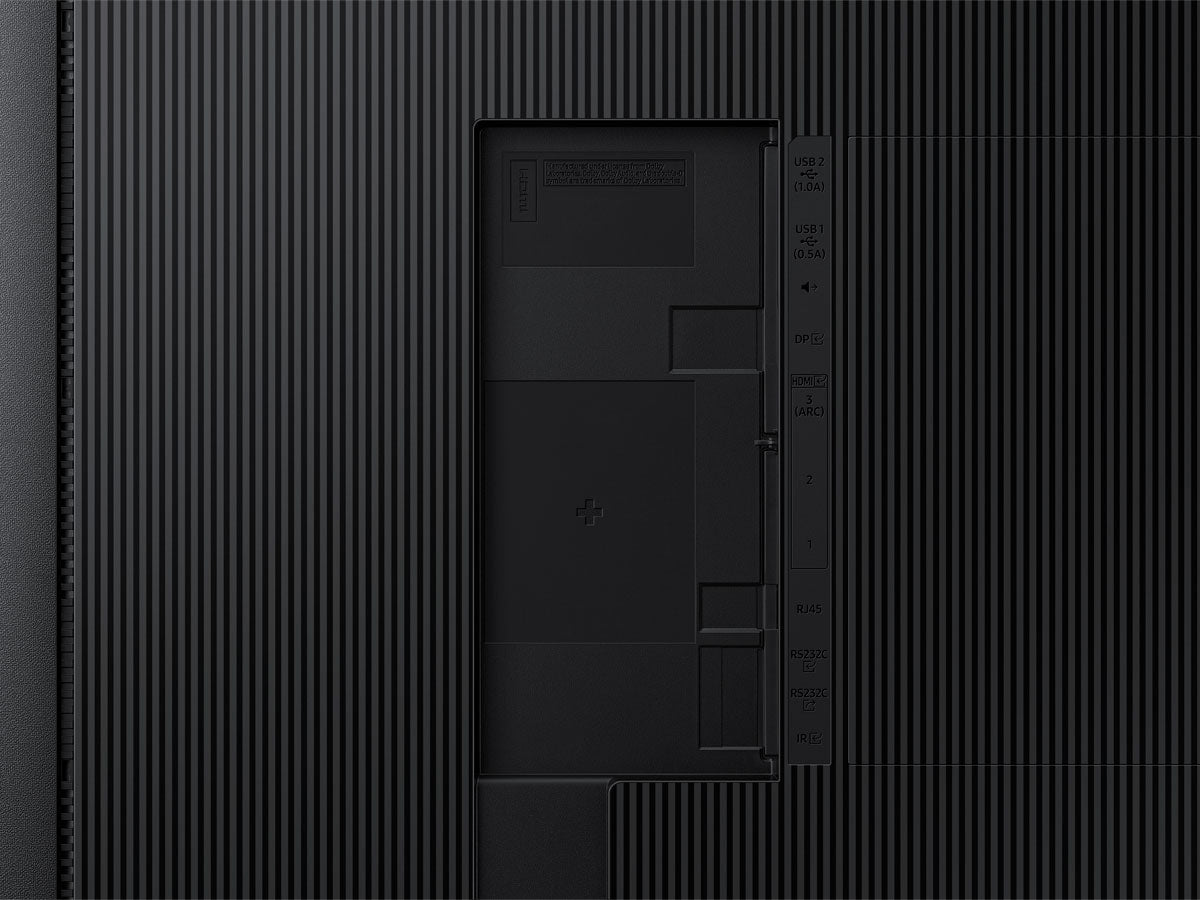

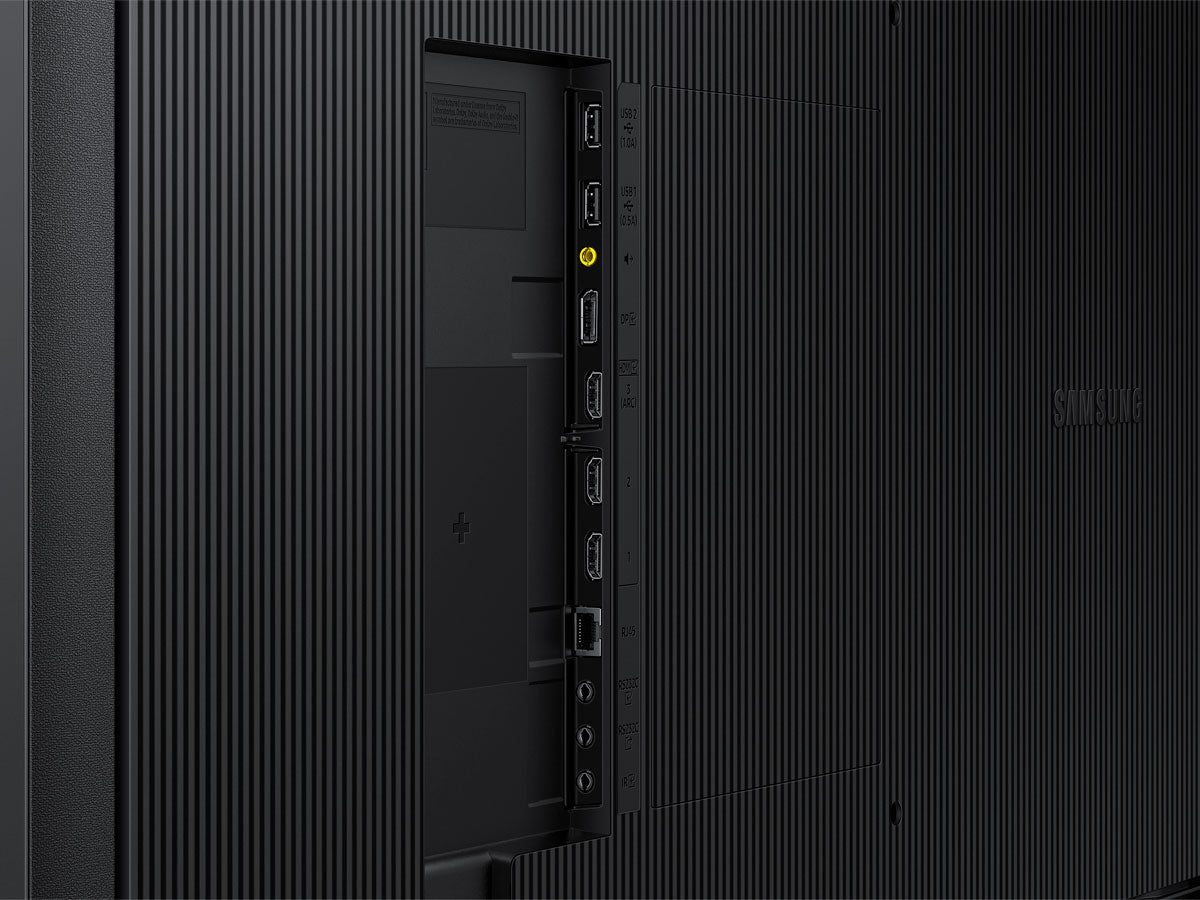

Connectivity
HDMI In	3
DP In	1
DVI In	N/A
Version of HDMI	2
Version of DP	1.2
Version of HDCP	2.2
Tuner In	N/A
USB	2
IR In	Yes
HDBaseT In	N/A
Audio In	No
Audio Out	Stereo Mini Jack
Video Out	N/A
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	N/A
WiFi	Yes
3G Dongle	N/A
Bluetooth	Yes
Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (Off Mode)	N/A
Power Consumption (On Mode)	132 W
Power Consumption (Sleep Mode)	0.5 W
Dimension
Set Dimension (WxHxD)	1124.1 x 644.8 x 28.5 mm
Package Dimension (WxHxD)	1246 x 761 x 131 mm
Weight
Set Weight with Stand	11.8 kg
Package Weight	14.9 kg
Operation Conditions
Temperature	0°C~ 40°C
Humidity	10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount	200 x 200 mm
Bezel Width	11.5mm (even)
Bezel Color	Charcoal Black
Frame Material	Non-Glossy
Optional Feature
Mount	WMN-B50SC
Stand	STN-L4355C
SoC
OS Version	Tizen 7.0
Flash Memory Size	16GB
Eco
Energy Efficiency Class	G
Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1
