Intelligent Viewing with SmartView+: Elevate your viewing experience with SmartView+. This intelligent feature optimizes content for an immersive and personalized journey, ensuring that what you see is perfectly tailored to your preferences.
-
Unlock new display possibilities for your Business
The QMB Series combines enhanced professional features, streamlined set up and maintenance, and stunning design to elevate any business environment. From improving collaboration to showcasing rich content in new formats, QMB delivers innovation and efficiency to help businesses reach their goals.
Experience true-to-life colours
Dynamic Crystal Colour
Every picture is more immersive with one billion shades of colour. Dynamic Crystal Colour delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of colour in powerful 4K
Quantum Processor 4K
Samsung's industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung's Quantum Processor 4K, elevates lower-resolution video to UHD-level quality, providing professional picture quality.
Ensure critical information is always visible
Non-glare
All QMB Series displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, such as airports and train stations.
Slim design that maximises space
Slim and symmetrical design

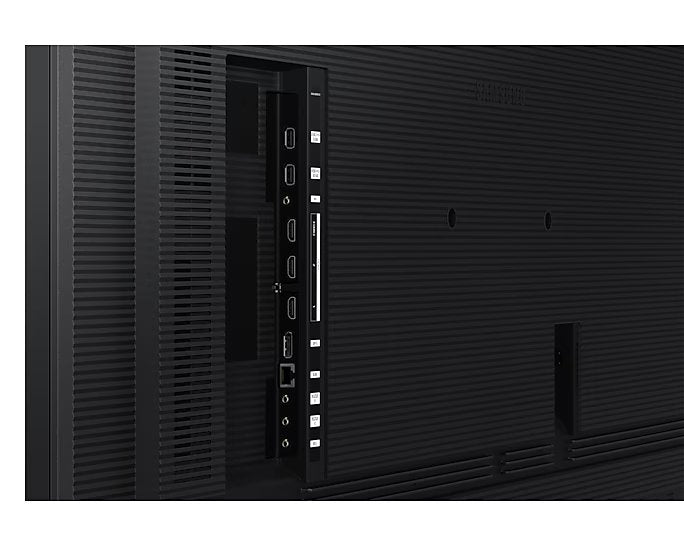

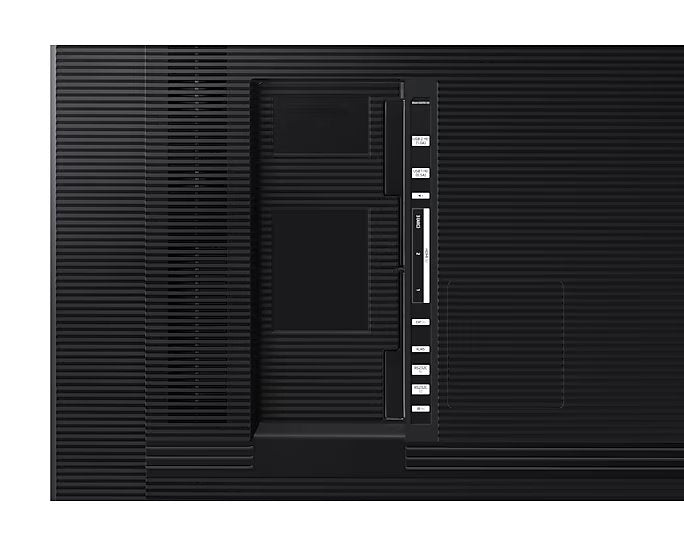

Narrow bezels and a symmetrical design allow for seamless integration into any environment with simplified mounting and installation. To maximise space savings, all terminals face outwards, ensuring the display hangs flush against any wall.
Zero obstacles to the viewing experience
Clean cable guide
QMB blends perfectly into any business environment. With clean cable guide feature, the screen draws maximum focus to what is on the display, not the cables connected to it.
Make conference calls without messy installs
Video call applications
Connect with colleagues without unnecessary connections. Featuring easier video conferencing than ever, the QMB has a built-in video conference solution that supports the most popular web conferencing apps, enabling simple video calls with just a USB-type webcam.
Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring full collaboration. Users can now enable screen sharing functionality at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Maintain meeting room settings without unintended changes
Custom Home
Designed to simplify conference room management, Custom Home allows admins to lock specific meeting room settings, preventing users from changing settings between meetings. Now, conference rooms can work throughout the day as intended, without errors, allowing IT to focus on other tasks.
Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimises post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM's full greyscale standards
Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.
Easier setups and updates for reduced workloads
Tizen Zero Config
Tizen Zero Config is essential for IT managers operating multiple units in different locations. Following display installation, IT professionals can register new apps through Tizen Business Manager and remotely install, eliminating needless travel and local installations.
Supports the latest web-based content
Upgradable Web-engine
Upload any piece of content, no matter how innovative. QMB’s constant web-engine upgrades enables the latest types of content to be played without limitations, allowing for more diversified and engaging creative assets.
Flexible installation for custom designs
Auto Level
Keep content clear and steady. Auto Level automatically adjusts content when the screen is rotated from vertical to horizontal for increased versatility in any space. Plus, it automatically recognises incorrect pivot directions to keep the display always in the correct orientation.
Eco-packaging and industry certification to greenify our world
Eco-conscious technologies
QMB series uses recycled plastics for the rear side cover and packaging. Additionally, Samsung received certifications for energy savings and carbon footprint reduction and complies with restriction guidelines for hazardous substances such as RoHS, REACH and WEEE.
-
| Category |
Details |
| Display |
|
| Diagonal Size |
55" |
| Panel Type |
VA |
| Resolution |
3,840 x 2,160 |
| Pixel Pitch (HxV) |
0.315 x 0.315 (mm) |
| Brightness (Typ) |
500 nit |
| Contrast Ratio |
4,000:1 |
| Viewing Angle (Horizontal/Vertical) |
178/178 |
| Response Time |
8ms |
| Colour Gamut |
92% (DCI-P3, CIE 1976) |
| Glass Haze |
25% |
| H-Scanning Frequency |
30 ~ 81kHz |
| Maximum Pixel Frequency |
594MHz |
| V-Scanning Frequency |
48 ~ 75Hz |
| Contrast Ratio (Dynamic) |
Mega |
| Operation Time Support |
24/7 |
| Connectivity |
|
| HDMI In |
3 |
| DP In |
1 |
| DVI In |
N/A |
| Version of HDMI |
2 |
| Version of DP |
1.2 |
| Version of HDCP |
2.2 |
| Tuner In |
N/A |
| USB |
2 |
| IR In |
Yes |
| HDBaseT In |
N/A |
| Audio In |
No |
| Audio Out |
Stereo Mini Jack |
| Video Out |
N/A |
| RS232 In |
Yes |
| RS232 Out |
Yes |
| RJ45 In |
Yes |
| RJ45 Out |
N/A |
| WiFi |
Yes |
| 3G Dongle |
N/A |
| Bluetooth |
Yes |
| Power |
|
| Power Supply |
AC100-240V 50/60Hz |
| Power Consumption (Off Mode) |
N/A |
| Power Consumption (On Mode) |
143 W |
| Power Consumption (Sleep Mode) |
0.5 W |
| Dimension |
|
| Set Dimension (WxHxD) |
1235.1 x 707.9 x 46.3 mm |
| Package Dimension (WxHxD) |
1402 x 858 x 163 mm |
| Weight |
|
| Set Weight with Stand |
18.1 kg |
| Package Weight |
23.6 kg |
| Operation Conditions |
|
| Temperature |
0°C~ 40°C |
| Humidity |
10 ~ 80%, non-condensing |
| Mechanical Specification |
|
| VESA Mount |
200 x 200 mm |
| Bezel Width |
9.2mm(U/L/R), 11.2mm(B) |
| Frame Material |
Non-Glossy |
| Optional Feature |
|
| Mount |
WMN4070SG |
| Stand |
STN-L4355G |
| SoC |
|
| OS Version |
Tizen 6.5 |
| Flash Memory Size |
16GB |
| Eco |
|
| Energy Efficiency Class |
G |
| Certification and Compliance |
|
| EMC |
Class B |
| Safety |
60950-1, 62368-1 |
-
SAMSUNG SMART SIGNAGE STARDARD
WARRANTY GUIDE
SMART SIGNAGE
1. Warranty Term
Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.
Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.
2. Warranty Description
Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.
During the warranty period, Samsung will, at its sole discretion,
1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.
Service Response Turnaround Time (“TAT”):
The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).
Service Response may take more than 1 business day depending on the case.
Service Repair TAT:
Service Repair means initial repair activity by Samsung or Samsung’s ASC.
※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.
Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.
In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.
Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.
3. Warranty Coverage
This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.
All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
