Samsung SM85HX 85” 4K Ultra HD Virtual 3D Spatial Display
In Stock9 available
Express DeliveryFast UK delivery where eligible
3 Year WarrantyManufacturer-backed cover
UK Expert SupportPre-sales and technical advice
Product description
Samsung SM85HX · LH85SMHPBGCXEN
Samsung SM85HX 85" 4K UHD Virtual 3D Spatial Display
The Samsung SM85HX LH85SMHPBGCXEN is an 85-inch professional Spatial Display designed to create glasses-free virtual 3D experiences for high-impact commercial digital signage.
Samsung's specialised 3D plate technology combines with a 4K UHD VA display, 500 nit brightness, Quantum Processor image enhancement, Samsung VXT, AI Studio compatibility, Tizen 7.0 and reliable 24/7 operation to create immersive visual experiences for retail, showrooms, events and premium brand environments.
85" 4K UHD
3840 x 2160 resolution
Virtual 3D
Glasses-free spatial experience
500 nit
Professional display brightness
24/7 Operation
Commercial signage capability
Description
Samsung Spatial Display
Experience glasses-free virtual 3D on an 85-inch commercial display.
The Samsung SM85HX, model LH85SMHPBGCXEN, is designed to transform conventional digital signage into a more immersive visual experience.
Samsung's Spatial Display technology creates the perception of depth without requiring viewers to wear 3D glasses, allowing branded products, visual effects and campaign content to appear to extend beyond the conventional flat display surface.
For premium retail, automotive, fashion, beauty, exhibitions, showrooms and experiential spaces, this gives businesses a new way to attract attention and present digital content.
- Samsung SM85HX
- Model code LH85SMHPBGCXEN
- 85-inch professional Spatial Display
- 3840 x 2160 4K UHD
- Virtual glasses-free 3D
- 500 nit brightness
- VA panel
- 24/7 commercial operation
- Tizen 7.0
- Samsung VXT compatible
SM85HX Key Features
Samsung SM85HX specifications at a glance.
85" 4K UHD
3840 x 2160 resolution across an 85-inch professional VA panel.
500 nit Brightness
Professional display brightness designed for indoor commercial environments.
UltraThin Design
A slim 52mm chassis helps the Spatial Display integrate into professional spaces.
Tizen 7.0
Samsung's commercial signage operating platform with 16GB flash memory.
24/7 Operation
Built to support continuous commercial digital signage operation.
Virtual 3D Display
Bring digital content beyond the traditional flat screen.
The Samsung SM85HX uses specialised spatial display technology to generate virtual three-dimensional effects from suitable content.
Instead of relying on 3D glasses or headsets, viewers can experience added depth directly from the display, helping digital campaigns create a more immediate visual impact.
- Glasses-free virtual 3D experience
- Designed for commercial digital signage
- Immersive product visualisation
- High-impact branded content
- Suitable for experiential retail
Samsung AI Studio
Create spatial-style video content from images and prompts.
Samsung AI Studio is designed to simplify the process of creating content for Spatial Signage.
Businesses can use images and text prompts to generate dynamic spatial-style video content, reducing the complexity involved in producing specialised digital campaigns.
AI Studio requires separate purchase. Samsung VXT is also sold separately and availability can vary by region.

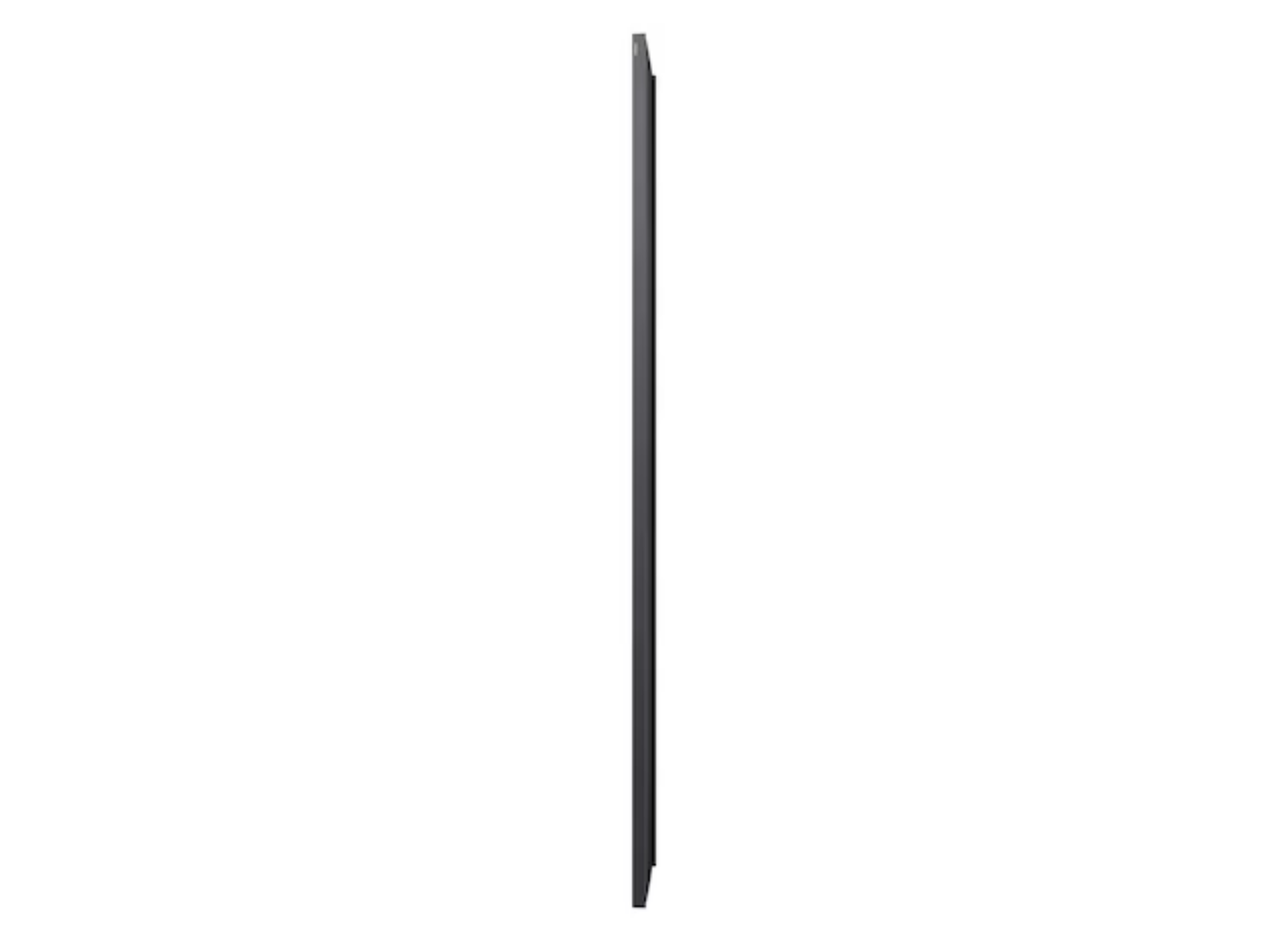

UltraThin Design
Immersive visual technology in a 52mm slim profile.
Despite its specialised Spatial Display technology, the Samsung SM85HX is only 52mm deep.
The slim design helps reduce the installation footprint and gives architects, retailers and AV professionals greater flexibility when integrating the display into premium commercial interiors.
- 52mm display depth
- Black non-glossy frame
- 21mm bezel
- 400 x 600mm VESA mounting
- 49kg set weight
Premium Commercial Display
Designed to create visual impact in high-value spaces.
The 85-inch format provides a substantial digital canvas without requiring the installation footprint of larger 98-inch or 100-inch professional displays.
Its distinctive vertical format makes the Samsung SM85HX particularly suited to product launches, storefront environments, branded zones and experiential visual merchandising.
Quantum Processor
4K processing designed for clear professional content.
Samsung's Quantum Processor enhances content for greater clarity and consistency across the 85-inch display.
Intelligent UHD upscaling can enhance lower-resolution source material towards UHD image quality, helping businesses make better use of existing video and promotional content.
- Samsung Quantum Processor
- 3840 x 2160 4K UHD resolution
- Intelligent UHD upscaling
- Professional image processing
- 594MHz maximum pixel frequency
Anti-Glare Display
Help maintain visibility under challenging indoor lighting.
The Samsung SM85HX uses an anti-glare panel with a 25% haze level to help reduce reflections from indoor lighting and bright commercial environments.
This is particularly useful in retail stores, showrooms, exhibition spaces and open-plan corporate environments where uncontrolled lighting can affect screen visibility.
- Anti-glare panel
- 25% glass haze
- 500 nit typical brightness
- 178° horizontal viewing angle
- 178° vertical viewing angle
Samsung VXT
Cloud-based content and device management.
Samsung VXT combines digital signage content management and remote device management within a cloud-based platform.
Compatible deployments can create, publish and update content remotely while also managing display settings and troubleshooting devices across a commercial signage estate.
- Cloud-based signage management
- Remote content deployment
- Remote hardware management
- Device troubleshooting
- Suitable for multi-site businesses
Samsung VXT requires separate purchase. Availability and supported features can vary by market.
SmartThings Pro
Connect digital signage with the wider business environment.
SmartThings Pro brings IoT connectivity into Samsung's commercial signage ecosystem.
Compatible deployments can connect the display with other smart devices and building systems, creating opportunities for centralised monitoring and automation.
- Commercial IoT integration
- Connected device management
- Business automation potential
- SmartThings Pro ecosystem
SmartThings Pro requires separate purchase and feature availability may vary by region.
85" 4K UHD
3840 x 2160 resolution for detailed professional visuals.
The SM85HX features a native 3840 x 2160 Ultra HD resolution on an 85-inch VA commercial display panel.
A 4,000:1 static contrast ratio supports strong differentiation between bright and dark areas, while the 72% NTSC colour gamut is specified for consistent commercial content reproduction.
- 3840 x 2160 resolution
- 85-inch VA panel
- 4,000:1 static contrast
- 72% NTSC colour gamut
- 10ms response time
Tizen 7.0
Samsung commercial signage operating platform.
The Samsung SM85HX operates on Tizen 7.0 and incorporates 16GB of flash memory.
The integrated signage platform enables Samsung's professional content, management and connected-business ecosystem without relying solely on an external media player.
- Tizen 7.0 operating system
- 16GB flash memory
- Samsung signage ecosystem
- Samsung VXT compatibility
- SmartThings Pro compatibility
Professional Reliability
Rated for continuous 24/7 commercial operation.
The Samsung SM85HX supports 24/7 operation, making it suitable for businesses where digital content needs to remain available continuously.
This separates the SM85HX from conventional consumer televisions and supports use in permanent professional digital signage installations.
- 24/7 operation support
- Professional commercial signage
- 0°C to 40°C operating range
- 10% to 80% non-condensing humidity
- Class A EMC specification

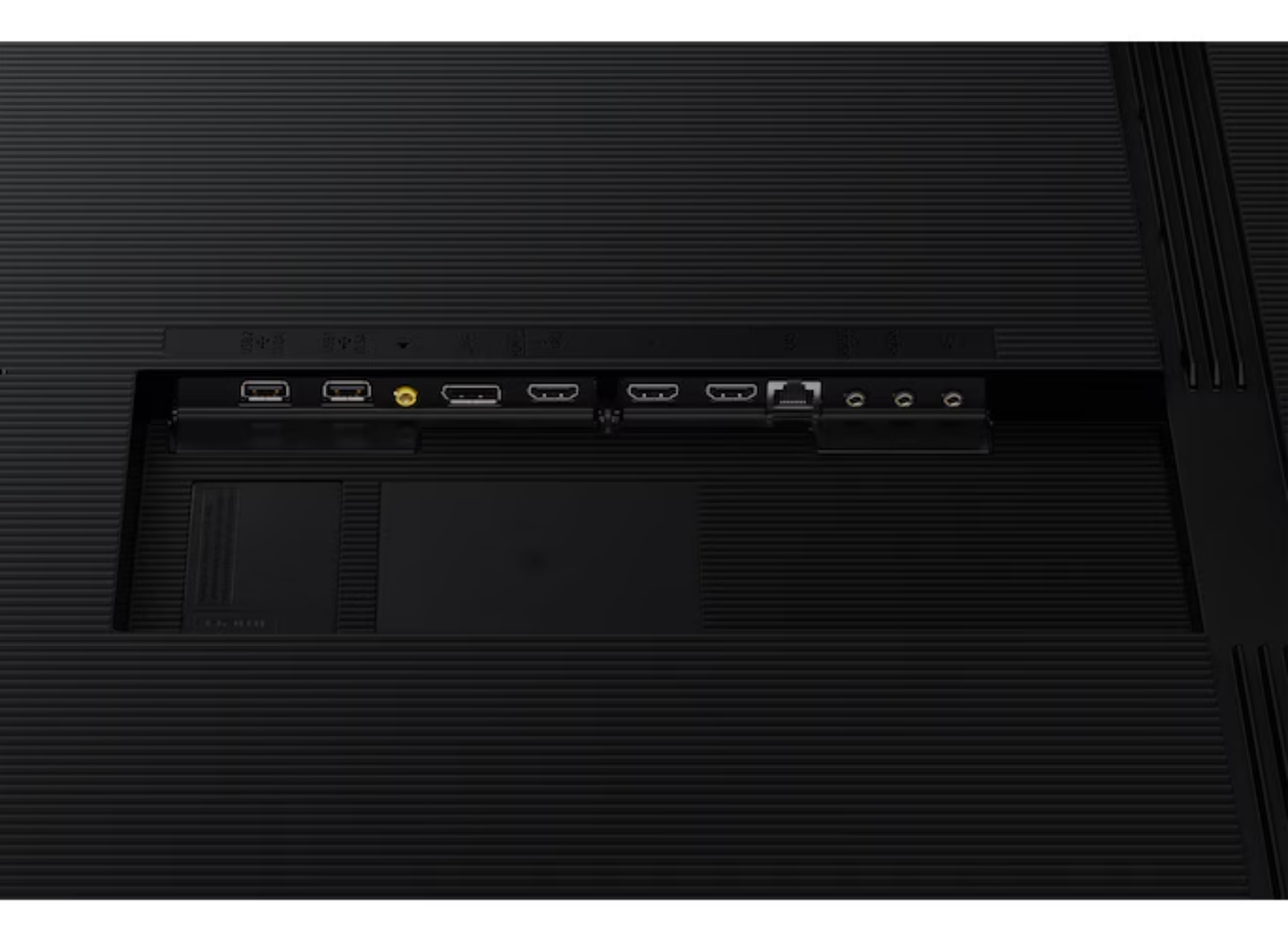

Professional Connectivity
HDMI, DisplayPort, USB, LAN and RS-232 connectivity.
The SM85HX includes the professional interfaces required for commercial signage players, network connectivity and AV control systems.
- 3 x HDMI inputs
- HDMI 2.0
- 1 x DisplayPort input
- DisplayPort 1.2
- HDCP 2.2
- 2 x USB ports
- RJ45 LAN
- RS-232 input
- RS-232 output
- IR input
- Stereo mini-jack audio output
Wireless Connectivity
Integrated Wi-Fi and Bluetooth.
Built-in Wi-Fi and Bluetooth provide additional flexibility for networked commercial signage, connected devices and compatible Samsung business applications.
- Integrated Wi-Fi
- Integrated Bluetooth
- RJ45 wired networking
- Cloud signage compatibility
SM85HX Dimensions
Slim 85-inch Spatial Display engineered for commercial installation.
The Samsung SM85HX measures 1101.2 x 1920.2 x 52mm and weighs 49kg.
Its 400 x 600mm VESA pattern supports compatible professional mounting solutions.
- 1101.2mm set width
- 1920.2mm set height
- 52mm depth
- 49kg set weight
- 61.9kg packaged weight
- 400 x 600mm VESA mounting
Premium Spatial Signage
A distinctive display for experiential environments.
The unusual portrait-led design and virtual 3D capability make the SM85HX particularly well suited to locations where digital signage is intended to become part of the customer experience rather than simply deliver information.
Immersive Brand Experiences
Turn digital signage into a visual destination.
Spatial content can help businesses create campaigns that encourage customers to stop, look and engage with the display.
This makes the SM85HX particularly relevant for flagship retail, product launches, showrooms, exhibitions and experience-led spaces.
Samsung SM85HX
85-inch professional virtual 3D signage.
Combining 4K UHD resolution, virtual 3D, 500 nit brightness, Tizen 7.0, Samsung VXT compatibility and 24/7 commercial operation, the SM85HX is designed for businesses seeking something beyond a standard digital signage screen.
Samsung Digital Signage
Looking for other Samsung professional signage displays?
Browse the complete ScreenMoove Samsung Digital Signage collection to compare the SM85HX with other Samsung professional commercial display solutions.
Specifications
Samsung SM85HX Technical Specification
Samsung SM85HX LH85SMHPBGCXEN specifications.
Technical specifications for the Samsung SM85HX 85-inch 4K UHD Virtual 3D Spatial Display.
| Specification | Samsung SM85HX / LH85SMHPBGCXEN |
|---|---|
| Display | |
| Product | Samsung Spatial Display SM85HX |
| Model Code | LH85SMHPBGCXEN |
| Diagonal Size | 85" |
| Panel Type | VA |
| Resolution | 3840 x 2160 |
| Pixel Pitch | 0.487 x 0.487mm |
| Brightness - Typical | 500 nit |
| Contrast Ratio | 4,000:1 |
| Dynamic Contrast Ratio | Mega |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 10ms |
| Colour Gamut | 72% NTSC |
| Glass Haze | 25% |
| H-Scanning Frequency | 30 - 81kHz |
| V-Scanning Frequency | 48 - 75Hz |
| Maximum Pixel Frequency | 594MHz |
| Operation Time Support | 24/7 |
| Connectivity | |
| HDMI Inputs | 3 |
| HDMI Version | 2.0 |
| DisplayPort Input | 1 |
| DisplayPort Version | 1.2 |
| HDCP Version | 2.2 |
| USB | 2 |
| IR Input | Yes |
| Audio Input | No |
| Audio Output | Stereo Mini Jack |
| RS-232 Input | Yes |
| RS-232 Output | Yes |
| RJ45 LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC 100-240V, 50/60Hz |
| Power Consumption - On Mode | 484W |
| Power Consumption - Sleep Mode | 0.5W |
| Dimensions | |
| Set Dimensions - W x H x D | 1101.2 x 1920.2 x 52.0mm |
| Package Dimensions - W x H x D | 2093 x 1234 x 220mm |
| Weight | |
| Set Weight | 49.0kg |
| Package Weight | 61.9kg |
| Operating Conditions | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10% - 80%, non-condensing |
| Mechanical Specification | |
| VESA Mount | 400 x 600mm |
| Bezel Width | 21.0mm |
| Bezel Colour | Black |
| Frame Material / Finish | Non-glossy |
| System on Chip | |
| Operating System | Tizen 7.0 |
| Flash Memory | 16GB |
| Professional Features | |
| Virtual 3D Display | Yes |
| AI Studio Compatibility | Yes - separate purchase required |
| Samsung VXT Compatibility | Yes - separate purchase required |
| SmartThings Pro Compatibility | Yes - availability may vary |
| Quantum Processor | Yes |
| Anti-Glare | Yes |
| UltraThin Design | 52mm depth |
| Certification & Compliance | |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
| Energy Efficiency Class | G |
Warranty
Professional Display Support
Samsung SM85HX warranty and ScreenMoove support.
The Samsung SM85HX is a professional commercial Spatial Display designed for continuous digital signage use.
Professional Display
Supplied with the applicable professional Samsung commercial display warranty.
Installation Support
ScreenMoove can assist with professional mounting, cabling, configuration and commercial display installation.
ScreenMoove Support
Contact ScreenMoove for product, integration, installation and support enquiries.
Downloads
Samsung SM85HX Downloads
Samsung SM85HX LH85SMHPBGCXEN manuals and technical information.
Access ScreenMoove-hosted documentation for the Samsung SM85HX 85-inch Virtual 3D Spatial Display.
Samsung SM85HX User Manual
Download the English user guide for the Samsung SMHX Spatial Display series.
View SM85HX Specifications
View the complete LH85SMHPBGCXEN specification table directly on this product page.
Samsung Digital Signage
Compare the Samsung SM85HX with other Samsung professional commercial signage displays.
Project & Installation Support
Speak to ScreenMoove about Spatial Display installation, commercial AV integration and digital signage projects.

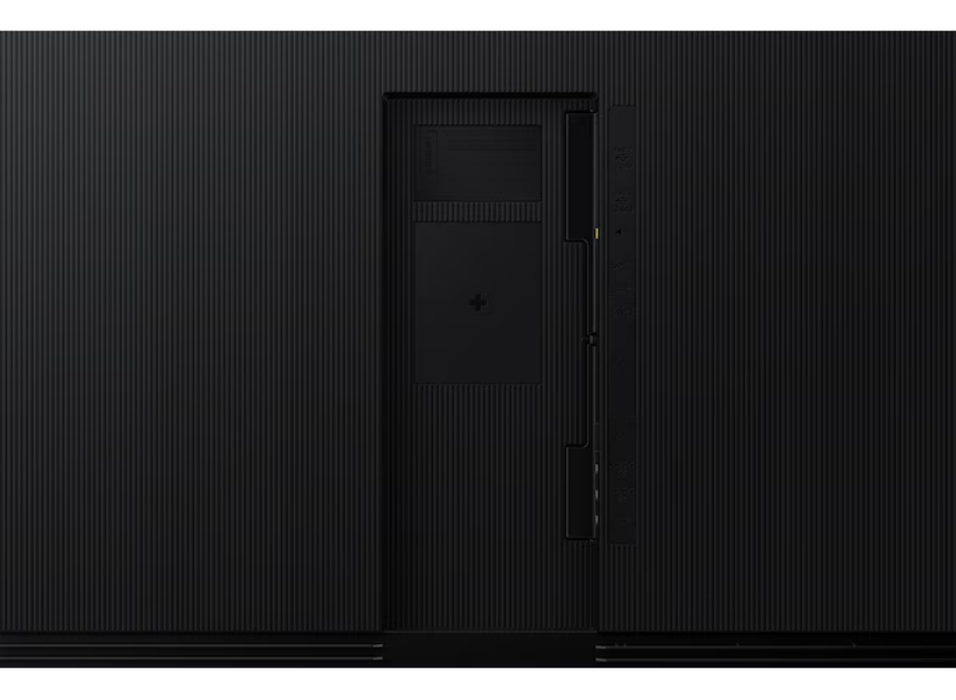

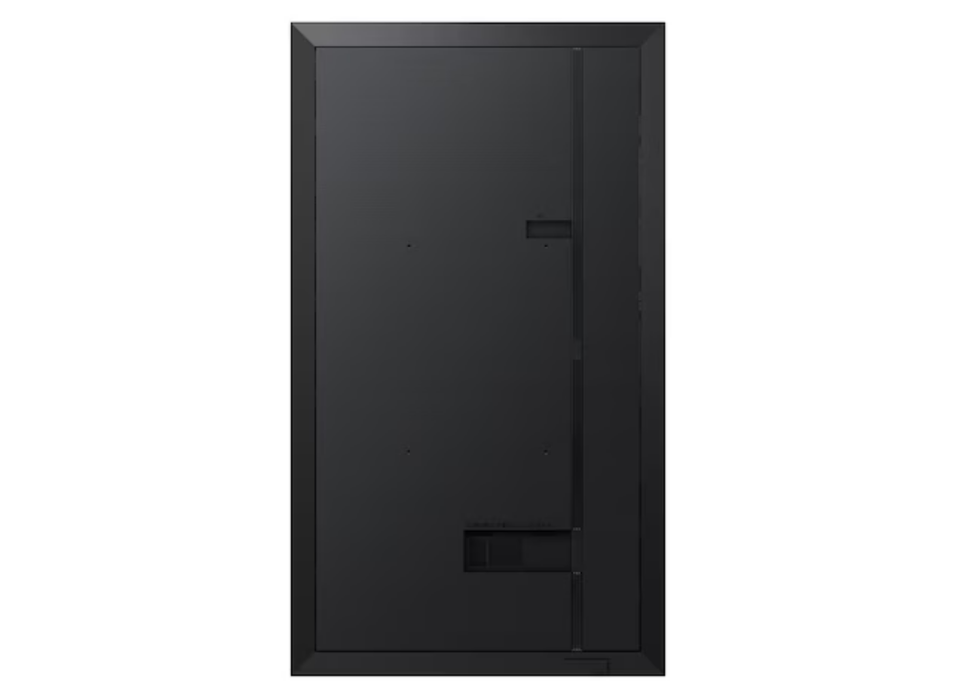

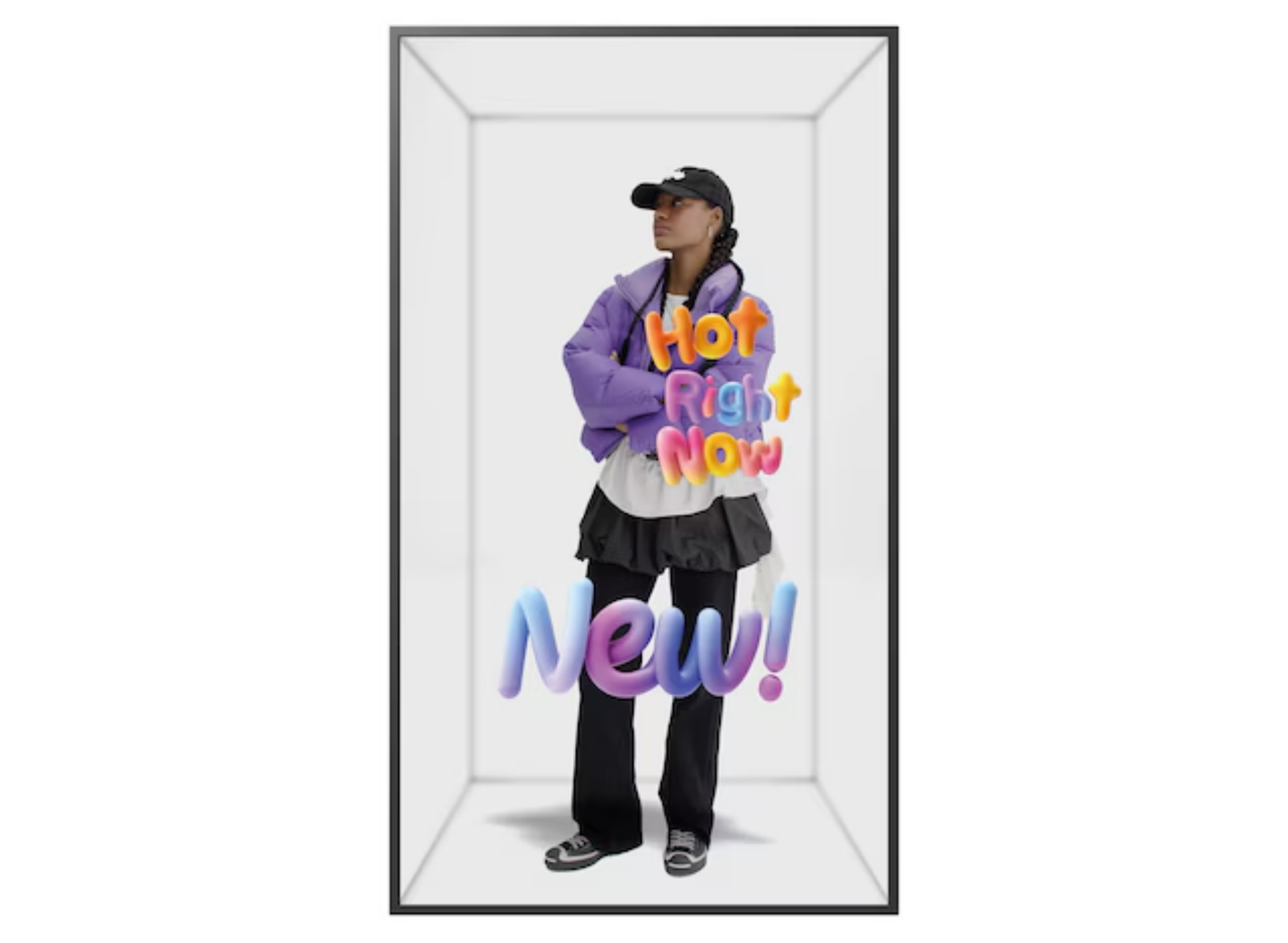

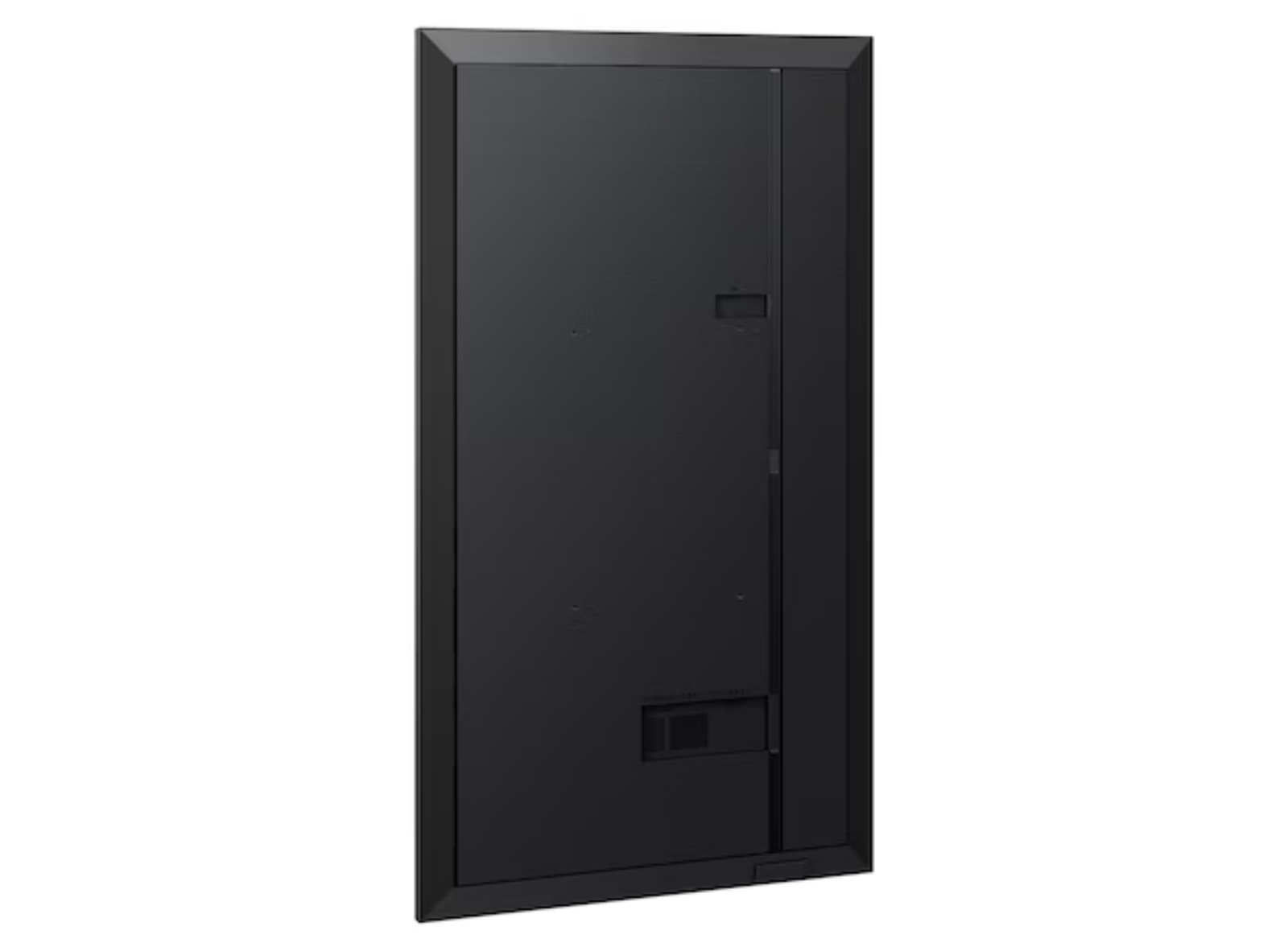

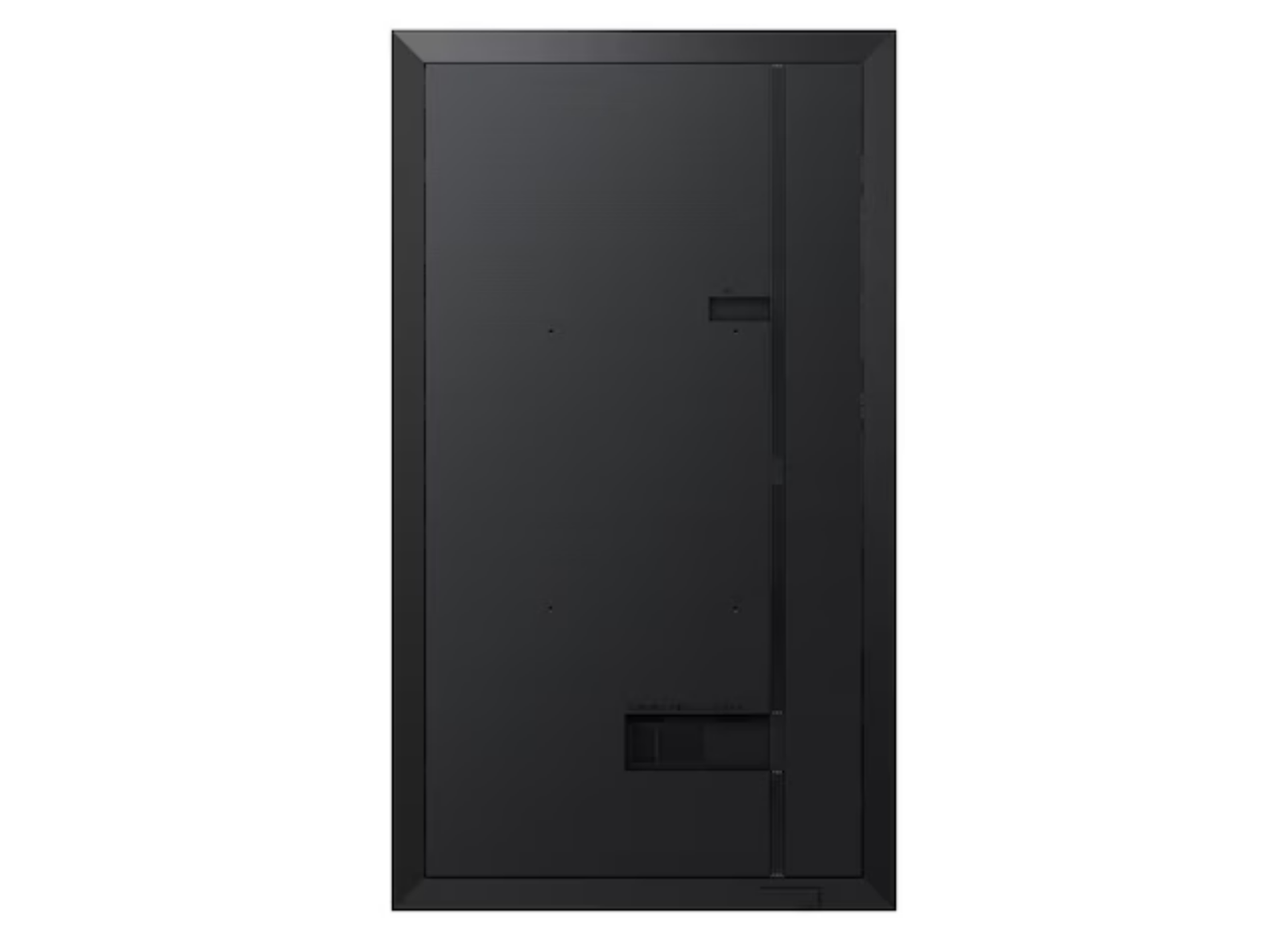

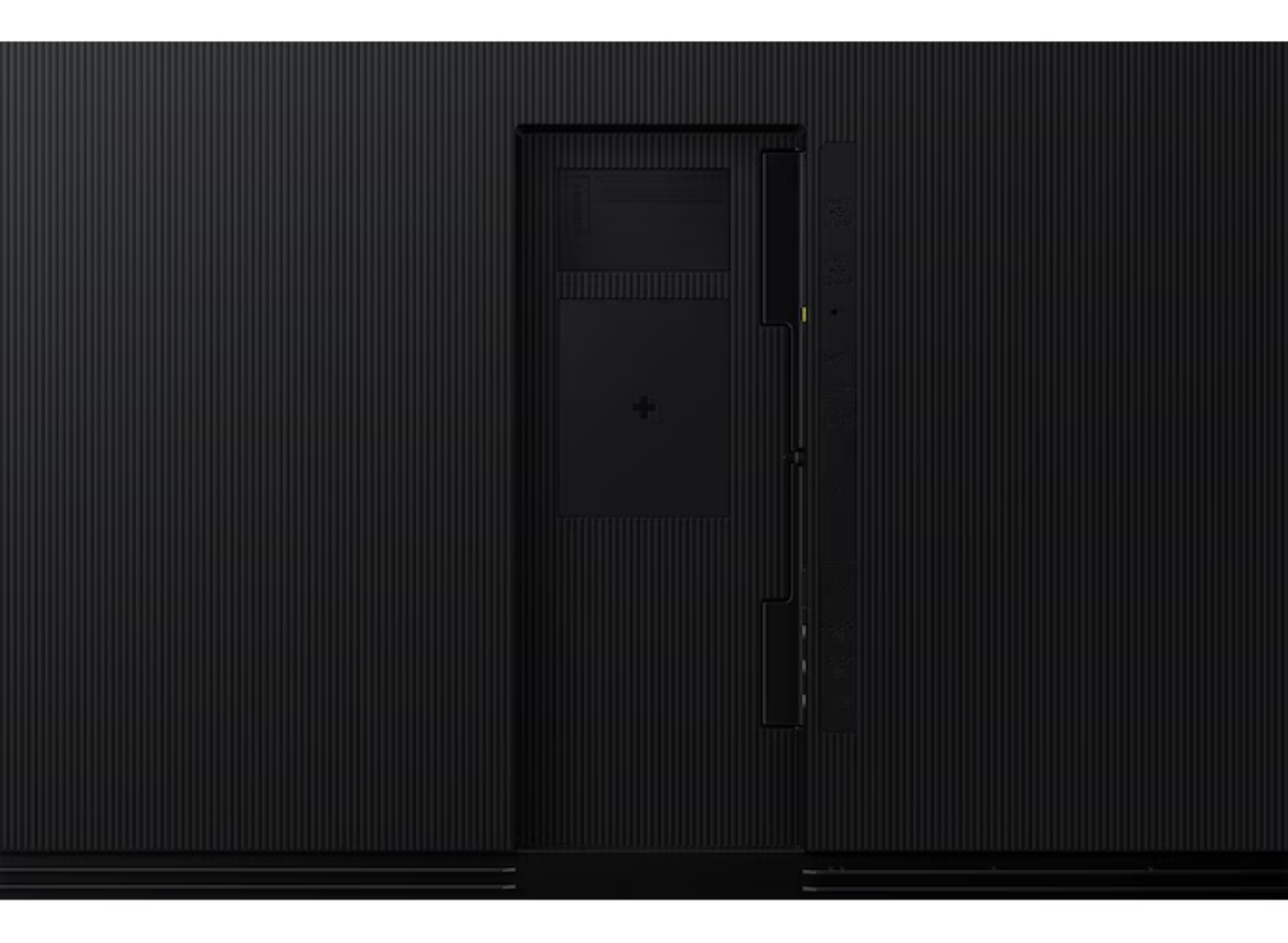

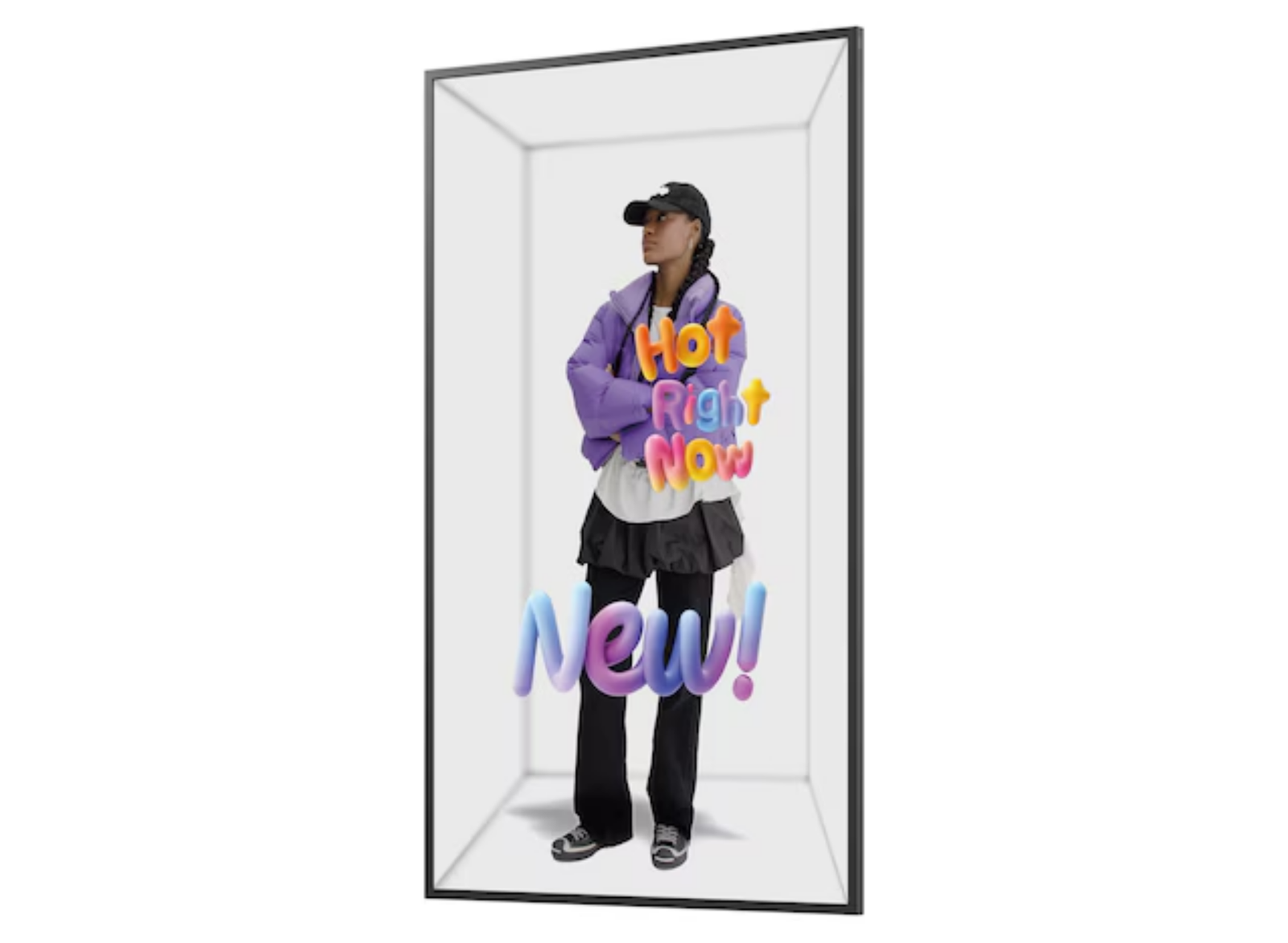

Samsung SM85HX Gallery
Explore the Samsung 85" Spatial Display.
Product imagery showing the Samsung SM85HX Virtual 3D Spatial Display, its slim commercial design and immersive signage format.
Commercial Applications
Where can the Samsung SM85HX Spatial Display be used?
The combination of virtual 3D, an 85-inch 4K panel, 500 nit brightness and continuous commercial operation makes the SM85HX particularly suited to premium environments where visual impact is a priority.
Retail
Create attention-grabbing product campaigns, launches and experiential retail displays.
Explore Retail SignageHospitality
Use immersive visual content in premium hotels, venues, restaurants and experience-led spaces.
Explore HospitalityBrand Showrooms
Present products and branded experiences using large-scale virtual 3D content.
Explore Samsung DisplaysAutomotive
Create immersive vehicle launches, model presentations and showroom brand experiences.
View Samsung SignageExhibitions & Events
Build high-impact visual installations for trade shows, launches and experiential events.
View Professional DisplaysProfessional Installation
Add professional mounting, cabling and AV integration to the Samsung SM85HX.
View Installation Services
Spatial Signage in Action
See how Samsung Spatial Display technology transforms commercial content.
Create more engaging visual experiences.
The Samsung SM85HX is designed for businesses that want digital signage to become a focal point of the physical environment.
Its combination of virtual depth, large-format 4K imagery and professional signage management provides a distinctive platform for premium campaigns.
Built for professional digital signage environments.
The 24/7 commercial specification, Tizen operating platform, professional connectivity and cloud-management compatibility give the SM85HX the infrastructure required for permanent business use.
Frequently Asked Questions
Samsung SM85HX LH85SMHPBGCXEN FAQs.
What is the Samsung SM85HX LH85SMHPBGCXEN?
The Samsung SM85HX LH85SMHPBGCXEN is an 85-inch professional 4K UHD Spatial Display designed to create virtual glasses-free 3D experiences for commercial digital signage.
Is the Samsung SM85HX a 3D display?
Yes. The SM85HX uses Samsung Spatial Display technology to create a virtual 3D visual effect from compatible content.
Does the Samsung SM85HX require 3D glasses?
No. It is designed to provide its spatial visual experience without conventional 3D glasses.
What resolution is the Samsung SM85HX?
The SM85HX has a native 3840 x 2160 4K UHD resolution.
How bright is the Samsung SM85HX?
The display has a typical brightness of 500 nit.
What panel type does the SM85HX use?
The Samsung SM85HX uses an 85-inch VA panel with a 4,000:1 static contrast ratio.
Can the Samsung SM85HX operate 24/7?
Yes. The display supports 24/7 commercial operation.
What operating system does the Samsung SM85HX use?
The SM85HX uses Tizen 7.0 and includes 16GB of flash memory.
Does the Samsung SM85HX have Wi-Fi?
Yes. The display includes both Wi-Fi and Bluetooth connectivity.
Does the SM85HX support Samsung VXT?
Yes. The display supports Samsung VXT for compatible cloud-based content and device management. VXT requires separate purchase and availability can vary by region.
What is Samsung AI Studio?
AI Studio is designed to help businesses create spatial-style video content from images and prompts. It requires separate purchase.
What VESA mount does the Samsung SM85HX use?
The Samsung SM85HX uses a 400 x 600mm VESA mounting pattern.
How thin is the Samsung SM85HX?
The Spatial Display has a specified depth of 52mm.
What are the dimensions of the Samsung SM85HX?
The set measures 1101.2 x 1920.2 x 52.0mm.
How much does the Samsung SM85HX weigh?
The display weighs 49kg without packaging and 61.9kg packaged.
What connections does the Samsung SM85HX have?
The display includes three HDMI inputs, DisplayPort, two USB ports, RJ45 LAN, RS-232 input and output, IR input, Wi-Fi, Bluetooth and stereo mini-jack audio output.
Where can I compare other Samsung professional digital signage?
Browse the ScreenMoove Samsung Digital Signage collection to compare the SM85HX with other Samsung professional displays.
Where can I download the Samsung SM85HX manual?
Download the Samsung SM85HX user manual directly from the ScreenMoove-hosted product documents.
Samsung Spatial Signage
Is the Samsung SM85HX right for your project?
The Samsung SM85HX LH85SMHPBGCXEN combines an 85-inch 4K UHD VA display, 500 nit brightness, virtual glasses-free 3D, Quantum Processor image enhancement, Tizen 7.0, Samsung VXT compatibility, SmartThings Pro integration and reliable 24/7 commercial operation.
Technical Highlights
- Display size / Screen sizes
- 85"
- Resolution
- Ultra HD (4K)
- Panel type
- VA Panel
- Screen type
- Flat
- Brightness
- 500 cd/m2
- Response time
- 10ms
- Screen ratio
- 16:9
- Refresh rate
- N/A
- Display orientation
- Landscape & Portrait
- Operating hours
- 24/7
- Operating system
- Tizen OS
- Player features
- USB Plug and Play
- VESA patterns
- 400x600
- Warranty
- 3 Year Warranty
Samsung SM85HX 85” 4K Ultra HD Virtual 3D Spatial DisplaySKU: LH85SMHPBGCXEN
£9,199.60
See Before You Decide
Book a Free Product Demonstration
Compare picture quality, touchscreen performance, software and connectivity with guidance from a commercial display specialist.
Remote or on-site
No obligation
Expert-led session
For Integrators and Resellers
Open a Screen Moove Trade Account
Access project pricing, volume discounts, product sourcing support and faster commercial quotations for your client projects.
Trade pricing
Project support
Volume discounts
Education & Public Sector
A simpler procurement route for schools and public organisations
Access education pricing, purchase-order support, installation services and account management for schools, academies, colleges, universities, NHS organisations, councils and government bodies.
Purchasing for a school, academy, university or NHS organisation?
Register your organisation to request institutional pricing and
purchase-order support.
Register Your Organisation
Trusted Store Status
Top Quality Store
Rating status, Exceptional, based on Google’s shopping experience metrics.
Why it matters
Demonstrates consistently strong fulfilment, service, and post-sale experience across Google signals.
Google
Top Quality Store
Built for confidence, next-day delivery options, UK-based support, trade-ready operations.
Request a quote
JO
Josh
Jan 6, 2026
Great products and service! The guys always go above and beyond to make sure they supply you with the product that best fits your needs. I’ve been using Screen Moove for a number of years now and woul...
See moreSD
Sandy Dobson
Nov 28, 2025
Verified
Screen Moove went above and beyond for my requirements. Ordering system was super easy it just take 2 minutes to complete my order and I have received my tracking details right away after few minutes...
See moreS
St Peter's Church
Dec 17, 2025
Moe Khan, one of the team at Screen Move has been a fantastic help as we have navigated the process of choosing and buying screens and stands for our church. Helpful at every step of the way, patient...
See moreFS
Furniture Store
Nov 27, 2025
We originally planned to purchase a cheap TV for our showrooms. After speaking with screen moove, we ended up investing in floorstanding displays across multiple retail sites and showrooms. The bright...
See moreFT
Felix Thomas
Sep 4, 2025
Verified
I placed my order late at night but realized I had entered the wrong address. I immediately sent an email asking for it to be changed, not really expecting a reply until the next day. To my surprise,...
See moreAS
ava singh
Aug 27, 2025
Verified
I’ve been looking ultra high brightness display despite I checked everywhere I didn’t trust. They got my trust and I ordered. It arrived safely next day we have installed screen is awesome and high qu...
See moreGK
Glenn Khan
Nov 27, 2025
Verified
This is second time I used Screen Moove, I have bought double sided 55 inch display. The first order was a bit delayed I don't blame it might be happen, but customer service over the phone was excell...
See moreBY
Burcu Yesilova
Feb 12, 2025
Screenmoove, perfect customer satisfaction from start to finish! Their customer service is incredibly helpful and fast. It’s amazing to be able to reach out and get quick solutions for any issue. We a...
See moreTE
Tina e Edwards
Dec 17, 2025
We found that we needed a video call to work out the set up. The tech team at screenmoove were very very good. I would suggest that the instructions that come with the screen offer two key info. 1. Set...
See moreMA
Miss Akthar
Nov 21, 2025
Verified
Great experience with Jonathan Gray, previously I was looking for other companies and randomly ordering our needs from elsewhere. after I met with him, since 2024 we are keep purchasing from screen m...
See moreGet in touch
Speak directly with Screen Moove about your display, digital signage, meeting-room or AV project.
Need help choosing the right product?
Speak directly with a dedicated Screen Moove expert and get the right solution first time.
Call us: 020 8191 9223
Email: info@screenmoove.com
Contact us
Simply complete our contact form, and we will promptly respond to your inquiries.
If you have any questions or enquiry, please fill out the form below with all of your details and we'll get back to you shortly.
Ready to start your next AV project?
Contact our team of experts today!
