Samsung WM55R / LH55WMRWBGCXEN 55" 4K Interactive Display

Multi Writing: Enjoy the convenience of multi-writing capabilities, allowing multiple users to write or interact with the display simultaneously, fostering collaboration and engagement.

Versatile Connectivity: The display offers versatile connectivity options, ensuring compatibility with a wide range of devices and sources, making it suitable for various applications.

Powerful Touch Function: Experience powerful touch functionality that provides fast and responsive interactions, enhancing the user experience and productivity.

• Description
• Specifications
• Warranty

• Draw, write & inspire new ideas
  Pen mode notation
  Samsung Flip provides users with a smooth and familiar pen to paper writing experience in a variety of available colours, styles and widths. Up to 4 people can write simultaneously, using any object as a writing tool. In addition, users can quickly erase the drawings with a finger or palm swipe.

  Creating a masterpiece
  Brush mode notation
  On Brush mode, Samsung Flip recognises a wide range of thicknesses, ensuring users can create art at the stroke of a brush. Water and oil painting modes allow different styles and textures, while the Flip also gives users a full, vibrant colour palette, even allowing flexible colour mixing.

  Write on any background
  Annotation on
  Samsung Flip allows users to write on any background source. By simply clicking the note layer button, users can enjoy smooth writing anytime, anywhere on any content displayed, without affecting any work behind the original layer.

  Flexible image editing
  Selection tool & Merge to roll
  Bringing versatility to the board. With Samsung Flip, users can quickly and easily select, move, crop, capture and edit any images. Each image can also be merged to the roll with just one click of a button, allowing it to be edited or erased.

  Suitable for all business needs
  Various form options
  Samsung Flip can be used for a wide range of business applications, providing embedded versatile templates. You can use the Flip as a calendar, scheduler, note or checklist board. Samsung Flip perfectly matches any business need, enabling users to utilise the display in various customised ways.

  Easy content navigation & protection
  Scroll & Lock
  Samsung Flip has up to 20 pages of writing space per roll, allowing users to seamlessly scroll through pages. In addition, the Flip ensures that confidential meeting information remains in the right hands. Its reinforced lock system allows users to safeguard sensitive content from view.

  Multiple connection options
  Versatile connection

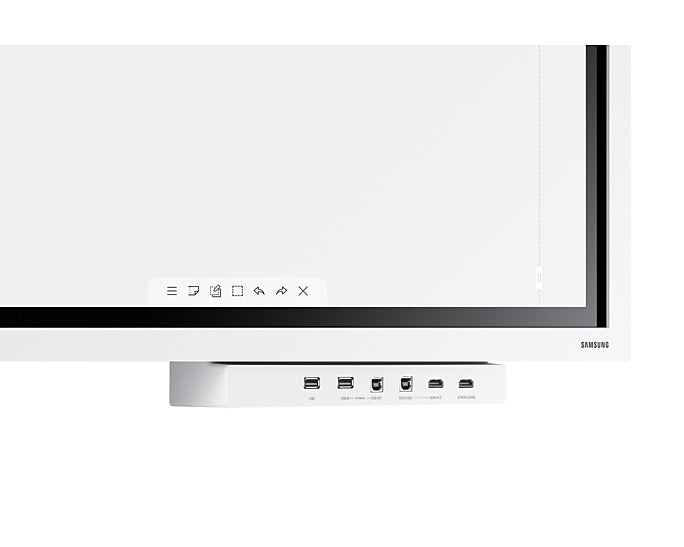

  Users are empowered by the Flip’s versatile connection options. USB, HDMI, NFC and screen sharing capabilities enable optimum collaboration and provide interactive content visibility, notation and sharing. The Flip also offers an optional tray as a more powerful connectivity extension.

  Synchronised screen viewing
  Touch out
  The touch out functionality allows users to sync their personal devices with the Samsung Flip, allowing real-time content sharing and control. Any changes made on the Flip display will be mirrored on the connected device, and vice versa, for efficient collaboration.

  Connect from anywhere
  Remote PC & Bluetooth support
  To help create more efficient meetings, the Samsung Flip can connect to a PC remotely, eliminating the need for additional devices in the room. Users can also connect a keyboard, mouse to the display directly via Bluetooth connection, enabling better productivity and collaboration.

  Large audience sharing
  Screen share
  Users can project content on Samsung Flip to another large digital display in real-time, using Wi-Fi network or HDMI out connection. Even connected to a personal device, the Flip display can be shared. This feature is ideal for large meeting environments, delivering information to bigger audiences.

  Effortless meeting recap distribution
  Easy sharing
  Following any meeting, users can distribute recaps to all attendees and colleagues, removing the frustration traditionally associated with handwritten meeting notes. Important conversations and content are stored within the Flip in real-time, easily shareable across mobile and digital channels.

  Precise visuals with powerful operation
  UHD display & Tizen OS
  Samsung Flip displays all content in clear UHD picture quality, regardless of the room, creating a compelling meeting environment. Backed by the powerful Tizen 5.0 operating system for a seamless user experience, embedded sensors automatically activate the display when the screen is knocked.

  Convenient, optimised management
  Advanced convenience
  Samsung Flip offers a host of improved capabilities, including secure wireless connection, automatic firmware updates, LDAP synchronisation, file security and remote management – ensuring a convenient and productive meeting experience.

  Enhanced new design
  The new, slim stand for Flip 55” offers increased working space in front of the display and more convenient ways to position and store than previous models. Its enhanced, hinge assembly structure enables easy setup and efficient stocking.



• Feature	Specification
  Display
  Diagonal Size	55"
  Panel Type	New Edge, 60Hz
  Resolution	3,840 x 2,160
  Pixel Pitch (HxV)	0.315 x 0.315
  Brightness (Typical)	350cd/m2 (220cd/m2 with glass)
  Contrast Ratio	4,000:1
  Viewing Angle (Horizontal/Vertical)	178/178
  Response Time	8ms
  Colour Gamut	72%
  Glass Haze	2.3% (without glass)
  Connectivity
  HDMI In	2
  USB	1
  Audio Out	Stereo Mini Jack
  RS232 In	Yes
  RJ45 In	Yes
  WiFi	Yes
  Bluetooth	Yes
  Power
  Power Supply	AC 100~240V 50/60Hz
  Power Consumption (On Mode)	154W
  Power Consumption (Sleep Mode)	0.5W
  Dimension
  Set Dimension (WxHxD)	1297.4 x 768.2 x 59.9 mm
  Package Dimension (WxHxD)	1464 x 915 x 190 mm
  Weight
  Set Weight with Stand	28.6 kg
  Package Weight	35.20 kg
  Operation Conditions
  Temperature	0℃ ~ 40℃
  Humidity	10 ~ 80%, non-condensing
  Mechanical Specification
  VESA Mount	400 x 400 mm
  Bezel Width	26.2
  Frame Material	Plastic
  Optional Feature
  Touch	Yes
  Mount	WMN-4277SE
  Stand	STN-WM55R
  Touch
  Touch Technology	InGlass™
  Certification and Compliance
  EMC	Class B
  Safety	60950-1



• SAMSUNG SMART SIGNAGE STARDARD
  WARRANTY GUIDE
  SMART SIGNAGE

  1. Warranty Term
  Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

  Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

  2. Warranty Description
  Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

  During the warranty period, Samsung will, at its sole discretion,

  1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
  2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
  Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

  Service Response Turnaround Time (“TAT”):
  The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

  Service Response may take more than 1 business day depending on the case.

  Service Repair TAT:
  Service Repair means initial repair activity by Samsung or Samsung’s ASC.

  ※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

  Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

  In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

  Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

  3. Warranty Coverage
  This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

  All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
