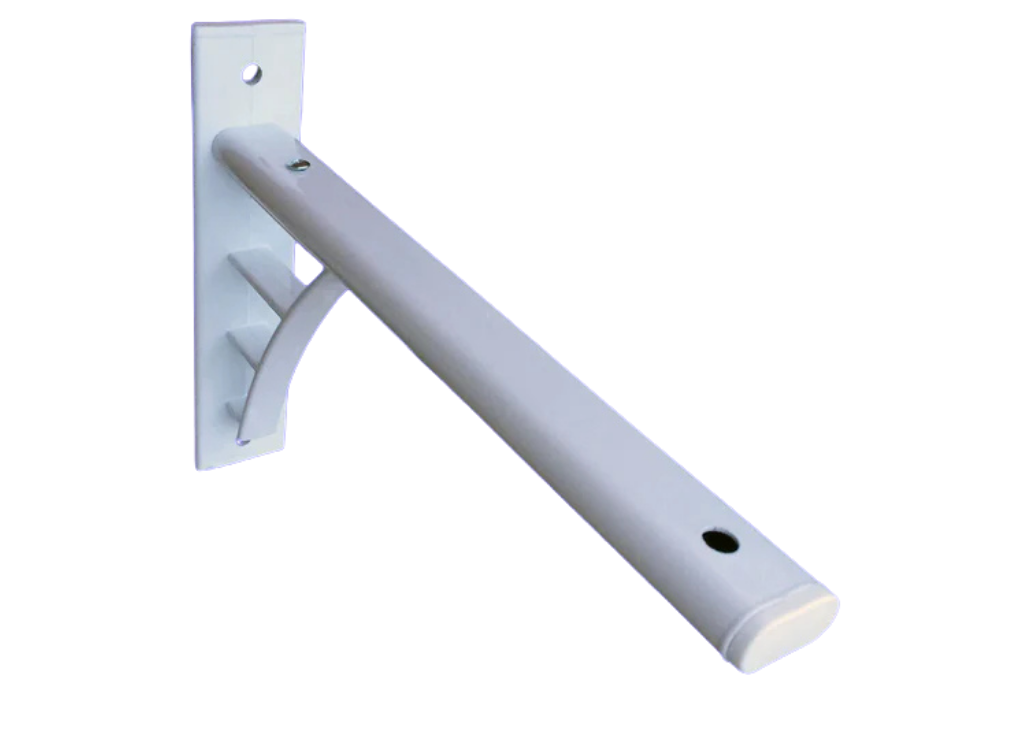

Sapphire (50cm) L Shape Extension Brackets | SSB50

Introducing our range of Screen Extension Brackets, specially designed to accommodate most projection screens up to 3000mm in length. These brackets are the ideal solution when you need to mount manual or electric screens on a wall at a distance from the screen cassette.

Key Features:
Suitable for most projection screens up to 3000mm in length.

Designed to fix manual and electric screens on a wall, providing distance from the wall to the screen cassette.

Manufactured from durable steel tube and painted white for a clean look.

Supplied with fixings to securely attach to the screen cassette.

Note: Wall fixings are not included; you will need to procure them separately.

Each bracket is provided in pairs, offering stability and balance during installation.

The wall supporting arm measures approximately 22cm.

Load Capacity:
Our 50cm brackets are rated to hold a maximum working load of 20KG each, making it a total of 40kg per pair.

For your assurance, we conducted individual load tests, and the brackets withstood up to Wall supporting arm approx 22cm. The safe working load for each bracket is 20kg each side making 40kg total for the screen..

They have been tested to destruction at 80kg each making 160kg for the pair. (Use only
working load as above).

Quality and Reliability:
We take pride in providing high-quality products, and our Screen Extension Brackets are no exception. Each bracket is designed to withstand heavy loads and perform exceptionally.

Our testing process involved destructive tests, and the brackets proved their strength and
durability.

For additional peace of mind, you can view the certificate confirming the successful load tests by clicking below.
