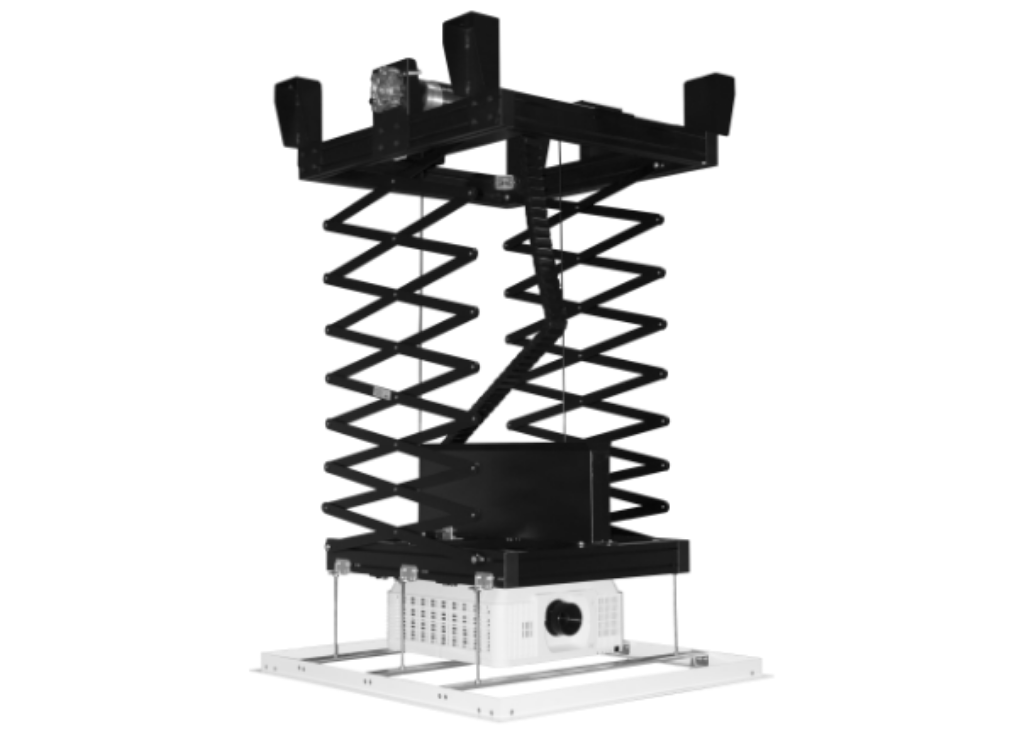

Screen International SI-H-XL300 300cm Projector Lift - For Up To 70Kg Screens
The heavy PROJECTOR LIFT SERIES SI-H XL 300 is a very strong and reliable new range of lifts specifically developed for large venue applications where large projectors need to be moved. These lifts are equipped with heavy-duty but silent motor which assures a fast and stable up-down movement of the projector. Also a SAFETY DEVICE is built-in in order to offer maximum security in case of any failure of the mechanism. The projector anchoring frame movement is controlled by two strong steel cables that are certified for a maximum load of 350 kg. each. A unique and professional cable management system is supplied integrated in the product. This allows to connect safely and tidily the projector with the power and signal cables.
| Category | Detail |
|---|---|
| Power Supply | 220–230V – 50Hz |
| Maximum Consumption | 360 W |
| Torque | 80 Nm |
| Motor Speed | 12 rpm |
| Dimensions Closed (WxHxD) | 847 x 601 x 910 mm |
| Dimensions Opened (WxHxD) | 847 x 3601 x 910 mm |
| Roll Up Speed | 17 sec/m |
| Roll Down Speed | 22 sec/m |
| Maximum Load of Projector | 95 kg |
| Net Weight | 71 kg |
| Cable Gathering System (WxH) | 50 x 18 mm (internal dimensions) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
