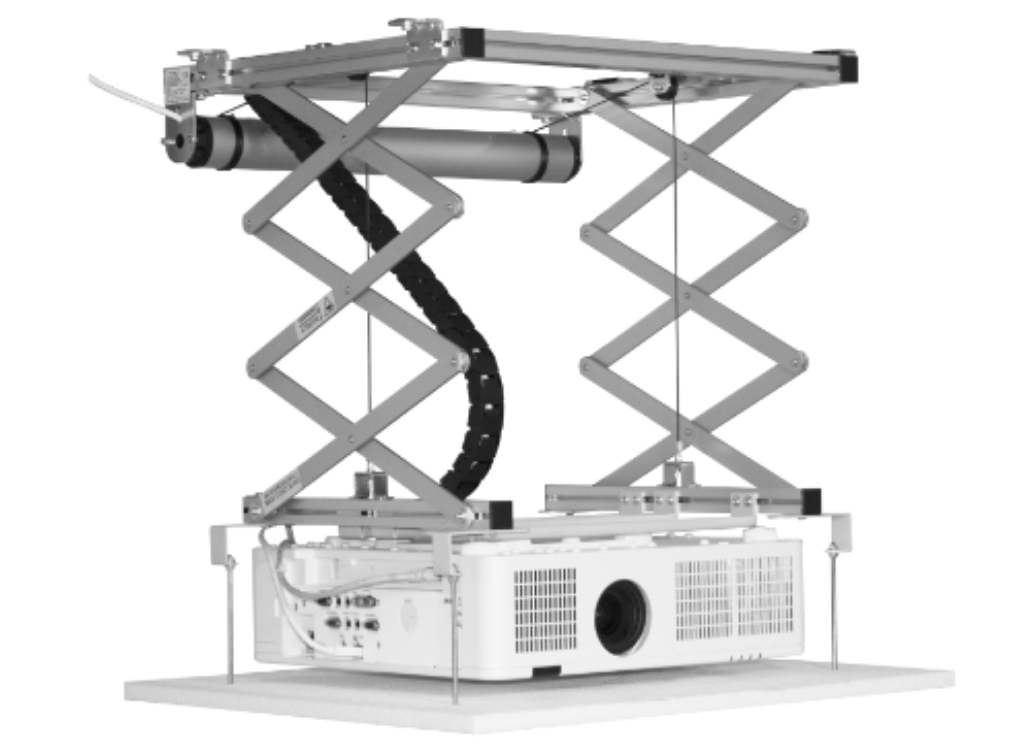

Screen International SI-HL100 97cm Projector Lift - For Up to 30Kg Projectors
The PROJECTOR LIFT SI-H L 100 is studied in order to support large and heavy video projectors up to 30 Kg. of weight. The SI-H L 100 is supplied with an extremely silent motor that allows a descent from a minimum of 14 cm. to a maximum of 97 cm. Moreover it is supplied with extendable side brackets in order to allow an easy fixing of the panel of your false ceiling by adjustable threaded bars. The panel can be mounted under the projector, even if the projector is larger as the lift itself. The lift SI-H 100 is equipped with two safety screws that prevent the lift to extent further to the preset end stop.
* Ceiling cover plate is NOT included
| Category | Detail |
|---|---|
| Power Supply | 220–230V – 50Hz |
| Maximum Consumption | 184 W |
| Torque | 20 Nm |
| Motor Speed | 17 rpm |
| Lift Closed Dimensions (WxHxD) | 575 x 155 x 554 mm |
| Lift Opened Dimensions (WxHxD) | 575 x 970 x 554 mm |
| Max Fixing Points of Projector (WxD) | 398 x 372 mm |
| Max Overall Size of Projector (WxD) | 570 x 600 mm |
| Maximum Load | 30 kg |
| Net Weight of Projector Lift | 12 kg |
| Cable Gathering System (WxH) | 20 x 18 mm (internal dimensions) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
