The workspace essential
Driving down costs without compromising quality, the desktop E Series presents all the reliable performance you expect from Sharp, against a very competitive price tag.
With user comfort prioritised, workspace ergonomics is a key design feature. Height adjustability to 120 mm with swivel, tilt and pivot functionality ensures a personalised set up, whilst built-in Low Blue Light and Flicker-Free technology protects the viewers’ eyes without sacrificing best picture quality. Available in black or white, choose the best fit to complement your office setting and ergonomics – white displays reduce the impression of tunnel vision when in front of white walls.
With a fresh On-Screen Display (OSD) design, users benefit from highly intuitive operation, saving time and frustration during set up and adjustment. This Full HD display with VA screen technology is well placed to equip the home office and small to medium sized businesses for general office applications.

Benefits
Cost and time saving operation – based on an intuitive OSD design making set-up simpler.

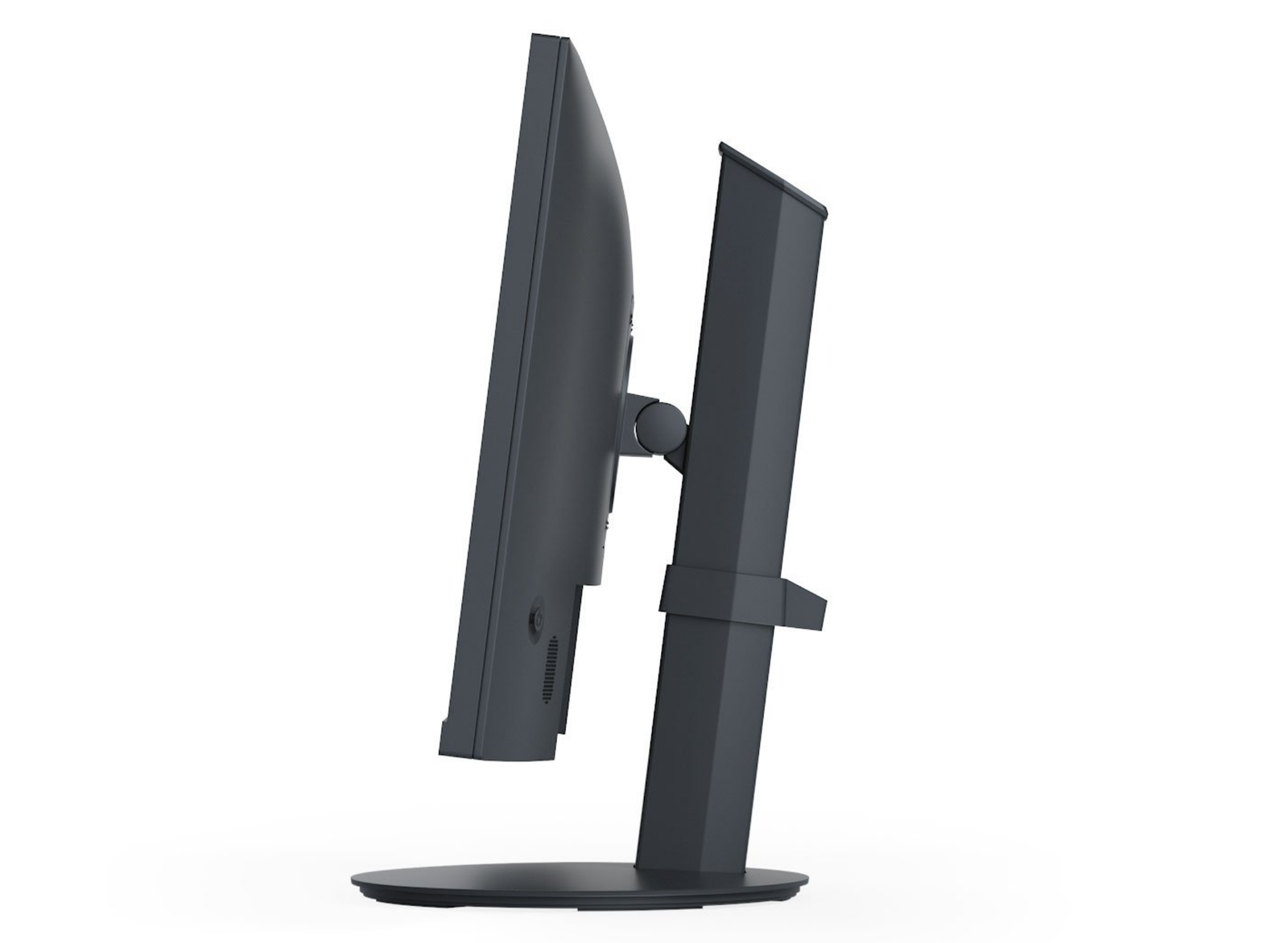

Ergonomic Office – full height adjustability (120 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
Black and white colour versions – white is is considered to reduce the impression of tunnel vision when placed in front of a white background such as office walls.
Safeguarding user wellbeing – built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting the users’ eyes against cataracts and macular degeneration.
Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
| Panel Technology | VA TFT with W-LED backlight | Screen Size [inch/cm] | 22 / 55 |
| Screen Aspect Ratio | 16:9 | Pixel Pitch [mm] | 0.249 |
| Brightness (typ.) [cd/m²] | 250 | Contrast Ratio (typ.) | 3000:1 |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) | Response Time [ms] | 6 |
| Colours [Mio.] | 16.77 | Vertical Frequency [Hz] | 50 - 75 |
| Optimum Resolution | 1920 x 1080 at 60 Hz | Digital Connectivity | 1 x DisplayPort; 1 x HDMI |
| Analog Connectivity | 1 x D-sub 15 pin | Power Consumption [W] | 10 (Eco Mode 2); 14 (typ.) |
| Power Savings Mode [W] | 0.22 | Power Supply | Integrated power supply |
| Operating Temperature [°C] | +5 to +35 | Operating Humidity [%] | 20 to 80 |
| Storage Temperature [°C] | -10 to 60 | Storage Humidity [%] | 10 to 85 |
| Height Adjustable Stand [mm] | 120 | Screen Tilt [°] | -5 to 25 |
| Screen Swivel [°] | 170 to -170 | Screen Rotate [°] | -90 to 90 (landscape to portrait mode) |
| Bezel Type | 3-sided Ultra Narrow Bezel | Bezel Width [mm] | 16.8 (bottom); 2.5 (left/right/top) |
| Dimensions (W x H x D) [mm] | 493.2 x 363.4 - 483.4 x 233.2 (Landscape mode) | Weight [kg] | With stand: 5.2; Without stand: 3.1 |

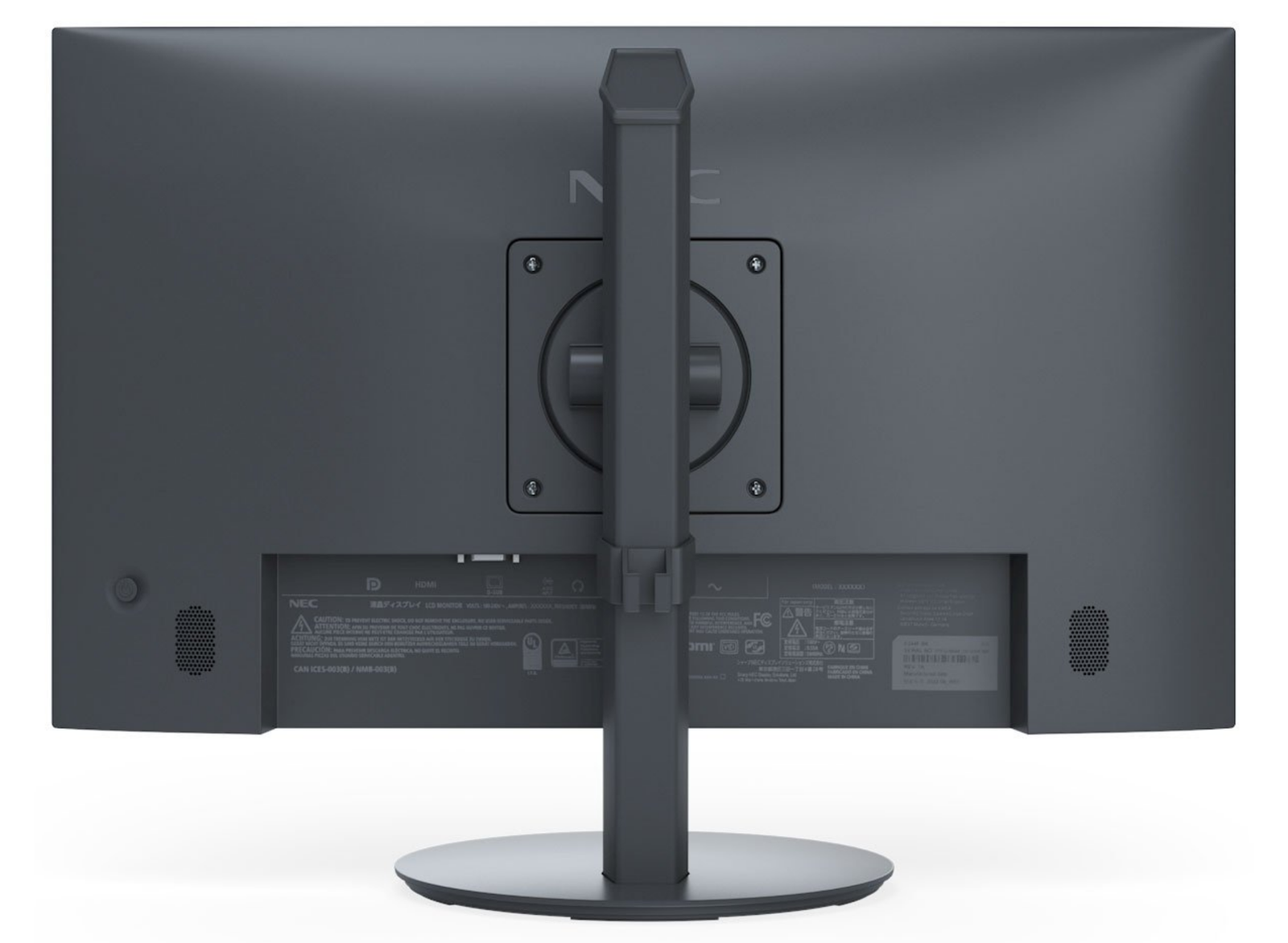

| VESA Mounting [mm] | 100 x 100 | Special Characteristics | Flicker Free; Low Blue Light |
| Colour Versions | Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet | Cable Management | Yes |
| Kensington Security Slot | Yes | Plug and Play | VESA DDC2Bi |
| Audio | 1W + 1W (De-activateable); Headphone Jack | Shipping Content | DisplayPort Cable; Power Cable; Setup Guide |
| Safety and Ergonomics | EnergyStar 8.0; Flicker-free; ISO 9241-307; Low Blue Light; RoHS; TCO 9.0; TÜV Ergonomics; TÜV GS; WEEE | Warranty | 3 years warranty incl. backlight |
| Energy Efficiency | Carbon footprint meter / Carbon savings meter; ECOMode; 12 kWh/1000h; Energy class: D | Ecological Standards | RoHS compliant |
| Description | Downloads |
|---|---|
| Sharp MultiSync® E224F 22" 60Hz 6ms Full HD LCD Enterprise Display | 60006220 Datasheet | Download |
