Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Benefits
Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.
Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
| DISPLAY | |||
| Panel Technology | VA with Direct LED backlights | Active Screen Area (W x H) [mm] | 1,095.8 x 616.4 |
| Screen Size [inch/cm] | 50 / 125.7 | Aspect Ratio | 16:9 |
| Pixel Pitch [mm] | 0.285 | Brightness [cd/m²] | 550 |
| Contrast Ratio | ≥ 8000:1 1 | Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] | 1.073 (10bit) | Colour Gamut | 72% of NTSC |
| Response Time (typ.) [ms] | 8 | Panel Refresh Rate [Hz] | 60 |

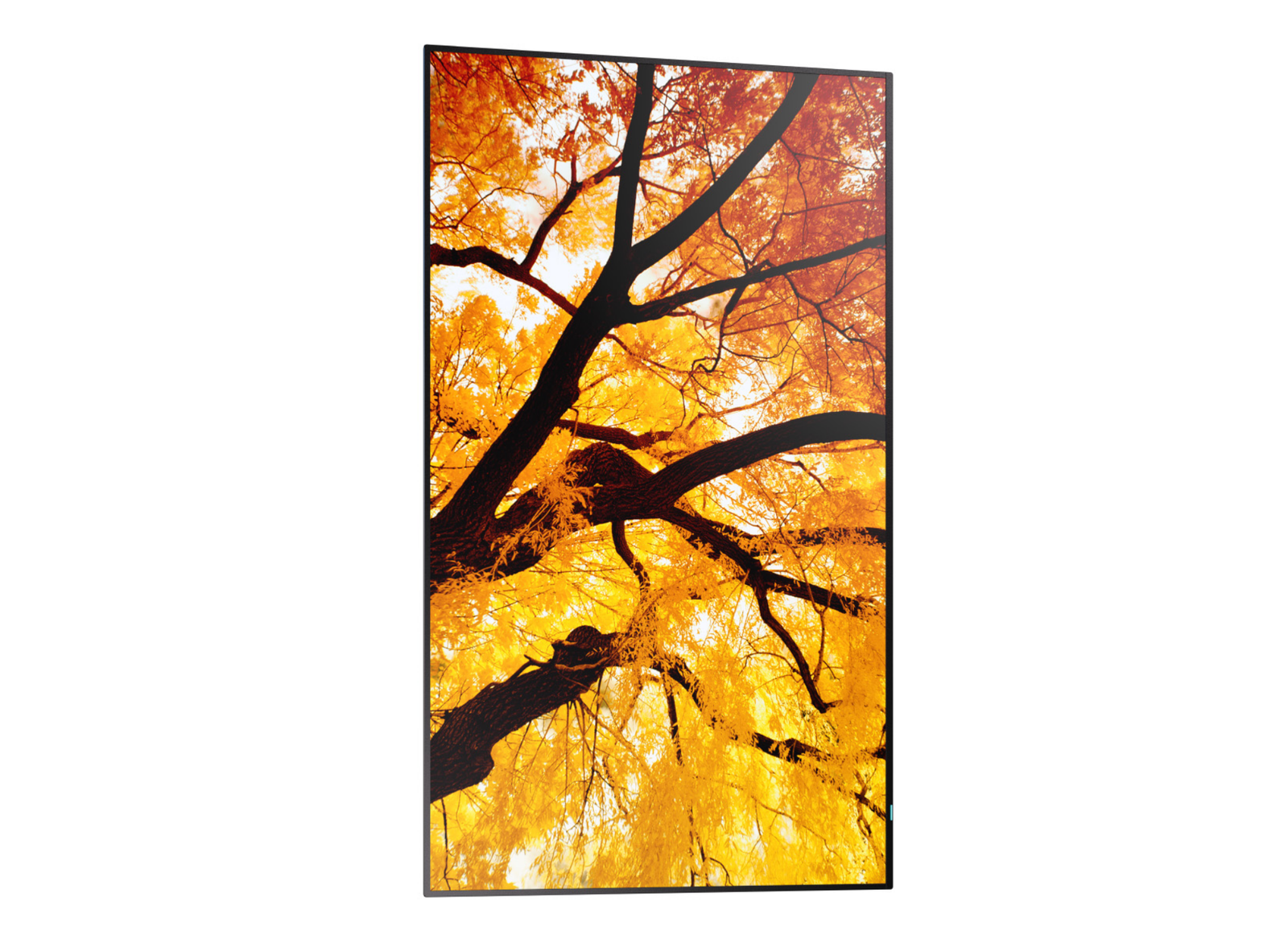

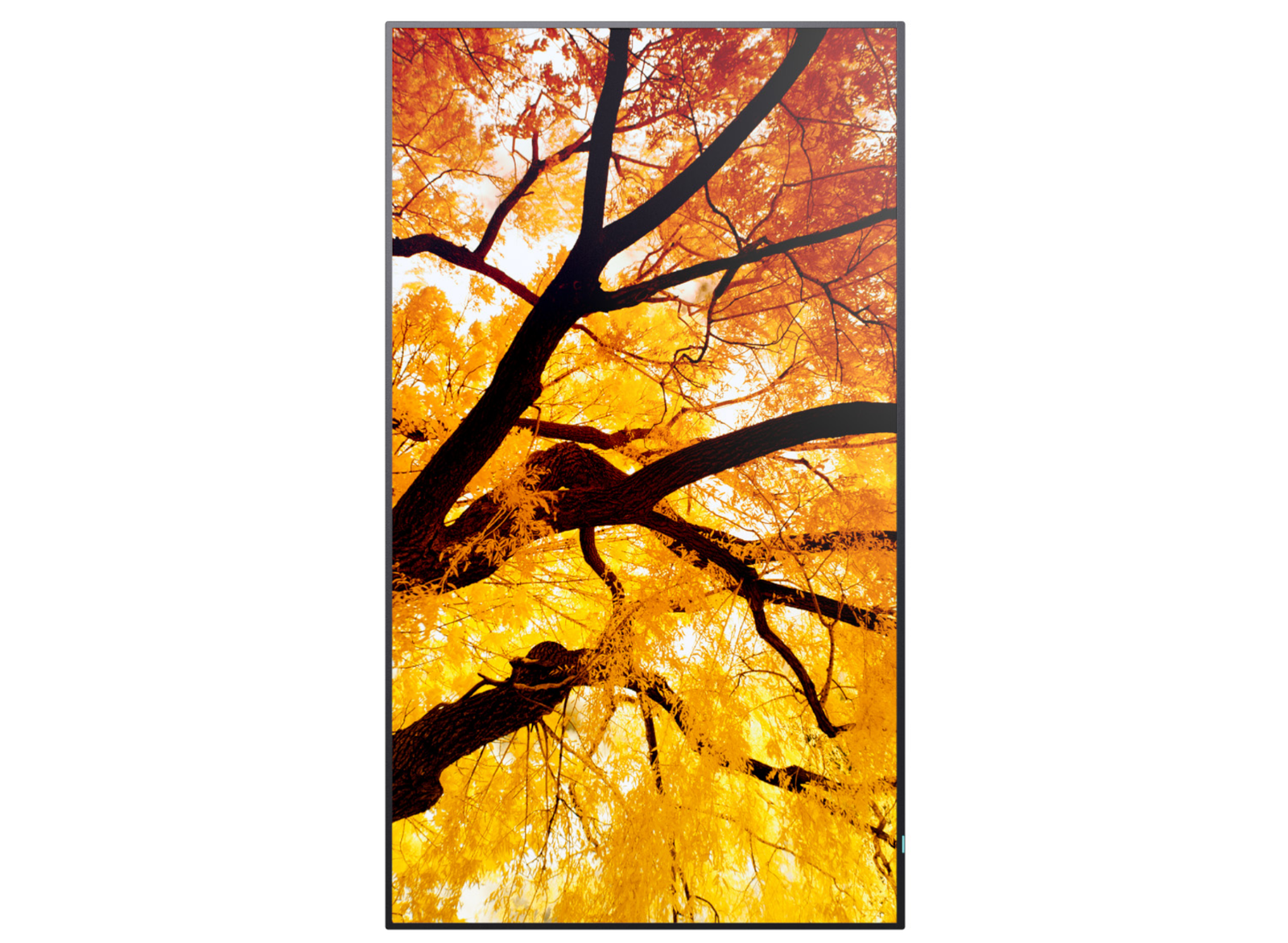

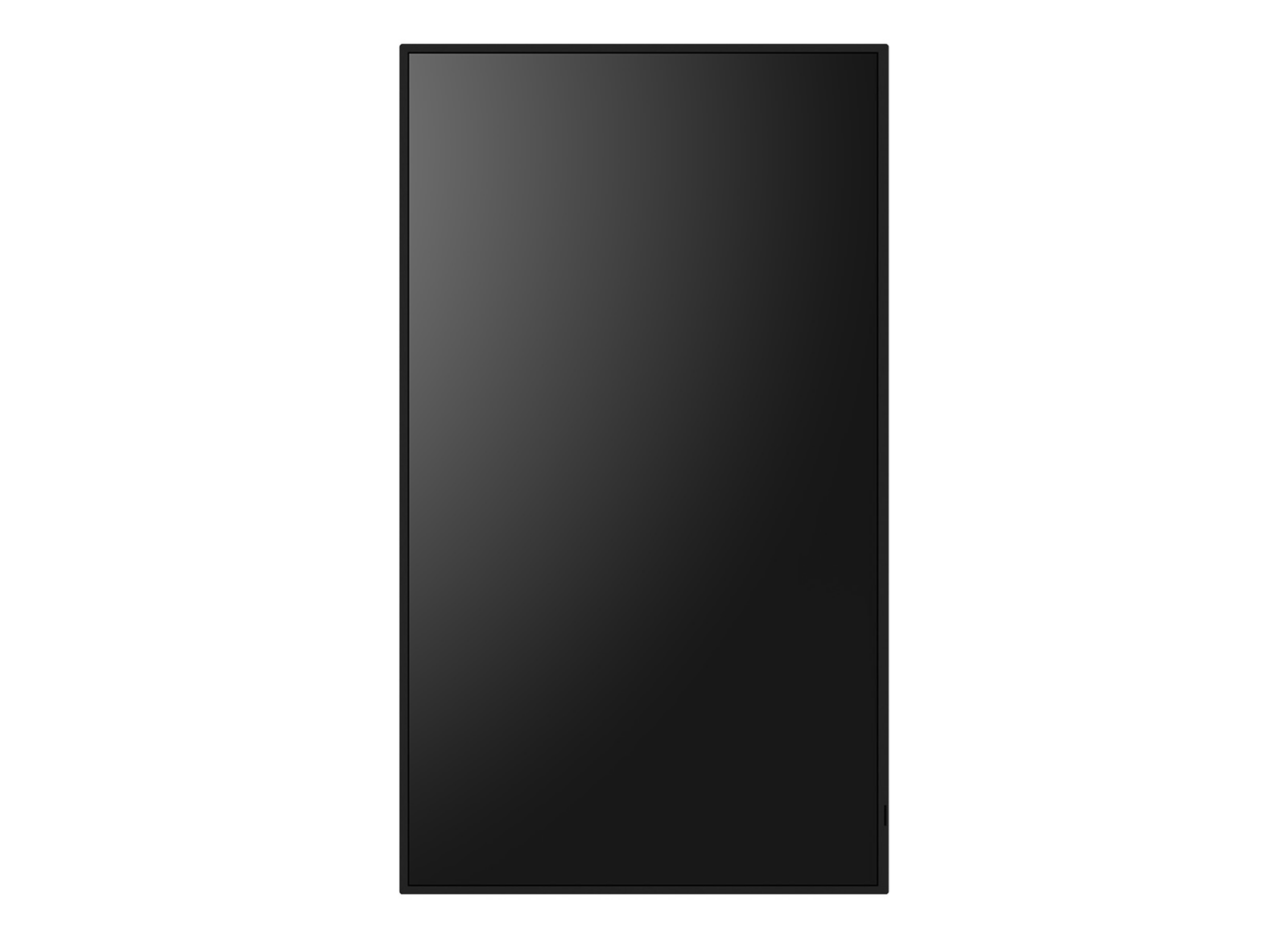

| Haze Level [%] | Pro (25) | Supported Orientation | Face Up 2; Landscape; Portrait |
| RESOLUTION | |||
| Native Resolution | 3840 x 2160 | Supported Resolutions | 1024 x 768; 1270 x 720; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600 |
| SYNCHRONISATION RATE | |||
| Horizontal Frequency [kHz] | 15 - 135 | Vertical Frequency [Hz] | 23 - 76 |

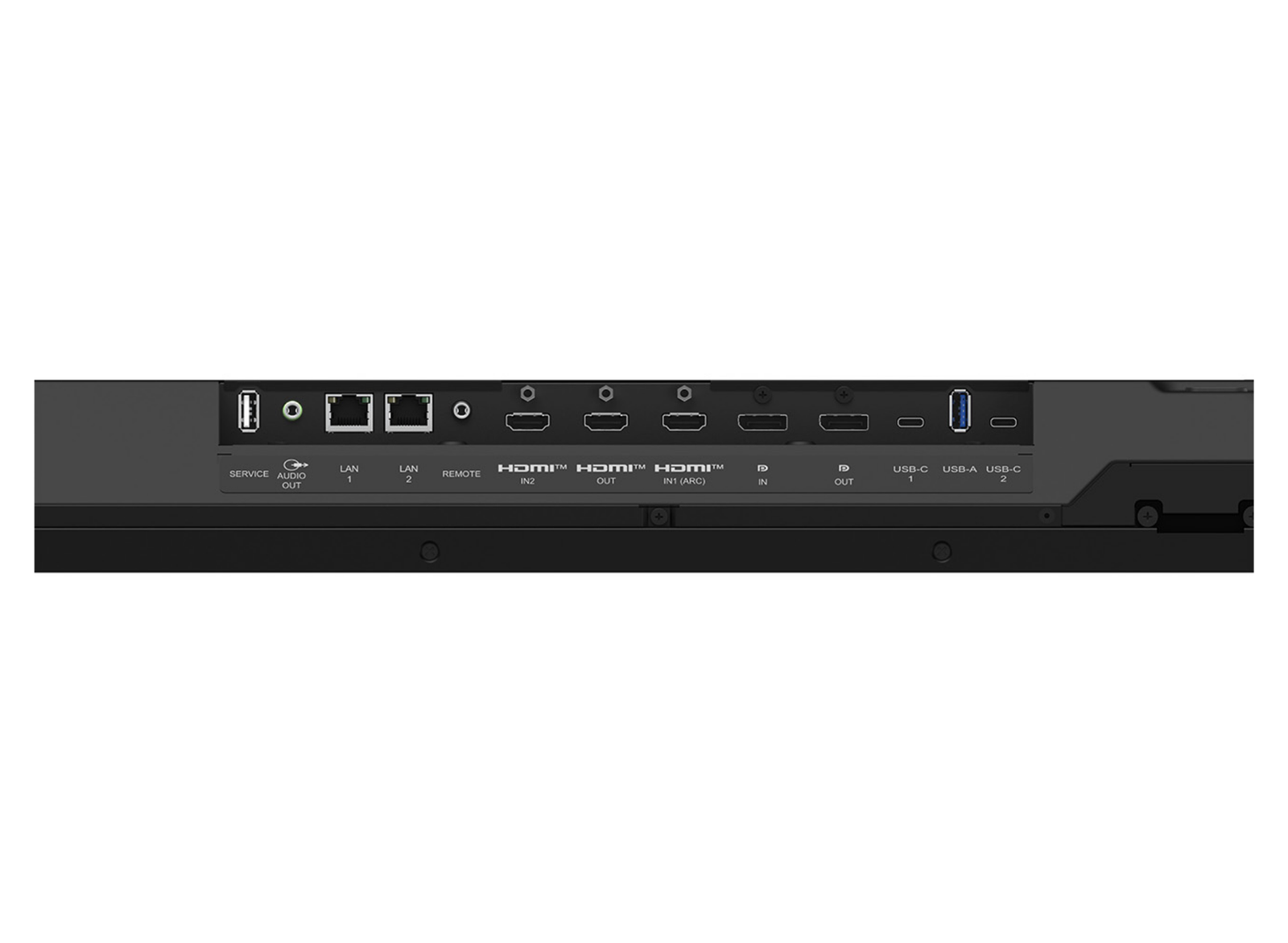

| CONNECTIVITY | |||
| HDMI IN 1 | Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC | HDMI IN 2 | Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC |
| HDMI OUT | Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module | DP IN 1 | Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input |
| DP OUT | Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2 | USB-A 1 | USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage |
| USB-A (Service) | 2.5 W; Service | USB-C 1 | Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W |
| USB-C 2 | USB 2.0 / 3.2; 7.5 W; Peripherals; Storage | Audio Output (3.5 mm) | Audio Output; Line Out |
| LAN 1 | 100 MBit/s | LAN 2 | Loop Through: LAN 1, RS-232C, IR; 100 MBit/s |
| RS-232C | 9600 bps | Remote In (3.5 mm) | Eco Sensor (IR-Extender, Ambient and Presence) |
| Input Detect | Custom; Last; First | PiP / PbP | 2-Split; Scalable picture size |
| CALIBRATION | |||
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point | Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software | Display Wall Calibrator | ||
| OPEN MODULAR INTELLIGENCE | |||
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W | Compute Module Slot | MPi4 and MPi5 Kit (powered by Raspberry Pi) |
| SENSORS | |||
| Ambient Light Sensor | Integrated, triggered actions programmable | Human Sensor | optional via Eco Sensor (KTES1) |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable | ||
| ELECTRICAL | |||
| Power Consumption [W] | 85 shipping | Power Savings Mode [W] | < 0.5; < 2 (Networked Standby) |
| Power Management | VESA DPMS | Power Supply | 100-240 V AC; 50/60 Hz; internal |
| ENVIRONMENTAL CONDITIONS | |||
| Operating Temperature [°C] | +0 to +40 | Operating Humidity [%] | 20 to 80 |
| Storage Humidity [%] | 10 to 80 | Storage Temperature [°C] | -20 to 60 |
| MECHANICAL | |||
| Dimensions (W x H x D) [mm] | 1,121.6 x 645.2 x 66.5 | Weight [kg] | 18 |

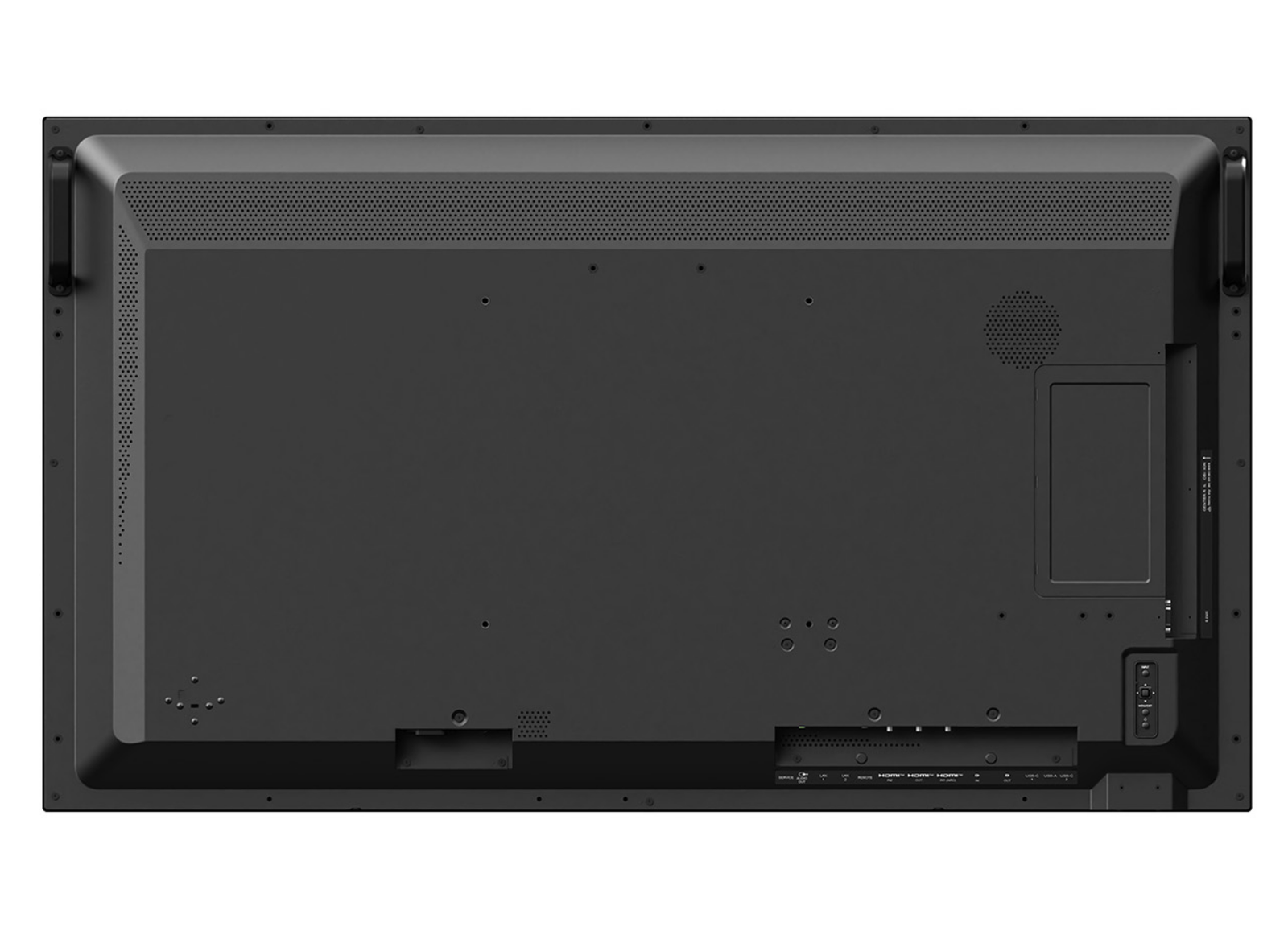

| Bezel Width [mm] | 10.9 (left, right and top); 13.9 (bottom) | VESA Mounting [mm] | 300 x 300 (FDMI); 4 holes; M6 |
| Ingress Protection | IP5x (front); IP2x (back) | Packaging Dimensions (W x H x D) [mm] | 1,245 x 785 x 188 |
| Packaging Weight [kg] | 23 | Material | Metal |
| AVAILABLE OPTIONS | |||
| Accessories | Eco Sensor (KTES1); Feet (ST-43M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P) | ||
| REGULATORY | |||
| Safety and Ergonomics | CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA | Pixel Failure Class | ISO 9241-307, Class 1 |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB | ||
| GREEN FEATURES | |||
| Energy Efficiency | Energy consumption: 81 kWh/1000 h; Energy efficiency class: G; LED backlight | Ecological Standards | EnergyStar 8.0 |
| 3RD PARTY CERTIFICATIONS | |||
| Crestron | Certified for Crestron CCV2 and XiO Cloud | ||
| ADDITIONAL FEATURES | |||
| Special Characteristics | CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler | Colour Versions | Black Front Bezel, Black Back Cabinet |
| Audio | Integrated Speakers (10 W + 10 W) | Shipping Content | 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
| Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3 | Operating Hours | 24/7 |
| External Control | AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP | Remote Management | NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; IEEE802.1X (LAN) | ||
