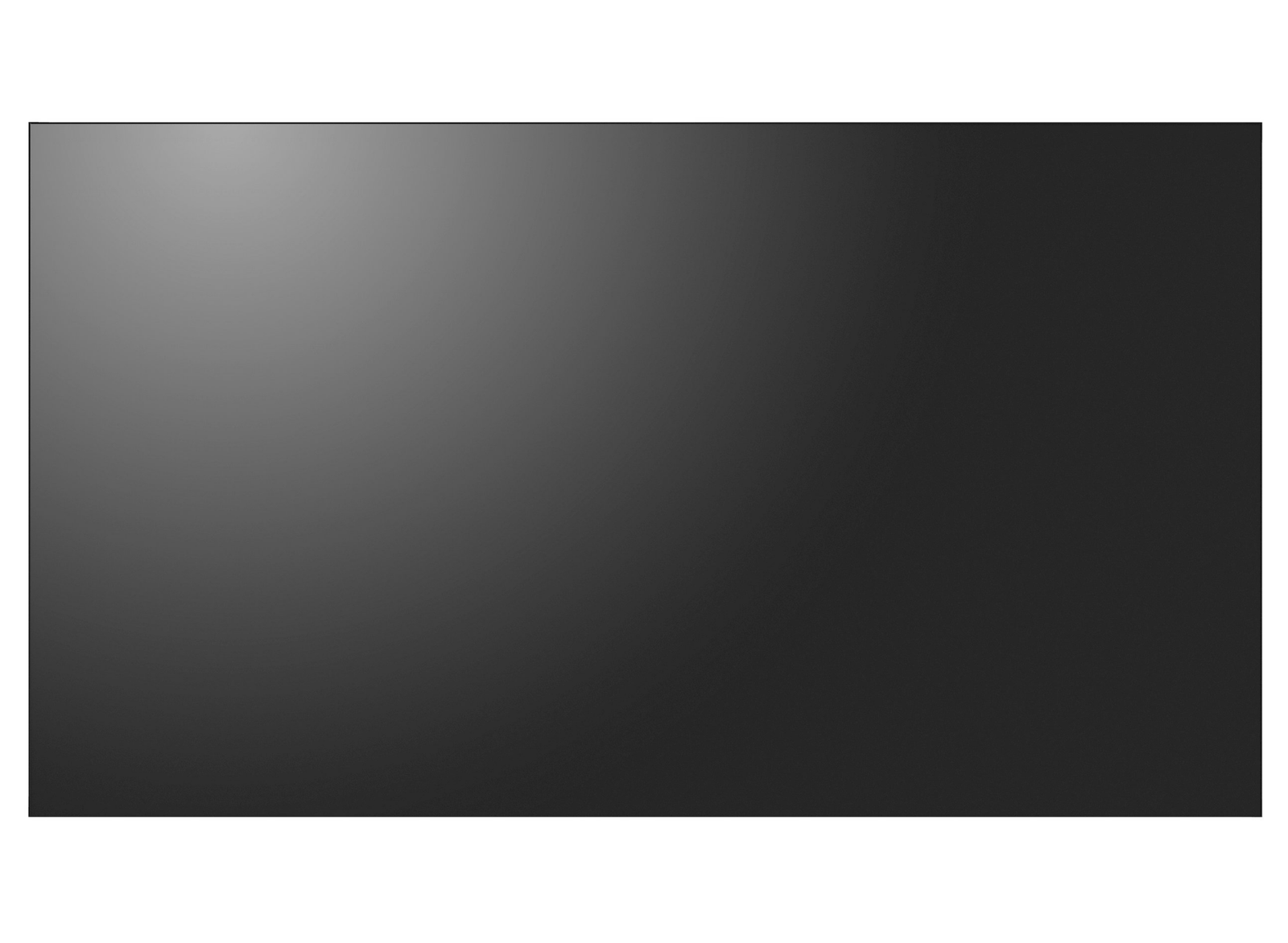

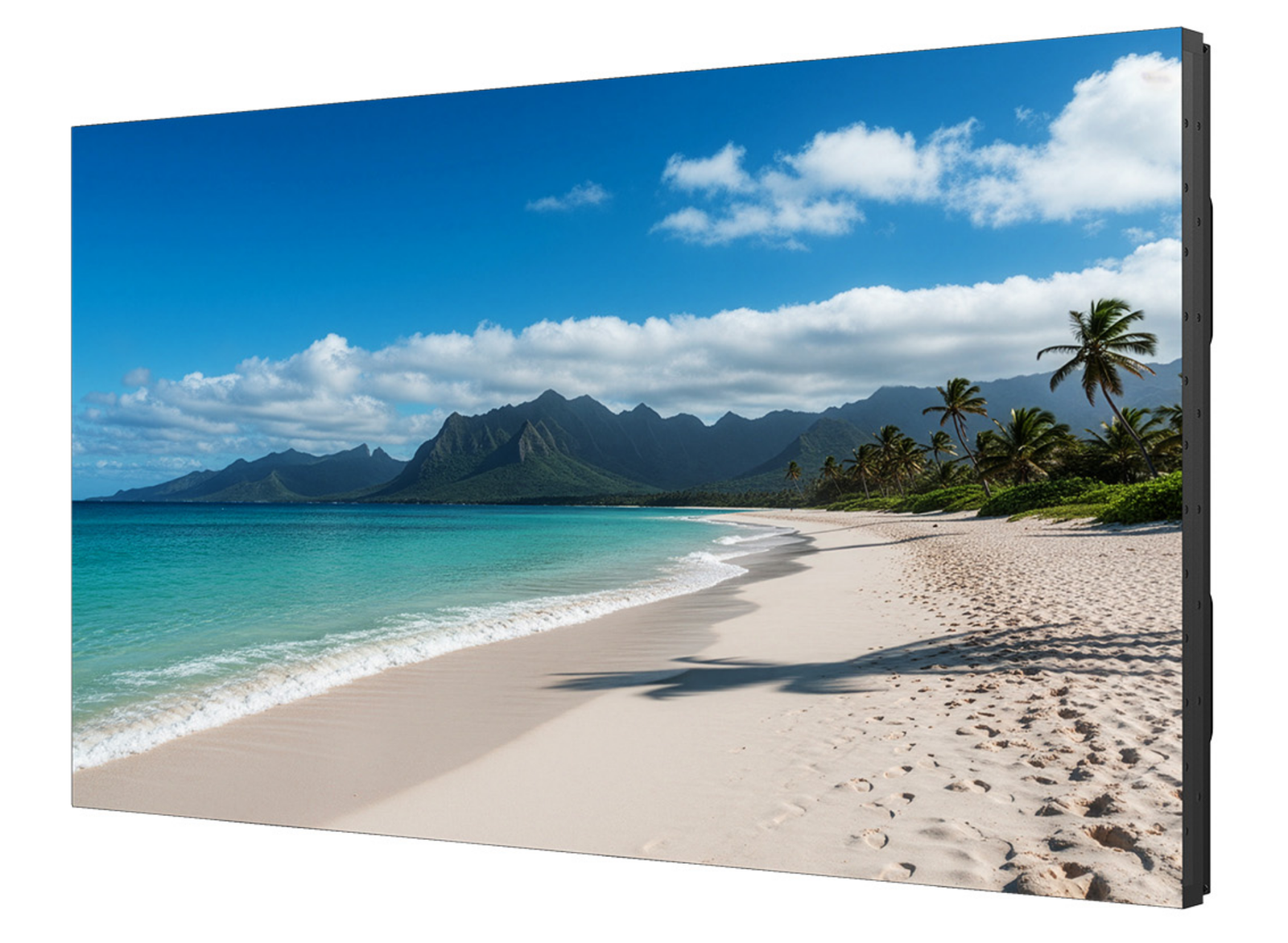

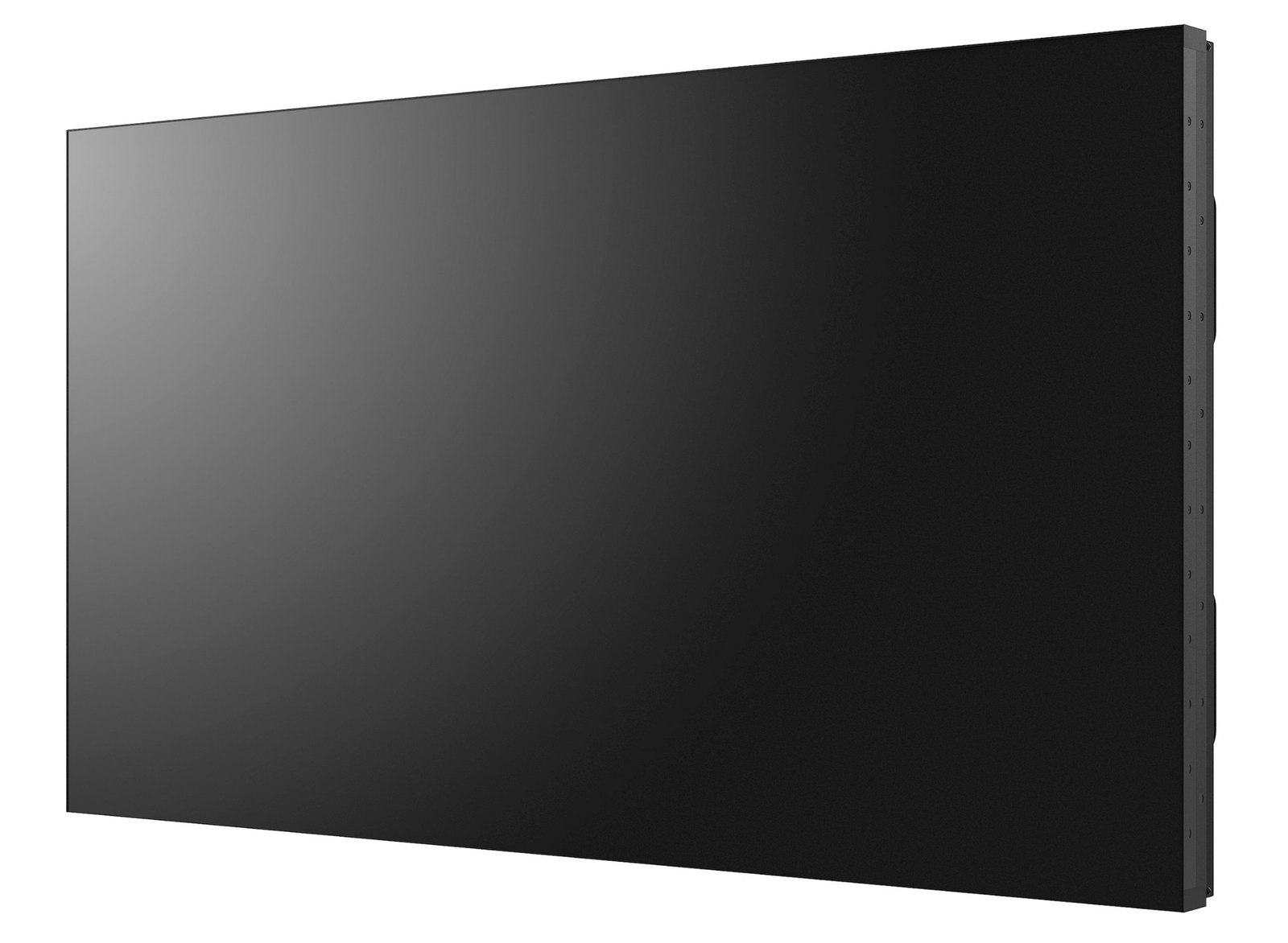

Sharp MultiSync® UN553S LCD 55" Full HD Video Wall Display
SKU: PNUN553S
£3,689.28 (Excl. VAT)
- Display Size55"
- Operating SystemNone

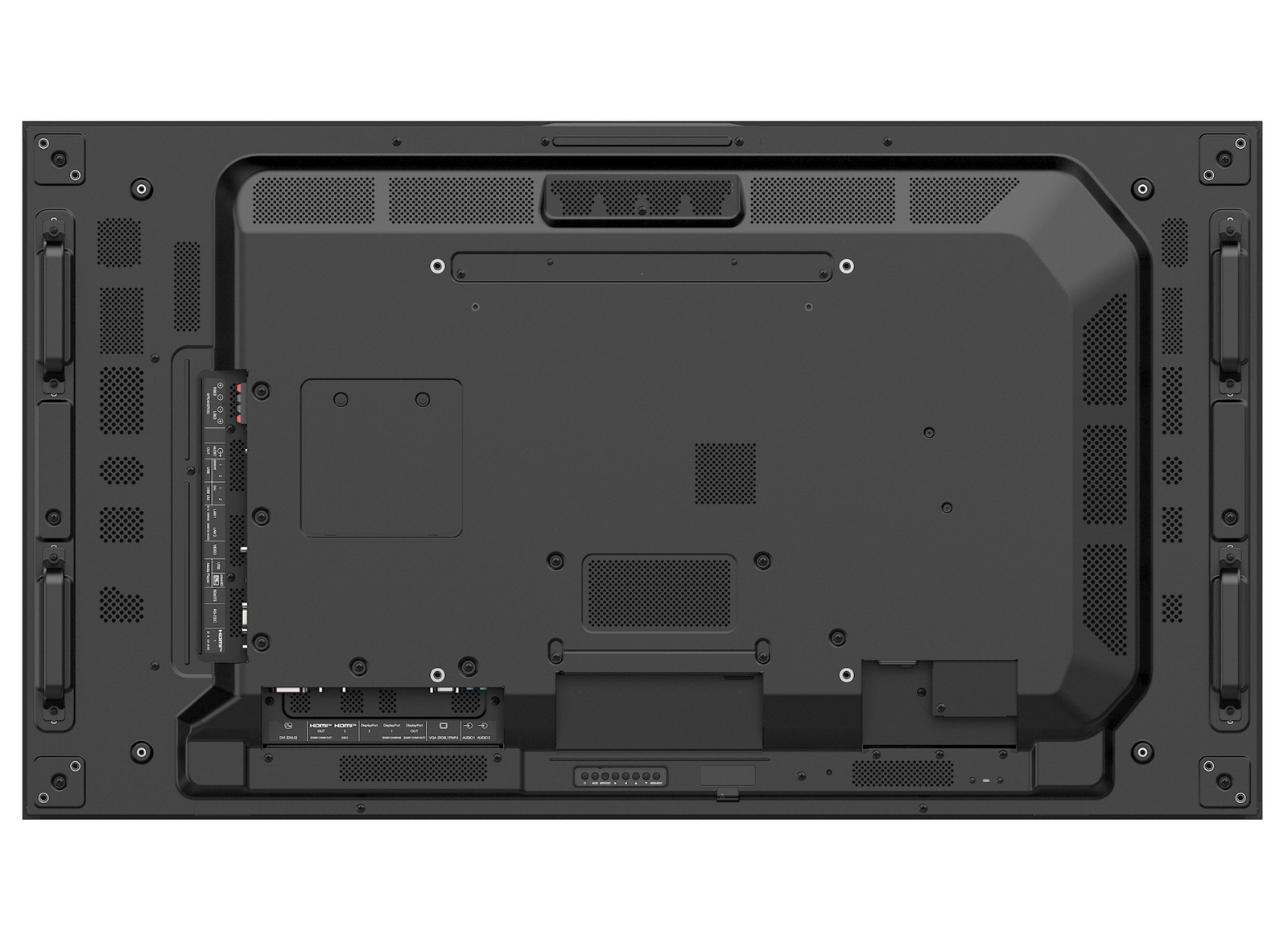

- VESA Patterns400x400
- Panel TypeIPS Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Description
- Specifications
- Downloads
-
Sharp UN553S 55" Full HD Video Wall Display with 700 cd/m² Brightness and Ultra-Narrow Bezel
Seamless video walls to amplify your brand
Scale up your visual impact with the modular Sharp MultiSync® UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.
Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.
Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.
Drawing on its heritage of engineering excellence, the 55-inch Sharp MultiSync® UN553S delivers uncompromising quality and dependable operation for demanding applications in corporate and transportation environments and for mission-critical control room scenarios.
Benefits
Easy installation – effortless set up with Auto TileMatrix and out-of-the-box calibration. Ready-to-use image presets save time for predefined application scenarios.Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.

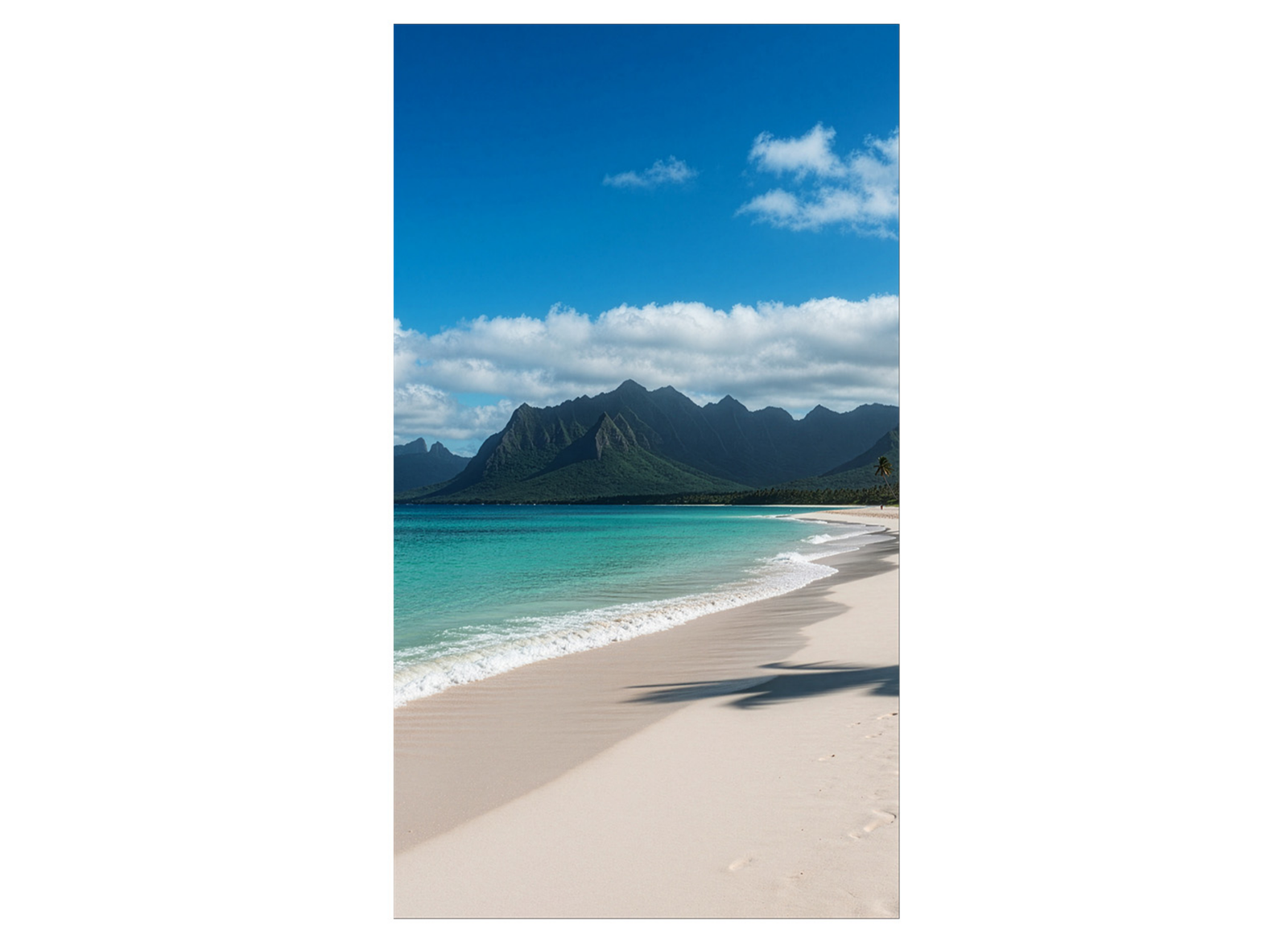

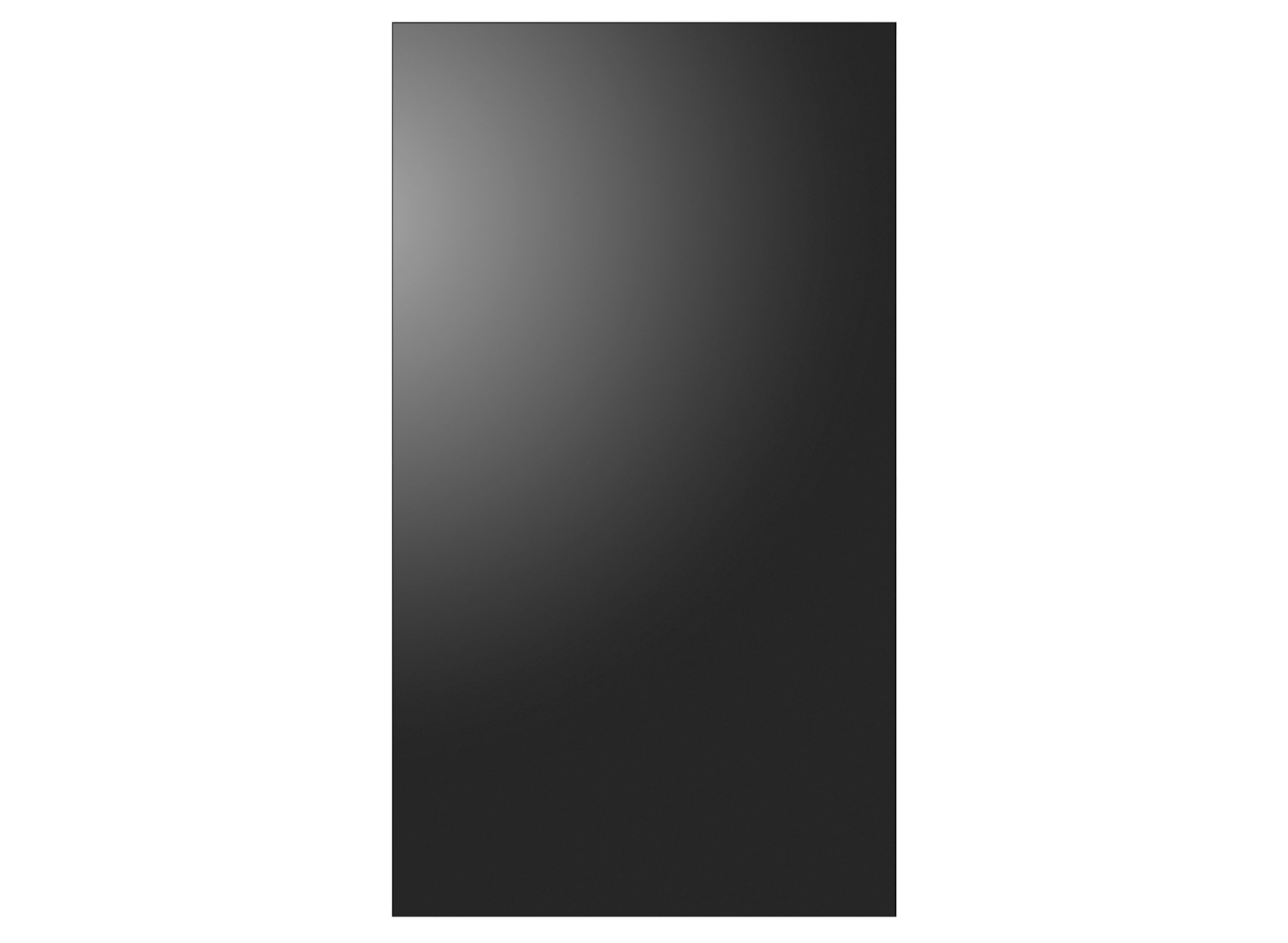

Lifelike and consistent colour – experience true to life colour reproduction with IPS panel technology. Uniform visibility is maintained in both landscape and portrait orientation, as well as at wide viewing angles as viewers pass by.
Secure reliability and longevity – The metal chassis aids natural heat dissipation while the unique heat management system allows users to monitor and control internal temperatures, safeguarding components against heat build-up.
Cost Saving Device Management – save effort whilst managing all connected Sharp and legacy devices from a centralised location by using the NaViSet Administrator 2 software tool.
-

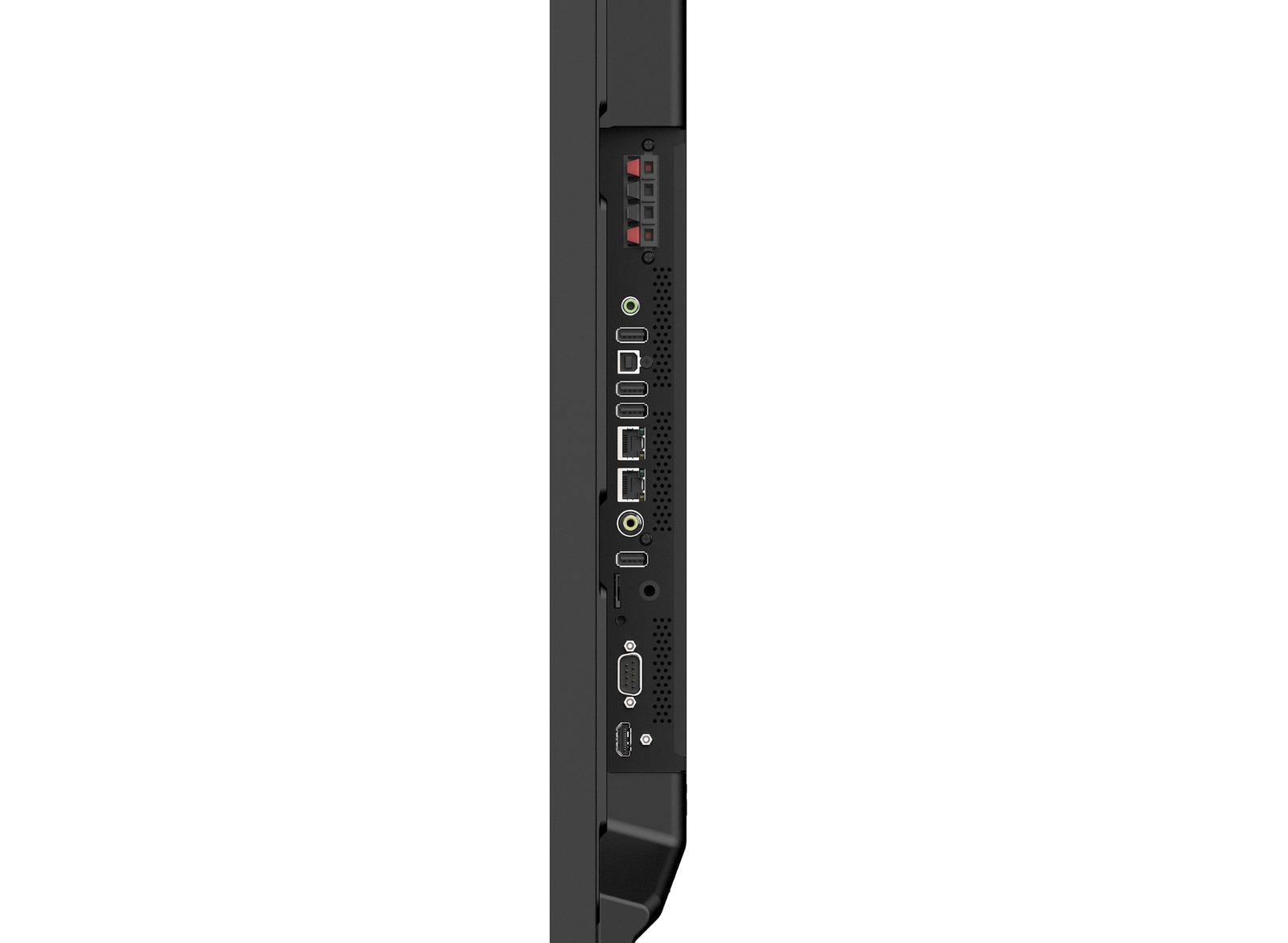

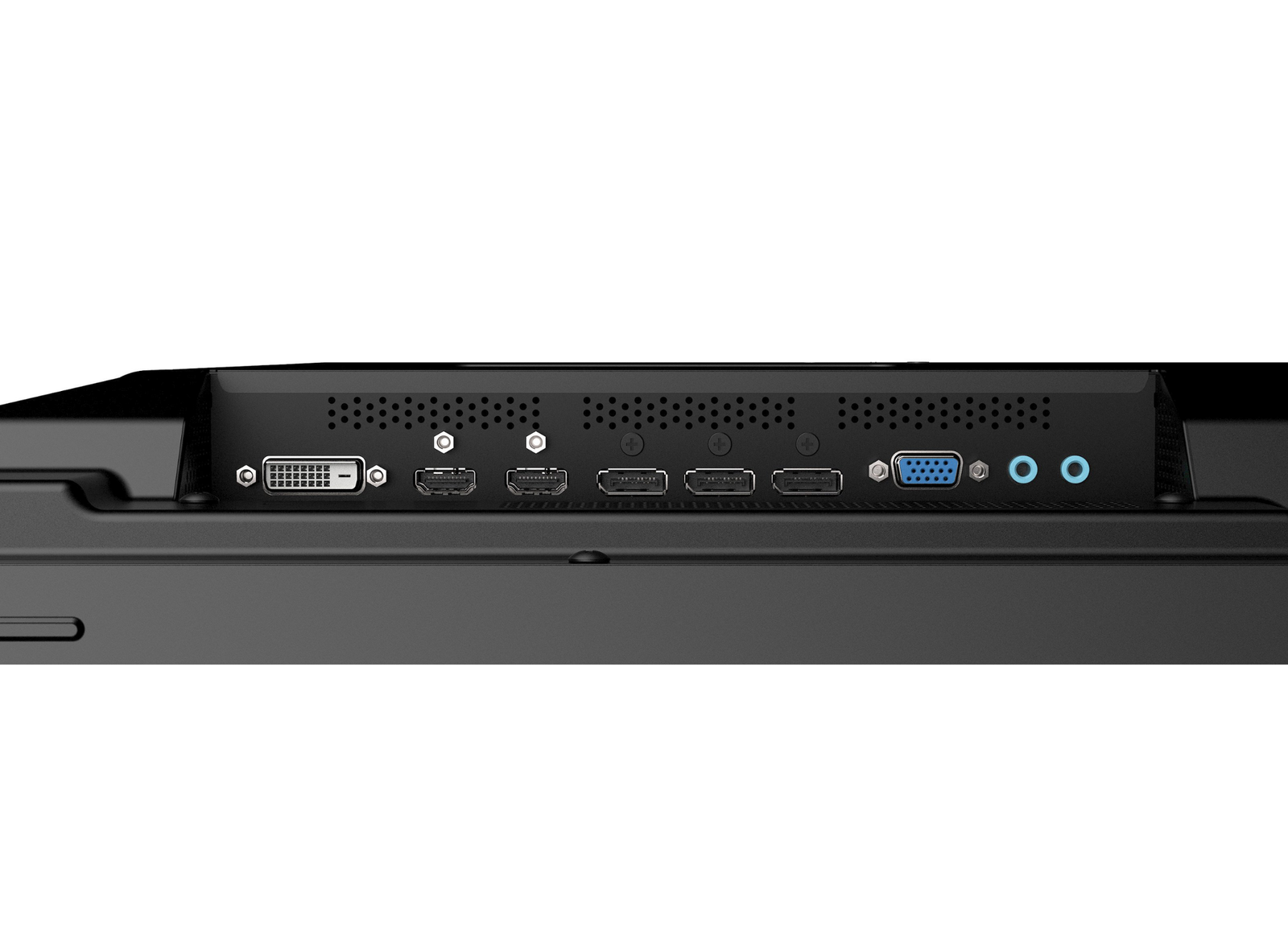

Panel Technology IPS with Direct LED backlights Screen Size [inch/cm] 55 / 138.8 Aspect Ratio 16:9 Brightness [cd/m²] 700 Contrast Ratio (default) > 3500:1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Gamut 72% of NTSC Response Time (typ.) [ms] 8 Panel Refresh Rate [Hz] 60 Haze Level [%] Pro (25) Supported Orientation Landscape; Portrait Native Resolution 1920 x 1080 Supported on DisplayPort and HDMI 1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160; 640 x 480; 720p (50/60 Hz); 800 x 600 Supported on HDMI only 1080i (50/60 Hz) Horizontal Frequency [kHz] 26 - 134 Vertical Frequency [Hz] 23 - 86 Input Video Analogue 1 x VGA; Composite (RCA) Input Video Digital 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio Analogue 2 x 3,5 mm jack Input Audio Digital 2 x DisplayPort; 2 x HDMI Input Control 1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit Input Data 1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered) Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer) Output Audio Analogue 1 x 3,5 mm jack Output Control LAN 100Mbit Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Sensor Calibration (through USB) PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point Calibration Software Display Wall Calibrator OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption [A / W] 3.6 / 58 Human Sensor Optional, external, 4-5m range, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable NFC Sensor Integrated, 2cm range, free NEC Android App required Power Consumption [W] 180 shipping Power Savings Mode [W] < 0.5; < 2 (Networked Standby) Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 90 Storage Temperature [°C] -20 to 60 Dimensions (W x H x D) [mm] Without stand: 1,210.5 x 681.3 x 103 Weight [kg] Without stand: 28.1 Bezel Width [mm] 0.44 bottom/right; 0.44 top/left; 0.88 VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000 Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling Accessories Calibration kit (KT-LFD-CC2); Feet (ST-5220); Remote control kit (KT-RC3); Speaker (SP-RM3); Wall mount (PD04VWM MFS 46-55 L/P; PD04VW QR 46-55 L/P; CK02XUN MFS 55 L/P) OPS Slot Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs Safety and Ergonomics BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI Pixel Failure Class ISO 9241-307, Class 2 Energy Efficiency Carbon savings meter; Energy consumption: 146 kWh/1000 h; Energy efficiency class: G; Human sensor; LED backlight Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; NaViSet Administrator 2 - free download; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function Colour Versions Black Front Bezel, Black Back Cabinet Audio Optional Speakers (15 W + 15 W) Plug and Play VESA DDC/CI Shipping Content Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1 Operating Hours 24/7 -
Description Downloads Datasheet Download
