The Sharp PN-LA652 / 60005930 InGlass M5 interactive touch display bringing advanced professional functionality to Enterprise users. Sharp/NEC LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™ SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.
Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.
The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.
The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.
Highlights of the Sharp PN-LA652 65” 4K Smart InGlass™ Touch Display
Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing. Includes Sharp’s Meeting Launcher for quick and easy access to your apps offering a secure and locked environment.

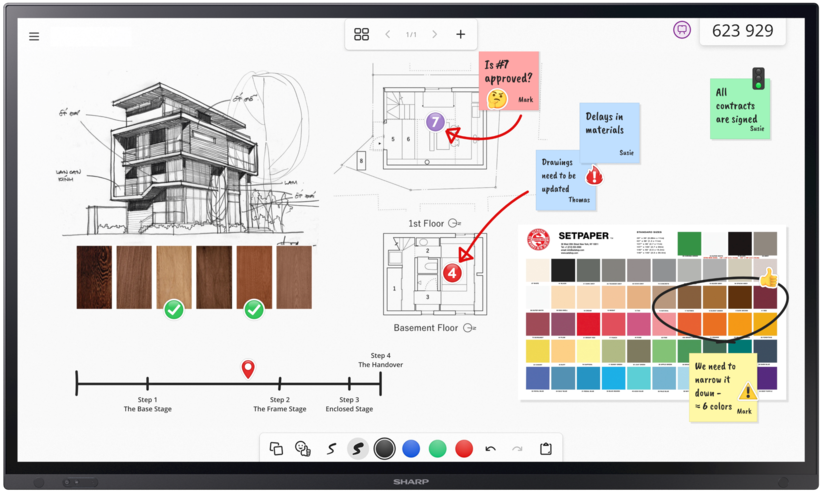

Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone.
Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.
| Category | Details |
|---|---|
| Product Name | Sharp PN-LA652 |
| Product Group | LCD 65" InGlass™Touch Display |
| Order Code | 60005930 |
| Display | |
| Panel Technology | IPS with Direct LED backlights |
| Screen Size | 65" / 163.9 cm |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m² (LCD panel without glass); 400 cd/m² (product) |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° horizontal / 178° vertical (typ.) |
| Colour Depth | 1.073 billion (10bit) |
| Colour Gamut | 68% of DCI |
| Response Time | 8 ms (typ.) |
| Panel Refresh Rate | 60 Hz |
| Supported Orientation | Face Up 1; Landscape; Portrait |
| Touch | |
| Touch Technology | InGlass™ M5 |
| Number of Touches | Up to 20 |
| Response Time | ≤ 15 ms |
| Touch Method | Finger; Gloves; Stylus (≥ 2 mm) |
| Supported OS | Native Multi-Touch: Windows 7, 8, 10, Linux, Android |
| Data Interface | USB-HID |
| Accuracy | < 1 mm |
| Windows Ink | Yes |
| Palm Rejection | Yes |
| Glass | |
| Type | Premium toughened glass, anti-glare coating |
| Thickness | 3 mm |
| Haze Level | 4 ~ 8% |
| Hardness | ≥ 8 H |
| Resolution | |
| Native Resolution | 3840 x 2160 |
| Supported Resolutions | Various |
| Synchronisation Rate | |
| Horizontal Frequency | 15 - 135 kHz |
| Vertical Frequency | 23 - 76 Hz |
| Connectivity | |
| Input Video | 1 x DisplayPort, 1 x USB-C, 2 x HDMI |
| Input Audio | 1 x DisplayPort, 2 x HDMI |
| Input Control | LAN 100Mbit, RS232 |
| Input Data | 1 x USB 2.0 (Powered), 1 x USB 2.0 Type-B, 2 x USB 2.0 |
| Output Video | 1 x DisplayPort (loop through), SDM slot-in PC |
| Output Audio | 1 x 3.5 mm jack |
| Output Control | 1 x LAN 100Mbit |
| Open Modular Intelligence | |
| Supported Modules | Intel® Smart Display Modules Large and Small up to 66 W |
| Sensors | |
| Ambient Light | Integrated, programmable actions |
| Temperature | Integrated, 3 sensors, programmable actions |
| Presence | Integrated, 60° H angle, 3.6 m distance |
| Electrical | |
| Power Consumption | 190 W (shipping) |
| Power Savings Mode | < 0.5 W; < 2 W (Networked Standby) |
| Power Supply | 100-240 V AC, 50/60 Hz, internal |
| Environmental Conditions | |
| Operating Temperature | +0 to +35°C |
| Operating Humidity | 20 to 80% |
| Storage Temperature | -20 to 60°C |
| Storage Humidity | 10 to 80% |
| Mechanical | |
| Dimensions (W x H x D) | 1,493.5 x 896.1 x 90.7 mm |
| Weight | 49 kg |
| Bezel Width | 32.3 mm (bottom); 4.8 mm (left, right and top) |

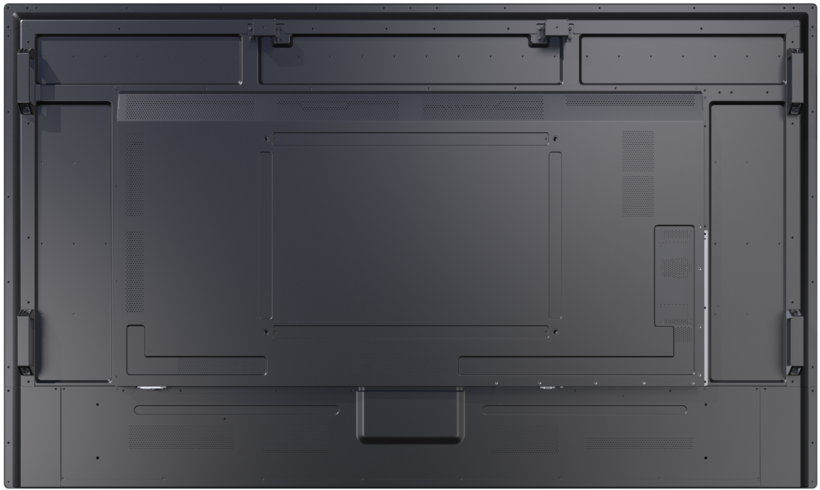

| VESA Mounting | 600 x 400 (FDMI); M8 |
| Ingress Protection | IP6x (front); IP2x (back) |
| Packaging Dimensions | 1,660 x 1,010 x 220 mm |
| Packaging Weight | 59 kg |
| Material | Metal |
| Pre-installed Applications | |
| Included Software | FlatFrog Board for Rooms (1 year) - free download |
| Green Features | |
| Energy Efficiency | LED backlight |
| Ecological Standards | EnergyStar 8.0 |
| Additional Features | |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port |
| Safety and Ergonomics | |
| Certifications | CE, EMC Class B, Energy Star 8, FCC Class B, RoHS, UL |
| Audio | |
| Integrated Audio | Integrated Audio Amplifier (for optional speakers) |
| Shipping Content | Various accessories included |
| Warranty | |
| Warranty | 3 years incl. backlight; optional extension available |
| Operating Hours | |
| Operating Hours | 24/7 |
| External Control | |
| Remote Control | Crestron V2, HDMI CEC, HTTP Browser, SNMP |
| Remote Management | Automated Email Alerts, NEC NaViSet Administrator 2 |
| Security | |
| Security Features | Disable HW Buttons, Disable IR Functionality, IEEE802.1X |
| Resistance to Fire | |
| Fire Resistance | Metal backcover, plastic material certified UL94-5VB |
| Description | Downloads |
|---|---|
| Sharp PN-LA652/60005930 65” 4K UHD Smart InGlass™ Touch Display DataSheet | Downloads |
