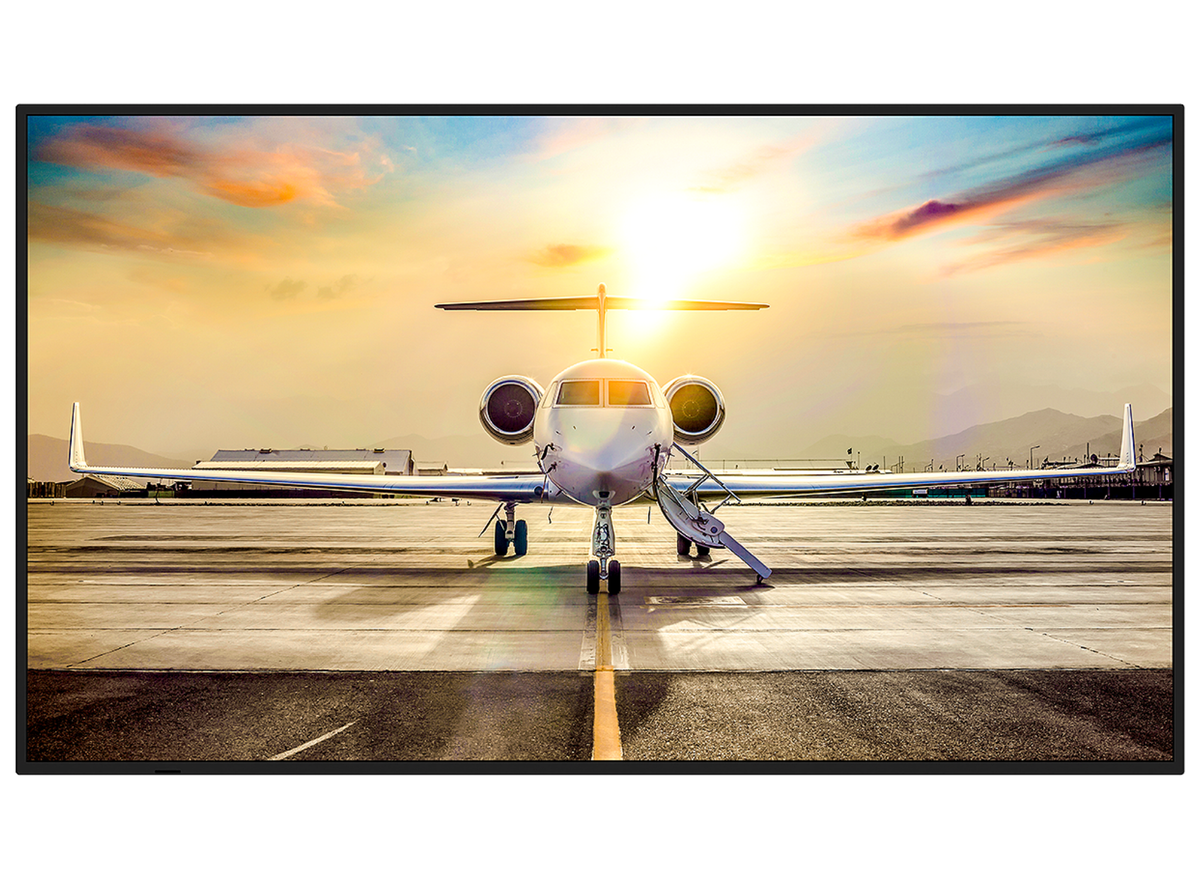

Create pixel-perfect imagery with the high-end panel quality of the fully professional Sharp MultiSync® M322 large format display. By focusing on customer needs while also offering professional reliability, the M Series displays give customers a digital signage display lineup without all the costs. This M Series display can support both landscape and portrait orientations while also containing a an anti-glare panel to allow for easy readability for true commercial applications. The new product contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The Sharp M322 boasts 450 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.
Features
Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
450 cd/m2 brightness and HDR compatibility will capture the attention of audience in almost any situation
Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
Full 5 year commercial warranty to allow for peace of mind and protection of this investment (July 1st, 2026 sales onwards)
Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
Integrated Media Player allows for audio, video or image playback via USB
| Panel Technology | VA | Viewable Image Size | 32" |
| Aspect Ratio | 16:9 | Screen Resolution | 1920x1080 |
| Pixel Pitch | 0.364 mm | Pixels Per Inch | 68 @ native resolution |
| Backlight Type | LED | Brightness (typical) | 450 cd/m² |
| Contrast Ratio (typical) | 4000:1 | Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) | 8ms | Refresh Rate | 60Hz |
| Active Screen Area | 698.4 x 392.9mm | Displayable Colors | More than 16.7 million |
| Gamma (Typical) | Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3 | Horizontal (Digital) | HDMI (TMDS): Horizontal Frequency: ~15kHz - ~136.0kHz / DisplayPort: Horizontal Frequency: ~15kHz - ~136.0kHz |
| Vertical (Digital) | HDMI (TMDS): Vertical Frequency: ~23.0Hz - ~76.0Hz / DisplayPort: Vertical Frequency: ~23.0Hz - ~76.0Hz | Horizontal (Analog) | VGA (RGB): Horizontal Frequency: ~15kHz - ~81.0kHz |
| Vertical (Analog) | VGA (RGB): Vertical Frequency: ~49Hz - ~76.0Hz | External Control | LAN and RS232 In - Full external control capabilities |
| Sync | Digital TMDS / DisplayPort | Digital Input | DisplayPort, HDMI x2 RGB1: DisplayPort RGB2: HDMI1 RGB3: HDMI2 |
| Audio Input | 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 Audio 1: DisplayPort Audio 2: HDMI1 Audio 3: HDMI2 | External Control Input | LAN and RS232 In - Full external control capabilities |
| Audio Out | Stereo Mini Jack | Power Consumption - On | 40W |
| Power Savings Mode | 0.5W | Bezel Width (Left/Right, Top/Bottom) | 0.46 in./0.47 in., 0.47 in./0.68 in. : 11.8 mm/11.9 mm, 11.9 mm/17.2 mm |
| Dimensions (without stand) (WxHxD) | 28.6 x 16.75 x 2.62 in. / 726.5 x 425.4 x 66.5 mm | Shipping (WxHxD) | 34.3 x 20.8 x 6.3 in. / 870.0 x 527.0 x 160.0 |
| Net Weight (without stand) | 13.9 lbs. / 6.3 kg. | Shipping Weight | 21.6lbs. / 9.8kg |
| VESA Hole Configuration | 100 x 100mm, 200 x 200mm (off-center) | Operating Temperature | 32-104°F / 0-40°C |
| Operating Humidity | 20% to 80% | Operating Altitude | 9843 ft. / 3000m |
| Storage Temperature | -4 - 140°F / -20 – 60°C | Storage Humidity | 10-80% |
| Storage Altitude | 40,000 ft. / 12,192m | Limited Warranty (Parts & Labor) | 5 years Advanced Exchange (July 1st, 2026 sales onwards) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| Manual | Download |
| Drawing | Download |
