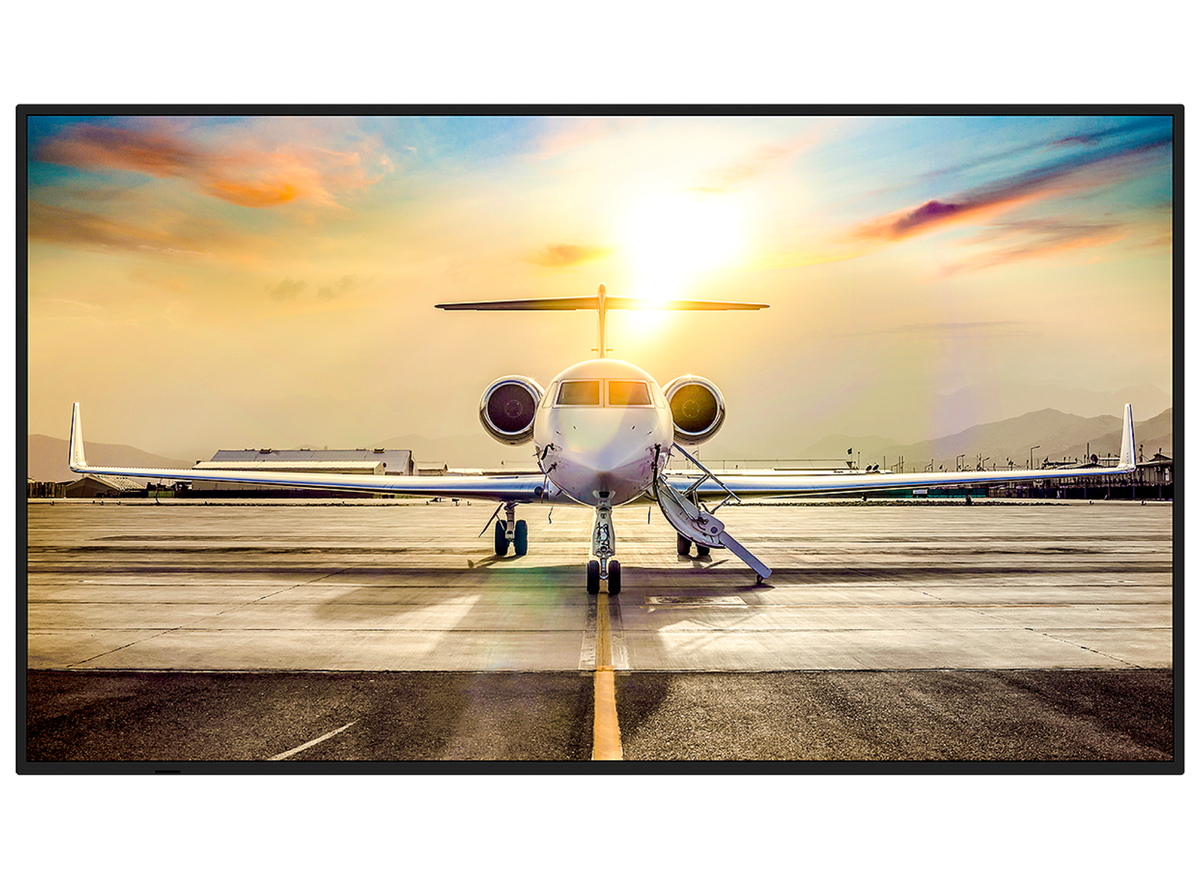

Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp MultiSync® M Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the M Series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp M862 series boasts 550 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.
Features
24/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
550 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation
Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
Energy Star 8.0 Certified Product
Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display
Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
Full 5 year commercial warranty to allow for peace of mind and protection of your investment (July 1st, 2026 sales onwards)
Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for more streamlined operations when using as a presentation type of device
LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
| Panel Technology | IPS | Viewable Image Size | 86" |
| Aspect Ratio | 16:9 | Screen Resolution | 3840x2160 |
| Supported Resolutions | DisplayPort: V1.4 - Up to 3840 x 2160 (60Hz), HDMI: V2.0 - Up to 4096 x 2160 (60Hz) | Pixel Pitch | 0.494 mm |
| Pixels Per Inch | 51 @ native resolution | Backlight Type | LED Direct-Lit |
| Brightness (typical) | 550 cd/m² | Contrast Ratio (typical) | 1200:1 |
| Viewing Angle (typical) | 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 | Response Time (Gray to Gray) | 8 ms |
| Refresh Rate | 60Hz | Active Screen Area | 74.61 x 41.97 in. / 1895.04 x 1065.96mm |
| Orientation | Landscape/Portrait | Dimming Capability | Local Dimming Capable |
| Displayable Colors | More than 1.08 billion (10-bit dithered) | Color Temperature (Max) (°K) | 15000K |
| Color Temperature (Min) (°K) | 3000K | Gamma (Typical) | Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable |
| Horizontal (Digital) | 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort) | Vertical (Digital) | 23.0 - 76.0Hz |
| PC Signal Compatibility | Yes | Macintosh Signal Compatibility | Yes |

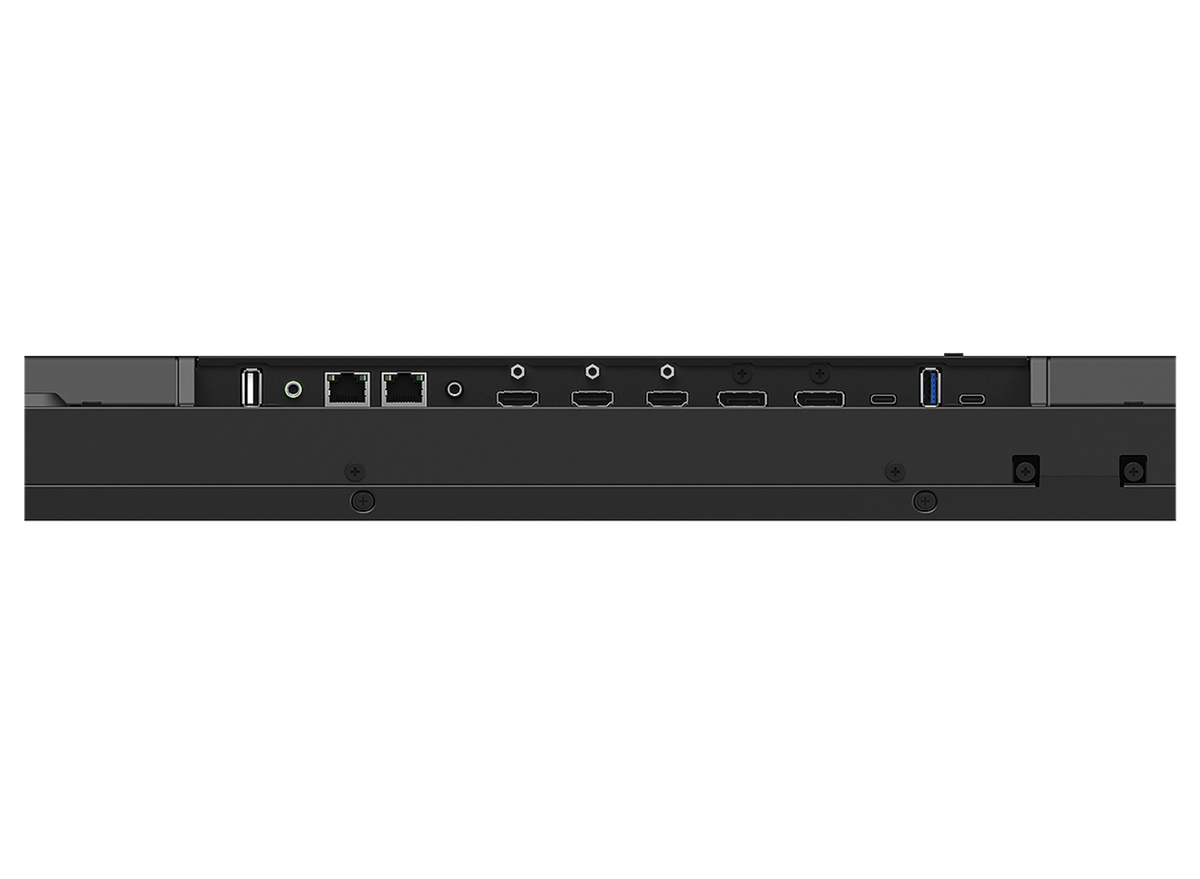

| Video | Digital TMDS / DisplayPort | External Control | LAN In/Out and RS232 In - Full external control capabilities |
| Digital Input | HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP), USB-C (DP-Alt Mode, U | Audio Input | DisplayPort Audio, Audio via USB-C (DP-Alt), HDMI Audio x2 |
| External Control Input | RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) | Data | USB-C (Hub, 20V/3.25A), USB-A (Service, 5V/2.5A), USB-A (Downstream, 5V/0.9A), USB-C (Downstream, 5V/1.5A) |
| Digital Output | HDMI (2.0), DisplayPort (1.4) | Audio Output | 3.5mm Mini-Jack |
| External Control Output | LAN (100Mb) | Power Consumption - On | 190W |
| ECO Mode Standby | <0.5W | Network Standby | 0.5W |
| Power Consumption (max) | 305W | Power Savings Mode | 2W |
| Power Requirements | 5.9A - 2.4A @ 100V - 240V | Bezel Width (Left/Right, Top/Bottom) | 0.56 in./0.56 in., 0.56 in./0.56 in. : 14.3 mm/14.3 mm, 14.3 mm/14.3 mm |
| Dimensions (without stand) (WxHxD) | 75.9 x 43.3 x 3.3 in. / 1927.6 x 1099.1 x 83.2 mm | Shipping (WxHxD) | 82.3 x 48.2 x 8.9 in. / 2090.0 1225.0 x 225.0mm |
| Net Weight (without stand) | 103.6 lbs. / 47 kg. | Shipping Weight | 141.1 lbs. / 64.0kg |

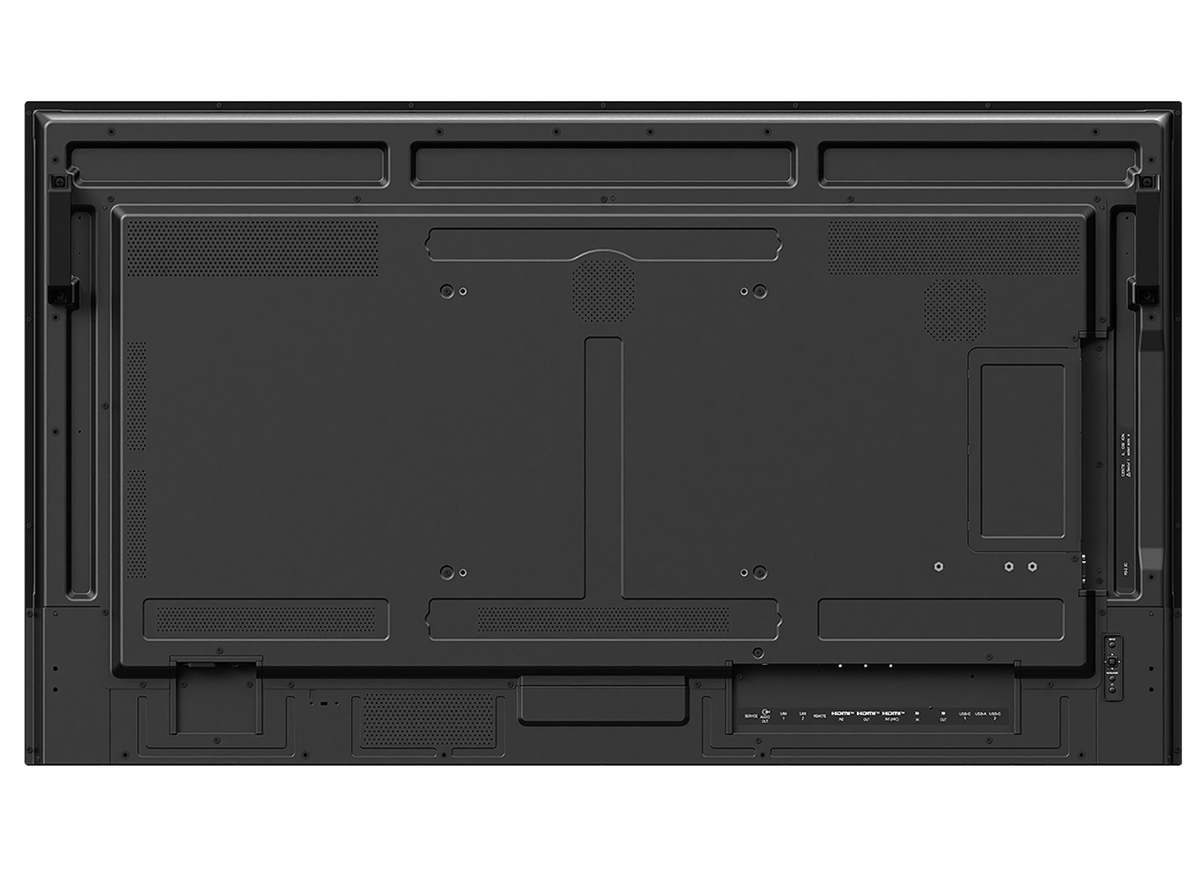

| VESA Hole Configuration | 400 x 400mm (M6 x 4-hole) | Operating Humidity | 20% to 80% |
| Operating Altitude | 9843 ft. / 3000m | Storage Temperature | -4-140°F / -20-60°C |
| Storage Humidity | 10-80% | Storage Altitude | 40,000 ft. / 12,192m |
| ENERGYSTAR | Energy Star 8.0 | Limited Warranty (Parts & Labor) | 5 years Advanced Exchange (July 1st, 2026 sales onwards) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| Manual | Download |
| Drawing | Download |
