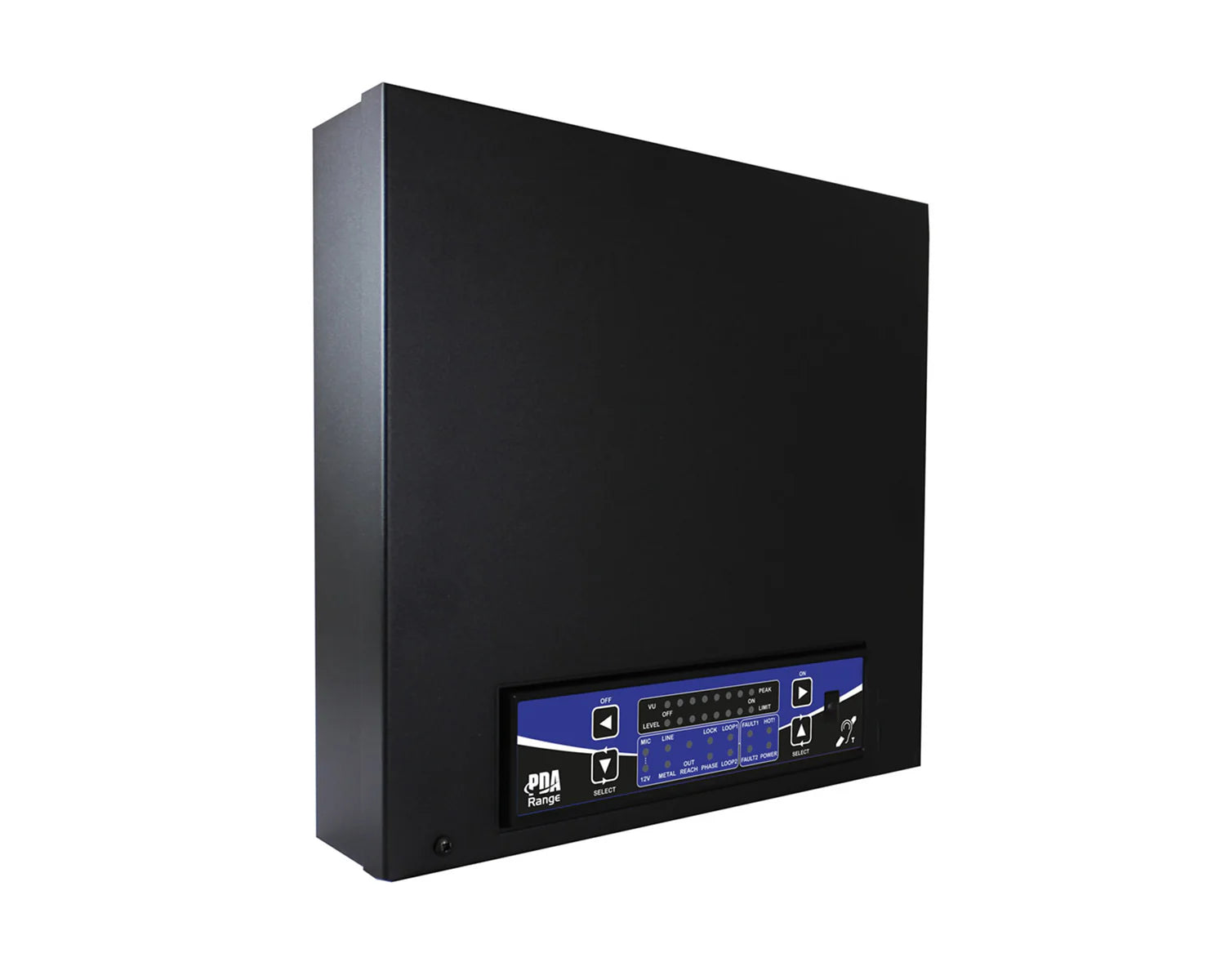

SigNET PRO Series Constant Current Hearing Loop Amplifier 200m² | PDA5/SW
SKU: PDA5/SW
£338.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
SigNET PRO Range | Induction Loop Amplifier with 200m² Coverage
The SigNET PRO5, 7, 11 Range comprises of constant current, single and dual induction hearing loop amplifiers, each with an LED display. The dual loop amplifiers have a built-in phase shifter, designed for ‘phased array’ induction loop systems.
This wallmounted model is designed to cover areas up to 200m2.
Features
Clear & intuitive graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation
200m2 coverage
2 x XLR mic/line inputs (selectable)
Outreach connector allows up to 10 of our revolutionary audio input utility plates to be added
Free-standing option also available
Anti-tamper lock function prevents unauthorised adjustment of system settings
5 year warranty as standard
Class D output stage for maximum efficiency and very high output
Superior analogue audio processing with a powerful CPU and cutting-edge technology provide life-like speech and first class music reproduction
Short circuit protection against loop faults for increased reliability
Fault relay & graphical display provide clear indication of operation and fault status
Industry leading dual action automatic gain control compensates for poor microphone technique
Line level output for recording or daisy-chaining multiple units to cover larger areas
Designed and manufactured in the UK -
Type Wall-mount (requires permanent mains connection) Coverage 200 m² (rooms up to approx. 14m × 14m) Inputs 2 × XLR mic/line (selectable)
1 × OutreachOutputs 1 × Loop
Line Out
Fault RelayPhase Shift 2 × 90° phase shifted, selectable on/off Controls Sensitivity level controls
Line In, Mic, 12V Phantom, Outreach, Optical, Metal Comp, Drive (Loop), Phase ShiftIndicators LED display with 4 membrane control buttons -
Description Downloads SigNET PRO Series Constant Current Hearing Loop Amplifier 200m² | PDA5/SW DataSheet Download
