Sonnet Echo 13 Thunderbolt 5 SSD Dock | ECHO-DK13-0TB5

High-Speed Thunderbolt 5 Dock with Built-In SSD

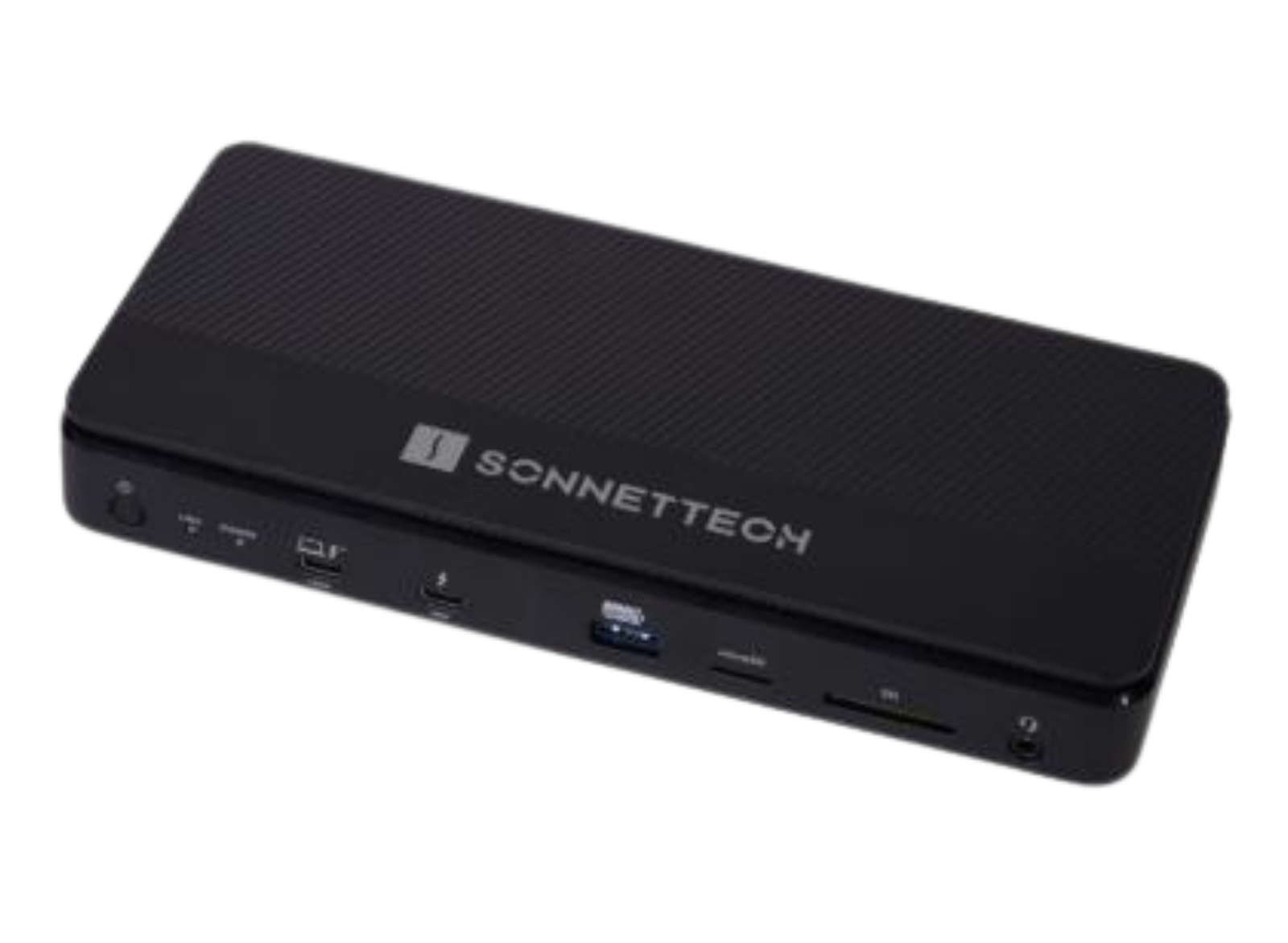

Echo 13 Thunderbolt 5 SSD Dock

Universal Thunderbolt 5 Dock with Ridiculously Fast Internal High Performance SSD Storage
Sonnet Echo™ 13 Thunderbolt 5 SSD Dock delivers next level storage performance — 6000 MB/s with Thunderbolt™ 5 computers, 3400 MB/s when used with a Thunderbolt 4 or 3 computer — with your choice of pre-installed KingstonM.2 NVMeSSD storage. Connections? Echo 13 has you covered with four Thunderbolt 5 ports, four USB-A ports, one 2.5Gb Ethernet port, one headphone jack, SD and microSD card slots, plus 8K display support.

Plug In
Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? Echo 13 Thunderbolt 5 SSD Dock will even power it with up to 140W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Echo 13 Thunderbolt 5 SSD Dock features the connections you expect from a Thunderbolt dock plus the ridiculously fast SSD storage you need. Transform a single cable connection from your computer into three Thunderbolt 5 peripheral ports. With up to 80Gb/s of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120Gb/s for higher display bandwidth, you'll revolutionize your productivity.

Internal SSD
M.2 NVMe Storage
The built-in M.2 NVMe SSD adds an additional 1TB, 2TB, or 4TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD storage capacity to your system without the need to connect another device to the Echo dock or the computer. Access data at up to 6000 MB/s — ideal for pro content creation and application storage — and effortlessly store large files, media libraries, or your Time Machine® backups.

Faster
Ethernet Transfers Across Existing Cabling
Featuring 2.5 Gigabit Ethernet, Echo 13 Thunderbolt 5 SSD Dock supports 2.5Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch or NAS without 2.5Gb Ethernet support, the Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.

Speedy
10Gbps USB Ports for Bus-powered Devices
Echo 13 Thunderbolt 5 SSD Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, two on the back— to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 13 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified for Mac, Windows, ChromeBook, and iPad Pro
Echo 13 Thunderbolt 5 SSD Dock is certified for use with AppleM series Mac computers; Thunderbolt 3 IntelMac computers; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro tablets. See Tech Specs for current computer and OS compatibility information.

One Cable Peripheral Connection
Instant access – plug peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.

Twelve External Interfaces

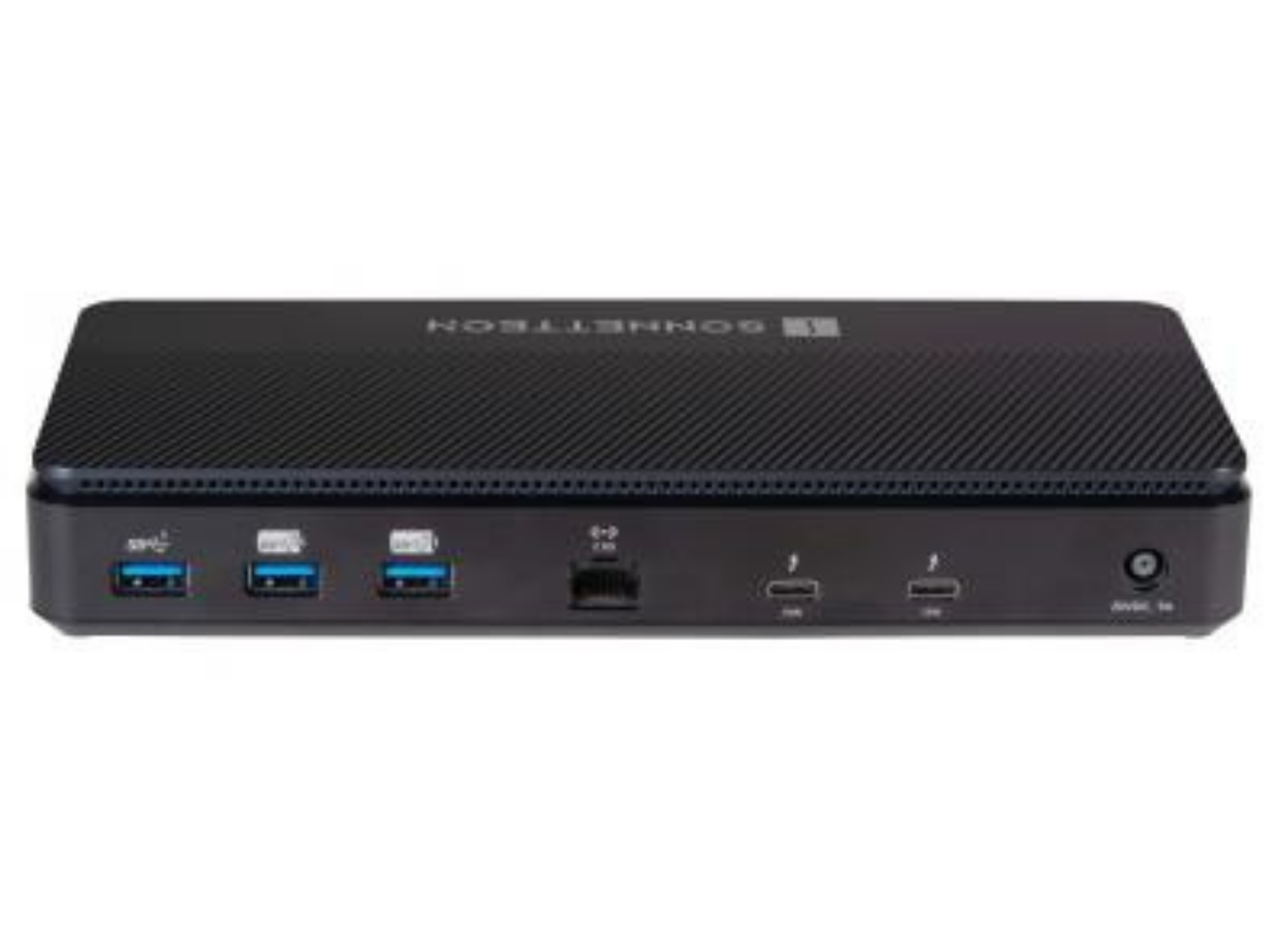

Includes four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type A charging ports, one USB 3.2 Gen 1 Type A port, one RJ45 2.5 Gigabit Ethernet port, and one 3.5 mm combo audio jack; one SD card slot and one microSD card slot.

Built-in SSD Included
1TB, 2TB, or 4TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD included.

Three Thunderbolt 5 Ports for Peripherals
Connects three Thunderbolt 5, 4, or 3 peripherals. Also supports USB4 V2, USB4, and USB3 devices.

Powerful 10Gbps USB Type A Ports
Three USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.

Connect Up to Three 4K @144Hz Displays via Thunderbolt
Connect Thunderbolt or USB-C displays directly. Supports HDMI or DisplayPort displays with Thunderbolt-compatible adapters (sold separately).

Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays @ up to 240Hz
Depending on your computer, supports up to three 4K, two 6K or 8K, or a single 4K, 5K, 6K, or 8K display.

Charge Your Laptop
Provides up to 140W through the included Thunderbolt 5 cable to power and charge your laptop.

Read SD and microSD Cards
Compatible with all SD and microSD card types; supports 320 MB/s read speeds with UHS-II SDXC cards.

Kensington Lock Ready
Safely secure your Echo 13 dock and its valuable data with a Kensington Security Lock (sold separately). Equipped with both Kensington Security and Nano Security Slots.

Mac Compatible
Supports M series and Intel Macs.

Windows Compatible
Supports Thunderbolt 5, Thunderbolt 4, and USB4 Windows computers.

Chromebook Compatible
Supports Chromebook computers with Thunderbolt 5 or 4, or USB4 ports.

Apple M Series iPad Pro Compatible
Supports all M series iPad Pro tablets.
