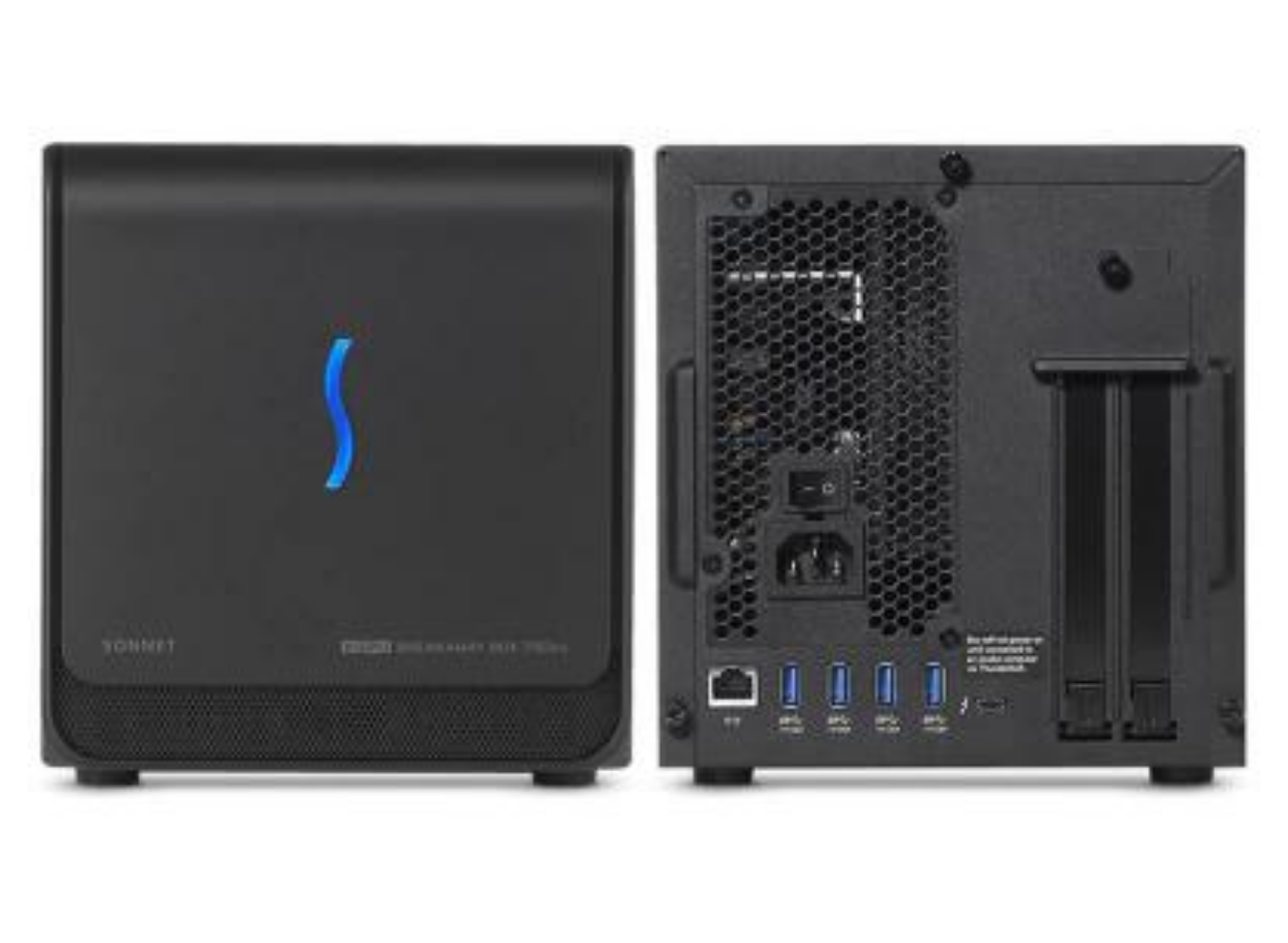

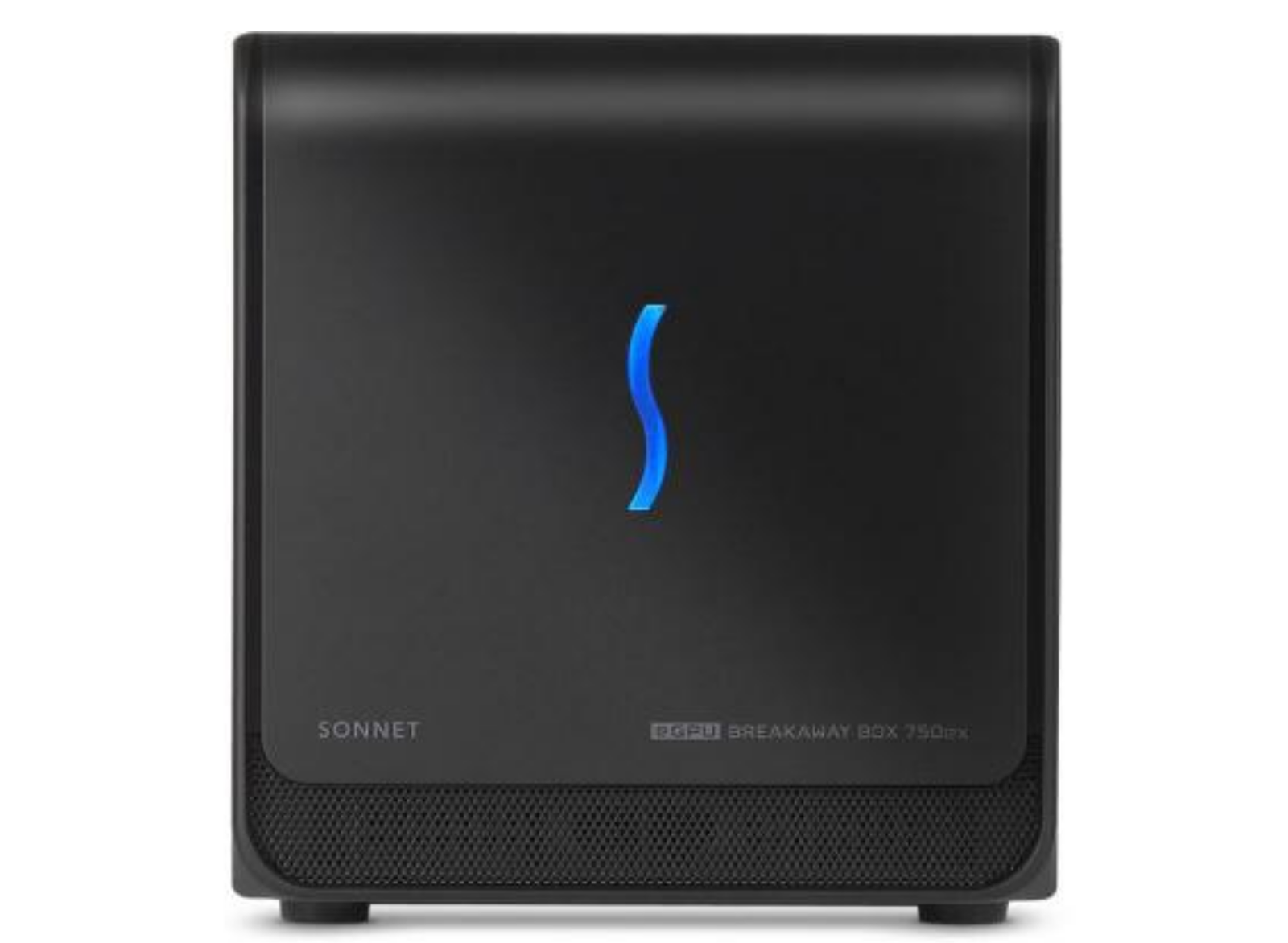

Sonnet eGPU Breakaway Box 750ex Thunderbolt 3 GPU Enclosure | GPU-750WEX-TB3

Powerful eGPU Expansion with 750W Performance

Thunderbolt 3 Expansion System

• Boosts Graphics Performance
Connects a high-performance GPU card to your computer with Thunderbolt 3 ports.
• Cuts Application Task Times
Enables GPU acceleration to significantly improve editing, rendering, color grading, animation, and special effects performance.
• 750W Power Supply
Support the power requirements of the latest compatible GPU cards; future-proof design handles higher power requirements of cards to come.
• Supports Many of the Latest GPU Cards
Includes AMD Radeon VII, RX, RX Vega, Pro W and Pro WX models; and NVIDIA GeForce RTX series, TITAN, and Quadro models.
• Multi-eGPU Acceleration Support
Connect two, three, or four eGPU Breakaway Boxes to slash task times on supported applications.
• Supports Non-GPU PCIe Cards
Supports Thunderbolt-compatible full-length, full-height, single- or double-width cards –perfect for pro audio I/O and DSP cards and pro video I/O and transcoding cards.
• Quietest Configurable eGPU System Available
Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools whatever card you install.
• Choice of Models
Both models support the same GPU cards, include the same power supply, and provide the same portable computer charging support; the 750ex adds additional connectivity.
• 750ex Model: Additional Connectivity
Adds four 5Gb/s USB Type A ports to connect peripherals, plus an RJ45 Gigabit Ethernet port for a wired network connectivity.
• Single-Port 40Gbps Thunderbolt 3 Interface
Ensures full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.
• Thunderbolt Certified
Certified for Thunderbolt for use with Intel Mac® computers. (Does not support the new Apple M1 Mac® computers)
• Mac and WIndows Compatible
Compatible with Mac and Windows computers with Thunderbolt 3 ports. (Does not support the new Apple M1 Mac® computers)

TRANSFORM YOUR THUNDERBOLT COMPUTER INTO A GRAPHICS WORKSTATION
Whether you’re editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The eGPU Breakaway™ Box 750 and 750ex Thunderbolt 3 to GPU PCIe card expansion systems boost your eGPU-compatible computer’s graphics performance by connecting a high-performance GPU card to your computer via a single cable.

FUTURE-PROOF UPGRADE
With each new generation of GPU cards, users can look forward to a step (or leap) forward in performance. Less predictable is how much power they will require to operate—better performance frequently requires increased power. For eGPU users, power consumption can be a concern. Don’t limit your future card choices—choose a Sonnet eGPU Breakaway Box 750 or 750ex. Equipped with 750W power supplies, these Sonnet chassis easily support the highest power demands of latest GPUs and have plenty of extra power to support GPU cards from generations to come.

TWO MODELS. YOUR CHOICE:
Both eGPU Breakaway Box models are Thunderbolt Certified and include a Thunderbolt 3 cable to connect the system to your computer. The 750ex provides a handy connection hub for USB devices and Ethernet connectivity.

• eGPU Breakaway Box 750
- Includes two 8-pin (6+2 pin) auxiliary power connectors
- 750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
- Provides 100W of upstream power (useful for charging your notebook)
- AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
- Designed to also support overclocked NVIDIA cards with high peak power requirements

eGPU Breakaway Box 750ex
- Includes two 8-pin (6+2 pin) auxiliary power connectors
- 750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
- Provides 85W of upstream power (useful for charging your notebook)
- AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
- Designed and qualified to also support overclocked NVIDIA cards with high peak power requirements

750ex Model Includes: Integrated hub with four USB 3.2 Gen 1 Type A ports and one Gigabit Ethernet Port

EXPANSIVE GPU CARD COMPATIBILITY - NO COMPROMISE GPU CARD CHOICE
eGPU Breakaway Box 750 systems are designed specifically to accommodate the most power-hungry double-width GPU cards. They support Thunderbolt-compatible cards(1) with popular GPU chipsets—such as AMD Radeon™ RX series (including VEGA GPUs); and NVIDIA® GeForce® series and TITAN GPUs. Even the latest pro cards—AMD Radeon Pro and NVIDIA Quadro® GPUs—are supported! (Note that macOS® supports only AMD GPU cards in eGPU systems, while Windows® supports AMD and NVIDIA cards.) With a GPU card installed, a Breakaway Box functions as a simple plug-in upgrade to significantly accelerate the demanding needs of your video production workflow.

4K TO 8K WORKFLOWS – CONNECT TWO OR MORE BREAKAWAY BOXES
Many task times on supported applications—such as Adobe® Premiere® Pro, DaVinci Resolve™, and Maxon Cinema 4D™, to name a few—can be cut significantly with one eGPU Breakaway Box connected. But, for computers with multiple Thunderbolt ports, times can be slashed when two, three, or four Breakaway Boxes are employed. Connecting one or more eGPUs can multiply your computer’s graphics processing power, enabling it to handle 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU also contributes to the aggregate performance.

MORE PORTS, ADDITIONAL FUNCTIONALITY: EGPU BREAKAWAY BOX 750EX
Is your computer short on ports for basic connectivity? Step up to the eGPU Breakaway Box 750ex to add four 5Gb/s USB 3.2 Gen 1 Type A ports to connect peripherals, plus an RJ45 Gigabit Ethernet port for a wired network connection. The 750ex features a dual Thunderbolt controller design, enabling it to support both peripherals and GPU card through the single Thunderbolt connection to your computer.

DESIGNED FOR GPU CARDS, ALSO SUPPORTS OTHER DEMANDING PCIE CARDS
The Breakaway Box’s single x16 PCIe 3.0 slot accommodates full-length, double-width cards, and its 750W power supply supports trouble-free operation. Its single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.

COOLEST & QUIETEST ADD-YOUR-OWN-CARD EGPU SYSTEM AVAILABLE
With its large variable-speed temperature-controlled fan that quietly and effectively cools the installed card, the eGPU Breakaway Box can be comfortably used in noise-sensitive working environments.

GRAPHIC-INTENSIVE GAMING SUPPORT
There’s no need for you to carry a heavy, loud, and hot-running gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! A Breakaway Box is ideal for empowering graphic-intensive gaming on an Intel® processor-based MacBook Air® or 13-inch MacBook Pro®, Ultrabook™ and other thin/light notebook computers that otherwise would deliver a poor gaming experience. Accelerated graphics can either be displayed on one, two, or more external monitors, or on your notebook’s own display panel(4). Best of all, you can upgrade the GPU card in the Box to keep up with the latest in GPU technology (unlike with gaming laptops).
