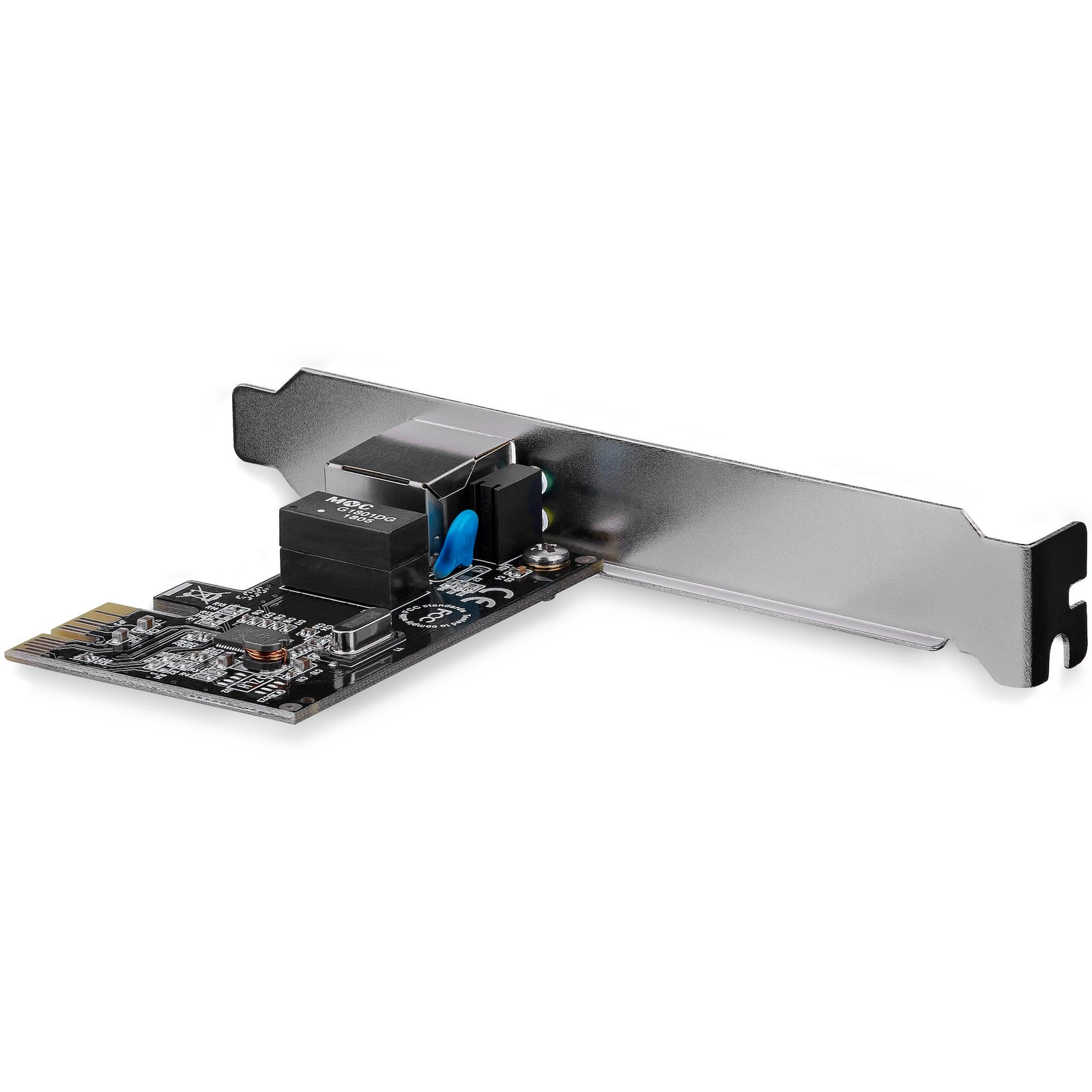

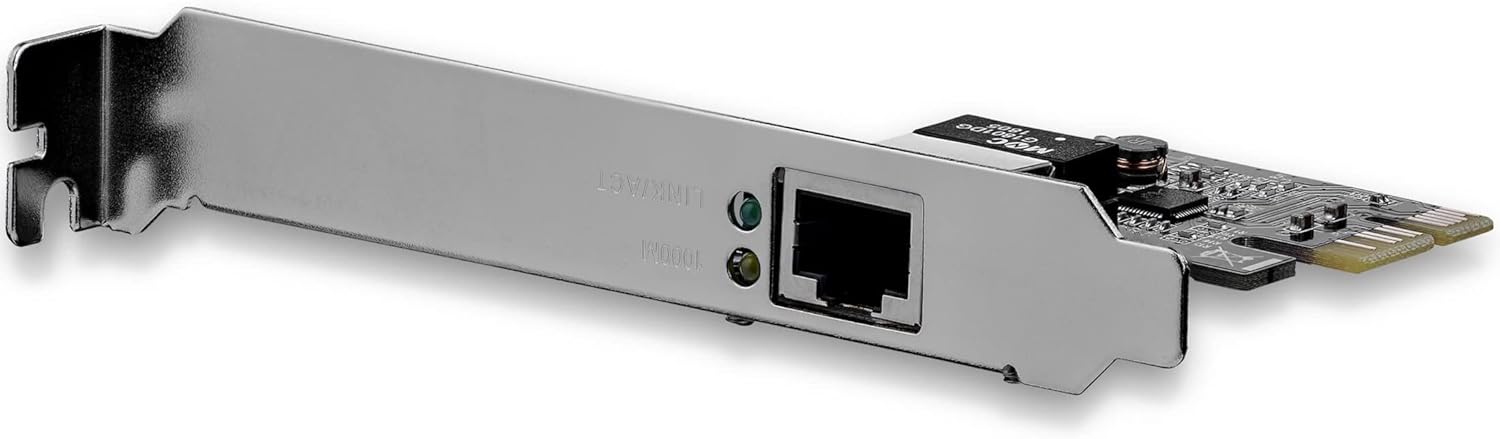

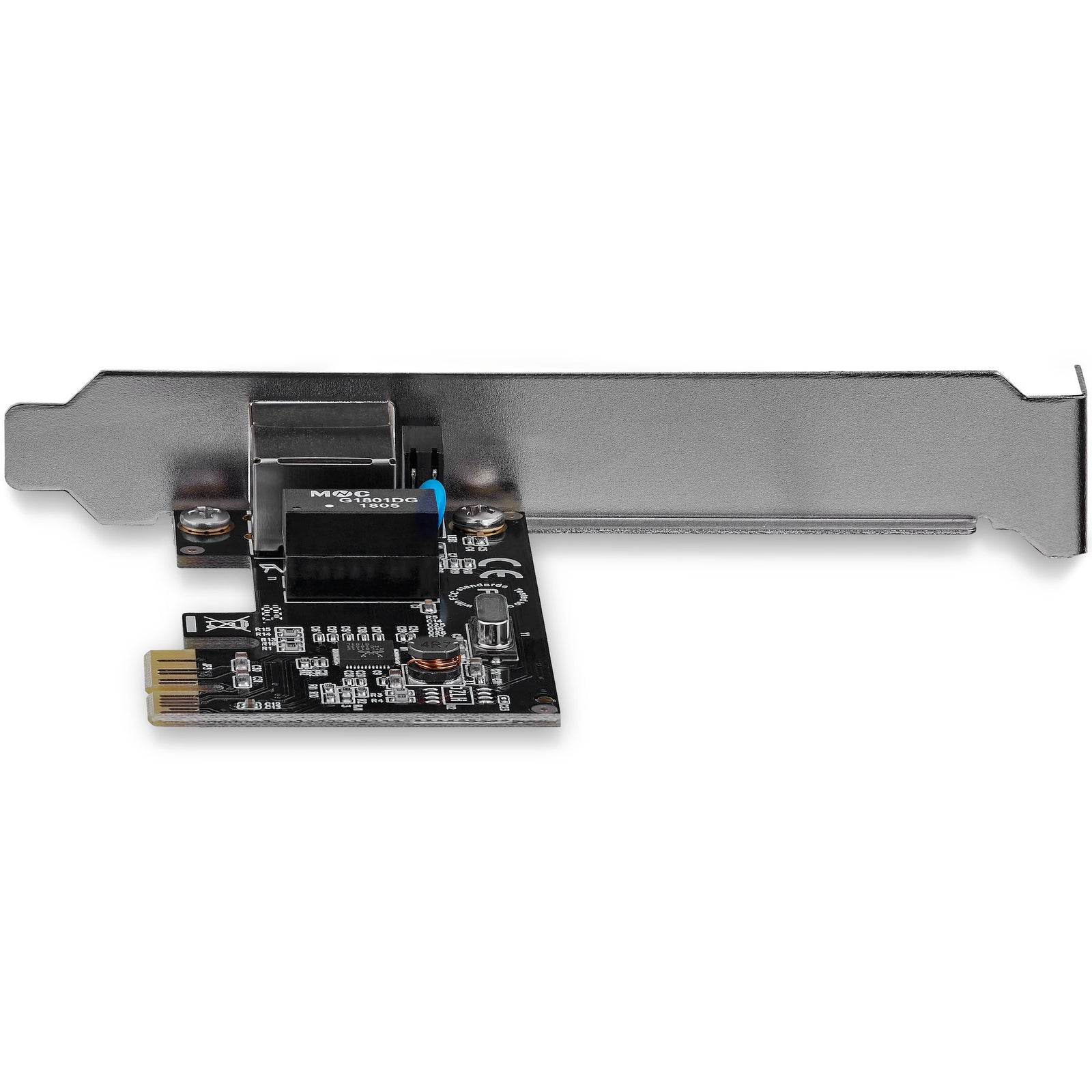

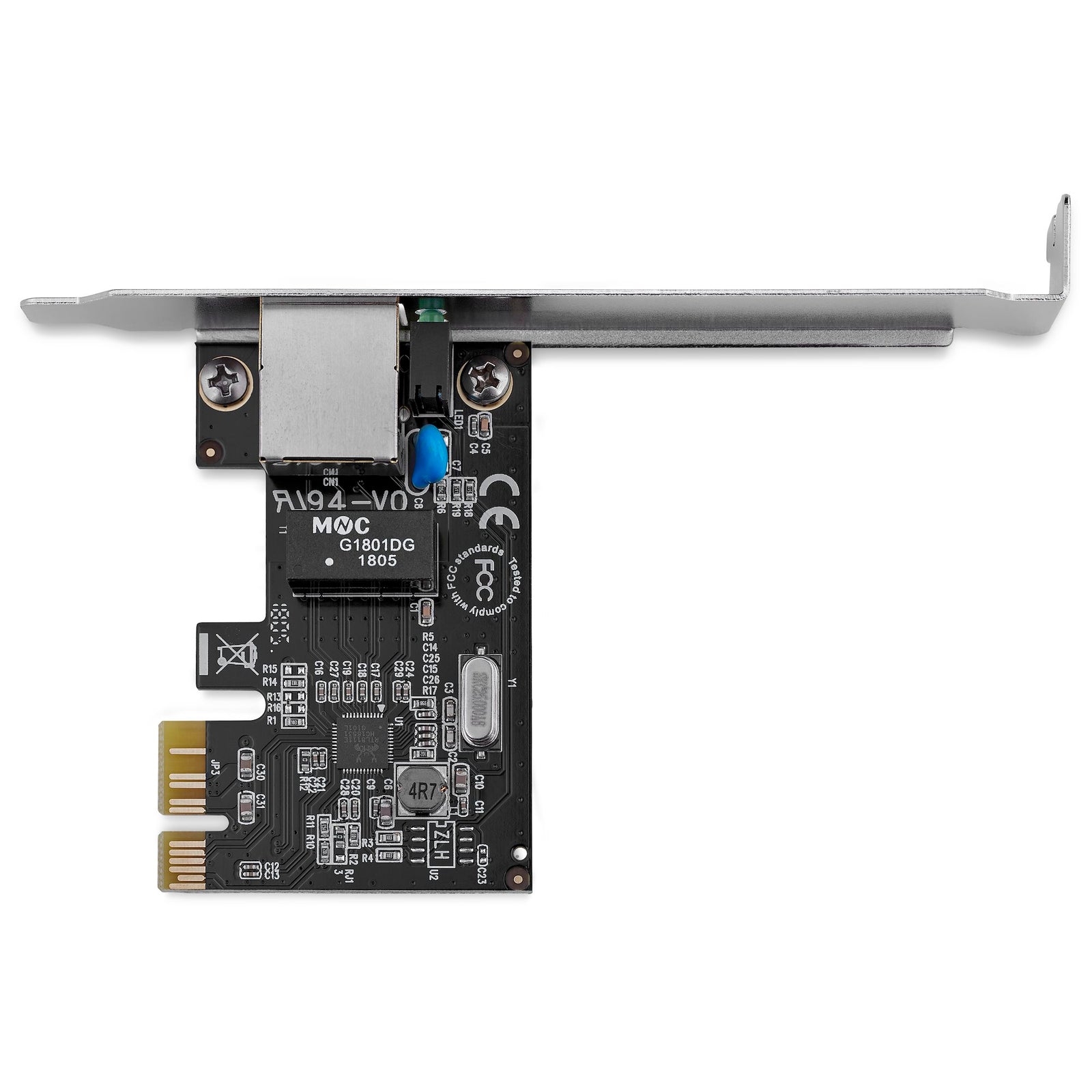

The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Upgrade 10/100 Ethernet capability to Gigabit capability
Add an Ethernet port to a workstation or server computer, for redundancy or bridging
Add networking capabilities to an old system with no Ethernet port
The StarTech.com Advantage
Fits into full-size or low profile/small form factor (SFF) systems, with the addition of a half-height bracket
Offers performance flexibility and easy setup with support for advanced features such as Jumbo Frames, Wake-On-LAN and Auto MDIX
| Warranty | 2 Years | Connector Type | 1 x PCI Express x1 |
| External Ports | 1 x RJ-45 | Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) | Humidity | 10% ~ 90% RH |
| Ports | 1 | Interface | RJ45 (Gigabit Ethernet) |
| Bus Type | PCI Express | Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek RTL8111 | Industry Standards | IEEE 802.3 / 802.3u / 802.3x / 802.3ab |

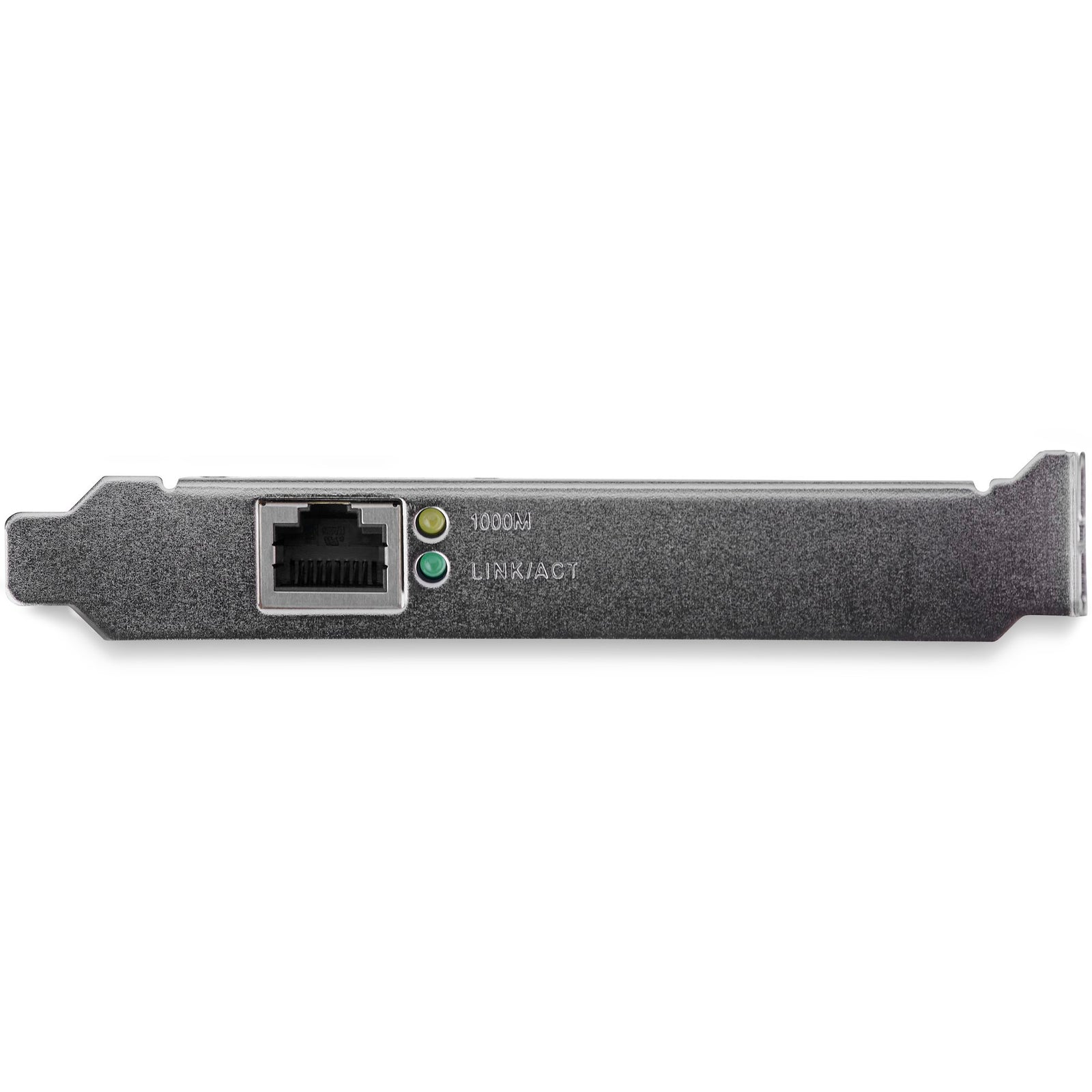

| LED Indicators | Gigabit Detect (Yellow), Link/Activity (Green) | Wake on LAN | Yes |
| Max Data Transfer Rate | 1000 Mbps | Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes | Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. | Promiscuous Mode | Yes |
| MTBF | 376,212 Hours | Supported Protocols | CSMA/CD |
| Weight | 1.3 oz (38 g) | Material | Steel |
| Product Dimensions (L x W x H) | 2.6 x 1.7 x 4.7 in (6.6 x 4.2 x 12.0 cm) | Color | Black |
| Input / Output Voltage | 12V DC | OS Compatibility | Windows (2000–11), Windows Server (2003–2019), macOS 10.6–10.9, Linux 2.4+ (LTS) |
| System Requirements | PCI Express expansion slot | Included in Package | PCIe Card, Low Profile Bracket, Instruction Manual |
| Description | Downloads |
|---|---|
| Startech 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile DataSheet | Download |
| Startech 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile User Manual | Download |
