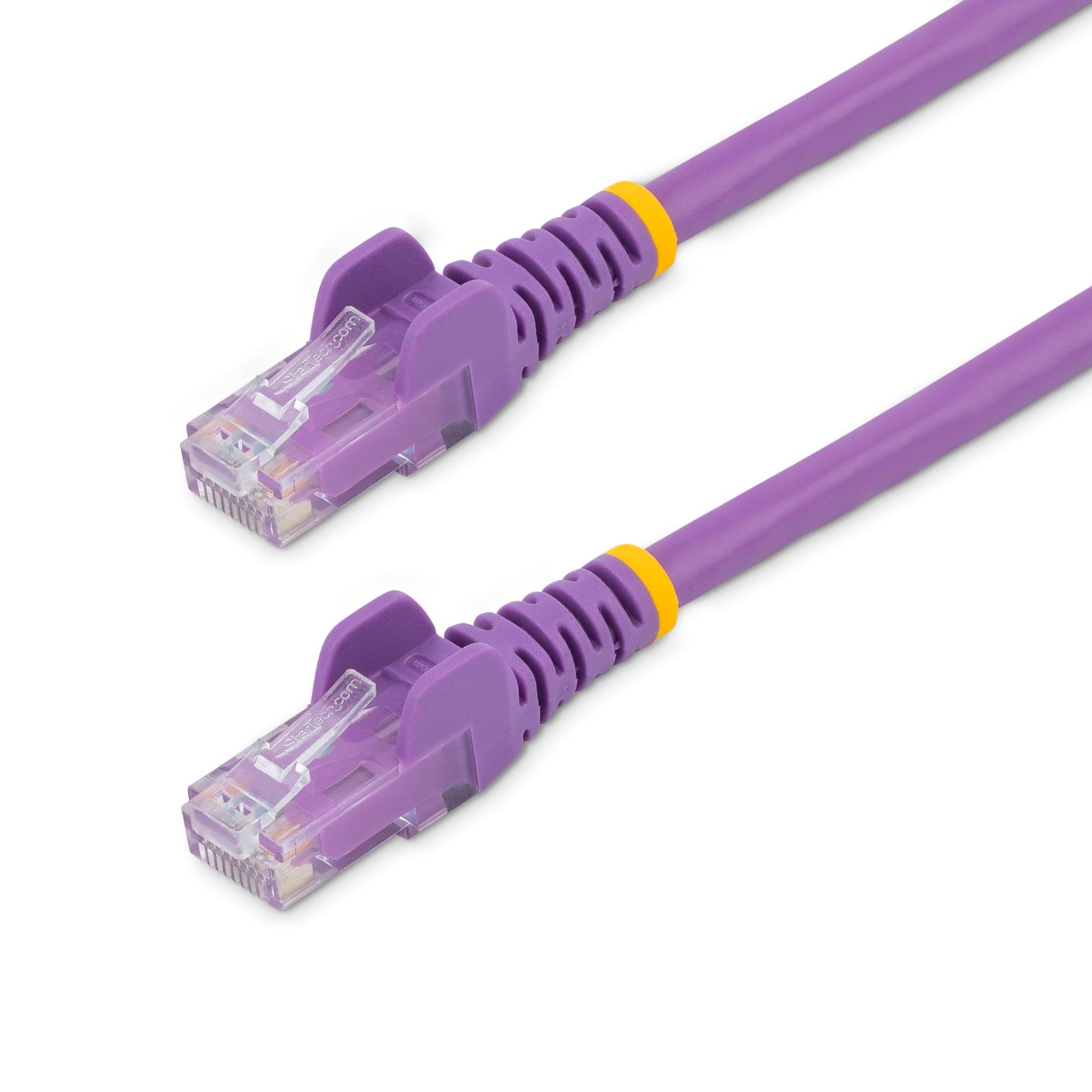

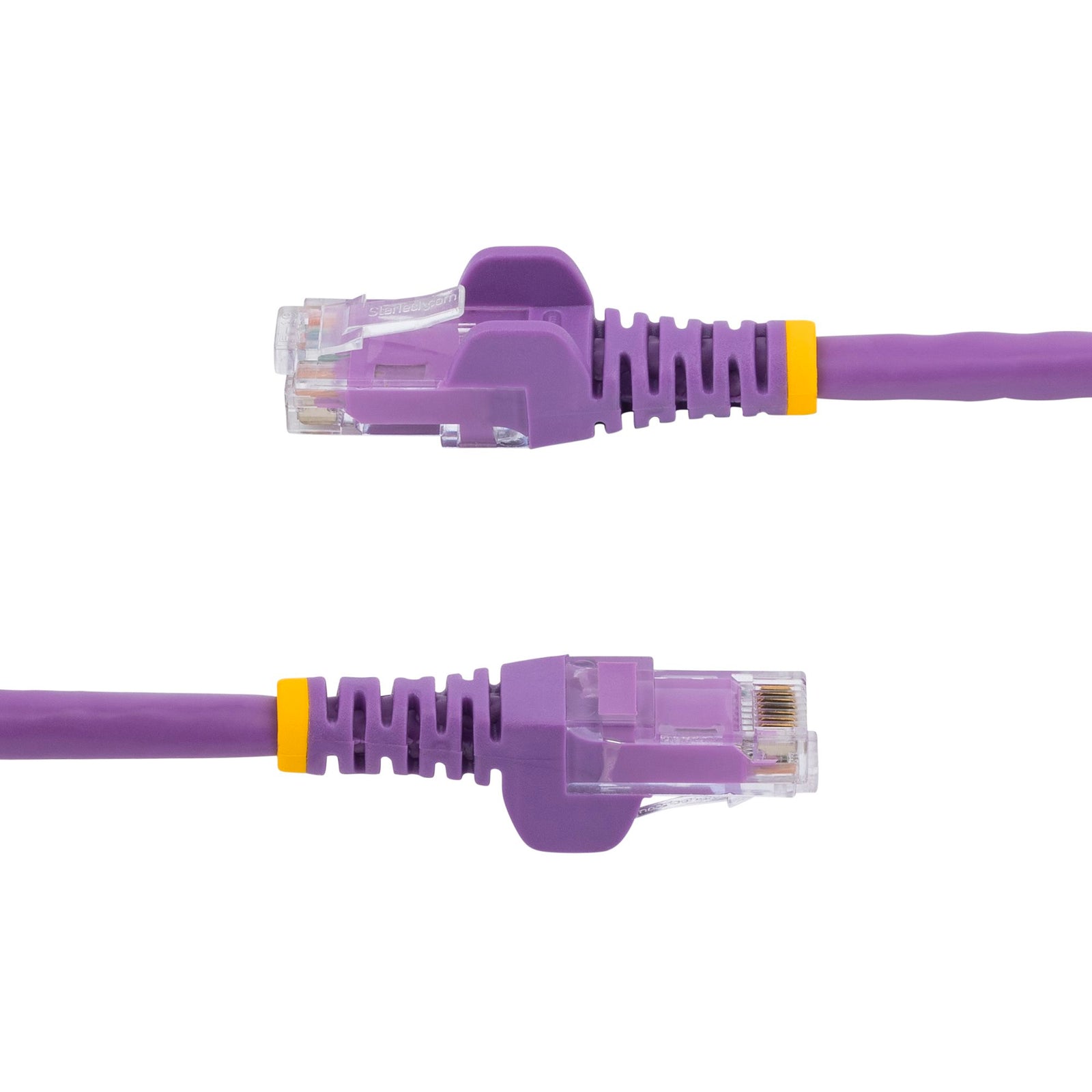

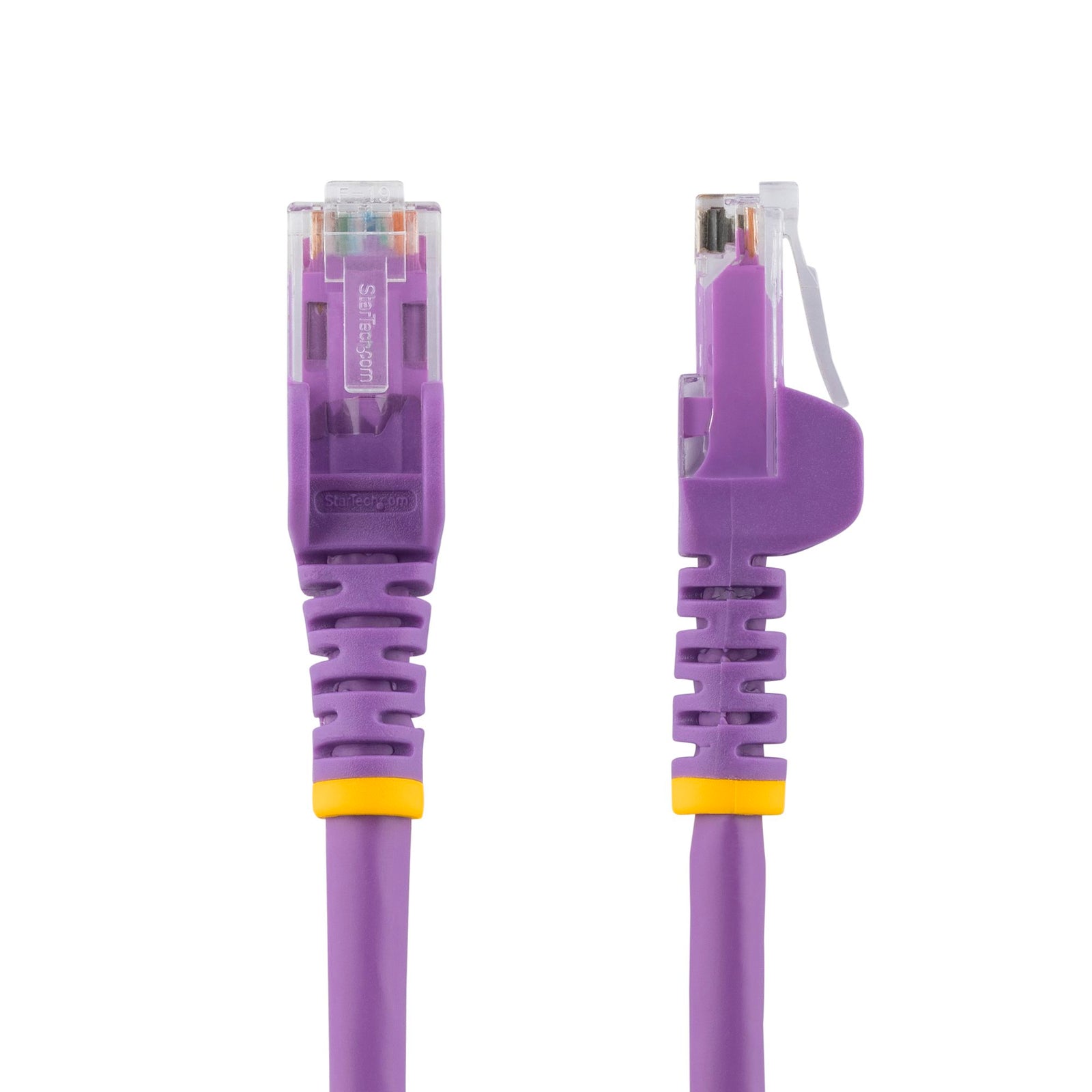

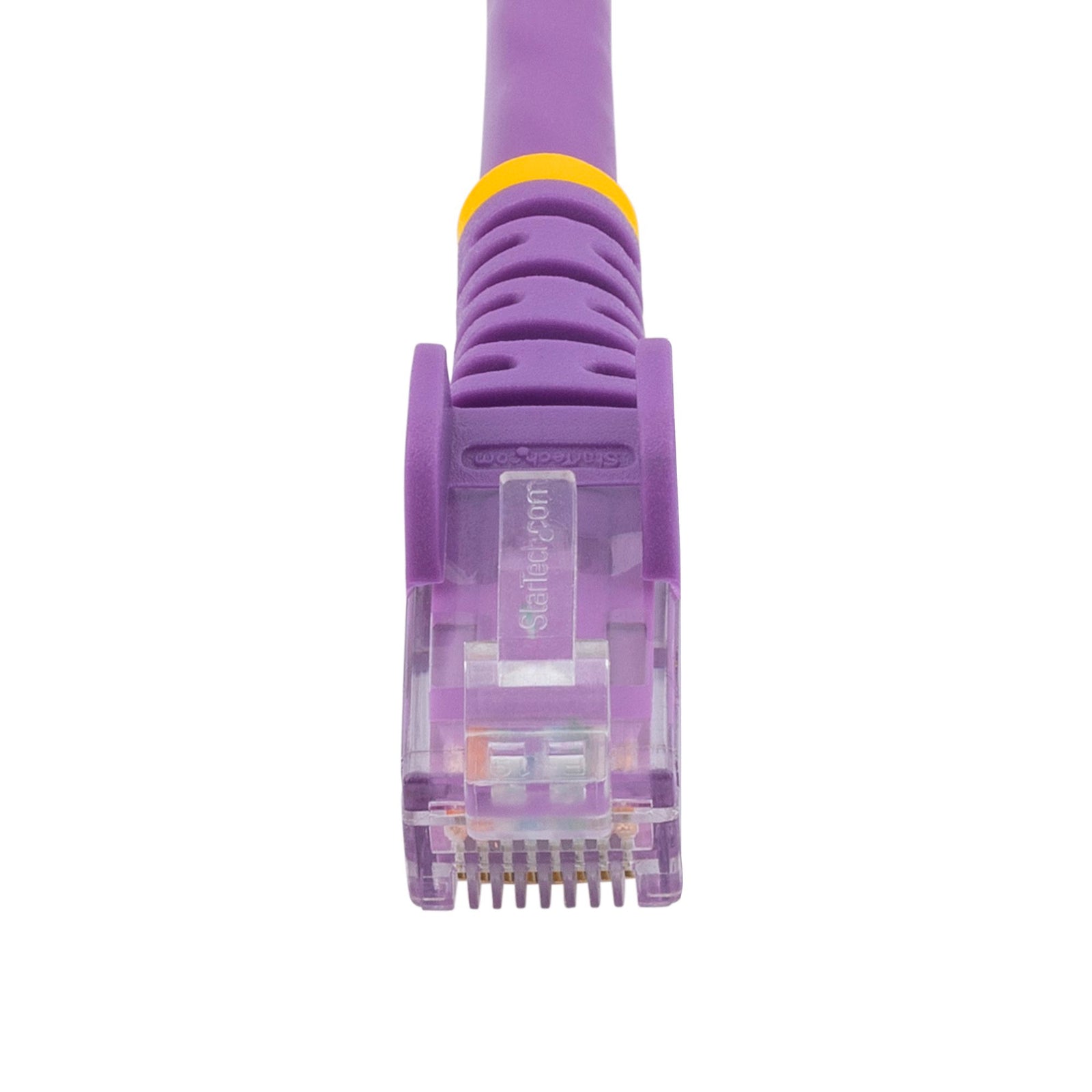

StarTech 15m Purple CAT 6 Gigabit Ethernet Wire - N6PATC15MPL
The N6PATC15MPL Cat 6 Patch Cable (15m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable purple PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles - reducing the risk of cable damage, which could decrease network performance.
Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by our Lifetime Warranty.
100% Copper - a better value
StarTech.com Cat6 cables are manufactured using high-quality copper conductors. While many cable manufacturers offer a "cheaper" cable based on a copper-coated aluminum core, we make no compromises on quality to ensure you receive top value and performance for your network cable investment.
24 AWG Wire
This Cat6 cable is constructed with 24 gauge copper wire, to support a broad range of Ethernet applications such as Power over Ethernet (PoE). Because we use a high quality copper wire, our cables easily sustain the power required for Power over Ethernet applications, whereas the inferior quality offered by copper-coated aluminum cables may be subject to insufficient power delivery, heat buildup, equipment damage and potentially, fire.
50-micron Gold Connectors
This Cat 6 patch cable offers high quality connectors comprised of 50-micron gold, to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
Applications
Designed for use with Gigabit networks
Patches from hub to distribution panel
Connects workstation to wall outlet
Extend the reach of your Gigabit network devices by 15m (49.2ft)
-
Warranty Information |
|
Warranty |
Lifetime |
Connector(s) |
|
Connector A |
1 - RJ-45 |
Connector B |
1 - RJ-45 |
Hardware |
|
Fire Rating |
CMG Rated |
Number of Conductors |
4 pair UTP |
Connector Plating |
Gold |
Cable Jacket Material |
PVC |
Cable Type |
Snagless |
Wiring Standard |
TIA/EIA-568-B.1-2001 T568B |
Packaging Information |
|
Package Height |
38.0 mm [1.5 in] |
Package Length |
33.0 cm [13.0 in] |
Package Width |
25.5 cm [10.0 in] |
Package Quantity |
1 |
Shipping (Package) Weight |
0.6 kg [1.3 lb] |
Performance |
|
Cable Rating |
CAT6 - 650 MHz |
Physical Characteristics |
|
Product Height |
0.0 cm [0.0 in] |
Product Width |
0.0 cm [0.0 in] |
Color |
Purple |
Wire Gauge |
24 AWG |
Conductor Type |
Stranded Copper |
Cable Length |
15 m [49.2 ft] |
Product Length |
15.0 m [49.2 ft] |
Weight of Product |
593.0 g [20.9 oz] |
What's in the Box |
|
Included in Package |
1 - 15 m Purple Snagless Cat6 UTP Patch Cable - ETL Verified |
-
Description |
Downloads |
N6PATC15MPL:Datasheet |
Downloads |
