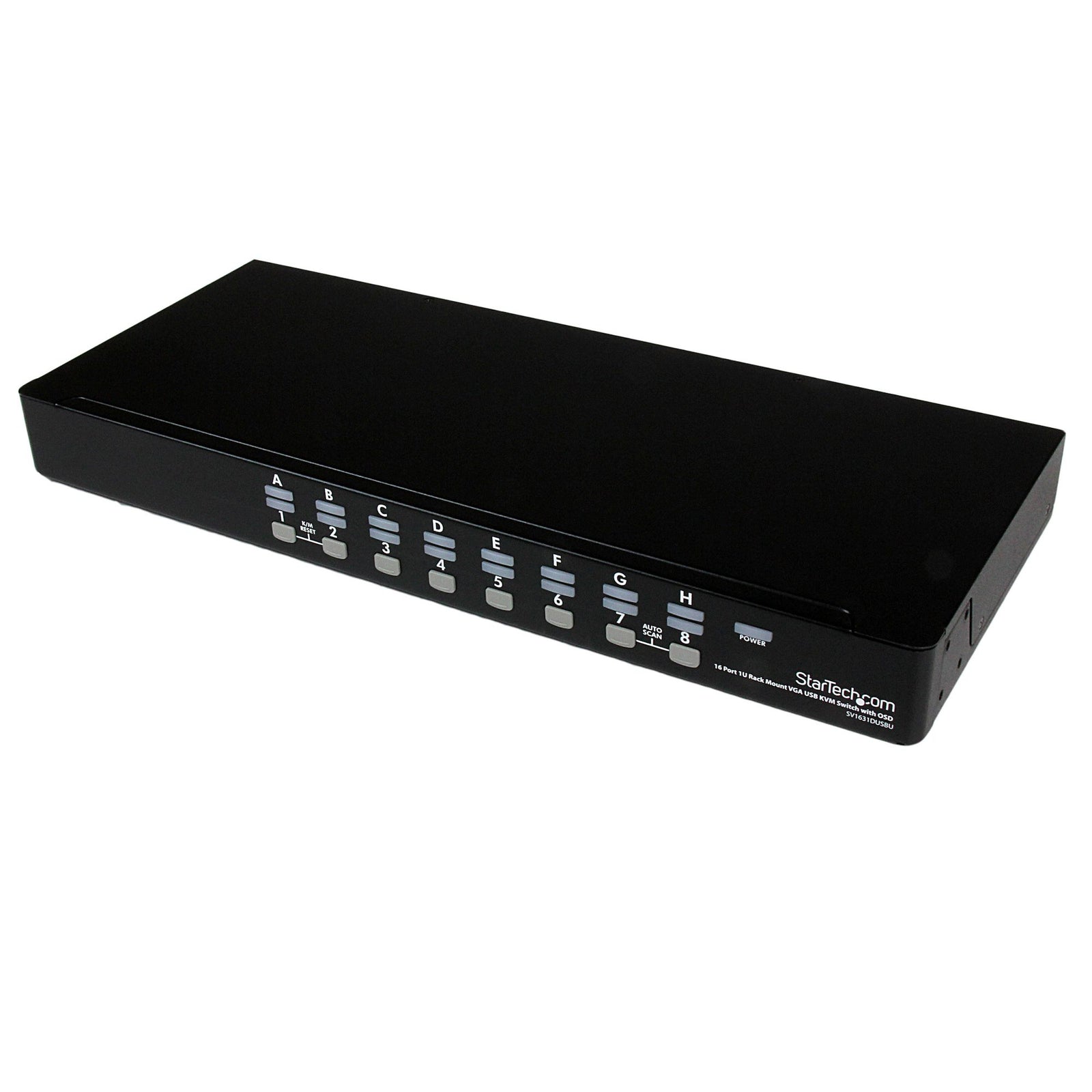

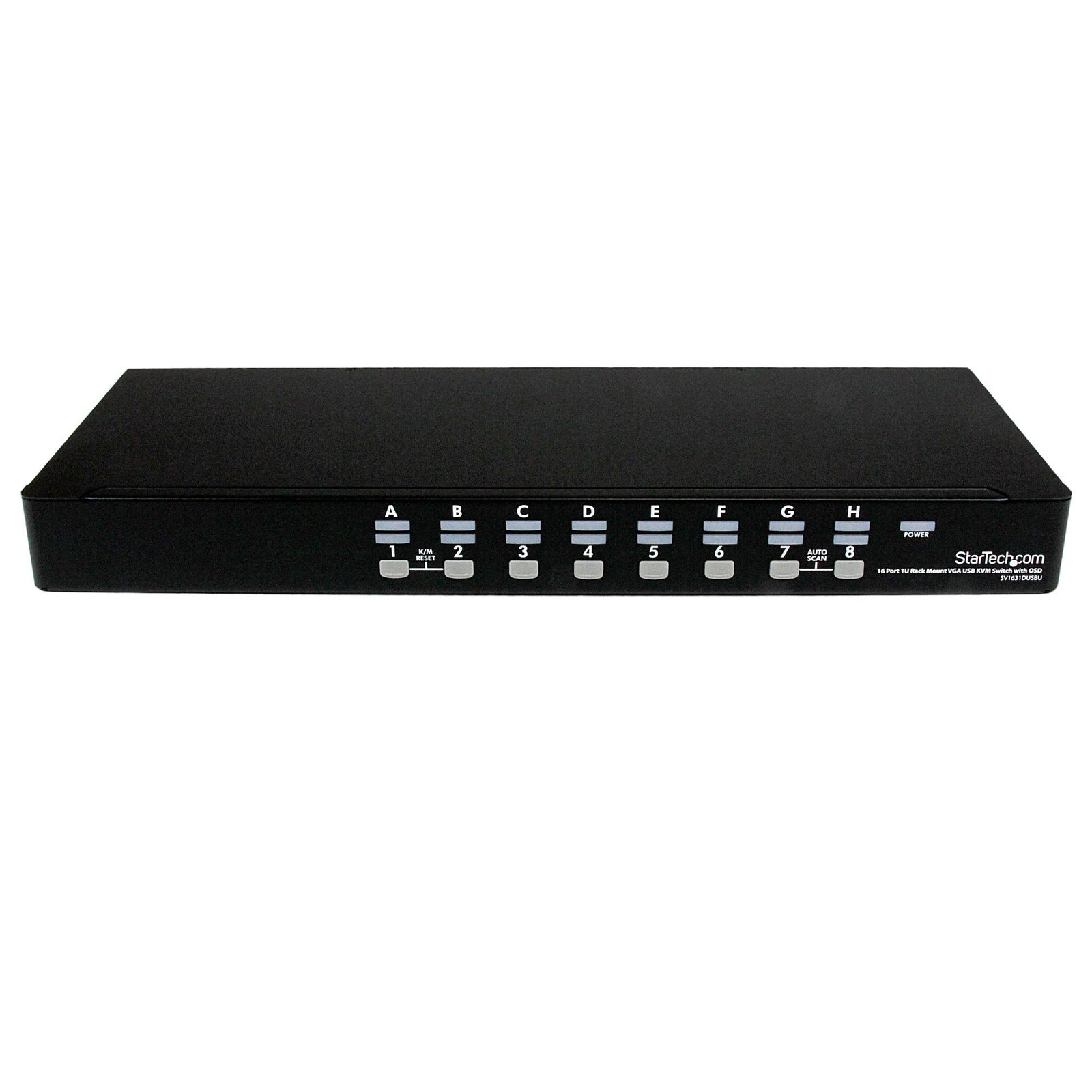

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

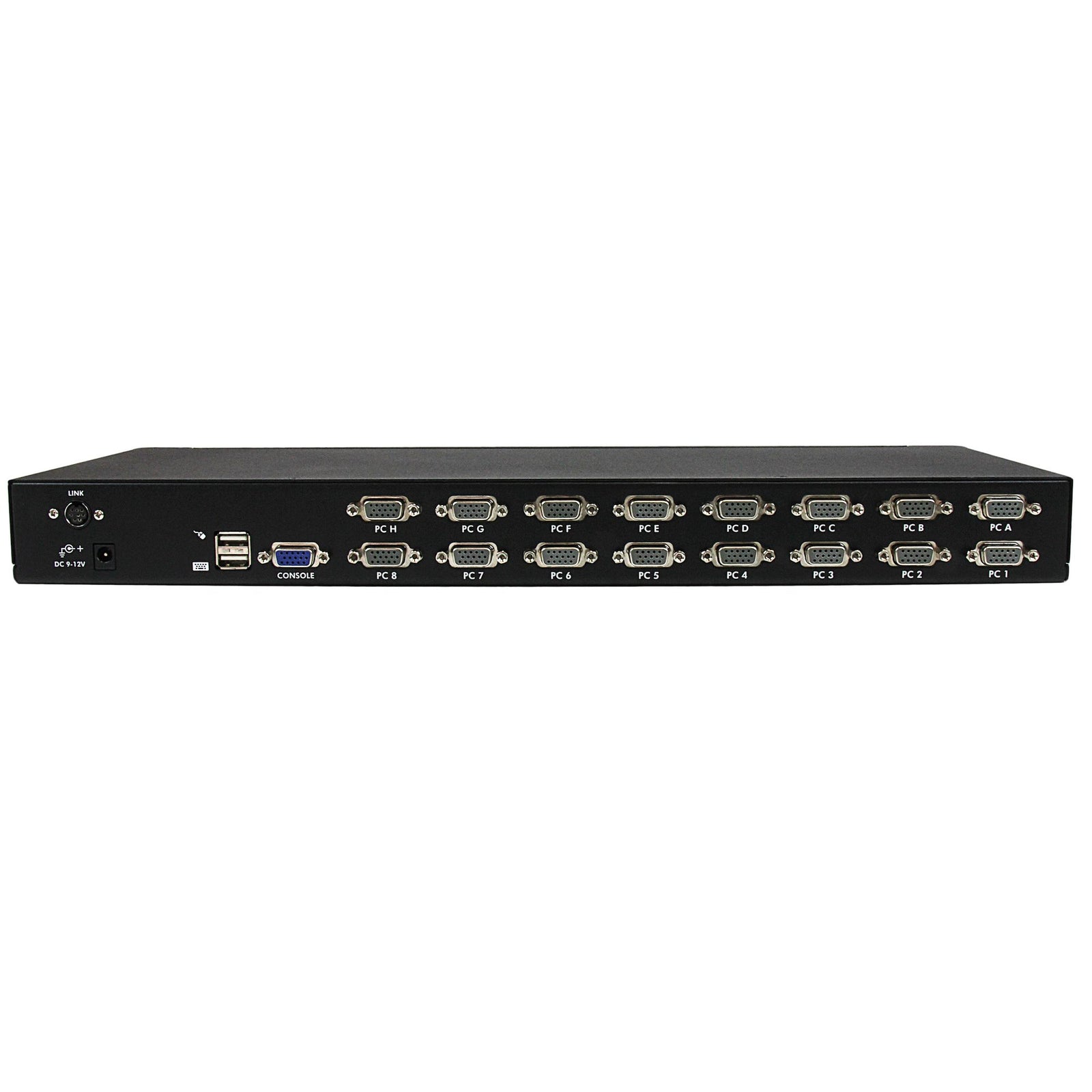

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Applications
Add single console administration to your Co-location/ISP facility saving you
time and Money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Ideal for control of multiple PCs in a QA testing environment
| Category | Details |
|---|---|
| Warranty Information | Warranty: 3 Years |
| Connector(s) | Console Interface(s): |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - VGA (15 pin, High Density D-Sub) | |
| Host Connectors: | |
| 16 - VGA (15 pin, High Density D-Sub) | |
| Environmental | Operating Temperature: 5°C to 40°C (41°F to 104°F) |
| Storage Temperature: -20°C to 60°C (-4°F to 140°F) | |
| Humidity: 80% RH | |
| Hardware | Audio: No |
| KVM Ports: 16 | |
| PC Interface: USB | |
| PC Video Type: VGA | |
| Number of Monitors Supported: 1 | |
| Rack-Mountable: Yes | |
| Cables Included: No | |
| Daisy-Chain: Yes | |
| Indicators | LED Indicators: |
| 16 - Red - PC Selected | |
| 1 - Green - Power | |
| 16 - Green - PC Online | |
| Packaging Information | Package Quantity: 1 |
| Package Length: 23.3 in [59.2 cm] | |
| Package Width: 10.4 in [26.4 cm] | |
| Package Height: 3.6 in [9.2 cm] | |
| Shipping (Package) Weight: 7.6 lb [3.4 kg] | |
| Performance | On-Screen Display: Yes |
| IP Control: No | |
| Hot-Key Selection: Yes | |
| Maximum Analog Resolutions: 1920x1440 @60Hz | |
| (1920x1200 @60Hz - Wide Screen) | |
| Wide Screen Supported: Yes | |
| Maximum Number of Users: 1 | |
| Maximum Cascaded Computers: 136 | |
| Port Selection Support: | |
| Push Button, Hotkeys, and OSD | |
| MTBF: 158,000 hours | |
| Physical Characteristics | Color: Black |
| Material: Steel | |
| Product Width: 21.3 in [54 cm] | |
| Product Height: 1.8 in [4.5 cm] | |
| Product Depth: 7.1 in [180 mm] | |
| Weight of Product: 6.8 lb [3.1 kg] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.6A | |
| Output Voltage: 12V DC | |
| Output Current: 1.5A | |
| Center Tip Polarity: Positive | |
| Plug Type: M | |
| Power Consumption (In Watts): 18 | |
| Software | OS Compatibility: OS independent; No software or drivers required |

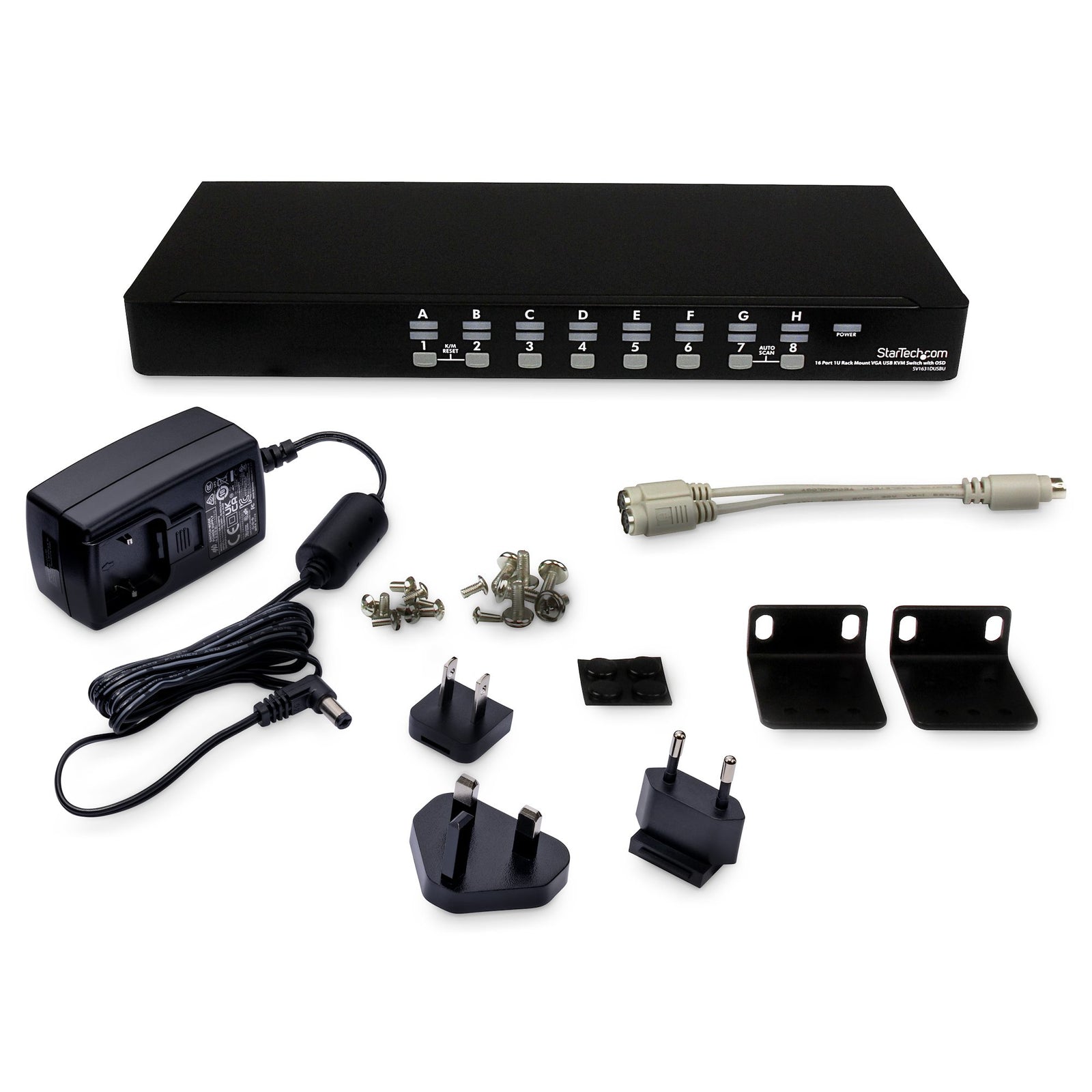

| What's in the Box | Included in Package: |
| 1 - 16 Port USB KVM Switch | |
| 2 - Mounting Brackets | |
| 1 - Bag of Screws | |
| 1 - Pack Rubber Feet | |
| 1 - Power Adapter | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
