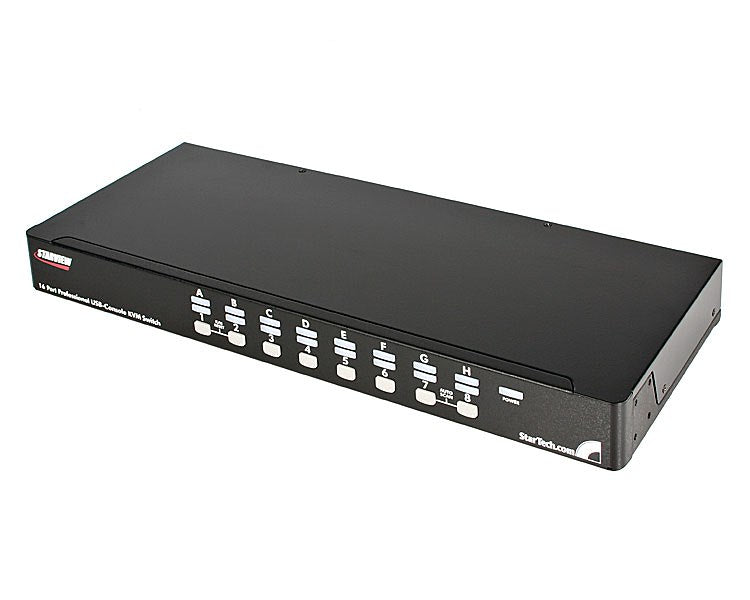

The SV1631DUSBGB 16 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 16 USB or PS/2 connected computers from a single keyboard, mouse and monitor.

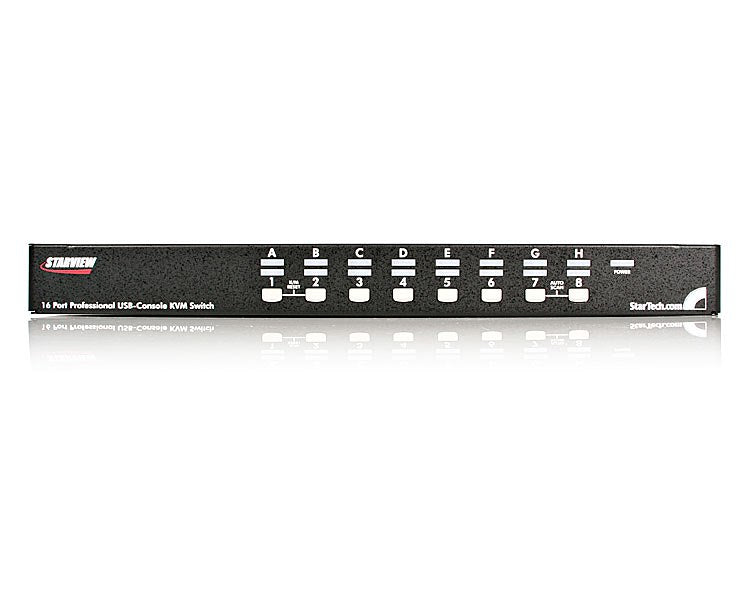

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.
A suitable addition to server room operations, the 16 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch.
Applications
Add single console administration to your Co-location/ISP facility saving you time and Money
Create a scalable, streamlined access solution in your Datacenter or Server Farm
Perfect for manufacturing line computer control, simplifying access to multiple systems
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
| Category | Details |
|---|---|
| Warranty Information | Warranty: 3 Years |
| Environmental | Operating Temperature: 5°C to 40°C (41°F to 104°F) |
| Storage Temperature: -20°C to 60°C (-4°F to 140°F) | |
| Hardware | Audio: No |
| KVM Ports: 16 | |
| PC Interface: USB and PS/2 | |
| PC Video Type: VGA | |
| Number of Monitors Supported: 1 | |
| Rack-Mountable: Yes | |
| Cables Included: No | |
| Daisy-Chain: Yes | |
| Packaging Information | Package Quantity: 1 |
| Package Length: 59.5 cm [23.4 in] | |
| Package Width: 8.8 cm [3.5 in] | |
| Package Height: 26.4 cm [10.4 in] | |
| Shipping (Package) Weight: 3.8 kg [8.4 lb] | |
| Performance | On-Screen Display: No |
| IP Control: No | |
| Hot-Key Selection: Yes | |
| Maximum Analog Resolutions: 1920 x 1440 @60hz | |
| Maximum Number of Users: 1 | |
| Maximum Cascaded Computers: 136 | |
| Port Selection Support: Push Button and Hotkeys | |
| MTBF: 158,000 hours | |
| Physical Characteristics | Material: Steel |
| Product Length: 43.8 cm [17.2 in] | |
| Product Width: 18.0 cm [7.1 in] | |
| Product Height: 4.5 cm [1.8 in] | |
| Weight of Product: 3.1 kg [6.8 lb] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.2 A | |
| Output Voltage: 9V DC | |
| Output Current: 0.6 A | |
| Center Tip Polarity: Positive | |
| Plug Type: M | |
| Power Consumption (In Watts): 5.4 W | |
| Software | OS Compatibility: OS independent; No software or drivers required |

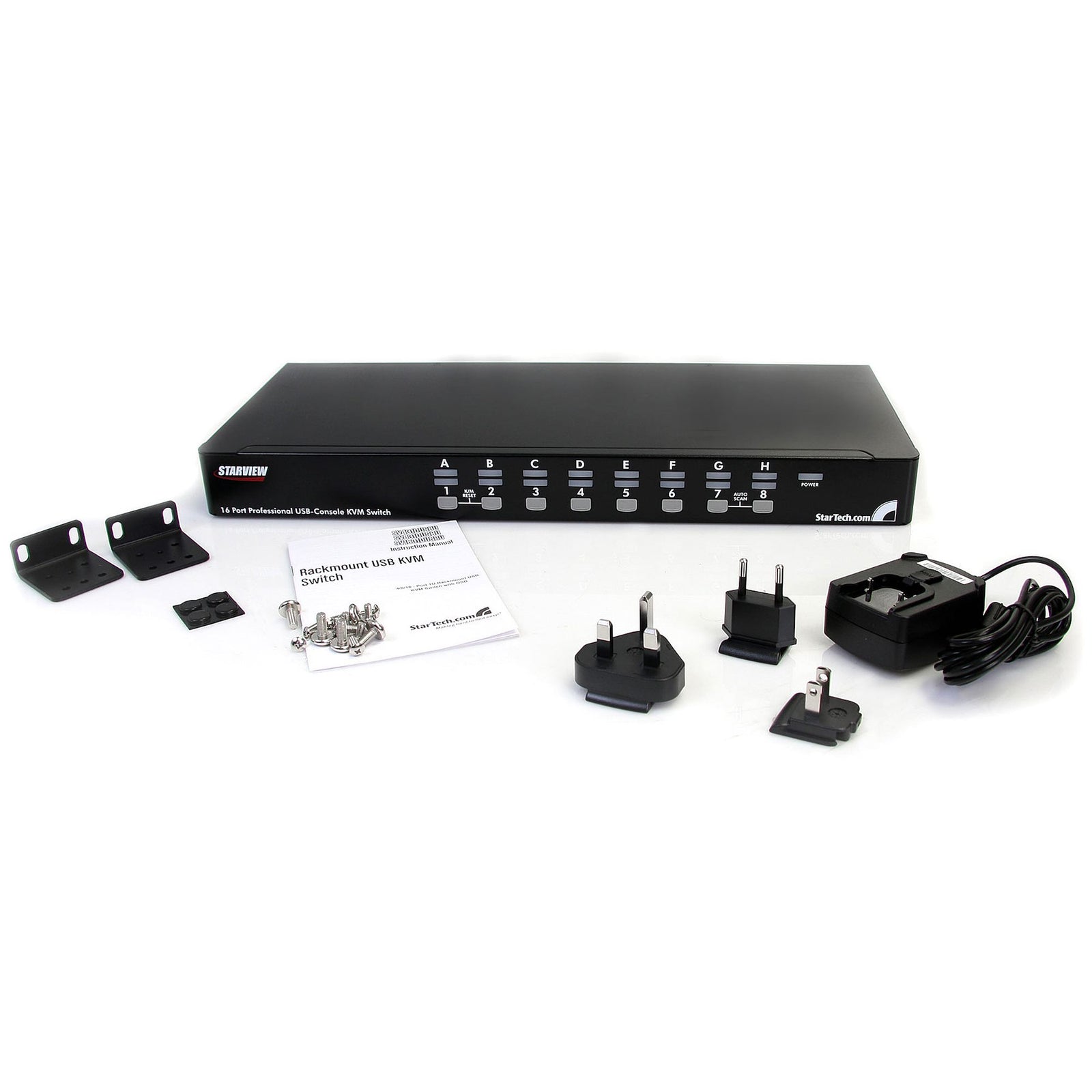

| What's in the Box | Included in Package: |
| 1 - 16 Port KVM Switch | |
| 2 - Mounting Brackets | |
| 1 - PS/2 keyboard and mouse Y cable | |
| 1 - Power Adapter | |
| 4 - Foot Pads | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
