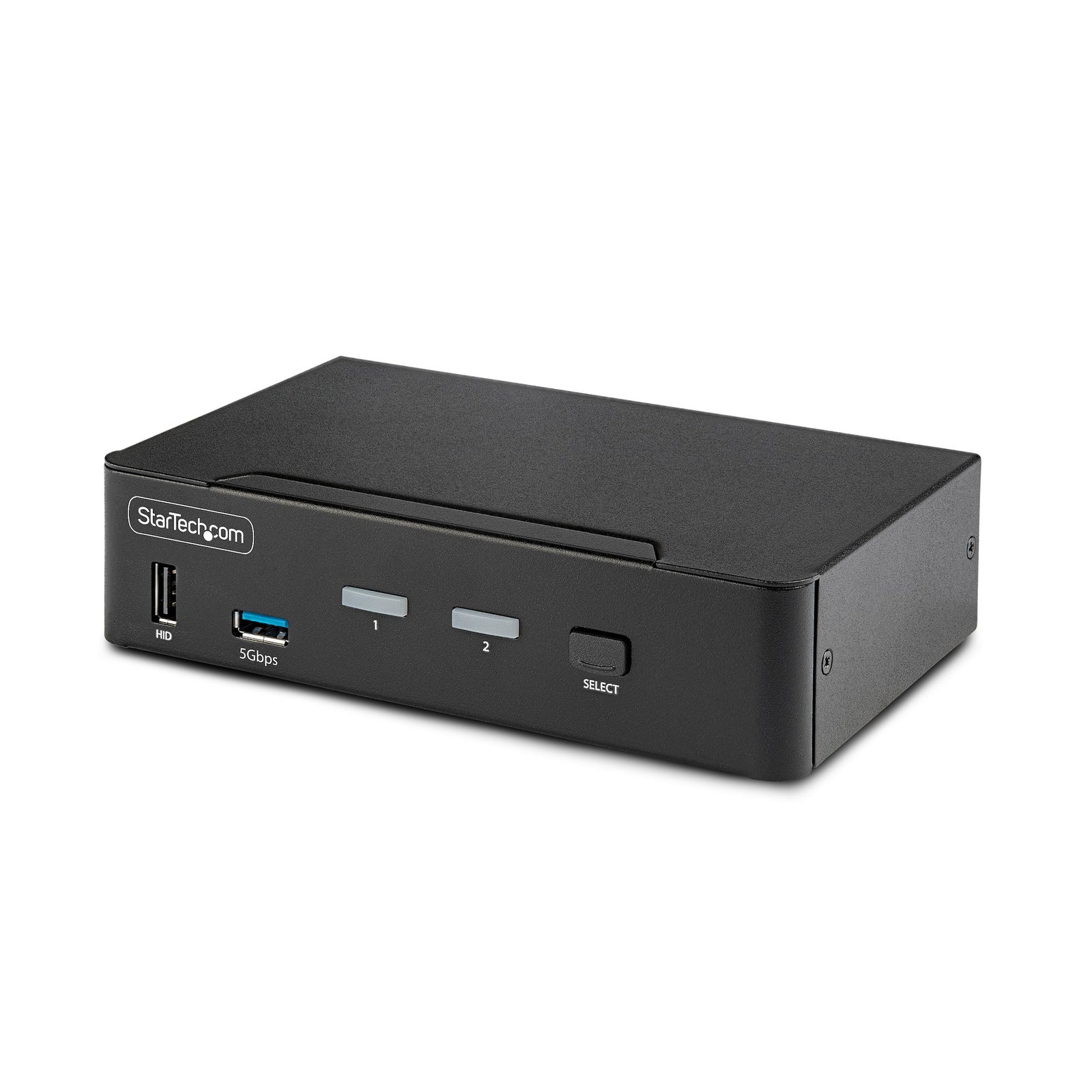

Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching

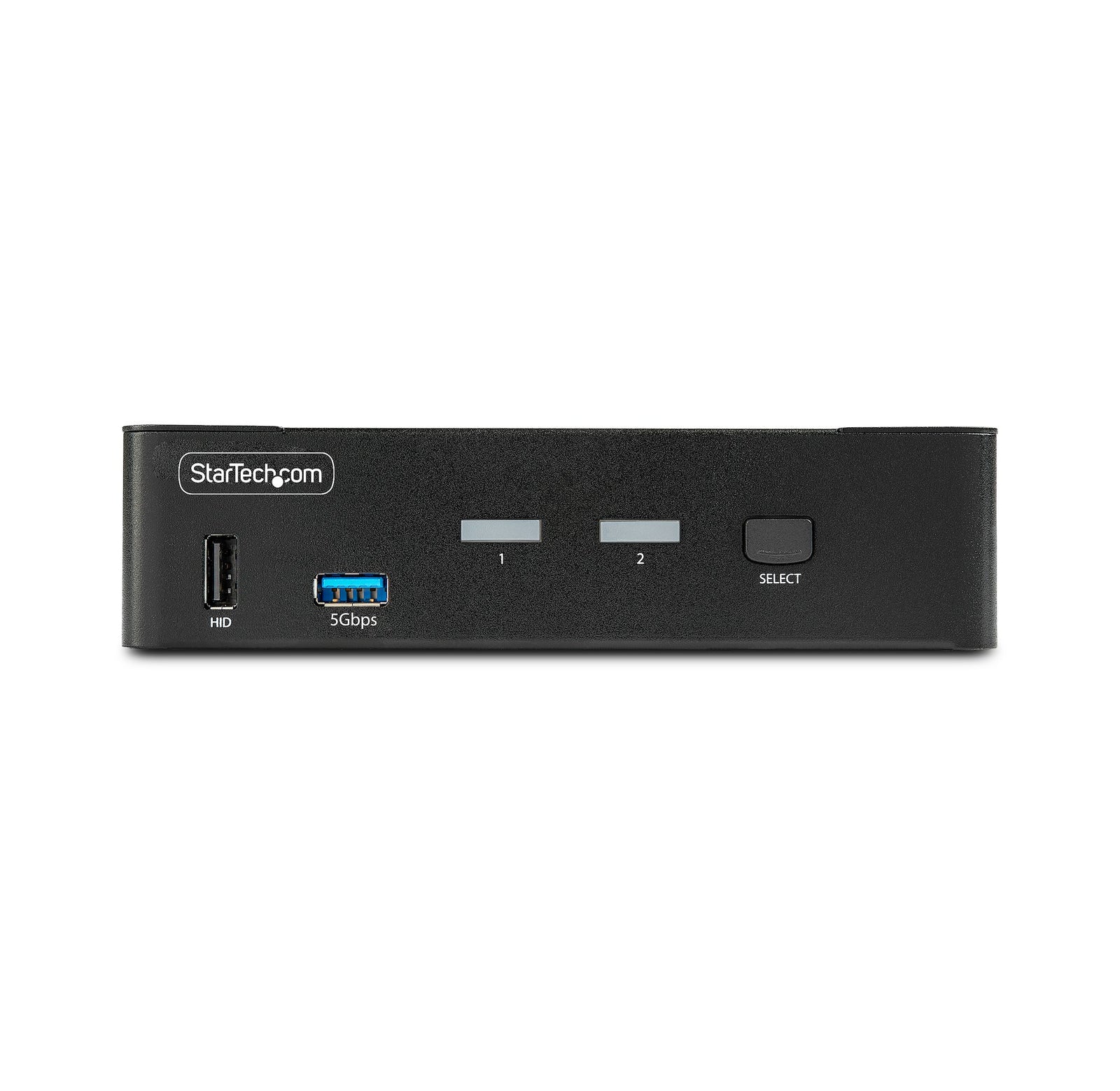

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Applications
Share a monitor, mouse, keyboard, and audio peripheral between two desktop computers
Great for applications like CAD/CAM, video editing, and content creation
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Console Interface(s) | 2 - USB Type-A (9 pin, 5 Gbps) |
| 4 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - DisplayPort | |
| 1 - 3.5mm Stereo Female 3 pos | |
| 1 - Barrel Power Connector (Size M, OD: 5.50, ID: 2.10) | |

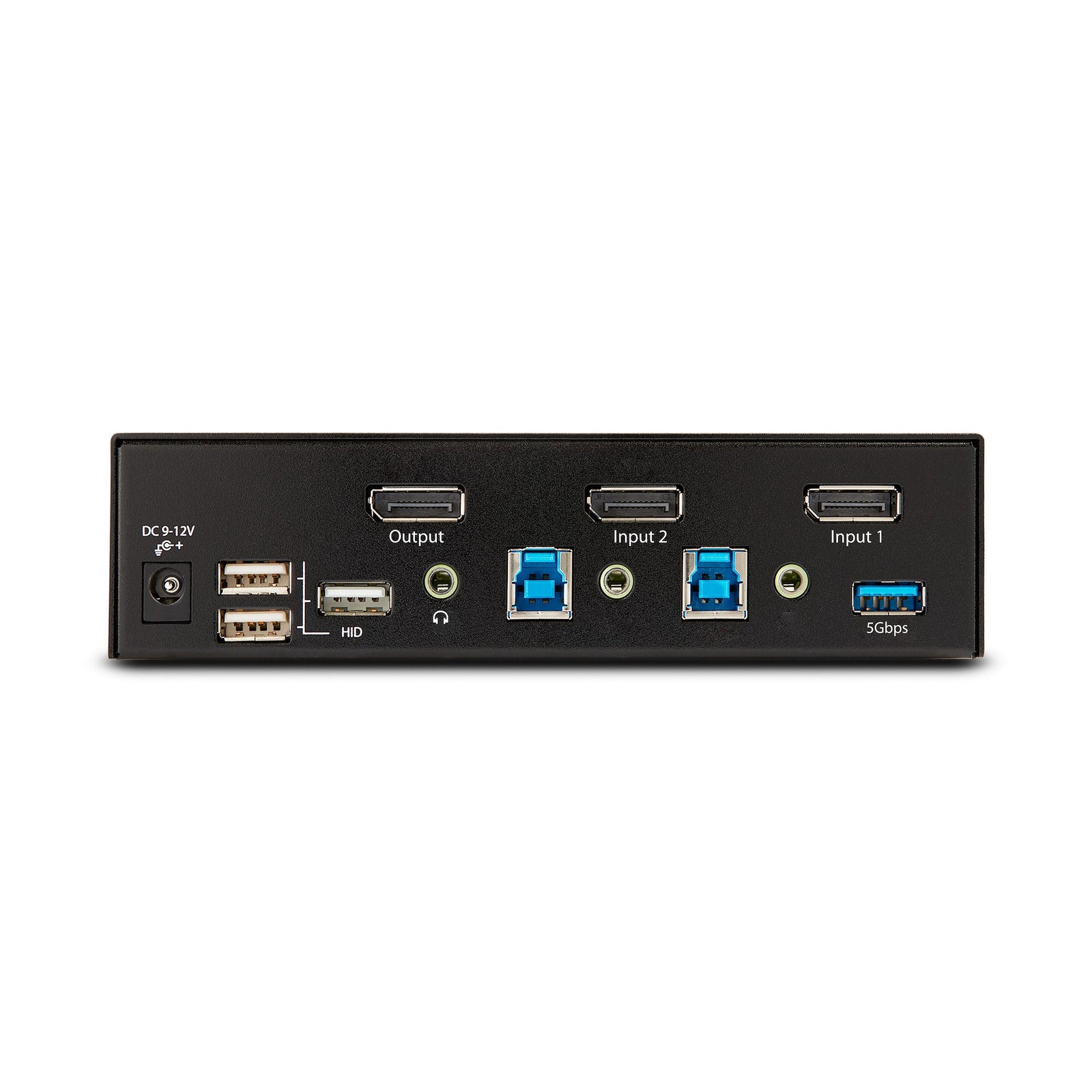

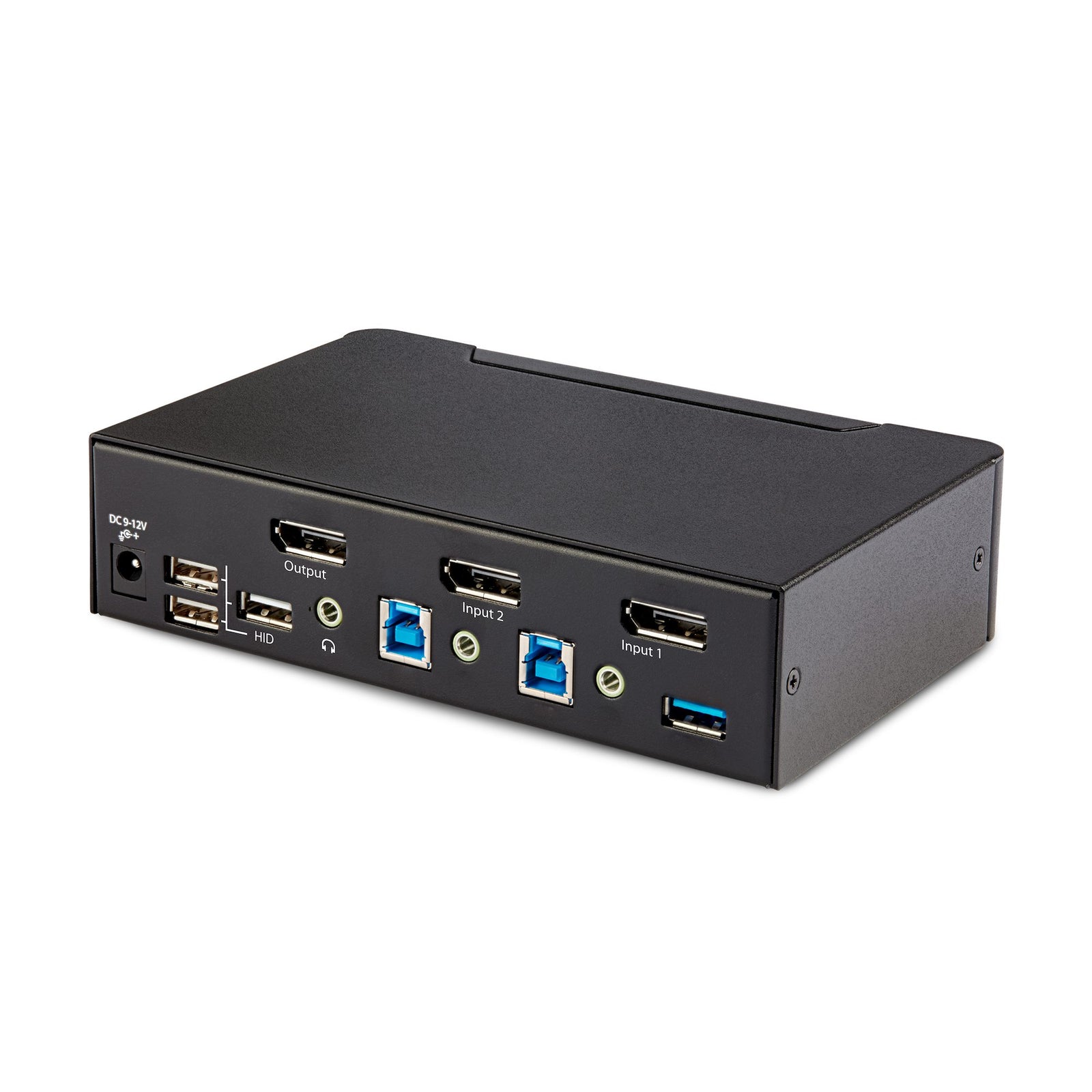

| Host Connectors | 2 - USB 3.2 USB Type-B (9 pin, Gen 1, 5 Gbps) |
| 2 - DisplayPort | |
| 2 - 3.5mm Stereo Female 3 pos | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 80% RH (non-condensing) |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB 3.2 Gen 1 (5Gbps) |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Chipset ID | GL-3523 |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 2 - Solid Green: PC connected (power on) |
| 1 - Solid Red: PC selected (power on) | |
| Packaging Information | |
| Package Height | 9.1 cm [3.6 in] |
| Package Length | 18.4 cm [7.2 in] |
| Shipping (Package) Weight | 1.1 kg [2.5 lb] |
| Package Width | 23.8 cm [9.4 in] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| Video Revision | DisplayPort 1.4 |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Data Transfer Rate | 5Gbps |
| Maximum Digital Resolutions | 7680 x 4320 @ 60Hz |
| Wide Screen Supported | Yes |
| Audio Specifications | DisplayPort - 2 Channel Audio |
| Analog Stereo - 2 Channel Audio | |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 130,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Product Height | 4.0 cm [1.6 in] |
| Product Length | 16.0 cm [6.3 in] |
| Weight of Product | 0.6 kg [1.3 lb] |
| Product Width | 10.0 cm [3.9 in] |
| Material | Steel |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.0A |
| Output Voltage | 12V DC |
| Output Current | 3A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 36W |
| Software | |
| OS Compatibility | No Drivers or Software Required |
| Special Notes / Requirements | |
| System and Cable Requirements | A host that supports DisplayPort 1.4 and DSC is required for maximum performance |
| What's in the Box | |

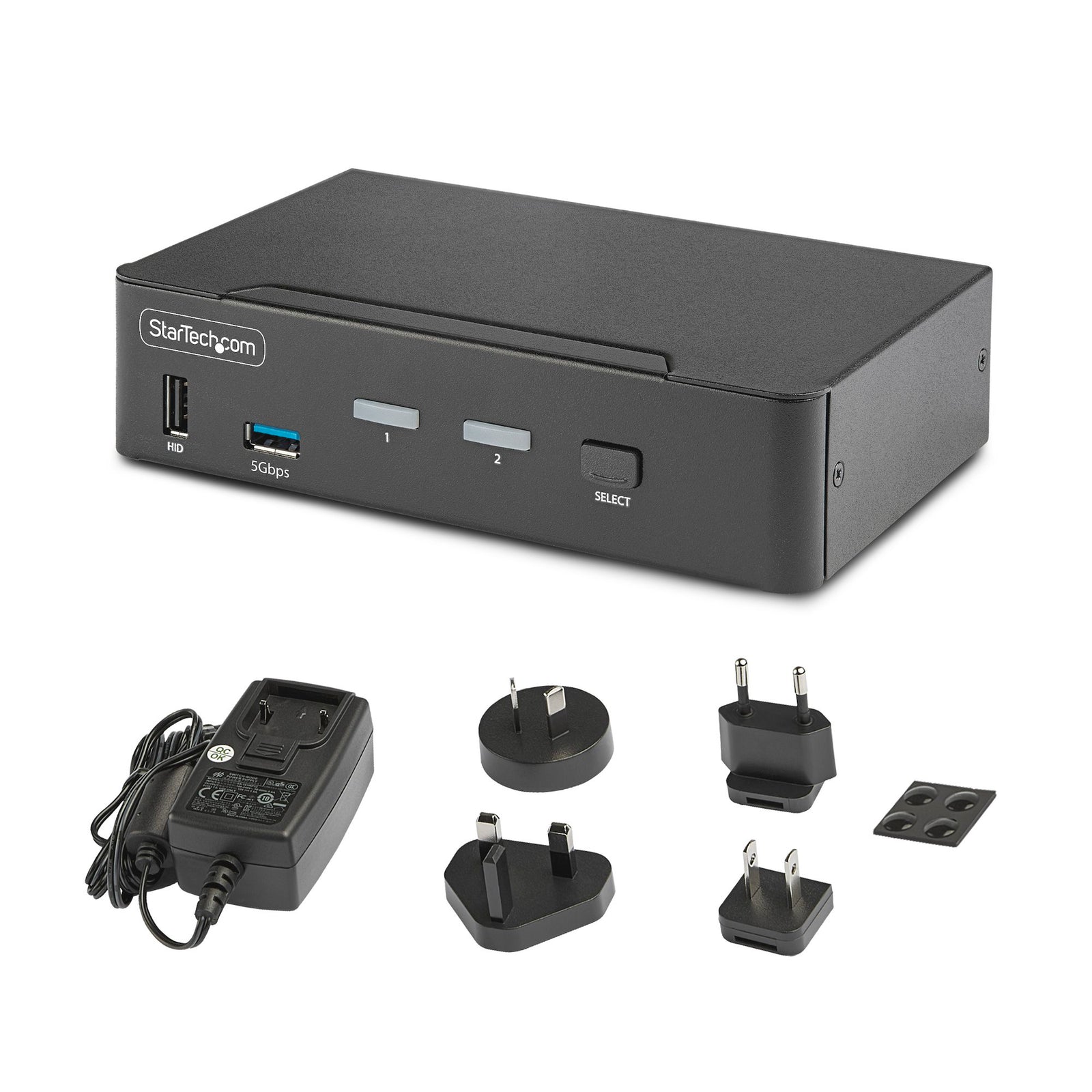

| Included in Package | 1 - KVM Switch |
| 1 - Quick-Start Guide | |
| 1 - Universal Power Adapter (NA/JP, EU, UK, NZ) | |
| 4 - Rubber Feet |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
