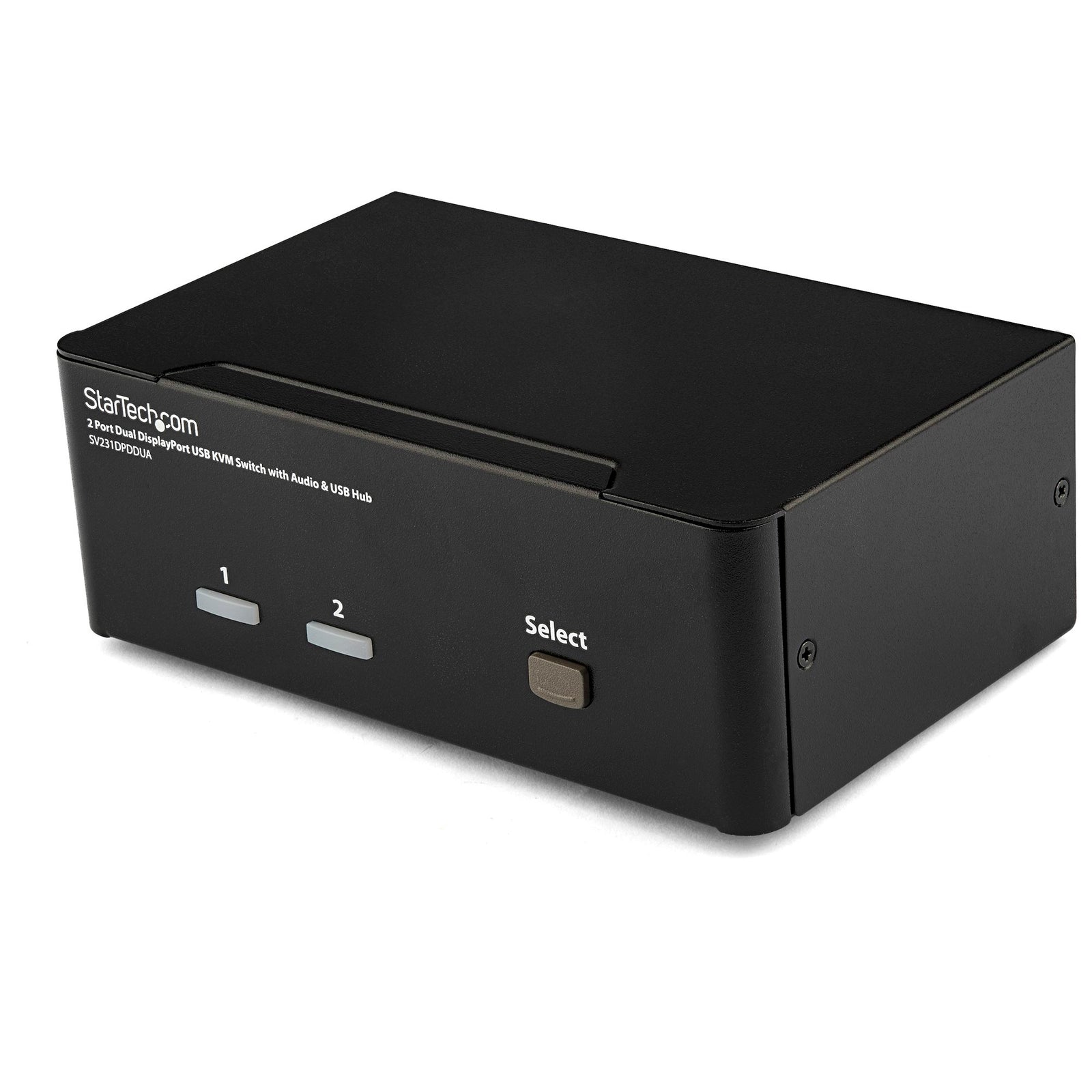

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
Applications
Multimedia design, multimedia post-production and video editing using Mac or PC computers
High resolution medical imaging and Health care display, such as MRI and Xray display
Stock trading stations with dual displays
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Dual system control for a single workstation increasing productivity in the office
Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
Perfect for high-res Digital Signage server control, simplifying access to multiple systems
| Category | Detail |
|---|---|
| Warranty Information | 3 Years |

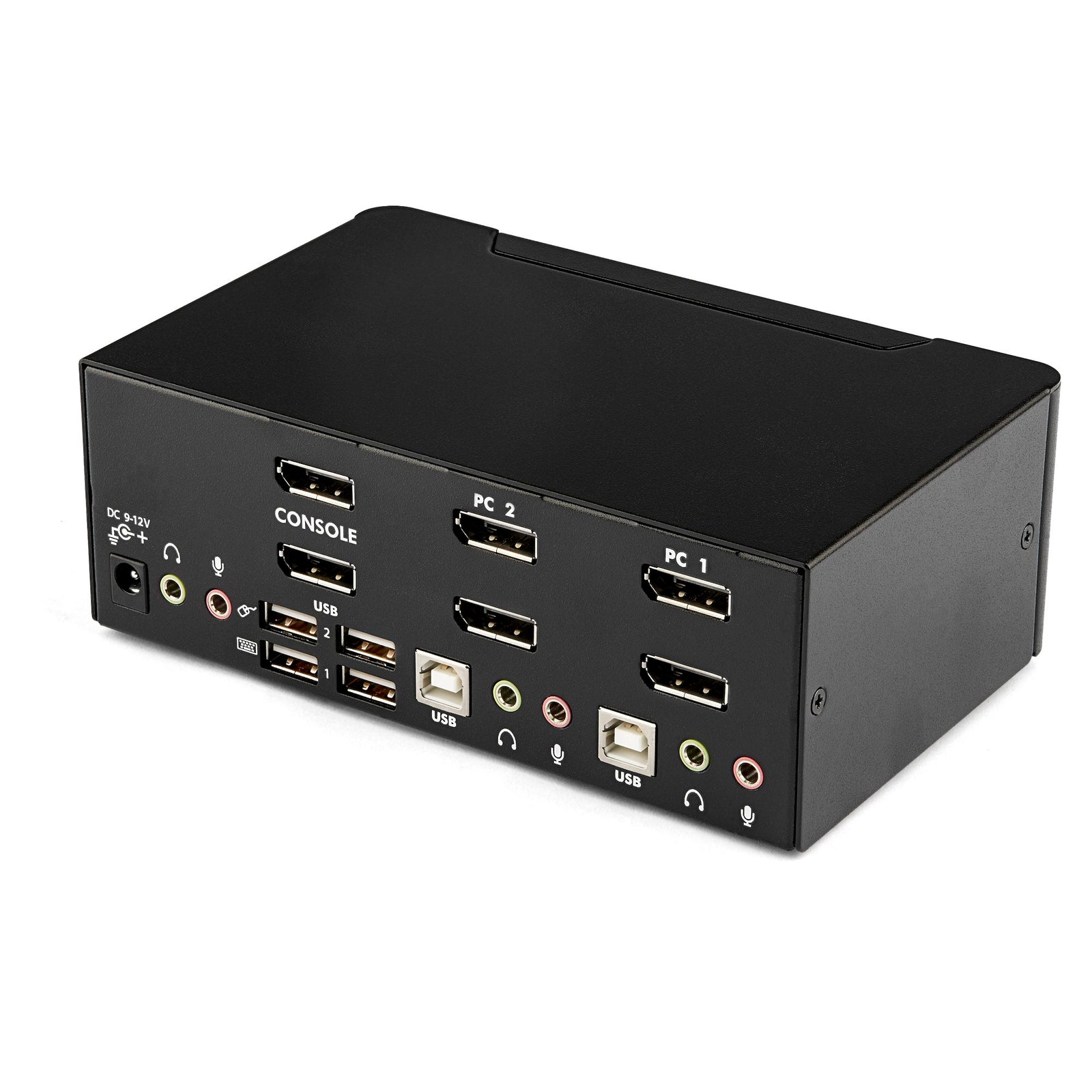

| Connector(s) | |
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) |
| 2 - DisplayPort (20 pin) | |
| 4 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) |
| 4 - DisplayPort (20 pin) | |
| 2 - USB B (4 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 2 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 2 - Green (On-Line) |
| 2 - Red (Selected PC) | |
| Packaging Information | |
| Package Height | 4.0 in [10.2 cm] |
| Package Length | 9.8 in [24.8 cm] |
| Shipping (Package) Weight | 2.6 lb [1.2 kg] |
| Package Width | 7.4 in [18.8 cm] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | WQXGA - 2560 x 1600 |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 138,000 hours |
| Physical Characteristics | |
| Weight of Product | 25.9 oz [734 g] |
| Color | Black |
| Material | Steel |
| Product Width | 6.3 in [16.1 cm] |
| Product Height | 2.3 in [5.8 cm] |
| Product Depth | 3.9 in [100 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |

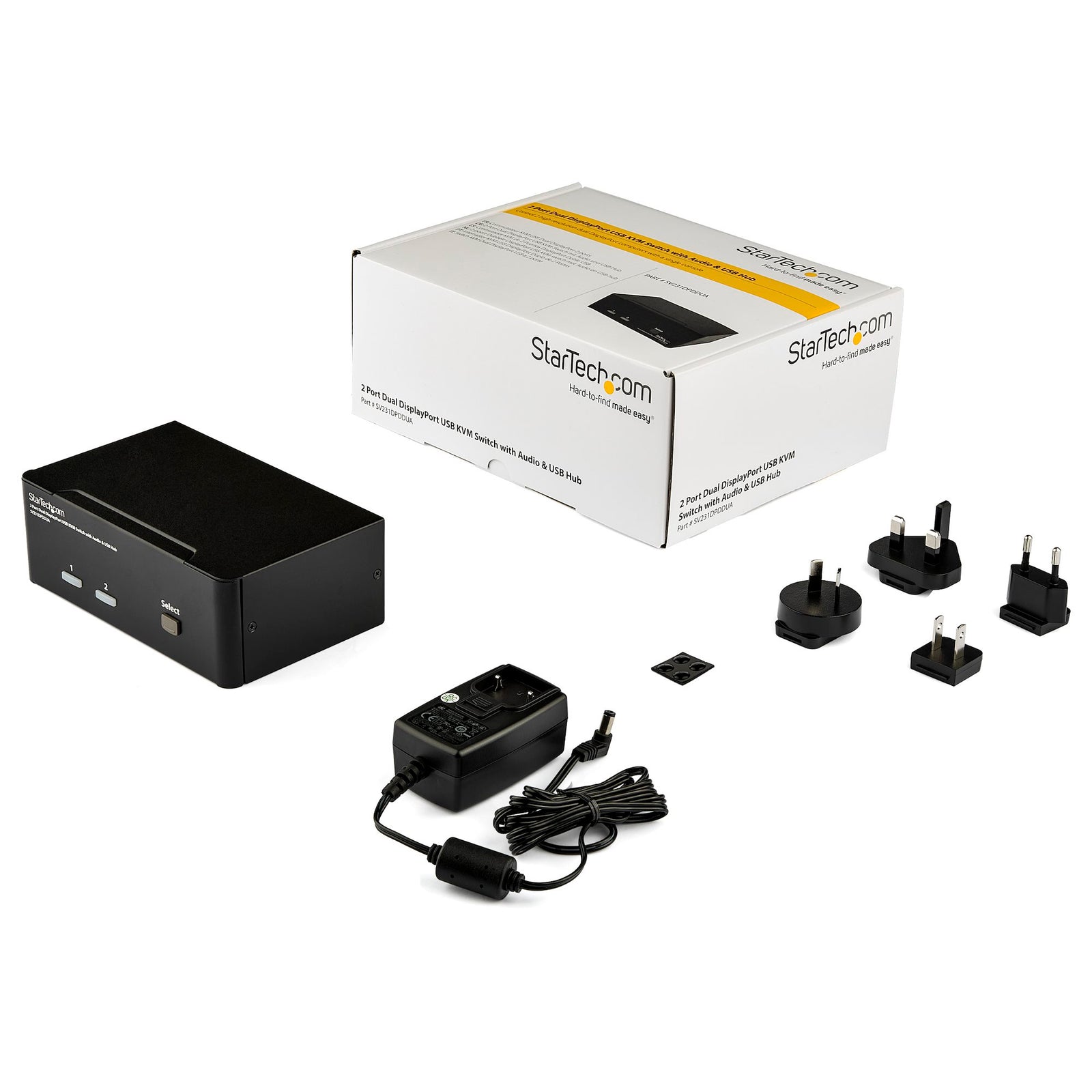

| Included in Package | 1 - 2-port dual display DisplayPort KVM |
| 1 - Universal power adapter (NA/EU/UK/AU) | |
| 1 - Instruction manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
