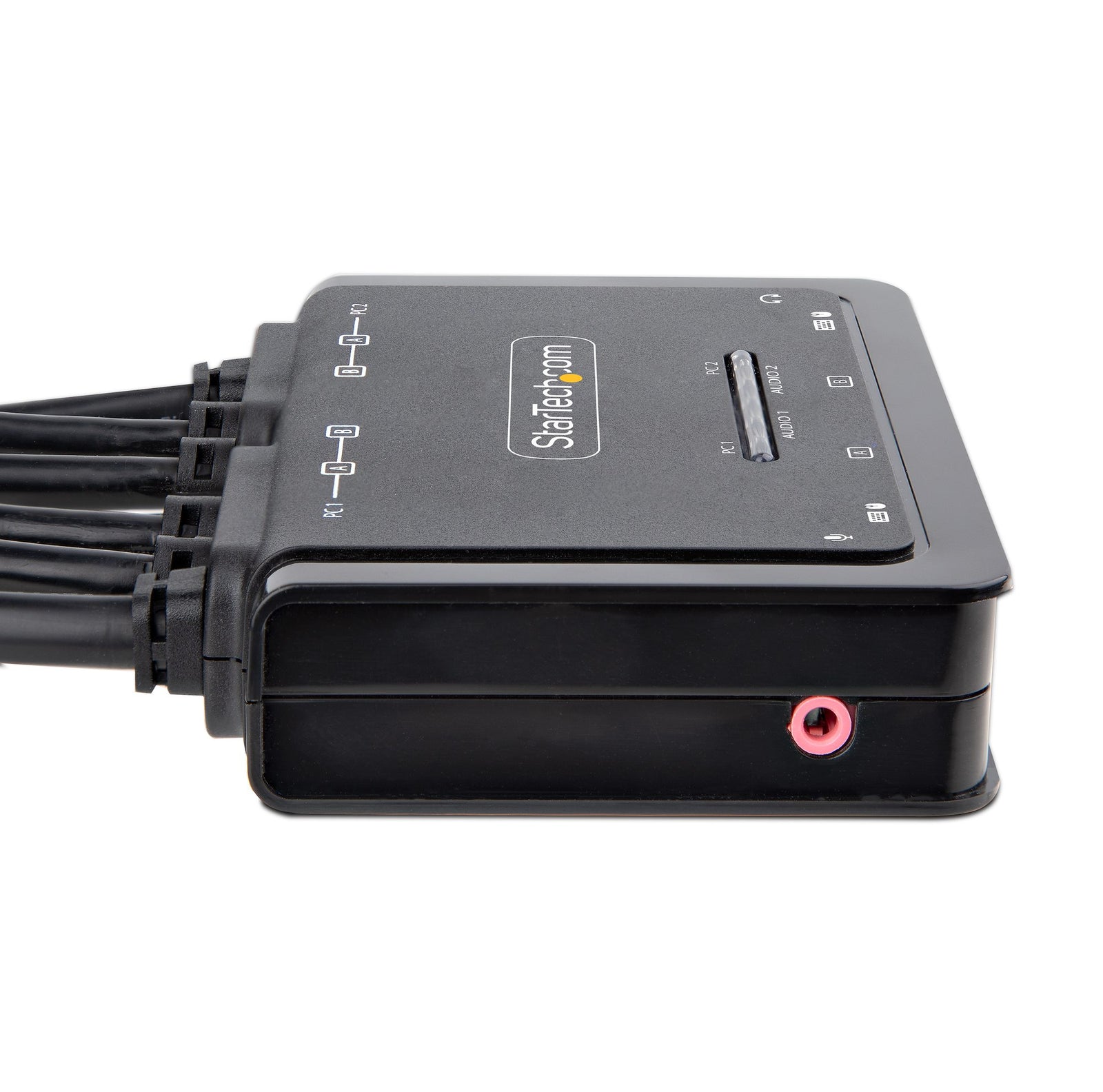

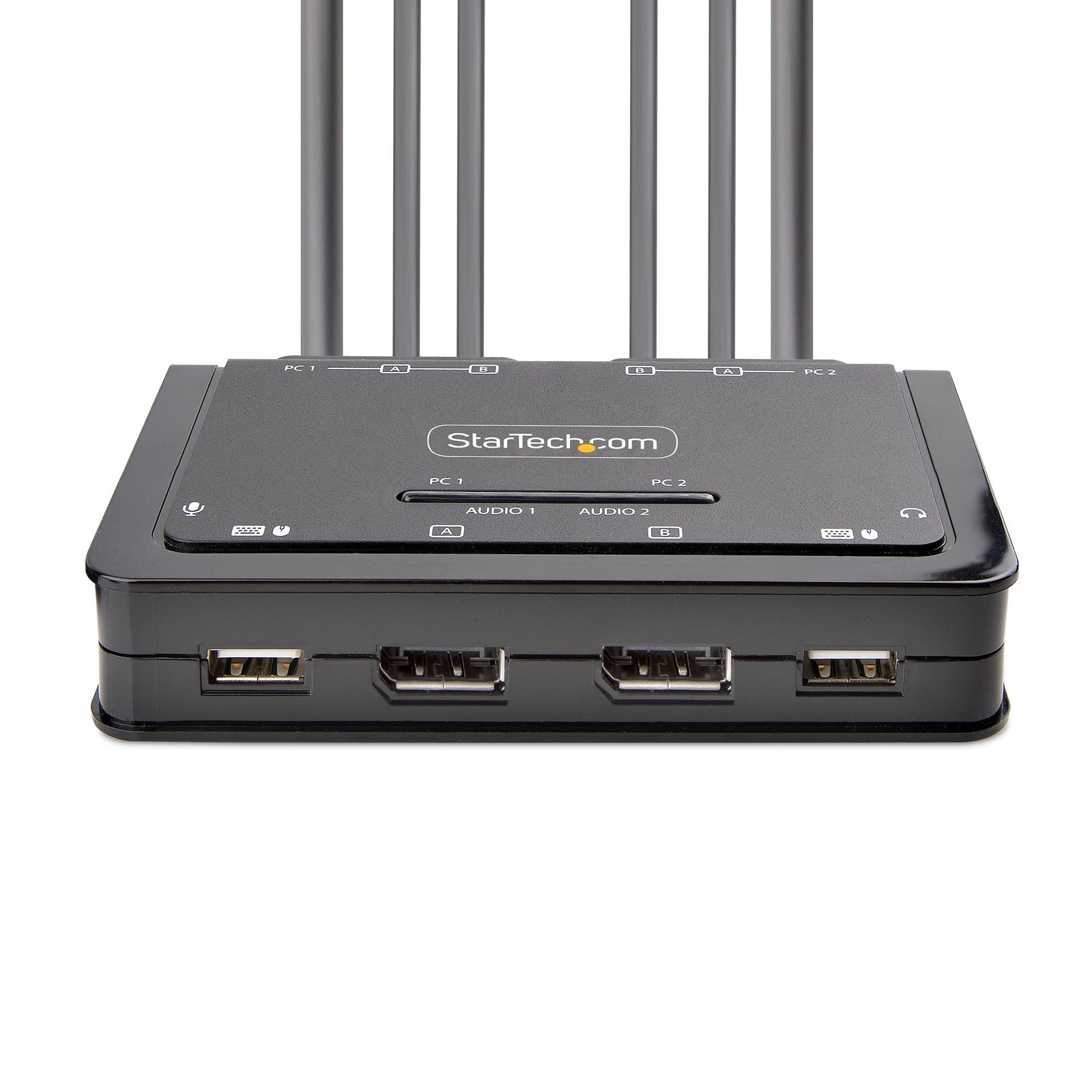

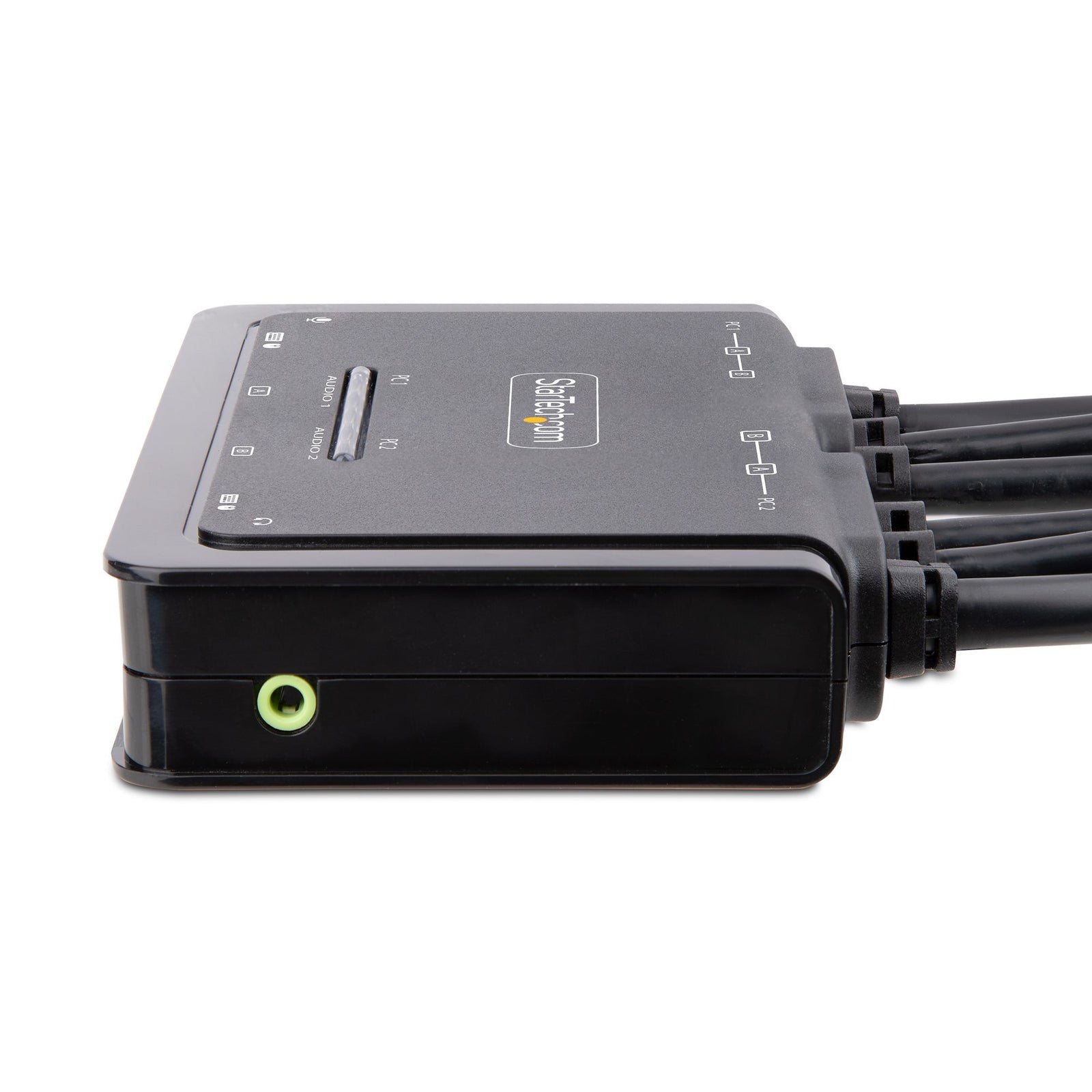

StarTech 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz | C2-DD46-UA2-CBL-KVM
SKU: C2-DD46-UA2-CBL-KVM
£151.97 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech 2-Port Dual-Monitor DisplayPort Cable KVM Switch, 4K 60Hz | C2-DD46-UA2-CBL-KVM
This Dual-Monitor KVM Switch enables users to switch between two USB-A and DisplayPort enabled desktops, sharing dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and audio input/output devices.
Hassle-Free Setup

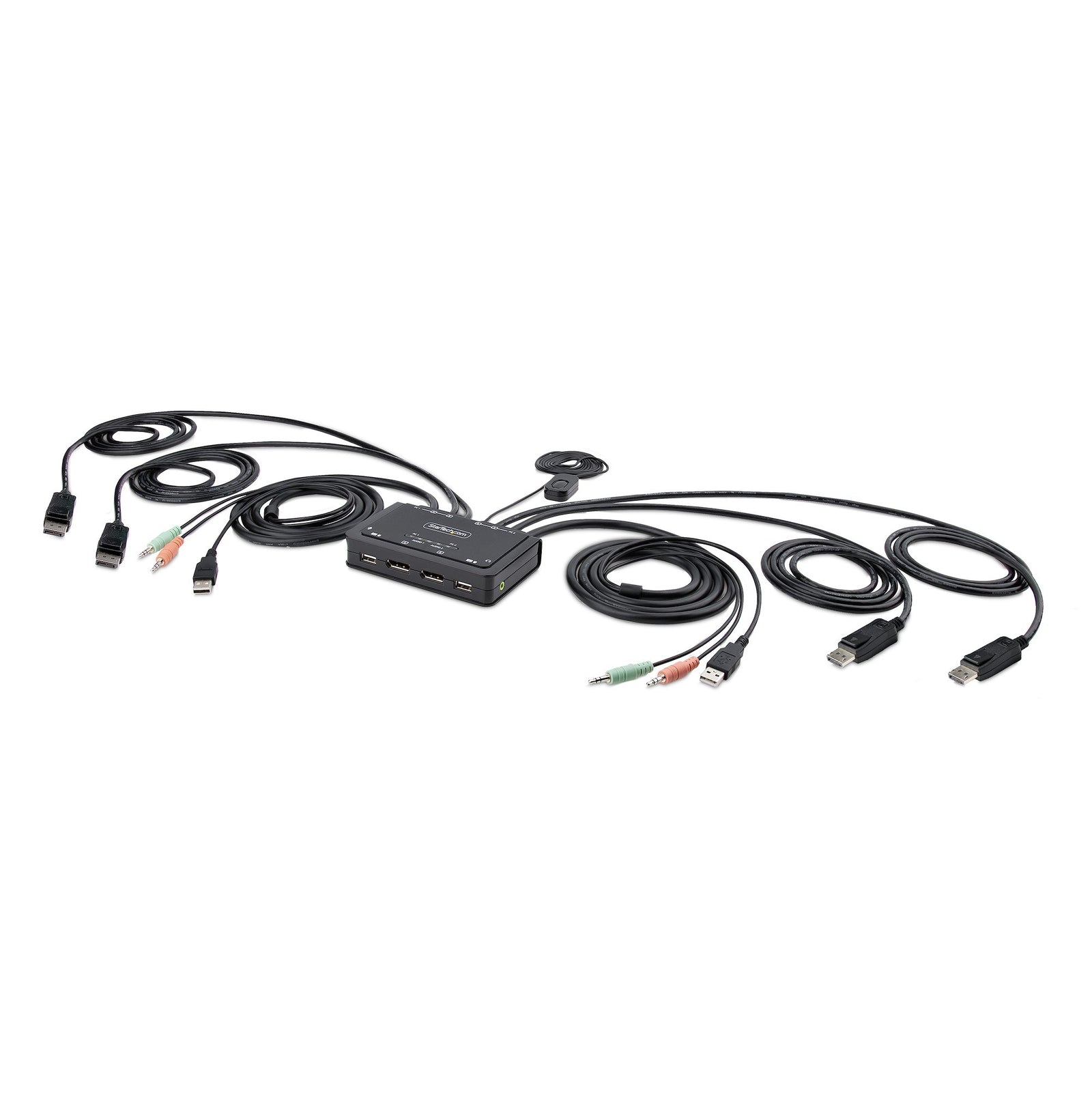

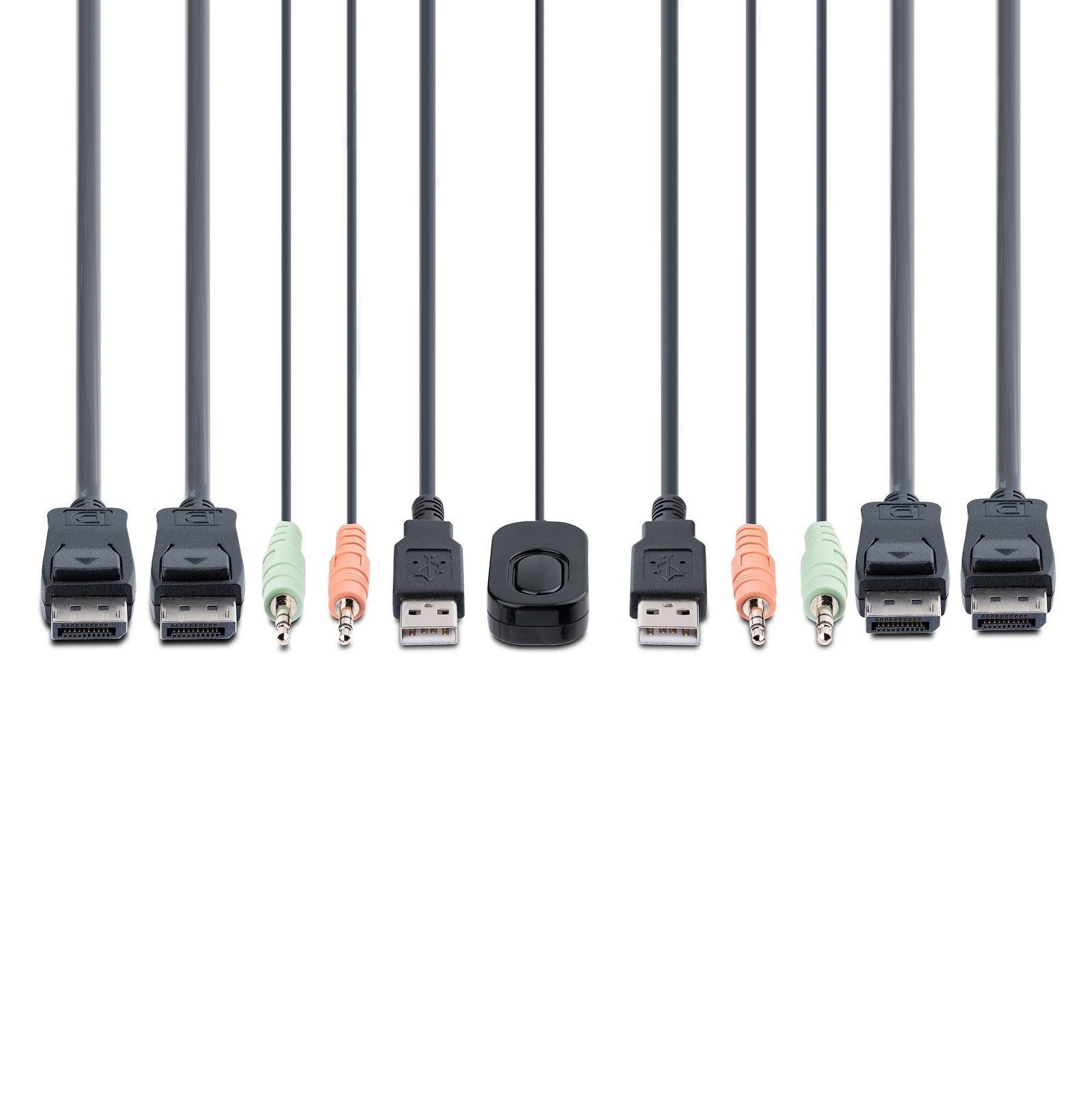

The KVM switch is bus powered and features built-in dual-DisplayPort, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.Applications
Ideal for sharing peripherals between home and office equipment in a home officeGreat for applications like CAD/CAM, video editing, and content creation

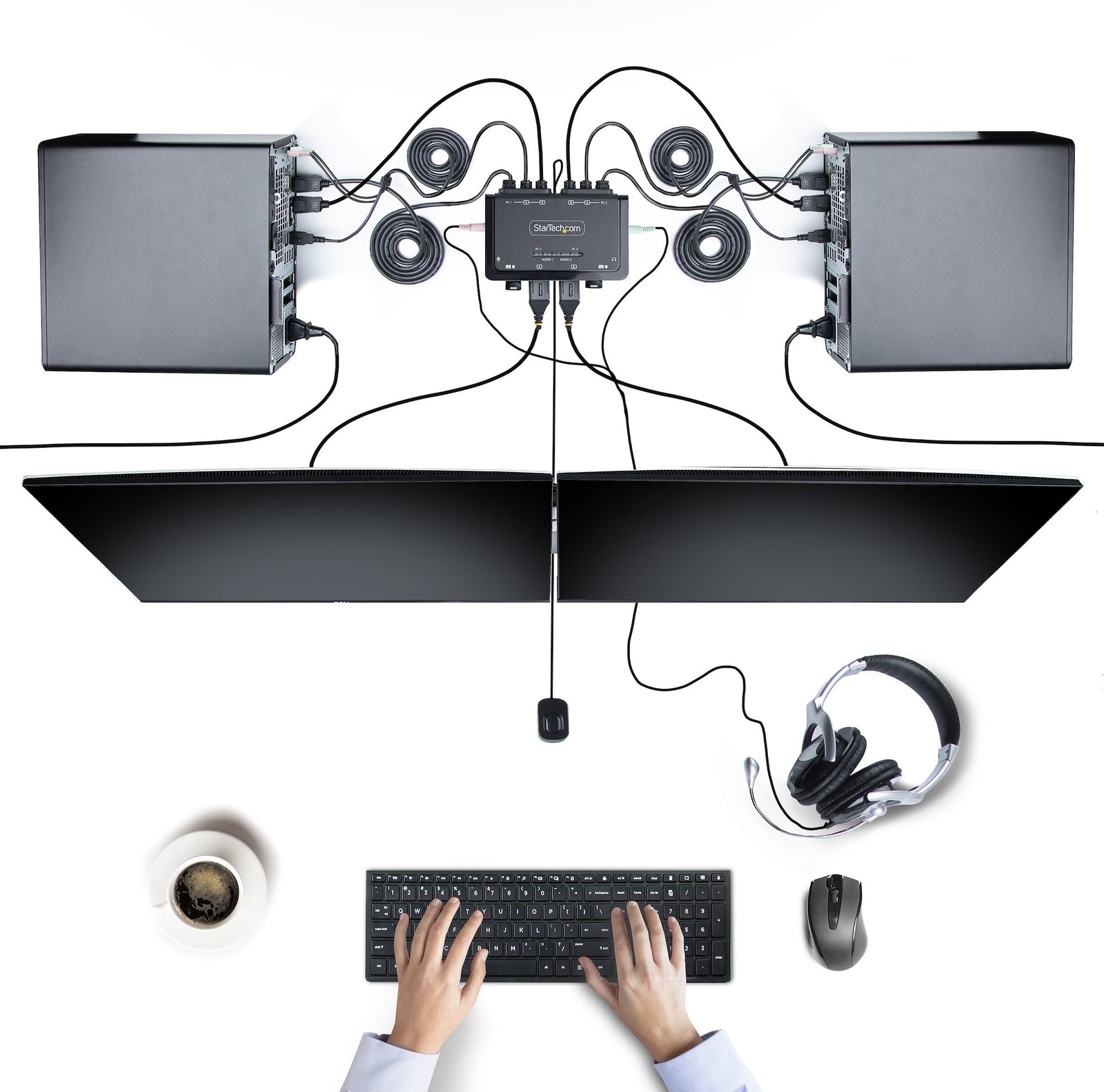

Switch dual displays, mouse, keyboard, and audio peripherals between two desktop computers
-
Category Details Warranty Information 2 Years Connector(s) Console Interface(s): 1 - 3.5mm Stereo Female 3 pos 1 - 3.5mm Stereo Female 3 pos 2 - DisplayPort 2 - USB 2.0 Type-A (4 pin, 480Mbps) Host Connectors: 4 - DisplayPort 2 - USB 2.0 Type-A (4 pin, 480Mbps) 4 - 3.5mm Stereo Female 3 pos Environmental Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to 60°C Humidity: 0% ~ 90% RH (non-condensing) Hardware Audio: Yes KVM Ports: 2 PC Interface: USB PC Video Type: DisplayPort Number of Monitors Supported: 2 Rack-Mountable: No Cables Included: Yes Chipset ID: SN8P2202SG Daisy-Chain: No Indicators LED Indicators: 1 - Solid Green: Selected PC is Connected 1 - Blinking Green: Selected PC is Not Detected 1 - Amber LED: Selected Audio Source Packaging Information Package Quantity: 1 Package Length: 16.0 cm [6.3 in] Package Width: 10.0 cm [3.9 in] Package Height: 21.0 cm [8.3 in] Shipping Weight: 0.9 kg [2.0 lb] Performance On-Screen Display: No Video Revision: DisplayPort 1.2 IP Control: No Hot-Key Selection: Yes Maximum Data Transfer Rate: 480Mbps (USB 2.0) Supported Resolutions: 4096x2160 @60Hz 3840x2160 @60Hz 5120x1440 @60Hz 3440x1440 @60Hz 2560x1440 @60Hz 2560x1080 @60Hz 1920x1200 @60Hz 1920x1080 @60Hz Other resolutions may be supported Wide Screen Supported: Yes Audio Specifications DisplayPort - 2 Channel Audio Analog Stereo - 2 Channel Audio Auto Scan: 10, 20, 30, 40, 50, and 60 seconds Port Selection Support Push Button and Hotkeys/Software MTBF 419,293 Hours Physical Characteristics Color: Black Product Length: 12.5 cm [4.9 in] Product Width: 9.0 cm [3.5 in] Product Height: 2.5 cm [1.0 in] Weight of Product: 0.6 kg [1.3 lb] Material: ABS Cable Length: 1.5 m [4.9 ft] Power Power Source: Bus Powered Input Voltage: 5V DC Output Voltage: 5 DC Software OS Compatibility: Windows 7, 8/8.1, 10, 11 macOS 10.12 - 10.15, 11, 12 ChromeOS Special Notes Note: Compatible OS required for software and hotkeys. What's in the Box 1 - KVM Switch 1 - Quick-Start Guide -
Description Downloads Datasheet Downloads Manuals Downloads
