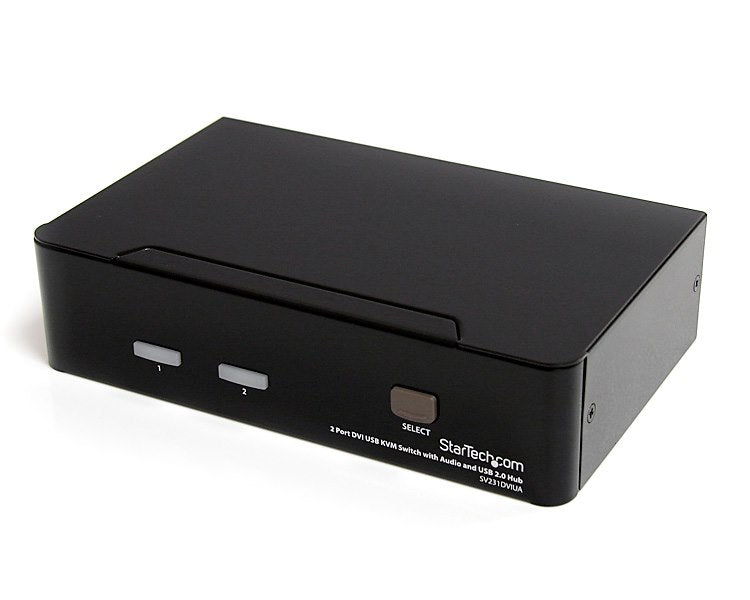

The SV231DVIUA 2-Port DVI USB KVM Switch lets you control two USB-enabled, DVI-capable computers from a single monitor and peripheral set (keyboard, mouse and speakers), and two additional USB peripherals connected through the built-in USB hub ports.

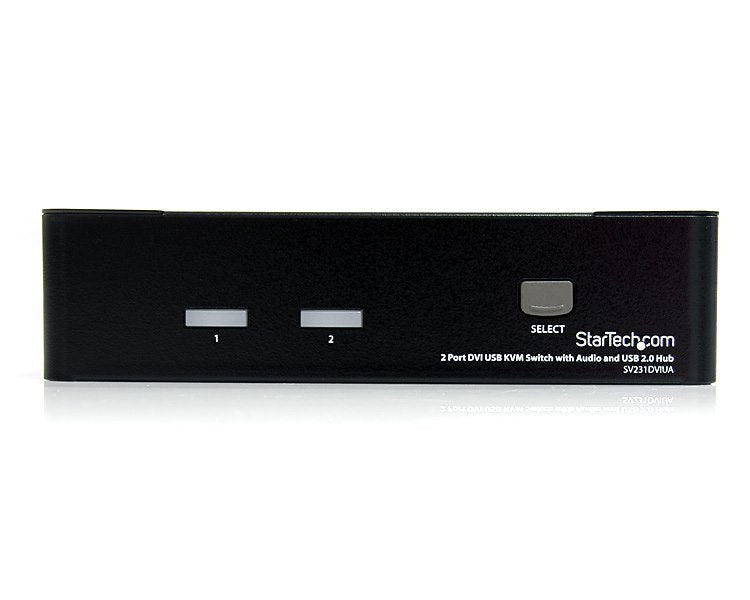

Featuring convenient hot-key and front panel push-button switching, and high-resolution support (up to 1920x1200), the DVI KVM Switch is perfect for controlling high-performance systems. Ideal for multimedia applications, this KVM switch supports audio and microphone switching either independently, or simultaneously when switching between computers for KVM control.
The DVI USB KVM also features an integrated USB 2.0 hub, which lets you share USB peripherals point as if they were connected directly to the slave computers.
Applications
Control two multimedia computers with a single set of console peripherals (Keyboard, Mouse, and two Monitors)
Dual system control for single user workstations, increasing user productivity in the office
Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals in a home office
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |

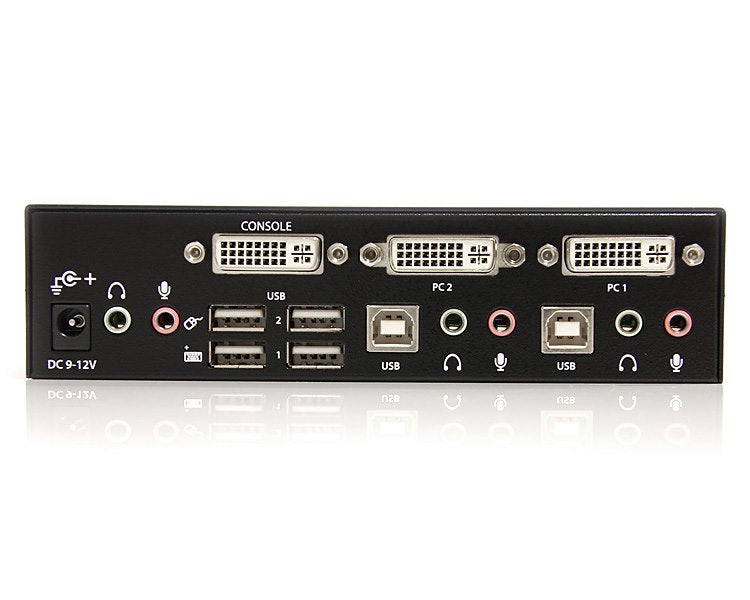

| Connector(s) | |
| Console Interface(s) | 4 - USB 2.0 Type-A (4 pin, 480Mbps) |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| 1 - DVI-I (29 pin) | |
| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) |
| 2 - DVI-I (29 pin) | |
| 2 - USB B (4 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0%~80% |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DVI |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| Packaging Information | |
| Package Height | 9.2 cm [3.6 in] |
| Package Length | 24.2 cm [9.5 in] |
| Shipping (Package) Weight | 1.0 kg [2.3 lb] |
| Package Width | 18.8 cm [7.4 in] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| DVI Support | Yes |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 1920 x 1200 @60/70 Hz |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 126,397 hours |
| Physical Characteristics | |
| Weight of Product | 650 g [22.9 oz] |
| Color | Black |
| Material | Steel |
| Product Length | 16 cm [6.3 in] |
| Product Width | 10 cm [3.9 in] |
| Product Height | 4 cm [1.6 in] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |

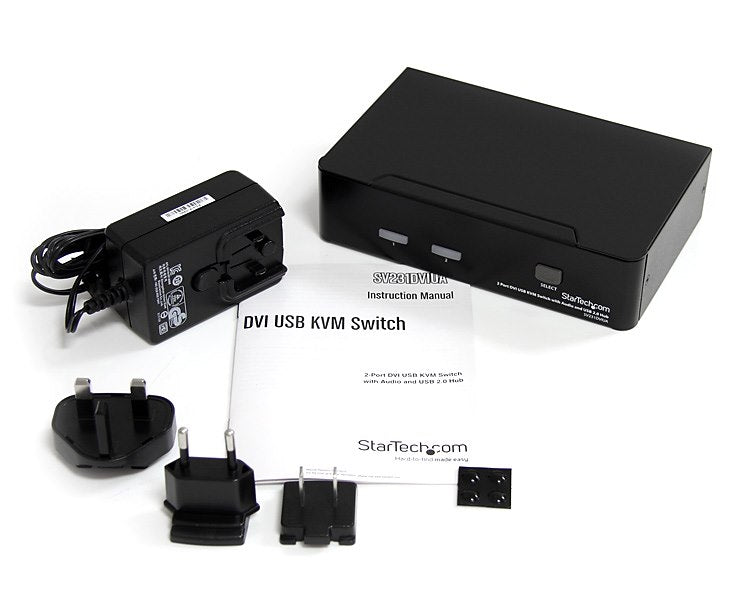

| Included in Package | 1 - 2 Port DVI KVM Switch |
| 1 - Pack, rubber feet | |
| 1 - Universal Power Adapter (US/UK/EU) | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
