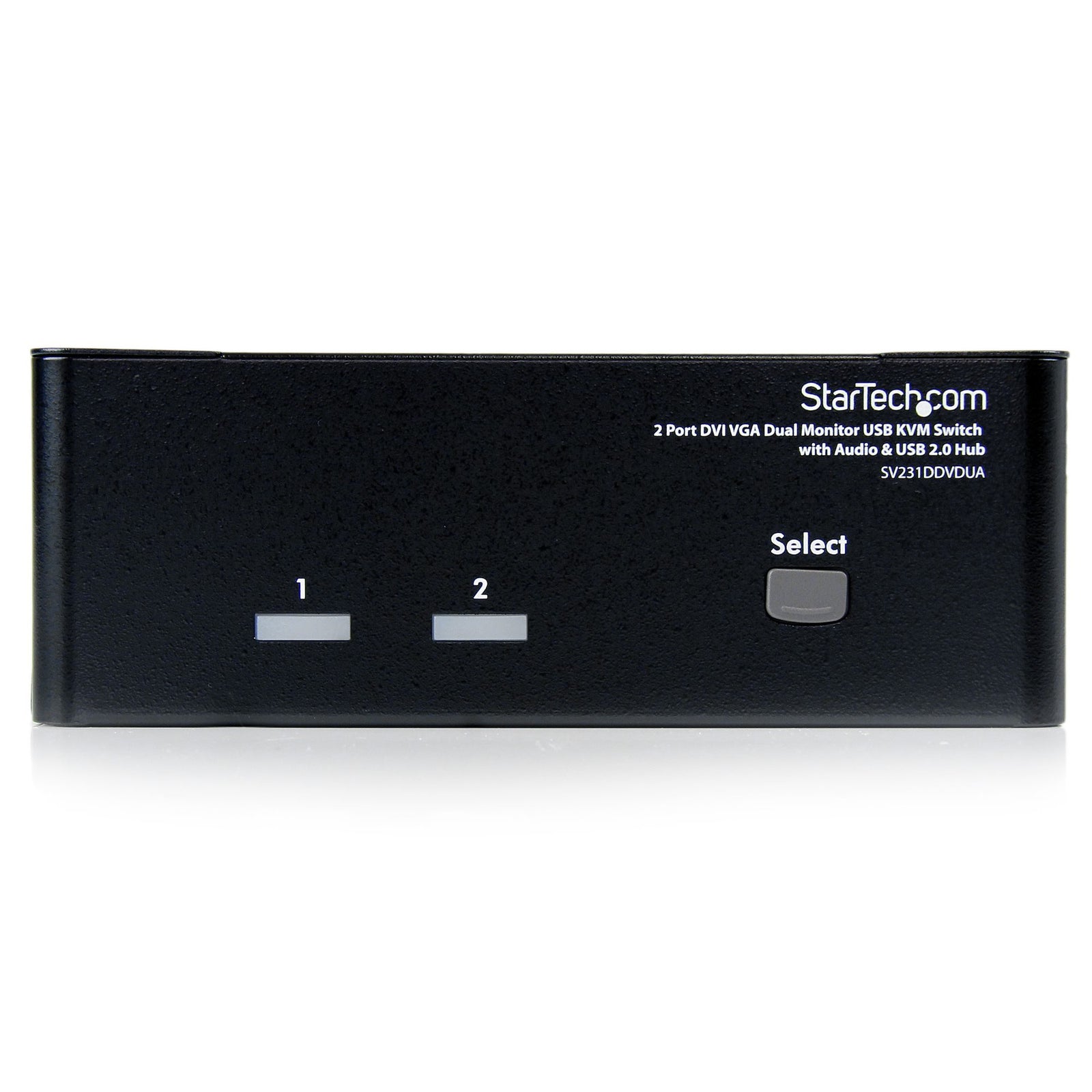

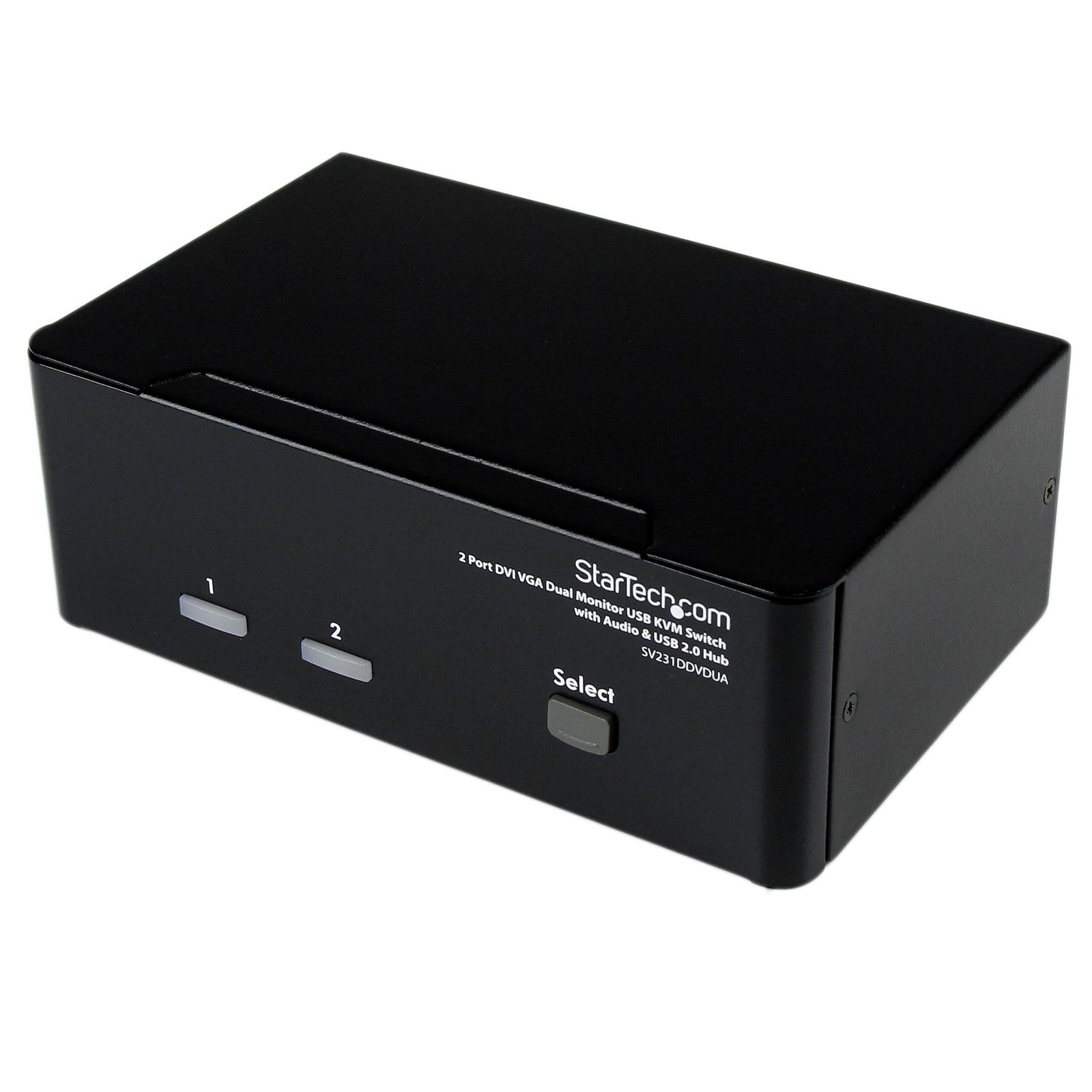

StarTech 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub | SV231DDVDUA
SKU: SV231DDVDUA
£126.10 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
StarTech 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub | SV231DDVDUA
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Applications
Perfect solution for desktops, workstations and servers with both VGA and DVI-digital ports, allowing a user to take advantage of dual monitor configurationsIdeal for financial/banking industries, graphic designers, engineers, multi-media designers, and industries using CAD/CAM applications, where high resolution dual monitor units are needed
Suitable for use in environments with electromagnetic interference, based on sturdy metal design
Versatile support for setups where one machine is DVI & VGA, and the other is VGA & VGA (with available adapters)
-

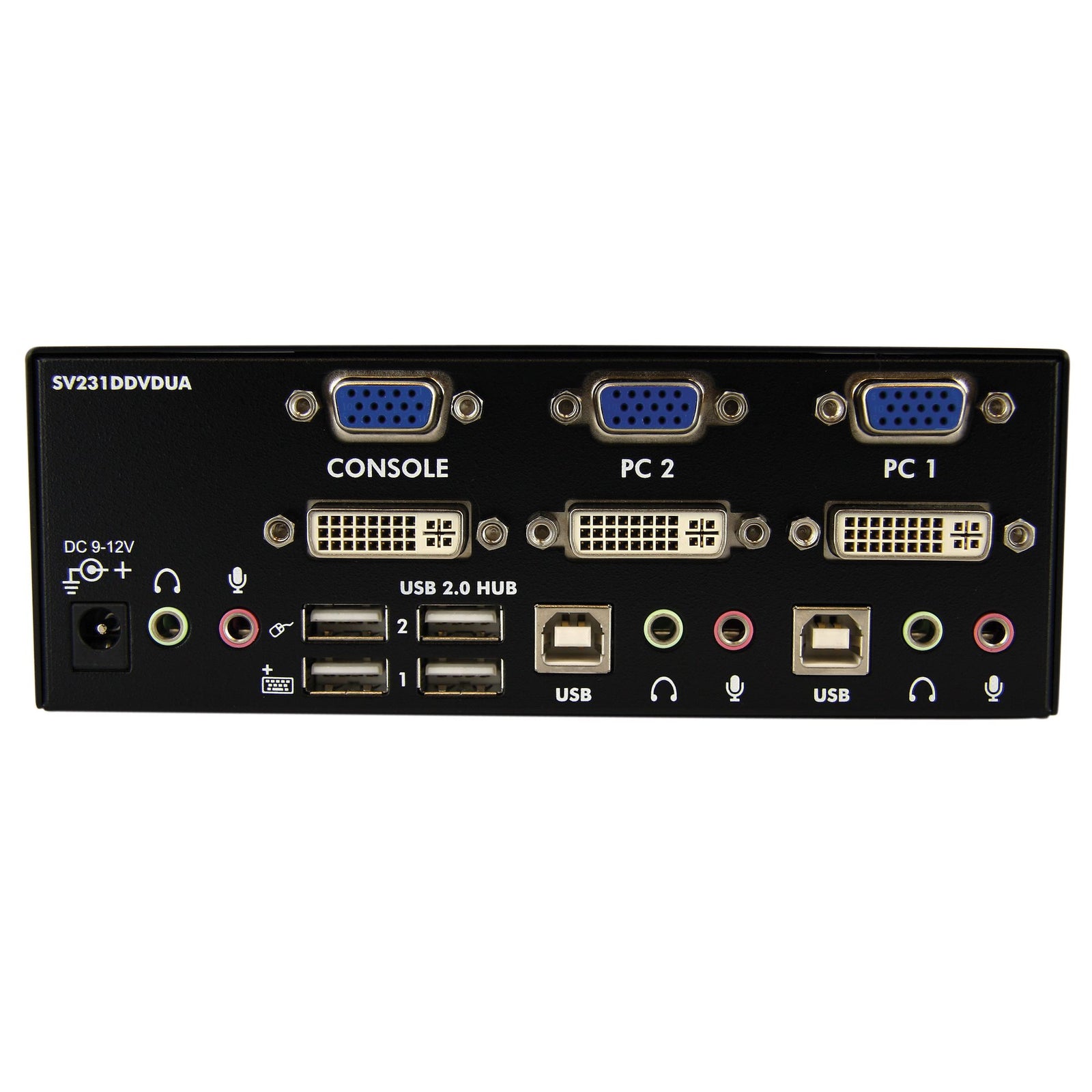

Category Detail Warranty Information 3 Years Connector(s) Console Interface(s) 4 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - VGA (15 pin, High Density D-Sub) 2 - 3.5 mm Mini-Jack (3 Position) 1 - DVI-I (29 pin) Host Connectors 4 - 3.5 mm Mini-Jack (3 Position) 2 - DVI-I (29 pin) 2 - USB B (4 pin) 2 - VGA (15 pin, High Density D-Sub) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 80% RH Hardware Audio Yes KVM Ports 2 PC Interface USB PC Video Type DVI + VGA Number of Monitors Supported 2 Rack-Mountable No Cables Included No Daisy-Chain No Indicators LED Indicators 2 - Green (PC Detected) 2 - Red (PC Indicator) 1 - Green (Power) Packaging Information Package Height 7.2 cm [2.8 in] Package Length 29.4 cm [11.6 in] Shipping (Package) Weight 1.3 kg [2.8 lb] Package Width 19.8 cm [7.8 in] Package Quantity 1 Performance On-Screen Display No DVI Support Yes - Single Link IP Control No Hot-Key Selection Yes Maximum Digital Resolutions 1920 x 1200 Maximum Number of Users 1 Port Selection Support Push Button and Hotkeys MTBF 64,691 Hours Physical Characteristics Weight of Product 0.8 kg [1.7 lb] Color Black Material Steel Product Length 16.0 cm [6.3 in] Product Width 10.0 cm [3.9 in] Product Height 5.5 cm [2.2 in] Product Depth 100 mm [3.9 in] Power Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 0.8A Output Voltage 12V DC Output Current 1.5A Center Tip Polarity Positive Plug Type M Power Consumption (In Watts) 18W Software OS Compatibility OS independent; No software or drivers required Special Notes / Requirements Note Supports DVI-D (digital) signaling only; recommended to use DVI-D cabling What's in the Box Included in Package 1 - 2-port KVM switch 4 - Foot pads 1 - Universal power adapter (NA/EU/UK/AU) 1 - Instruction manual -
Description Downloads Datasheet Downloads User Manual Downloads
