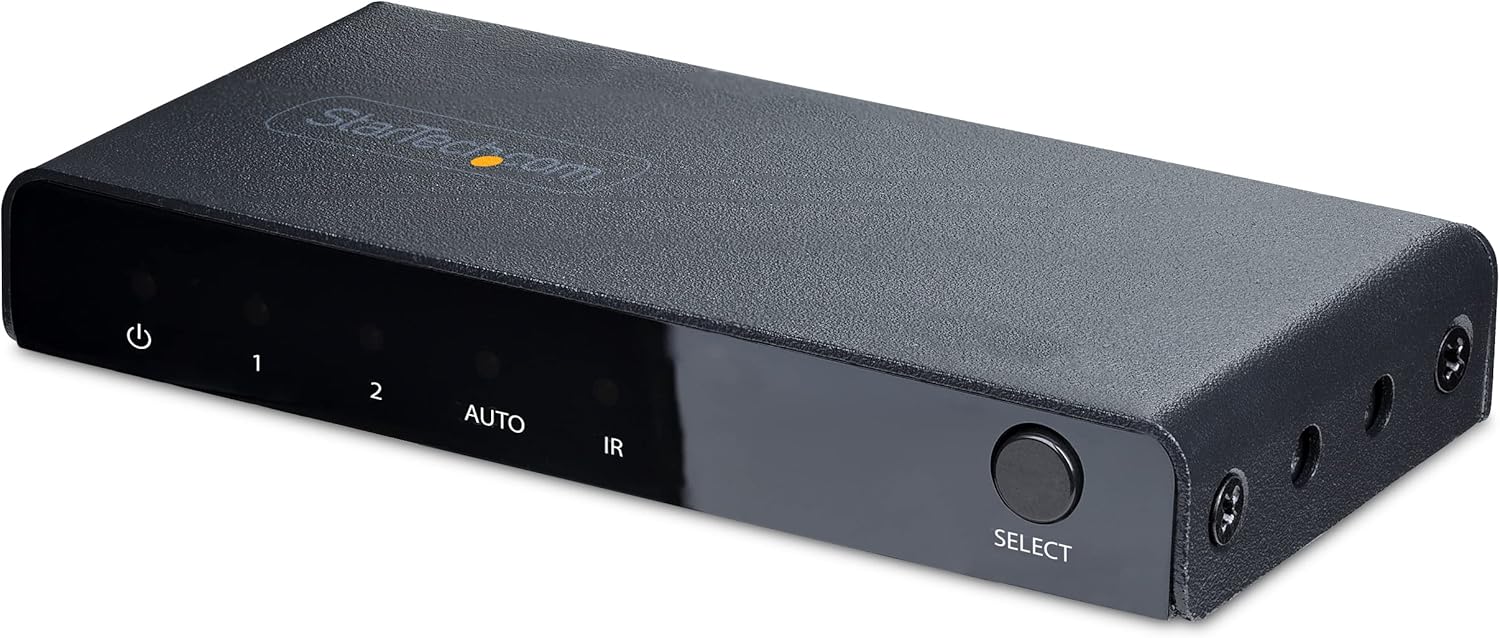

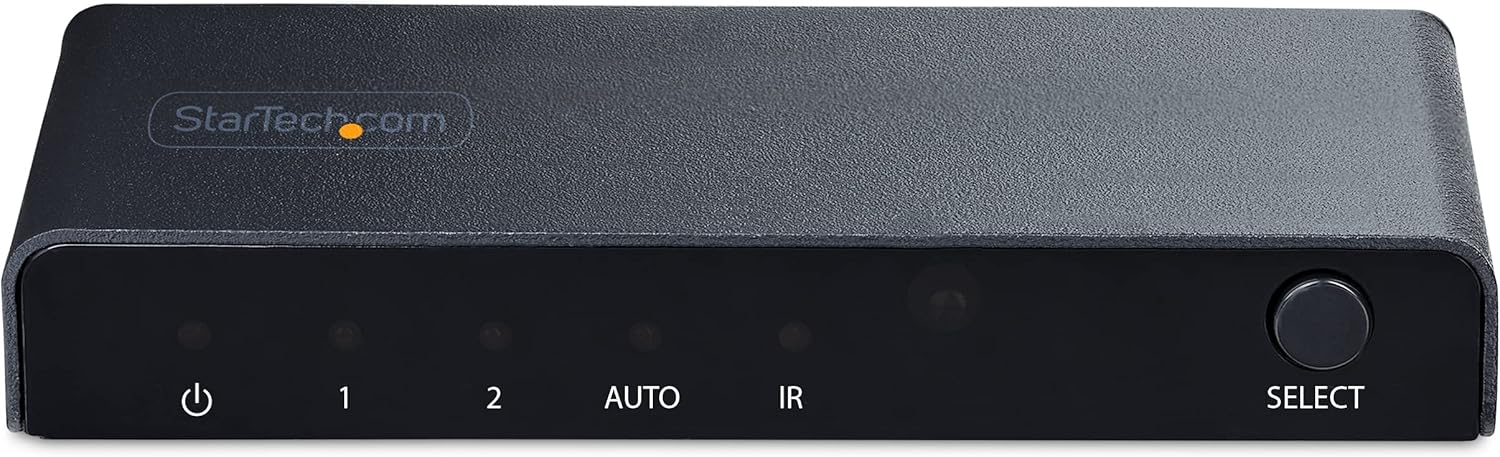

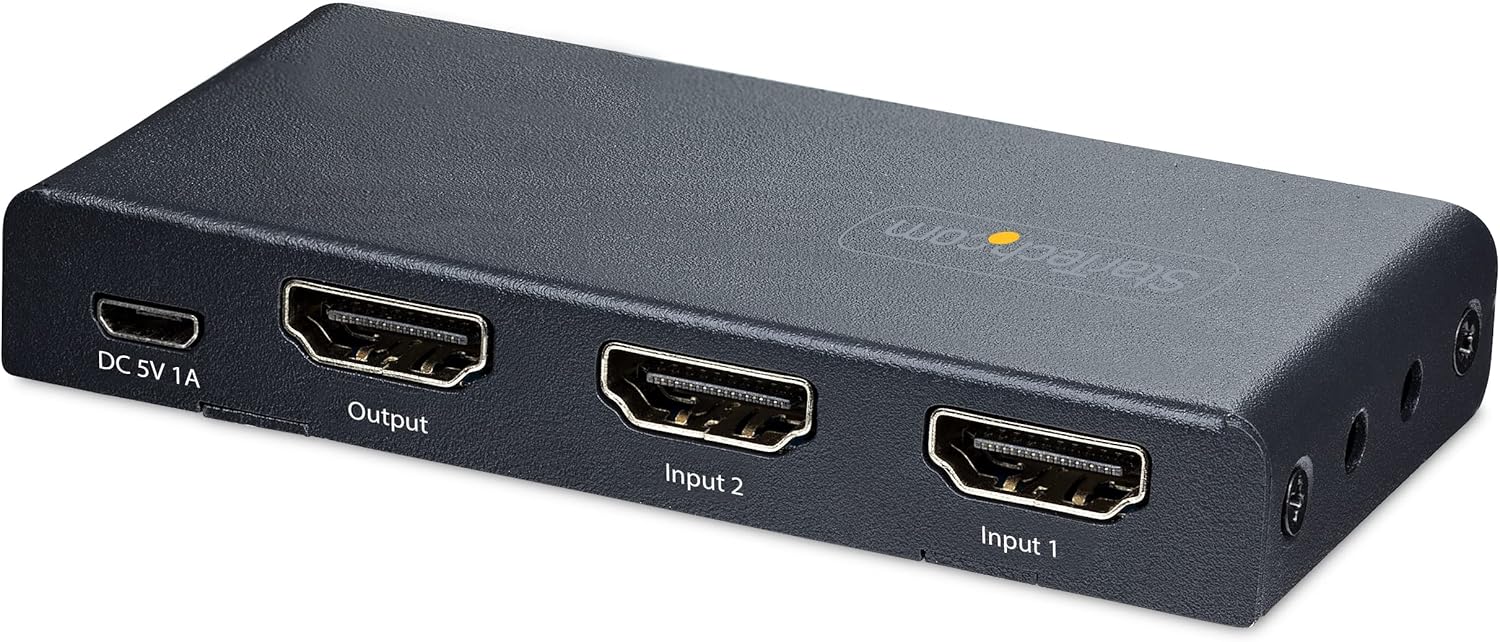

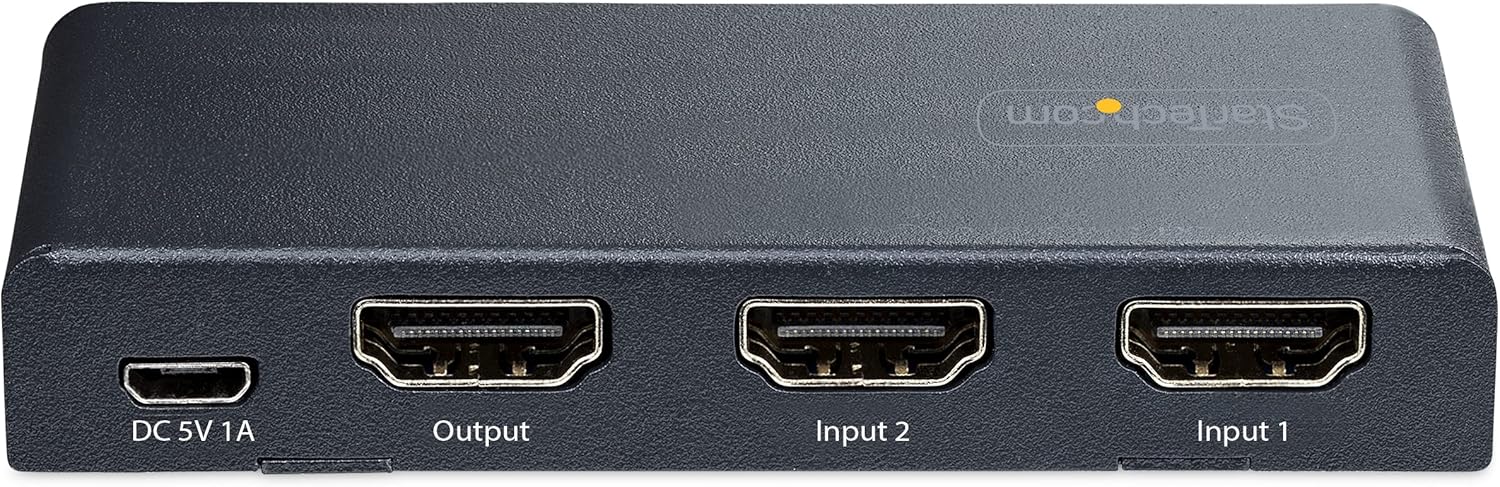

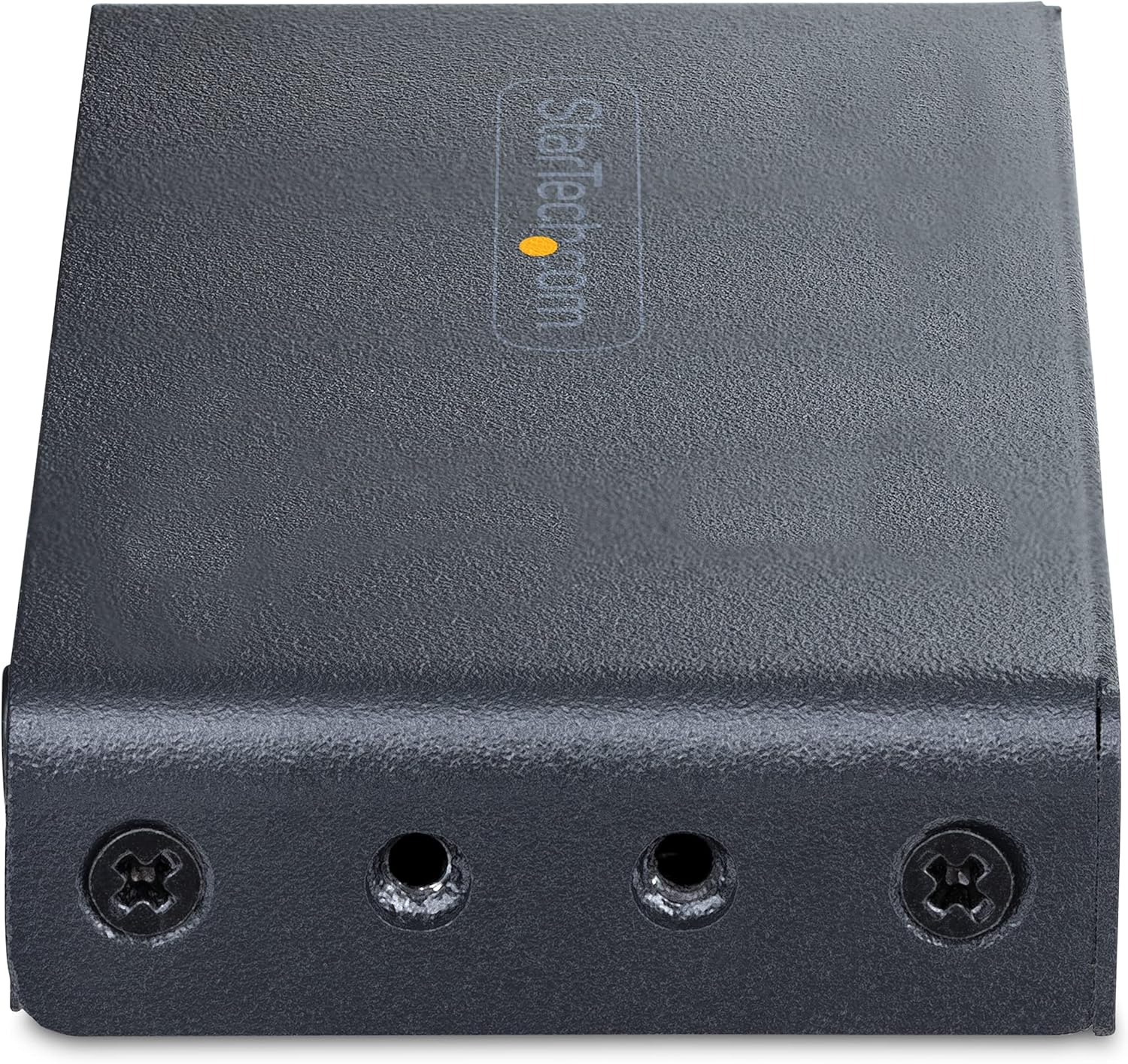

Startech 2-Port HDMI 2.1 Switch 8K@60Hz HDR10+ Auto & Manual Switching | 2PORT-HDMI-SWITCH-8K
This 2-Port HDMI Video Switch enables two HDMI sources to connect to a single HDMI input on a display.
8K 60Hz Resolution
The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.
This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.
Automatic or Manual Operation
The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.
Flexible Installation Options
Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.
The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.
This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.
Applications
Use in digital signage applications to display multiple 8K 60Hz source devices at different times
Ideal for a presentation room setting, enabling users to plug in and automatically switch to the new device
Connect more source devices to an HDMI display
-
Category |
Details |
Warranty |
2 Years |
Inputs |
2 x HDMI, 1 x USB Micro-B (Power) |
Output |
1 x HDMI |
AV Input/Output |
HDMI / HDMI |
Audio Support |
HDMI 7.1 Channel Audio |
Indicators |
Power, Port, Auto Switch, IR Mode LEDs |
Max Cable Distance |
5 m (16.4 ft) |
Supported Resolutions |
8K 60Hz, 4K 144Hz/120Hz/60Hz, 5120x1440, 1080p |
Wide Screen Support |
Yes |
Material |
Metal |
Color |
Black |
Product Size |
9 x 4.4 x 1.4 cm (3.5 x 1.7 x 0.6 in) |
Product Weight |
87 g (3.1 oz) |
Power Source |
USB Wall Charger Included |
Input Voltage |
100 - 240V AC |
Output Voltage |
5V DC |
Output Current |
1A |
Power Use |
5W |
Driver Requirement |
No Drivers/Software Needed |
Note |
HDMI 2.1a cables required for full performance |
In the Box |

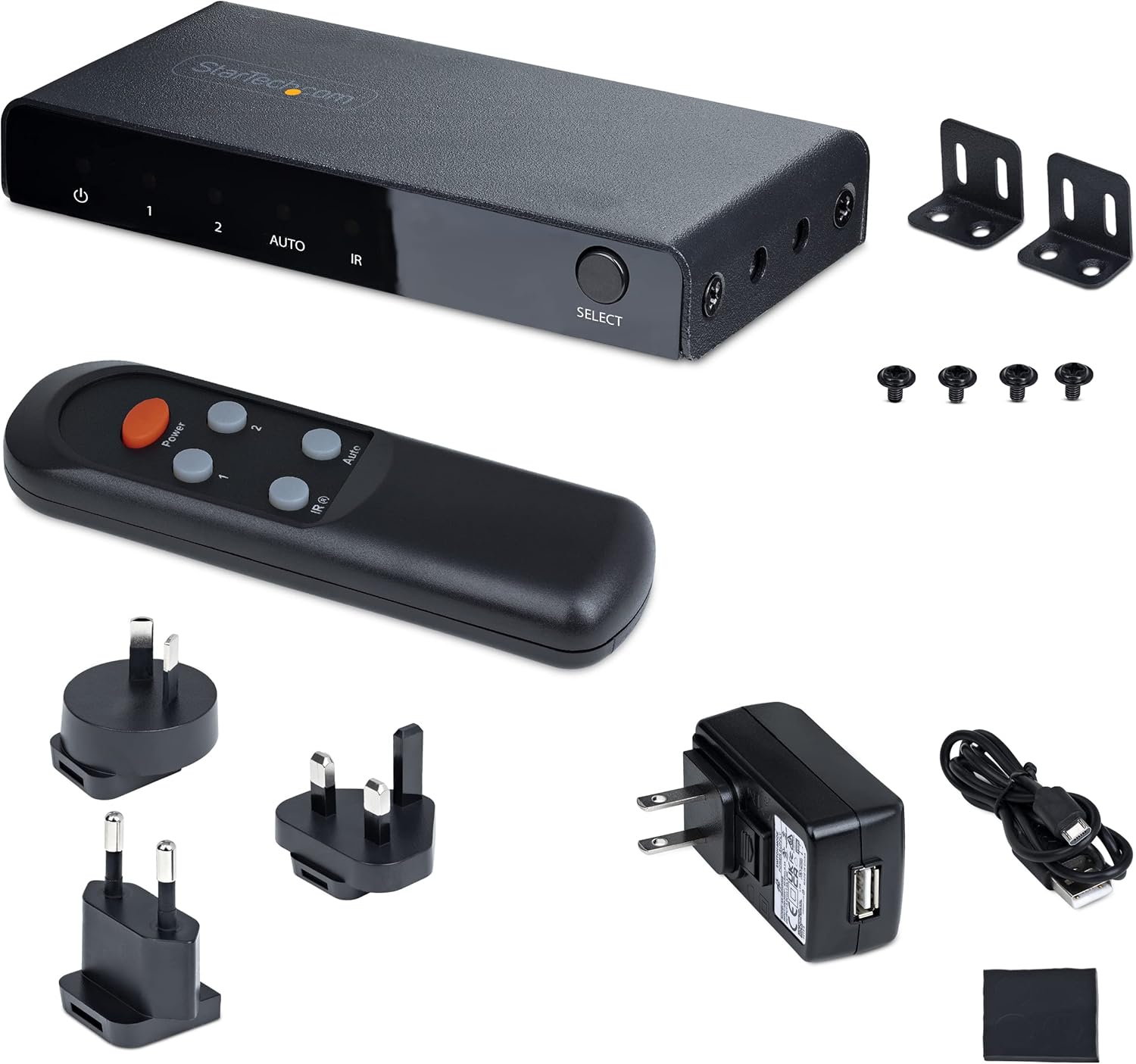

Switch, Remote, Mount Kit, Charger, Cable, Guide |
-
