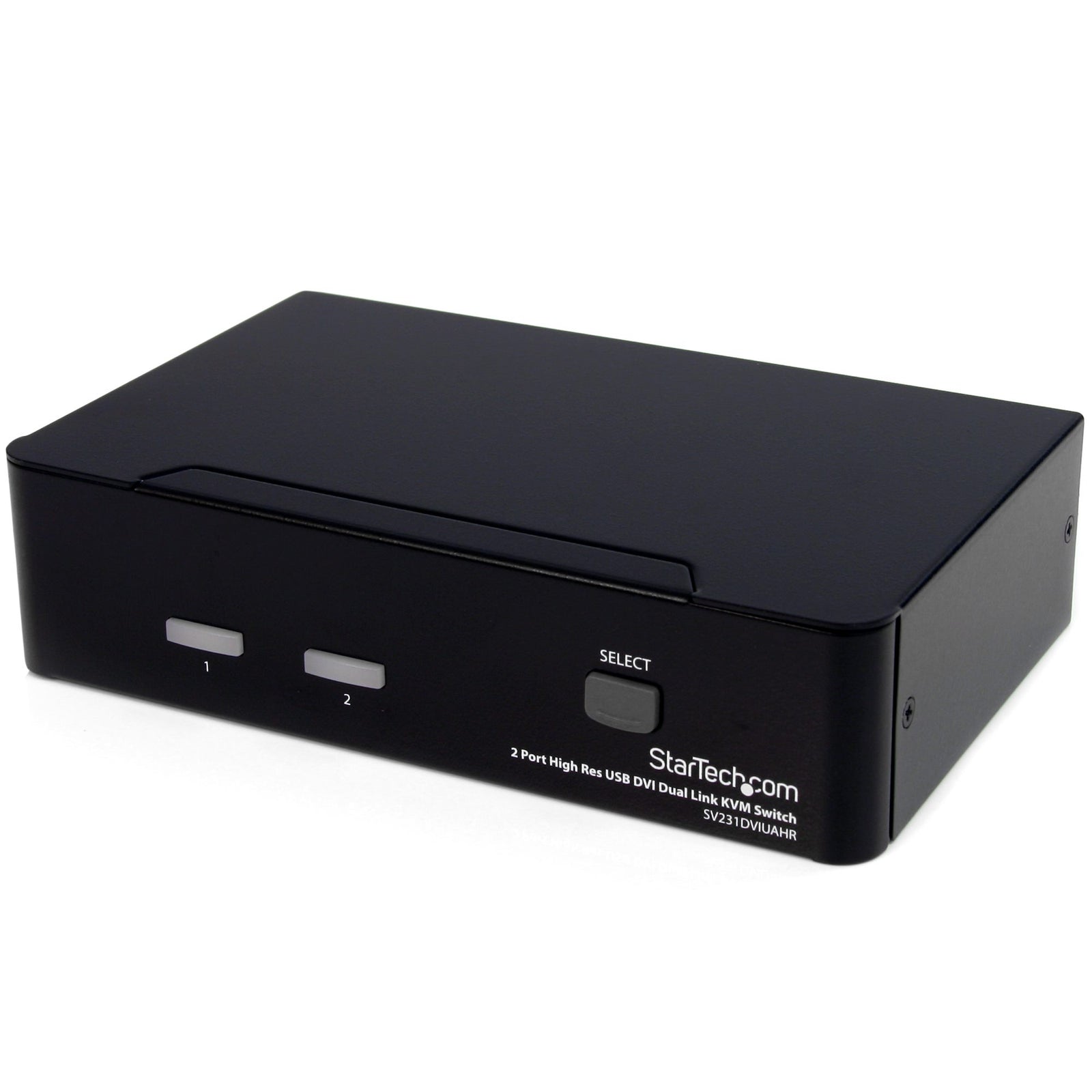

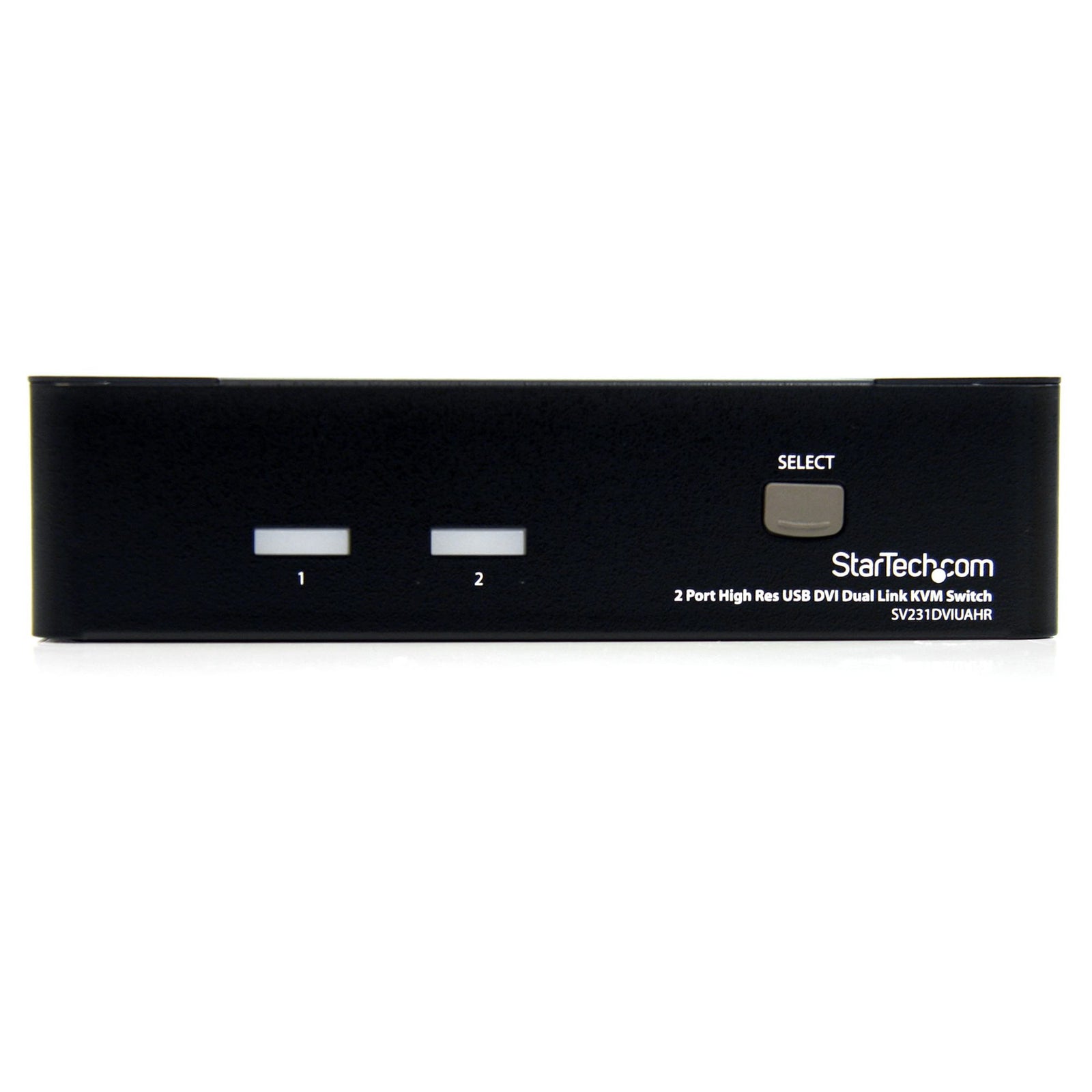

The SV231DVIUAHR 2-Port High Resolution Dual-Link DVI USB KVM Switch provides simple, yet comprehensive control of 2 directly-connected computers, as well as audio switching capability and support for high resolution applications (supports resolutions beyond 1080p: 2560x1600 @ 60Hz, up to 3840 x 2400 at lower refresh rates), offering a superior KVM switching solution that integrates perfectly into demanding imaging, medical, and multimedia environments.
This 2-port DVI USB KVM Switch is compatible with all USB-supported operating systems, and features a built-in USB 2.0 hub that allows you to share additional (up to 2) high speed USB devices between computers.
Applications
Designed for large and high resolution displays such as Multimedia Displays, Stock trading setups, and Medical Screens
Ideal for using desktops, workstations and servers with Ultra High resolution displays
Great for television and graphic production studios where crisp, loss-less digital images are crucial
Sharing high-end gaming computers and USB devices in the home
| Category | Detail |
|---|---|
| Warranty Information | 3 Years |

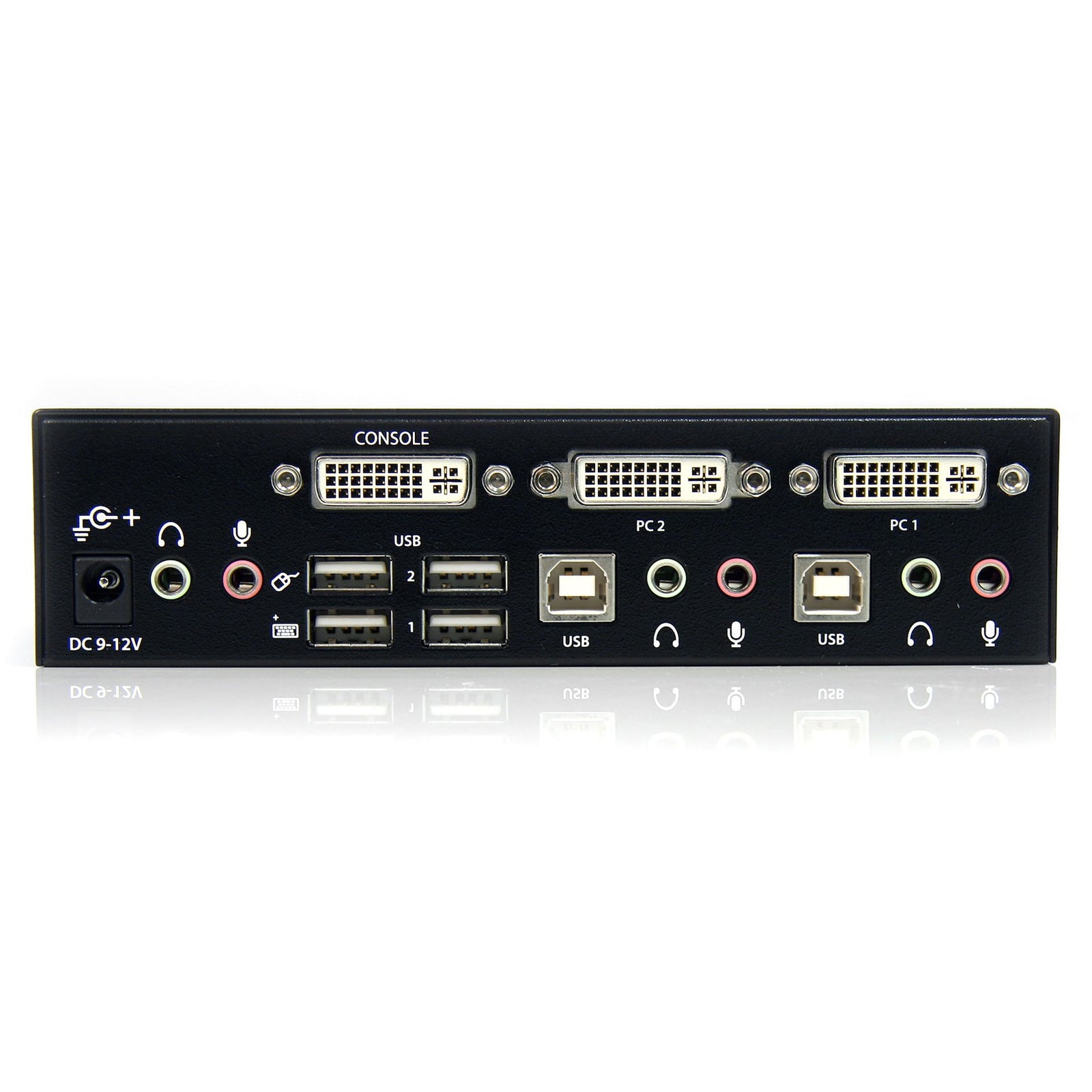

| Connector(s) | |
| Console Interface(s) | 4 - USB 2.0 Type-A (4 pin, 480Mbps) |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| 1 - DVI-I (29 pin) | |
| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) |
| 2 - DVI-I (29 pin) | |
| 2 - USB B (4 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DVI |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| Packaging Information | |
| Package Height | 9.8 cm [3.9 in] |
| Package Length | 25.2 cm [9.9 in] |
| Package Width | 19.0 cm [7.5 in] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 1.1 kg [2.5 lb] |
| Performance | |
| On-Screen Display | No |
| DVI Support | Yes |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 2560x1600 @ 60Hz |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 126,397 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 15.9 cm [6.3 in] |
| Product Width | 10.0 cm [3.9 in] |
| Product Height | 4.0 cm [1.6 in] |
| Weight of Product | 0.6 kg [1.4 lb] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | Note: Resolutions exceeding 2560x1600 can be obtained by using a lower refresh rate. Example 3840x2400 @30Hz |
| What's in the Box | |

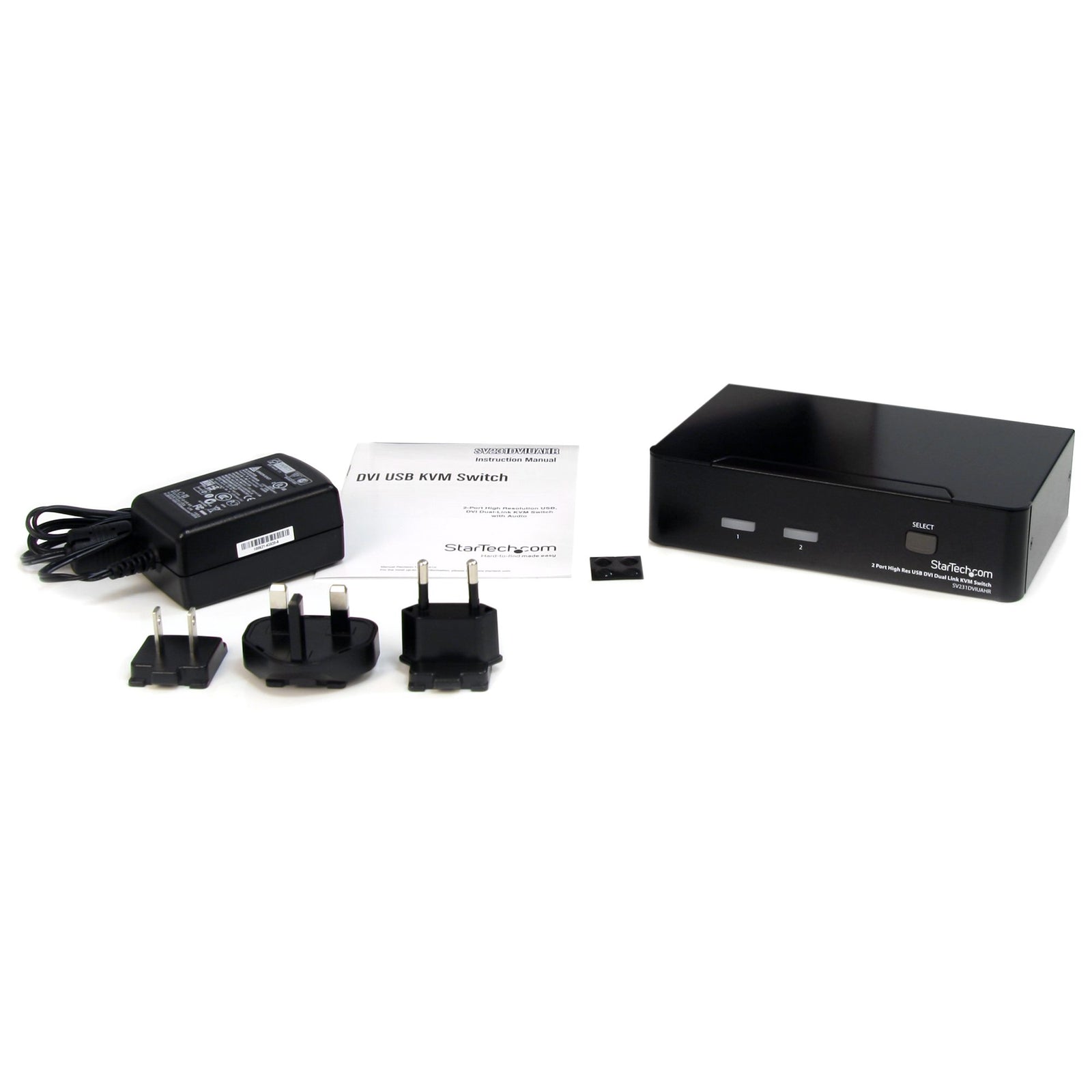

| Included in Package | 1 - 2 Port DVI USB KVM |
| 1 - Rubber Foot Pad | |
| 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| 1 - User Manual |
