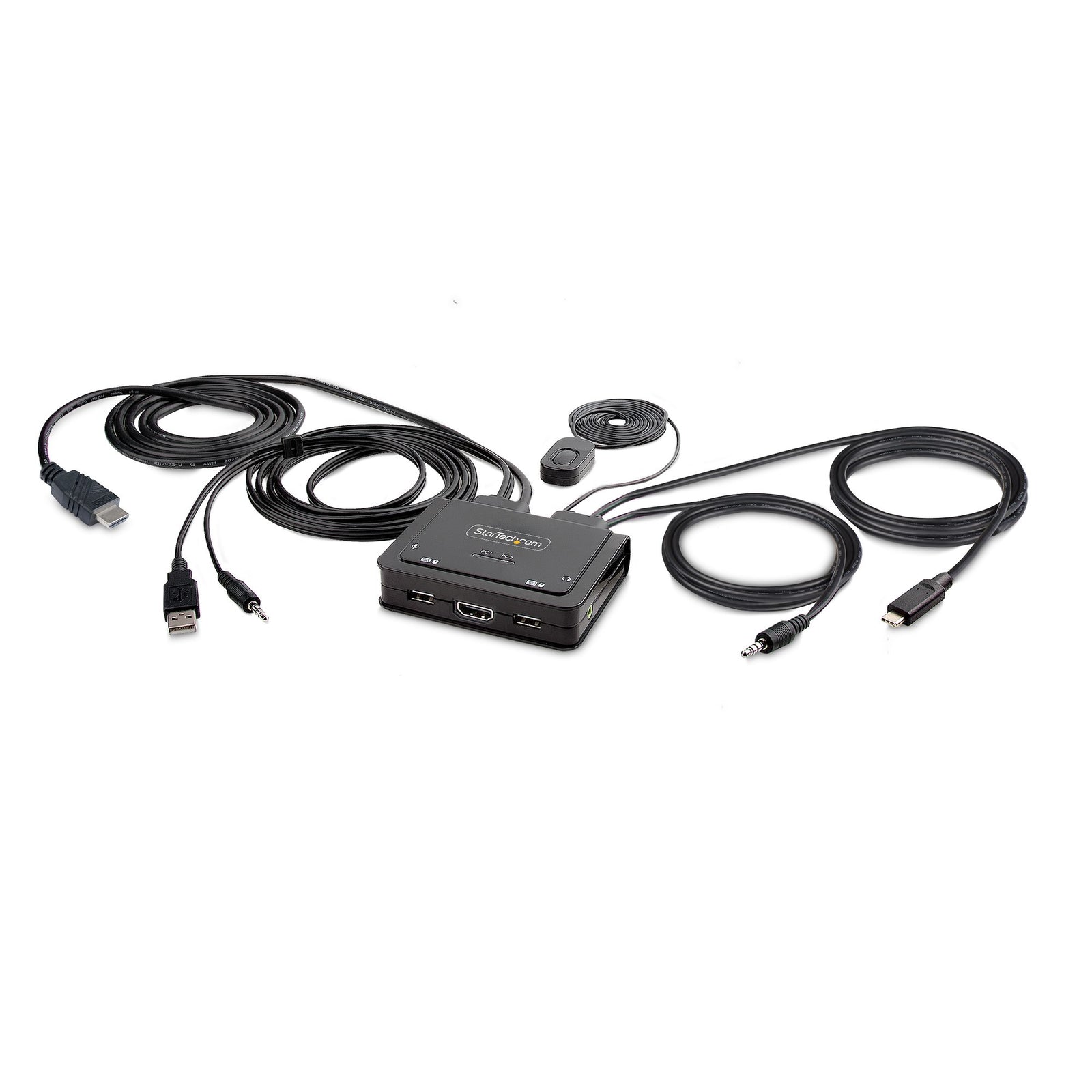

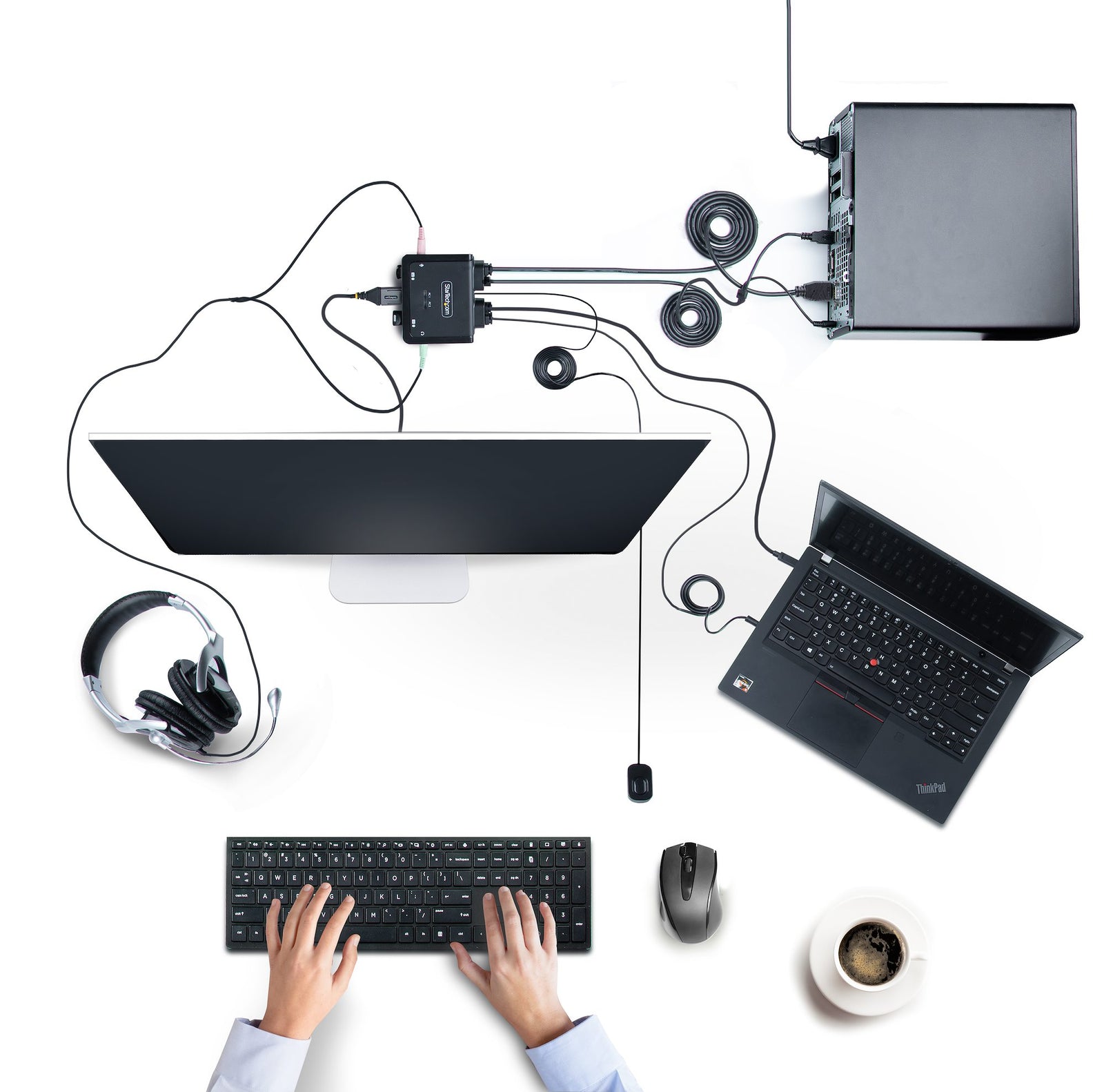

This Hybrid KVM Switch enables users to switch between a USB Type-A and HDMI-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor.
Hassle-Free Setup

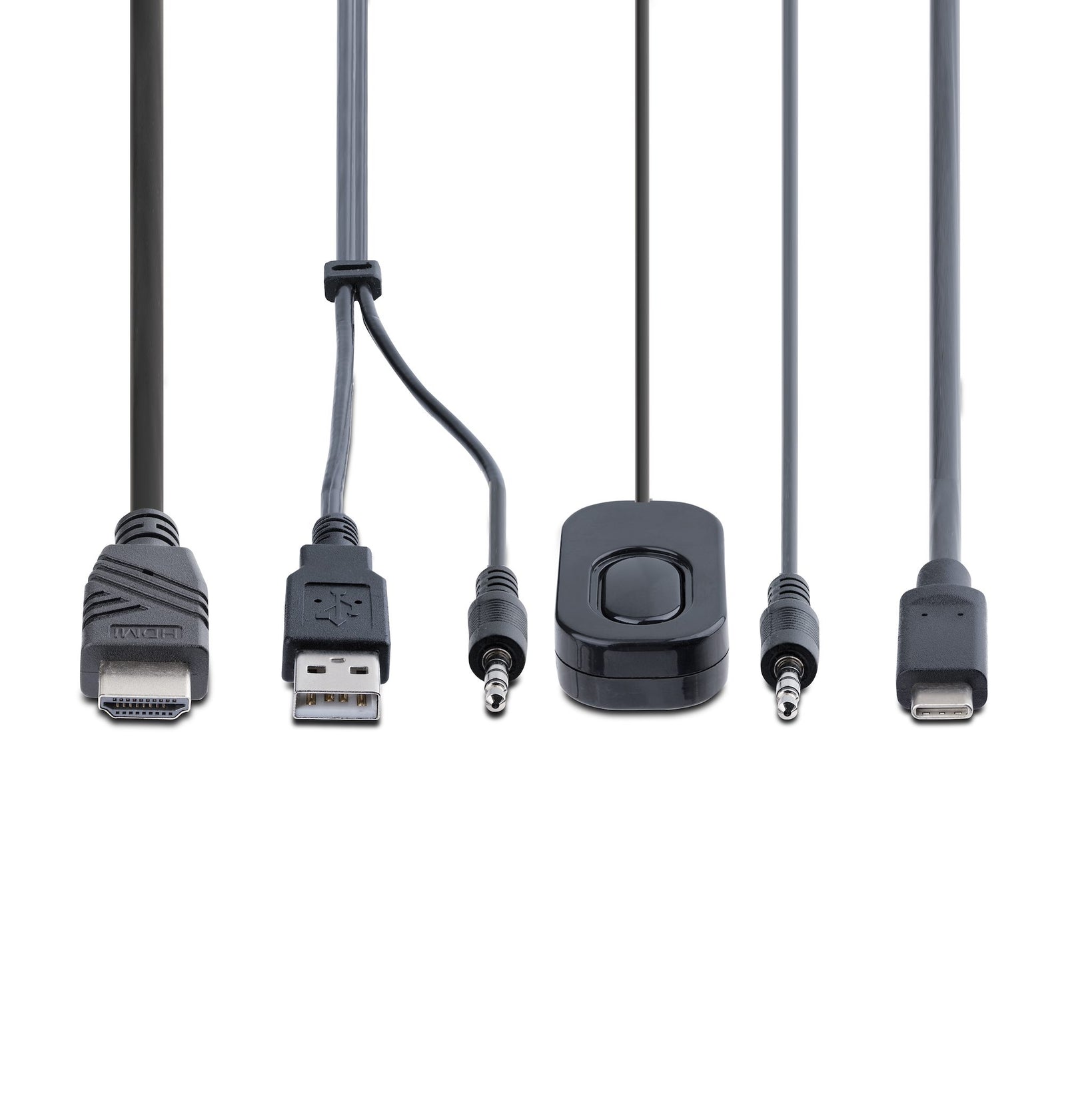

The KVM switch is bus powered and features built-in HDMI, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, ensuring uninterrupted audio when switching between host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
| Category | Details |
|---|---|
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |
| Host Connectors | 1 - USB-C (DP Alt-Mode) 2 - 3.5mm Stereo Male 4 pos 1 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - HDMI |
| Console Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - 3.5mm Stereo Female 3 pos 1 - HDMI |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB & USB-C |
| PC Video Type | USB-C (DP Alt-Mode) + HDMI |
| Number of Monitors Supported | 1 |
| Cables Included | Yes |
| Daisy-Chain | No |
| Indicators | |

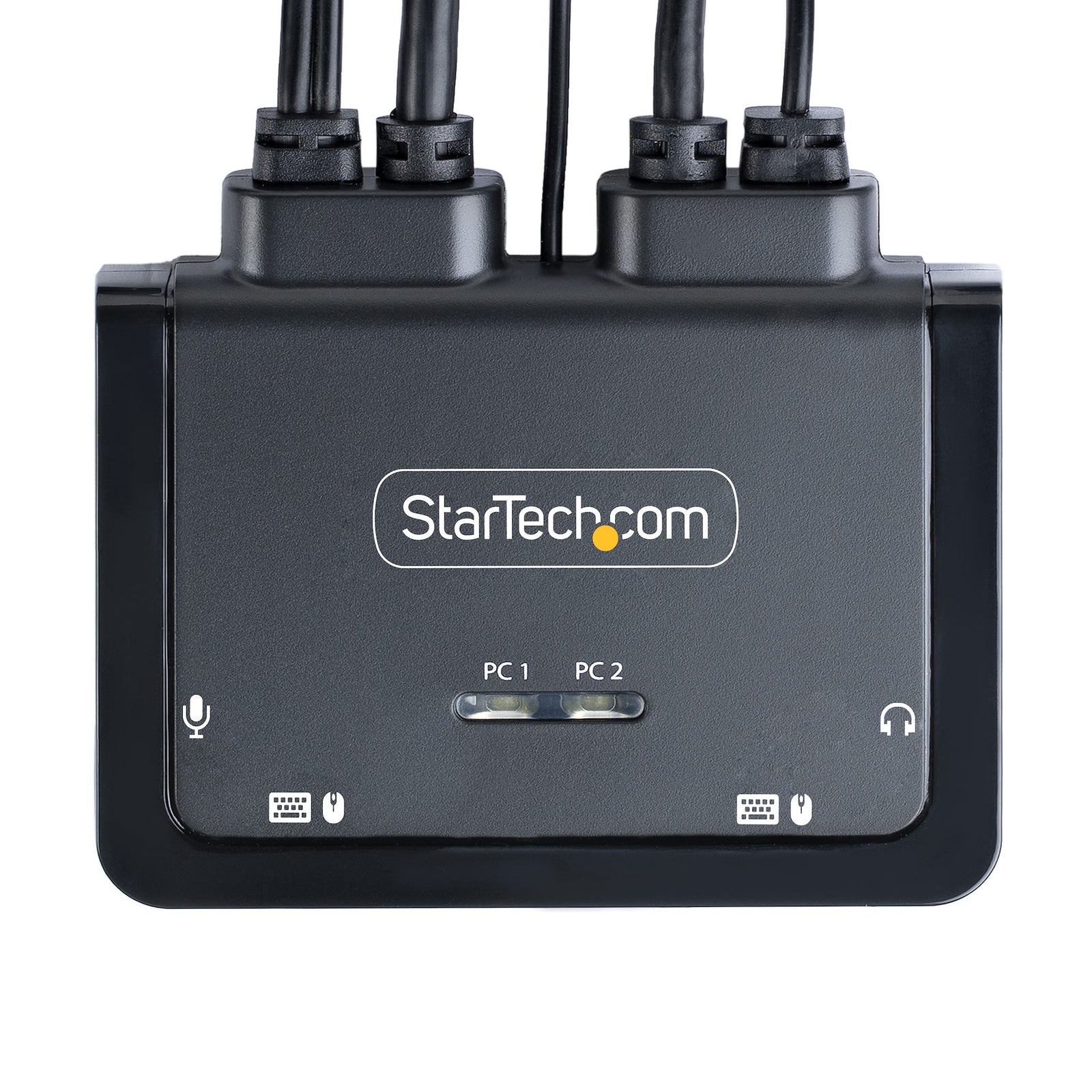

| LED Indicators | 1 - Solid Green: Selected PC is connected 1 - Blinking Green: Selected PC is not detected |
| Packaging Information | |
| Package Quantity | 1 |
| Package Height | 2.4 in [6.0 cm] |
| Package Length | 6.3 in [16.0 cm] |
| Package Width | 8.3 in [21.1 cm] |
| Shipping (Package) Weight | 15.9 oz [450.0 g] |
| Performance | |
| On-Screen Display | No |
| Video Revision | HDMI 2.0b |
| DVI Support | Yes - Single Link |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Data Transfer Rate | 480Mbps (USB 2.0) |
| Supported Resolutions | 4096x2160 @60Hz 3840x2160 @60Hz 5120x1440 @60Hz 3440x1440 @60Hz 2560x1440 @60Hz 2560x1080 @60Hz 1920x1200 @60Hz 1920x1080 @60Hz |
| Wide Screen Supported | Yes |
| Audio Specifications | Analog Stereo - 2 Channel Audio |
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds |
| Port Selection Support | Push Button, Hotkeys, and Software |
| General Specifications | |
| PC1 Cable Length | 1.2m/4ft |
| PC2 Cable Length | 1.8m/6ft |
| MTBF | 345,059 Hours |
| Physical Characteristics | |
| Color | Black |
| Product Height | 0.9 in [2.4 cm] |
| Product Length | 3.8 in [9.7 cm] |
| Product Width | 3.6 in [9.2 cm] |
| Weight of Product | 9.4 oz [265.0 g] |
| Material | ABS |
| Cable Length | 1.2 m [3.9 ft] |
| Power | |
| Power Source | Bus Powered |
| Software | |
| OS Compatibility | Windows 7, 8/8.1, 10, 10 ARM, 11, 11 ARM macOS 10.12 - 10.15, 11, 12 ChromeOS |
| Special Notes / Requirements | |
| Note | OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform |
| What's in the Box | |
| Included in Package | 1 - KVM Switch 1 - 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter 1 - Quick-Start Guide |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
