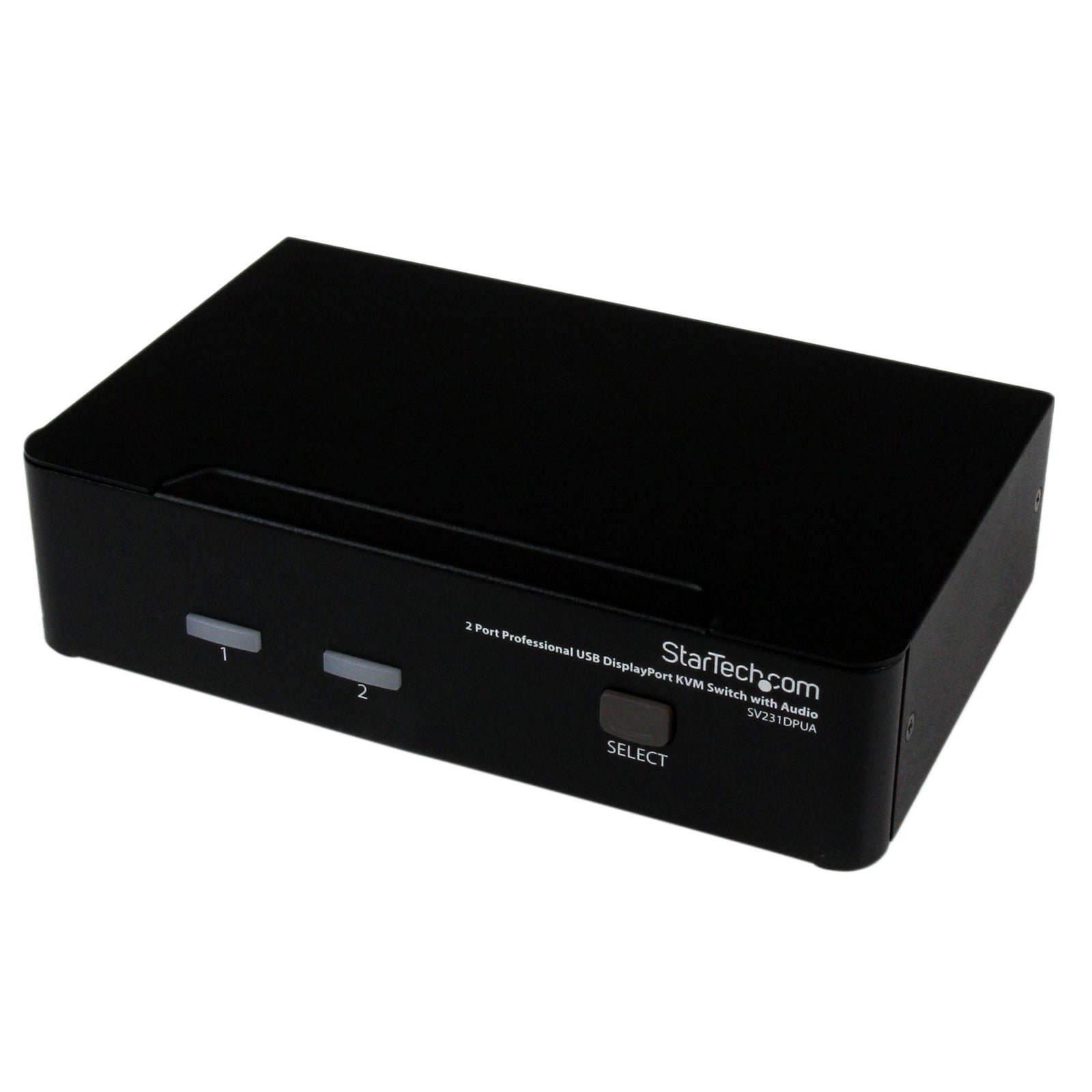

StarTech 2 Port Professional USB DisplayPort KVM Switch with Audio | SV231DPUA
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

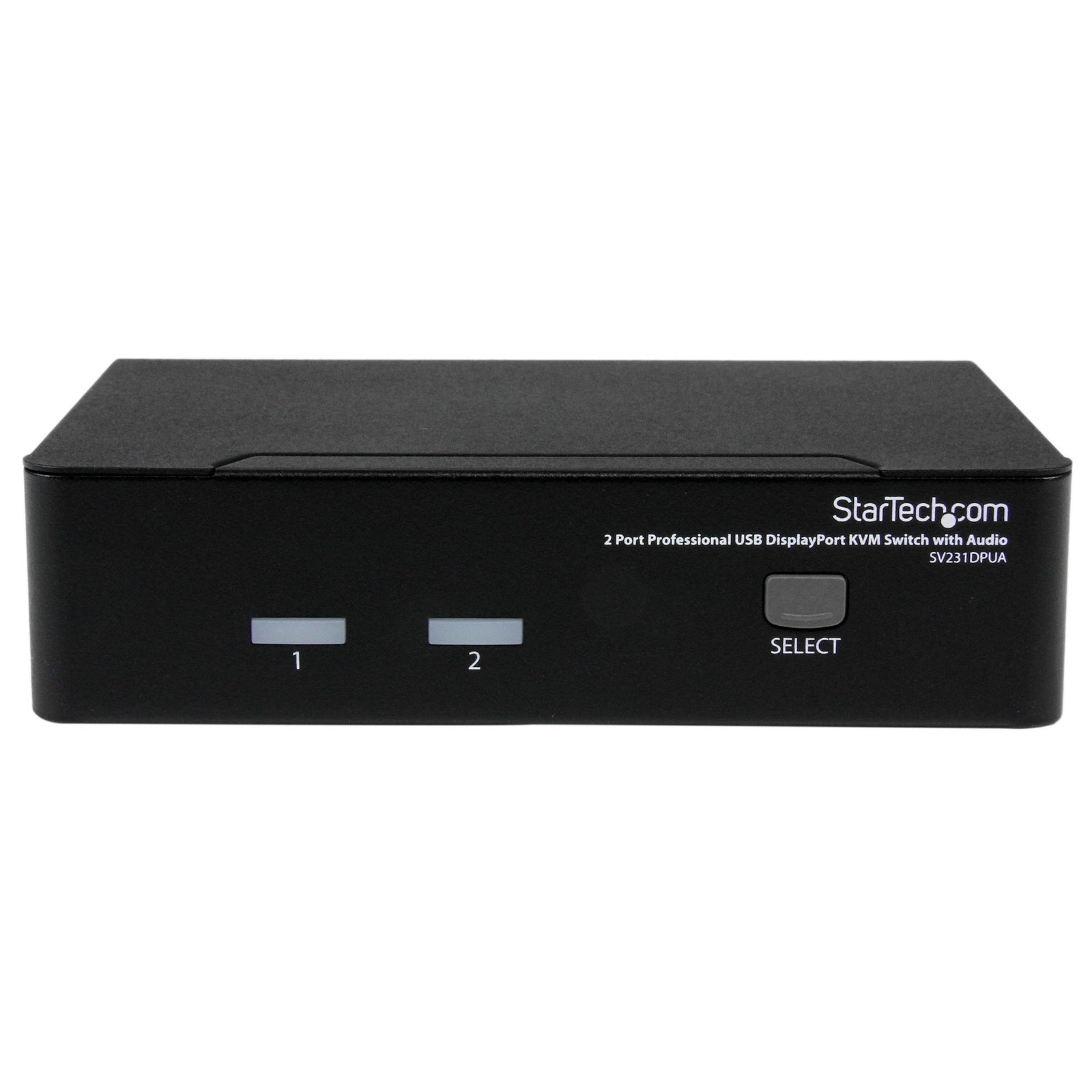

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Applications
Multimedia design, multimedia post-production and video editing using Mac or PC computers
High resolution medical imaging and Health care display, such as MRI and Xray display
Manufacturing line computer control
PC test/burn-in computer control
High-res Digital Signage server control
Satellite Topography
Dual system control for a single work terminal
-
| Category |
Specification |
| Warranty Information |
Warranty: 3 Years |

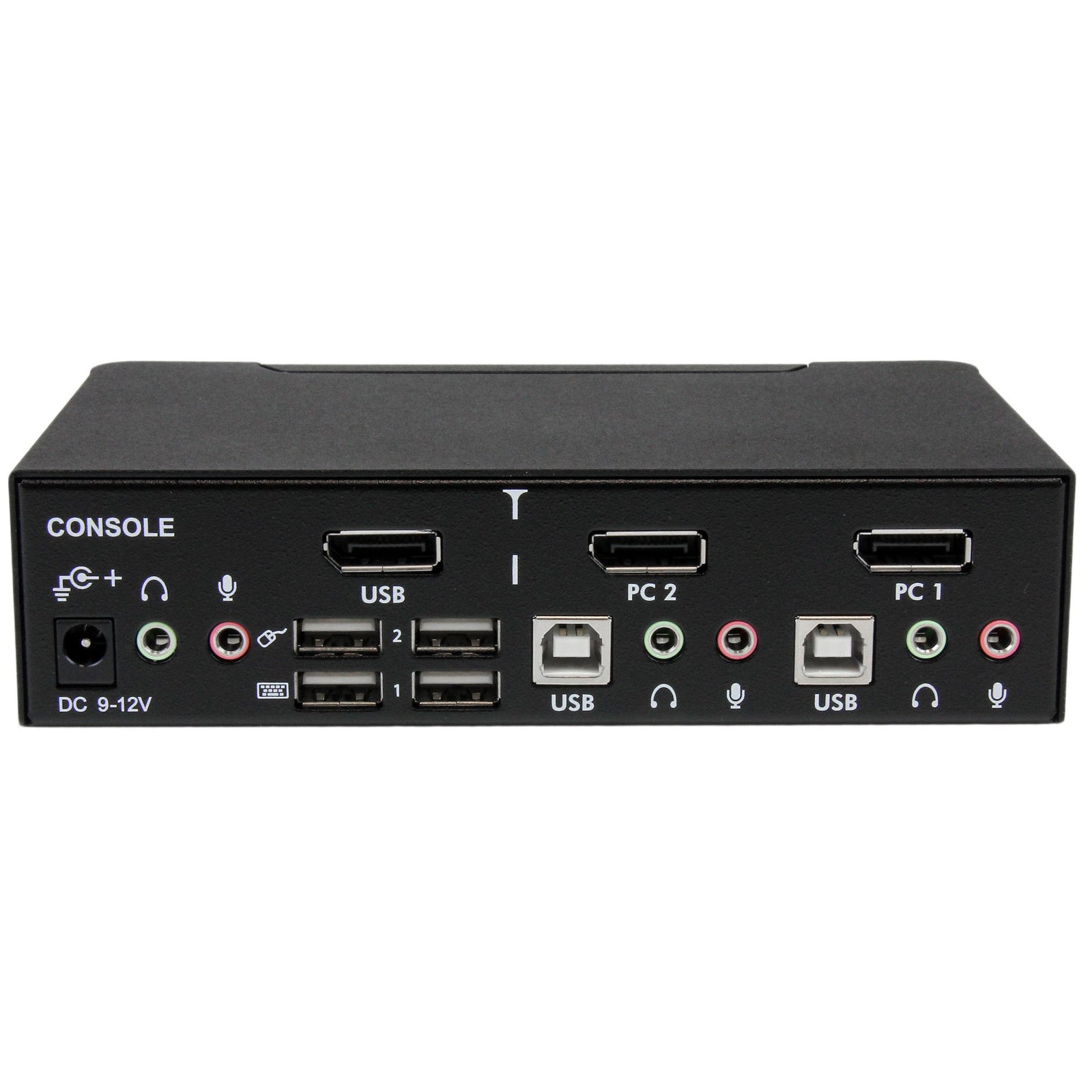

| Connector(s) |
Console Interface(s): |
|
4 - USB 2.0 Type-A (4 pin, 480Mbps) |
|
1 - DisplayPort (20 pin) |
|
2 - 3.5 mm Mini-Jack (3 Position) |
|
Host Connectors: |
|
2 - USB B (4 pin) |
|
4 - 3.5 mm Mini-Jack (3 Position) |
|
2 - DisplayPort (20 pin) |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) |
|
Storage Temperature: -20°C to 60°C (-4°F to 140°F) |
|
Humidity: 0~80% RH |
| Hardware |
Audio: Yes |
|
KVM Ports: 2 |
|
PC Interface: USB |
|
PC Video Type: DisplayPort |
|
Number of Monitors Supported: 1 |
|
Rack-Mountable: No |
|
Cables Included: No |
|
Daisy-Chain: No |
| Indicators |
LED Indicators: |
|
2 - Green - Online indicator (One LED per port) |
|
2 - Red - Select indicator (One LED per port) |
| Packaging Information |
Package Quantity: 1 |
|
Package Length: 10.0 in [25.3 cm] |
|
Package Width: 7.4 in [18.7 cm] |
|
Package Height: 4.0 in [10.1 cm] |
|
Shipping (Package) Weight: 2.4 lb [1.1 kg] |
| Performance |
On-Screen Display: No |
|
DVI Support: No |
|
IP Control: No |
|
Hot-Key Selection: Yes |
|
Maximum Digital Resolutions: 2560 x 1600 @ 60Hz |
|
Wide Screen Supported: Yes |
|
Maximum Number of Users: 1 |
|
Port Selection Support: Push Button and Hotkeys |
|
MTBF: 127000 hours |
| Physical Characteristics |
Product Length: 6.3 in [16.0 cm] |
|
Color: Black |
|
Material: Steel |
|
Product Width: 3.9 in [10.0 cm] |
|
Product Height: 1.6 in [4.0 cm] |
|
Product Depth: 5.1 in [130 mm] |
|
Weight of Product: 1.4 lb [0.6 kg] |
| Power |
Power Source: AC Adapter Included |
|
Input Voltage: 100 - 240 AC |
|
Input Current: 0.8A |
|
Output Voltage: 12V DC |
|
Output Current: 2A |
|
Center Tip Polarity: Positive |
|
Plug Type: M |
|
Power Consumption (In Watts): 24 |
| Software |
OS Compatibility: OS independent; No software or drivers required |
| What's in the Box |

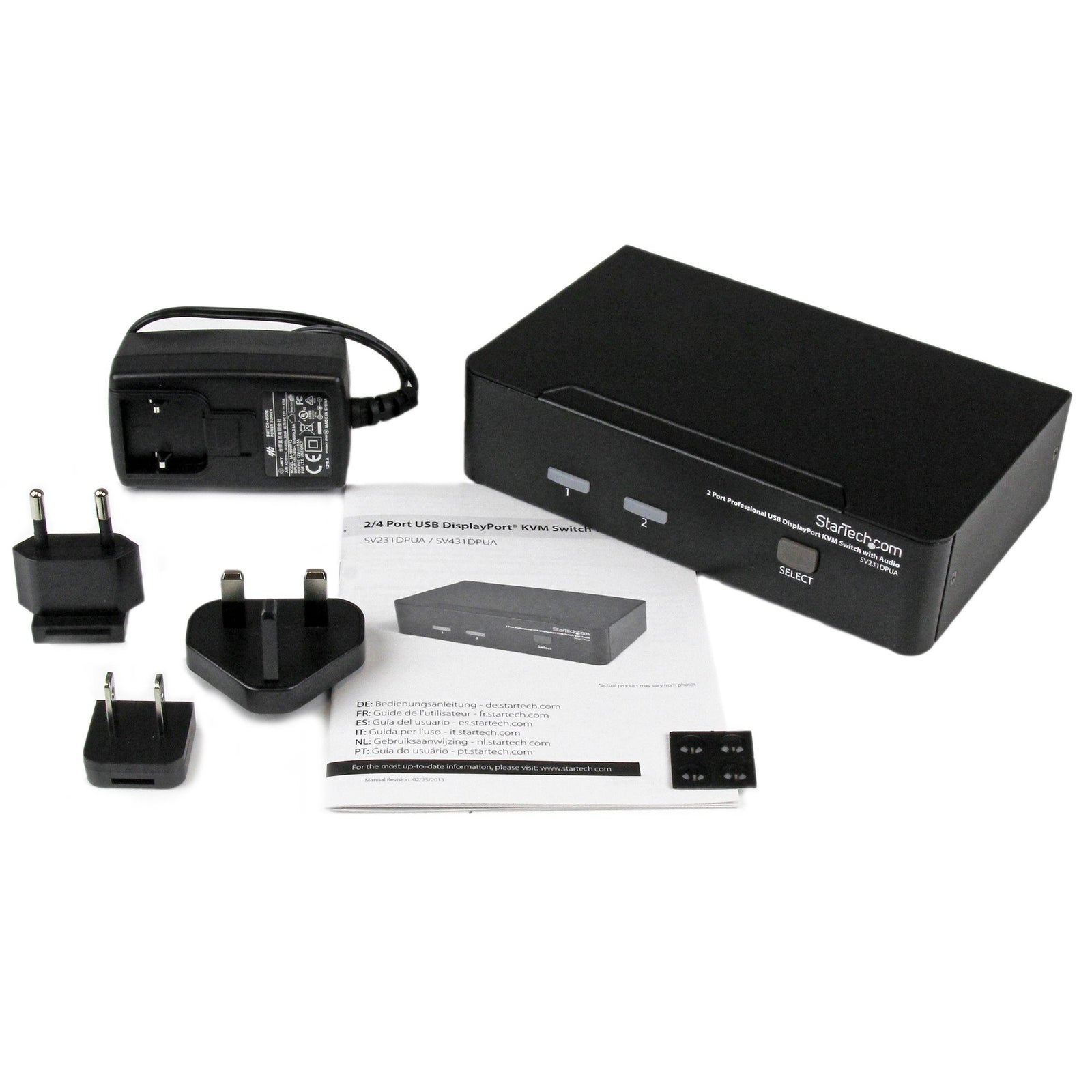

Included in Package: |
|
1 - 2-port DisplayPort KVM switch |
|
4 - foot pads |
|
1 - universal power adapter (NA/UK/EU/AU) |
|
1 - instruction manual |
-
