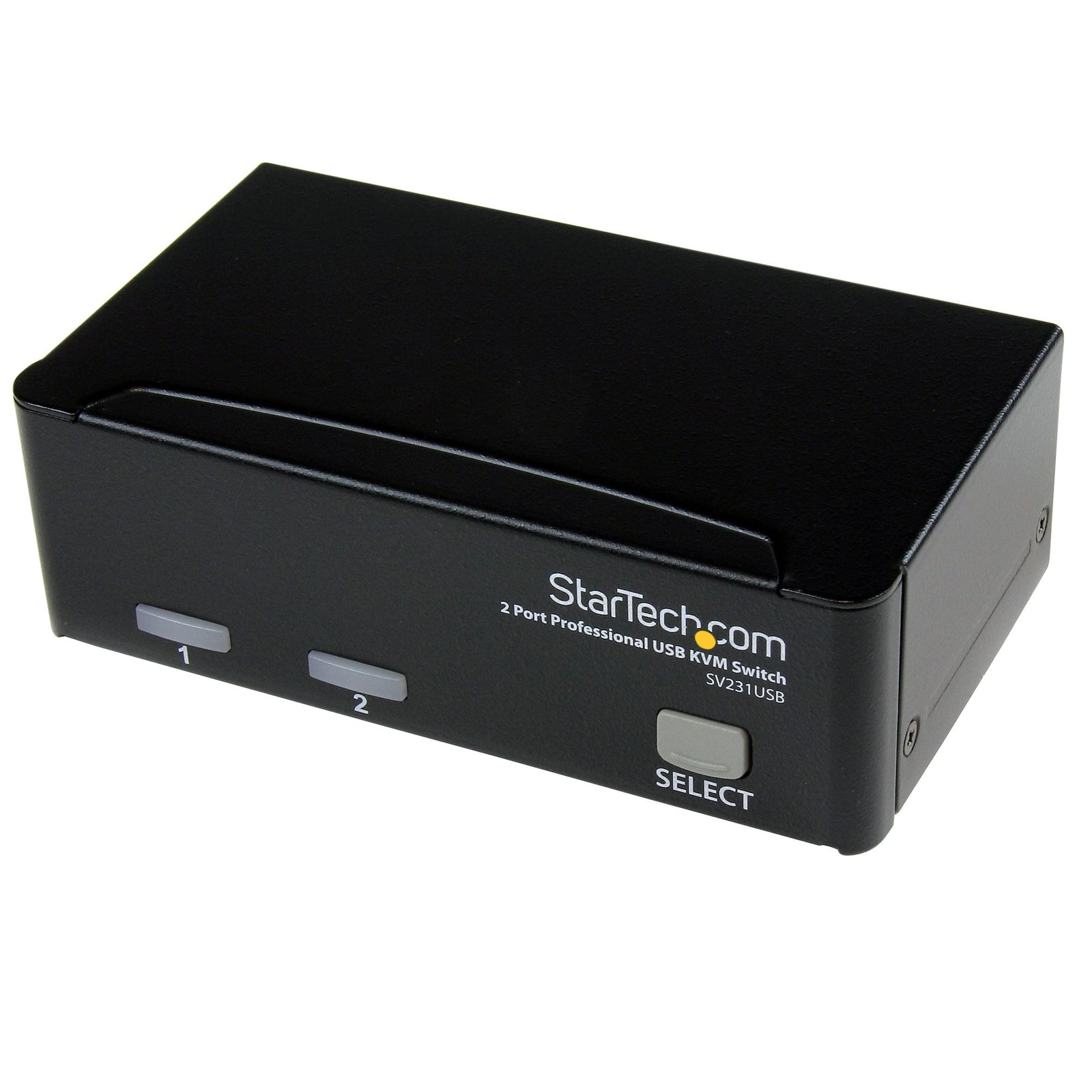

The SV231SUBGB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of 2 computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The 2 Port KVM includes 2 USB KVM cables, for a complete out-of-the-box solution saving you time and money. An integrated 3 port USB hub allows you to share USB peripherals between computers as though they were connected directly. A compact form factor and rear-port connections minimizes disruption to your workspace.
This OS independent KVM supports resolutions up to 1920x1440, and provides a smooth operating experience in mixed (Windows/Mac/Linux) environments.
Applications
Dual system control for a single workstations increasing user productivity in the
Office
Provide centralized control for multiple high-res Digital Signage server control
Great for manufacturing line computer control, simplifying access to multiple systems
Perfect for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice
| Category | Detail |
|---|---|
| Warranty Information | 3 Years |

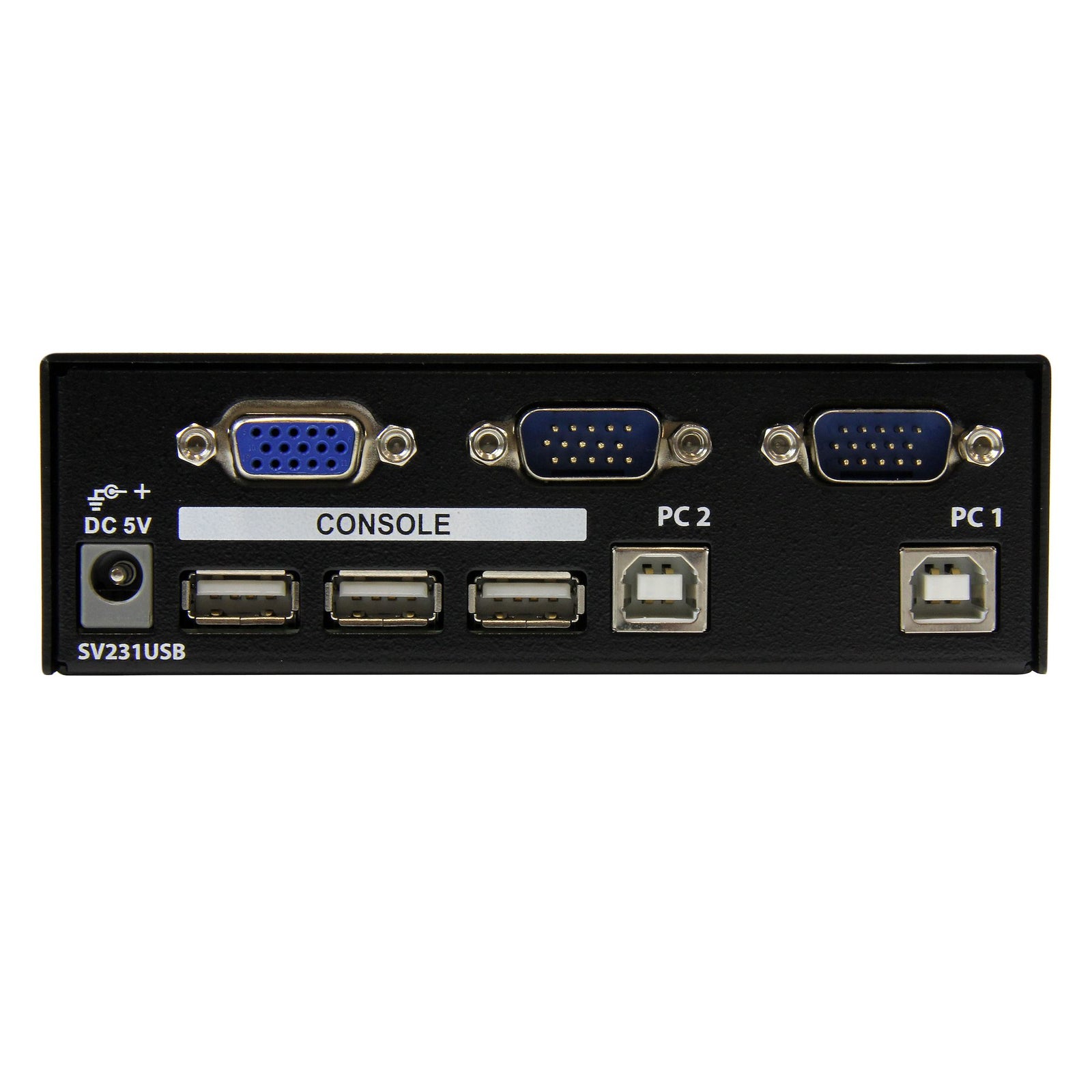

| Connector(s) | |
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) |
| 3 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors | 2 - USB B (4 pin) |
| 2 - VGA (15 pin, High Density D-Sub) | |
| Hardware | |
| Audio | No |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| U Height | 1U |
| Daisy-Chain | No |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 18.3 cm [7.2 in] |
| Package Width | 23.5 cm [9.3 in] |
| Package Height | 9.2 cm [3.6 in] |
| Shipping (Package) Weight | 1.2 kg [2.6 lb] |
| Performance | |
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Cable Length | 5 m [16.4 ft] |
| Maximum Analog Resolutions | 1920x1440 |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Maximum Number of Users | 1 |

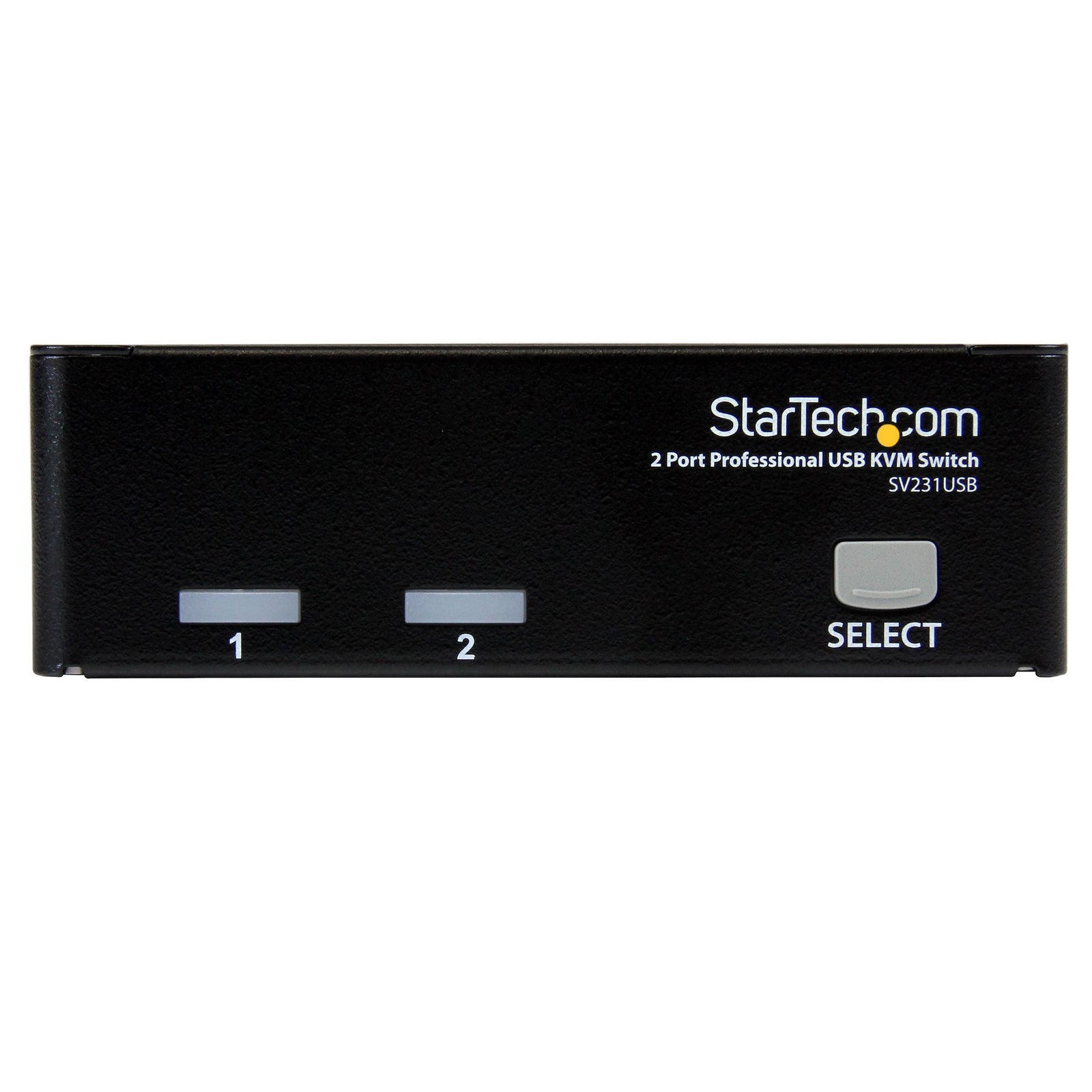

| Port Selection Support | Push Button |
| MTBF | 111,000 hours |
| Physical Characteristics | |
| Product Length | 12.4 cm [4.9 in] |
| Color | Black |
| Material | Steel |
| Product Width | 7.0 cm [2.8 in] |
| Product Height | 4.0 cm [1.6 in] |
| Product Depth | 70 mm [2.8 in] |
| Weight of Product | 421.0 g [14.9 oz] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4A |
| Output Voltage | 5V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Power Consumption (In Watts) | 10W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |

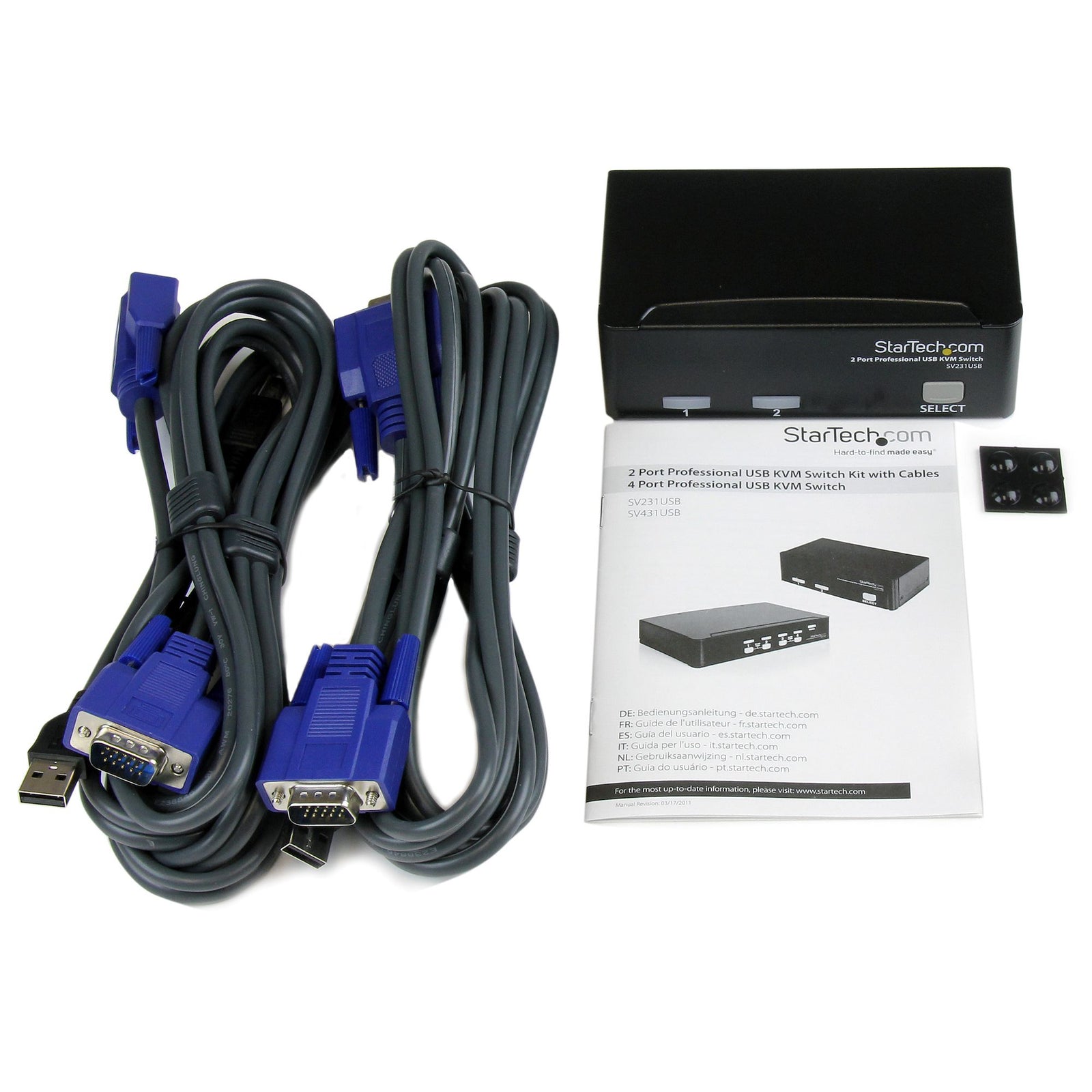

| What's in the Box | |
| Included in Package | 1 - 2 Port KVM Switch |
| 2 - 6ft (1.83m) KVM Cables | |
| 1 - Universal power adapter (EU/UK) | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
