StarTech 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR | SV231QDPU34K

SKU: SV231QDPU34K
StarTech 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR | SV231QDPU34K StarTech KVM Switches Startech
Availability:
Only 4 left at this price!
🚚 Order before 3PM, get it by tomorrow.
🎓 Request Educational Pricing
Save £348.16 Save £348.16

£437.39 (Excl. VAT)

- £524.87 (Inc. VAT)
£437.39 - £437.39
- - £524.87
Availability:
Only 4 left at this price!
payment-icons

Open an Account – Tailored to Your Organisation

Education, healthcare, public sector, or trade — get exclusive pricing, expert support, and 30-day terms. Click here to open your account today.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

Book a Free Product Demo

Experience the power of our technology before you decide. Remote and on-site options available.

×

Schedule Your Demo Session

No cost, no commitment — just a free, expert-led session to help you decide with confidence.
Are you an Integrator or Installer?
Get exclusive trade pricing, volume discounts, same day collection, and faster checkout.
Request a Trade Account Request Today
  • Description
  • Specifications
  • Downloads

  • StarTech 2 Port Quad Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR | SV231QDPU34K

    This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.


    4K 60Hz Picture and Full Audio Support
    The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and drives four large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

    Integrated USB Hub
    The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

    Windows, Mac & Linux Compatible
    While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.


    Easy to Operate

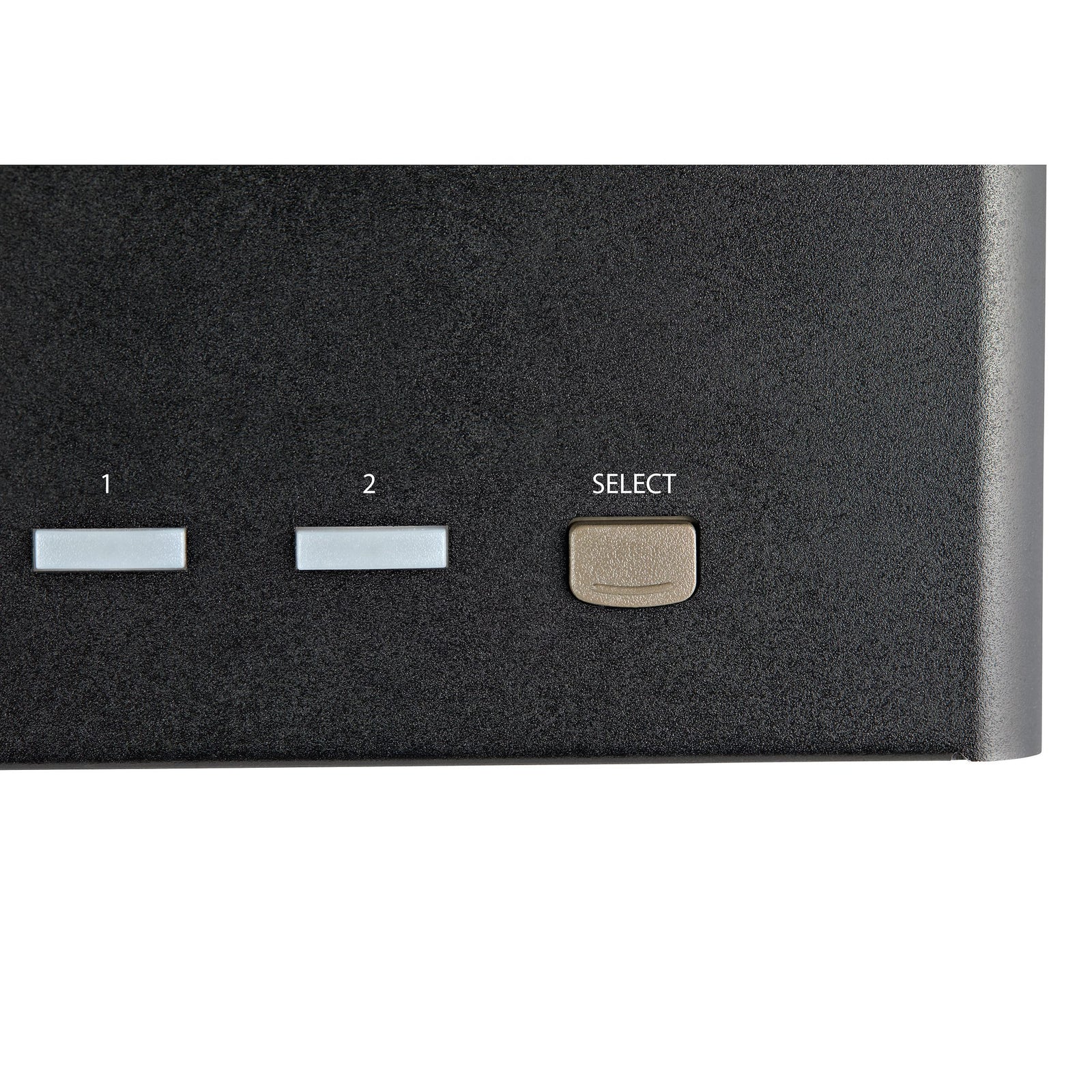

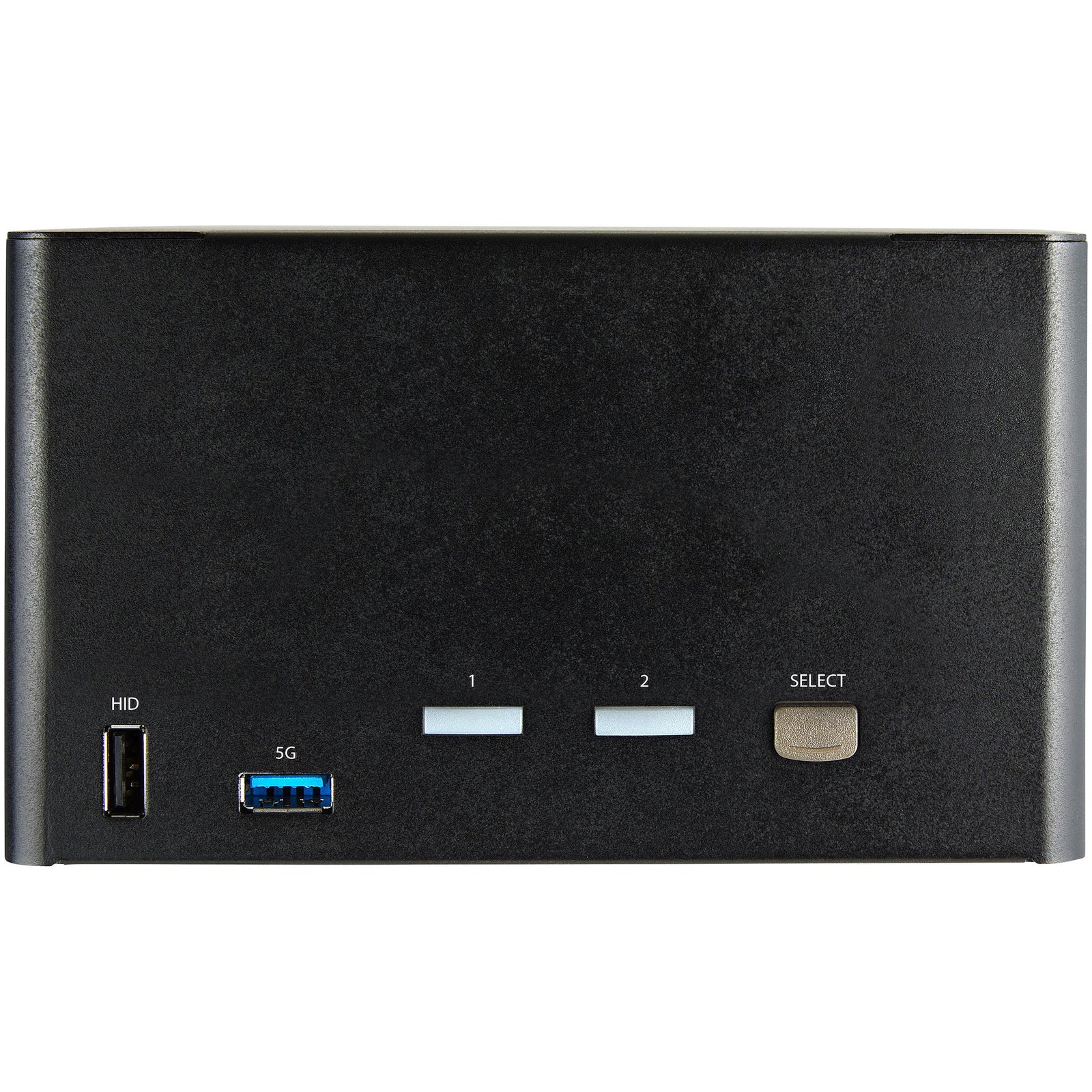

    The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

  • Category Detail
    Warranty Information
    Warranty 2 Years
    Connector(s)
    Console Interface(s) 4 - 20 pin DisplayPort Female
    2 - 9 pin USB 3.0 A Female
    4 - USB Type-A (4 pin; HID Port) USB 1.1
    1 - 3.5 mm Audio Female
    Host Connectors 8 - 20 pin DisplayPort Female
    2 - 9 pin USB 3.0 B Female
    2 - 3.5 mm Audio Female
    Environmental
    Operating Temperature 0℃~40℃
    Storage Temperature -10℃~60℃
    Humidity 0%~80%
    Hardware
    Audio Yes
    Cables Included No
    Daisy-Chain No
    Number of Monitors Supported 4
    KVM Ports 2
    PC Interface USB 3.2 Gen 1 (5Gbps)
    PC Video Type DisplayPort
    Chipset ID Genesys Logic - GL3523
    Indicators
    LED Indicators 2 - Green (Power/Sync)
    2 - Red (Selected Host)
    Packaging Information
    Package Height 3.9 in [10.0 cm]
    Package Length 9.8 in [25.0 cm]
    Shipping (Package) Weight 3.4 lb [1.6 kg]
    Package Width 7.3 in [18.5 cm]
    Package Quantity 1
    Performance
    Auto Scan 3, 8, 15 & 30 seconds
    MTBF 156,000 hrs
    Port Selection Support Push Button and Hotkeys
    On-Screen Display No
    Video Revision DisplayPort 1.2
    IP Control No
    Hot-Key Selection Yes
    Wide Screen Supported Yes
    Audio Specifications DisplayPort - 5.1 Channel Audio
    DisplayPort - 2 Channel Audio
    Analog Stereo - 2 Channel Audio
    Physical Characteristics
    Color Black
    Product Height 3.6 in [9.2 cm]
    Product Length 6.3 in [16.0 cm]
    Weight of Product 2.2 lb [1.0 kg]
    Product Width 3.9 in [10.0 cm]
    Material Steel
    Power
    Power Source AC Adapter Included
    Input Voltage 100 - 240 AC
    Input Current 1.0A
    Output Voltage 12V DC
    Output Current 3A
    Center Tip Polarity Positive
    Plug Type M
    Power Consumption (In Watts) 36W
    What's in the Box
    Included in Package 1 - KVM Switch
    1 - Universal Power Adapter (NA/JP, EU, UK, NZ)
    4 - Rubber Feet
    1 - Quick-Start Guide
  • Description Downloads
    Datasheet Downloads
    User Manual Downloads
