This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

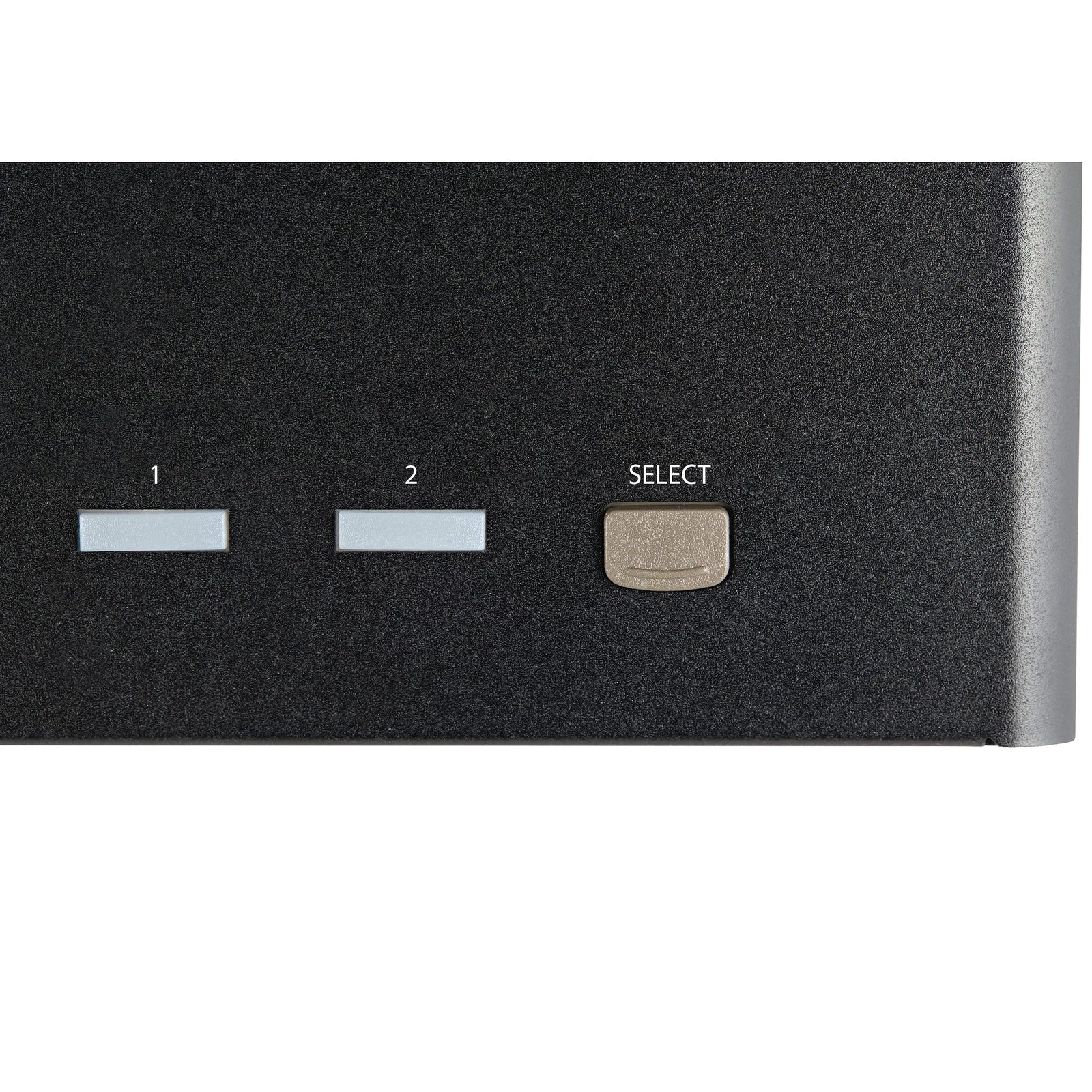

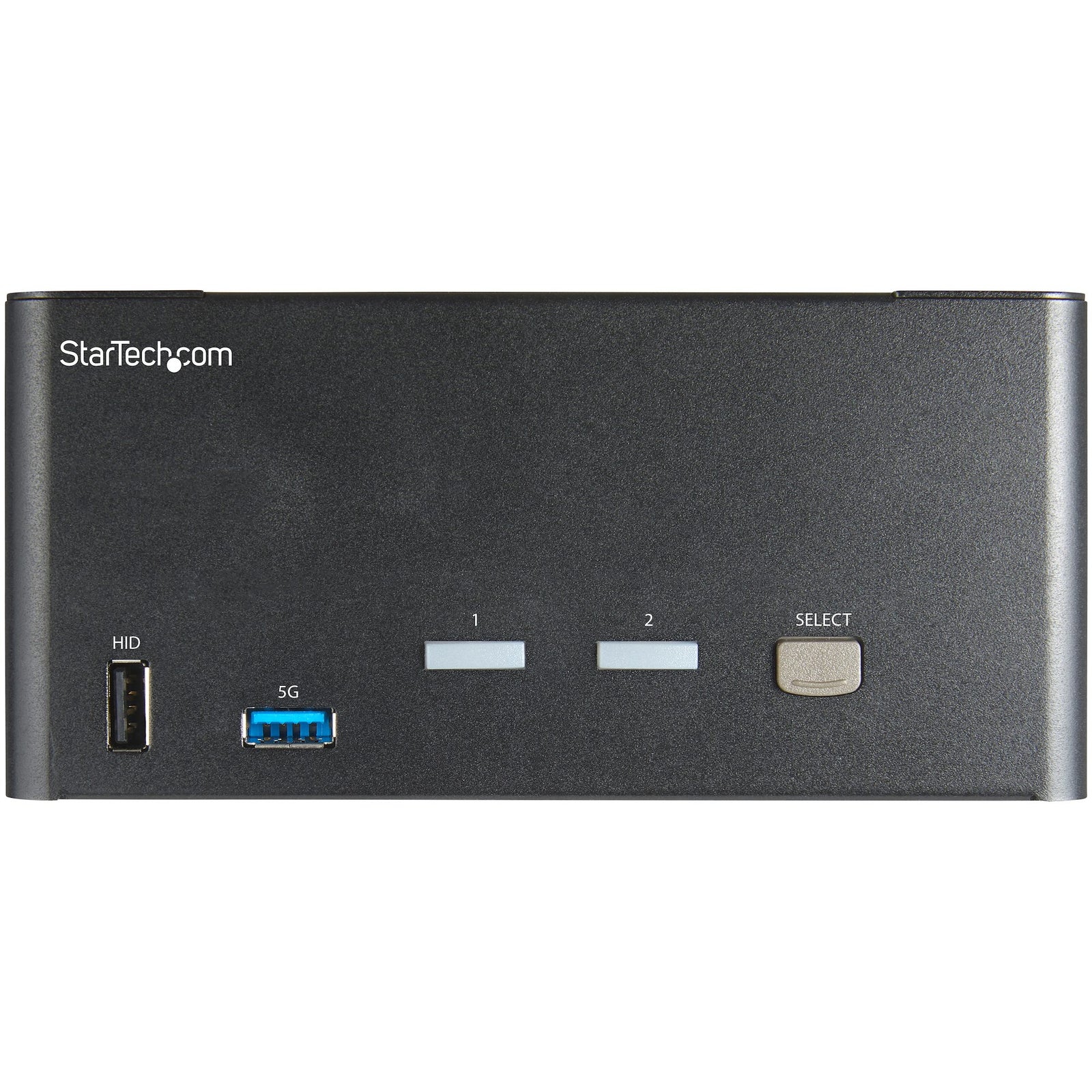

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
| Category | Detail |
|---|---|
| Warranty Information | 2 Years |
| Connector(s) | |
| Console Interface(s) | 3 - 20 pin DisplayPort Female |
| 2 - 9 pin USB 3.0 A Female | |
| 4 - USB Type-A (4 pin; HID Port) USB 1.1 | |
| 1 - 3.5 mm Audio Female | |
| Host Connectors | 6 - 20 pin DisplayPort Female |
| 2 - 9 pin USB 3.0 B Female | |
| 2 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA) | |
| Environmental | |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -10℃~60℃ |
| Humidity | 0%~80% RH |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| Number of Monitors Supported | 3 |
| KVM Ports | 2 |
| PC Interface | USB 3.2 Gen 1 (5Gbps) |
| PC Video Type | DisplayPort |
| Chipset ID | Genesys Logic - GL3523 |
| Indicators | |
| LED Indicators | 2 - Green (Power/Sync) |
| 2 - Red (Selected Host) | |
| Packaging Information | |
| Package Height | 3.6 in [9.1 cm] |
| Package Length | 7.4 in [18.9 cm] |
| Shipping (Package) Weight | 3.2 lb [1.4 kg] |
| Package Width | 9.4 in [23.8 cm] |
| Package Quantity | 1 |
| Performance | |
| Auto Scan | 3, 8, 15 & 30 seconds |
| MTBF | 156,000 hrs |
| Port Selection Support | Push Button and Hotkeys |
| On-Screen Display | No |
| Video Revision | DisplayPort 1.2 |
| IP Control | No |
| Hot-Key Selection | Yes |
| Wide Screen Supported | Yes |
| Audio Specifications | |
| Audio Support | DisplayPort - 5.1 Channel Audio |
| DisplayPort - 2 Channel Audio | |
| Analog Stereo - 2 Channel Audio | |
| Physical Characteristics | |
| Color | Black |
| Product Height | 2.9 in [7.5 cm] |
| Product Length | 6.3 in [16.0 cm] |
| Weight of Product | 1.9 lb [0.9 kg] |
| Product Width | 4.7 in [12.0 cm] |
| Material | Steel |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 1.0A |
| Output Voltage | 12V DC |
| Output Current | 3A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 36W |
| What's in the Box | |
| Included in Package | 1 - KVM Switch |
| 1 - Universal Power Adapter (NA/JP, EU, UK, NZ) | |
| 4 - Rubber Feet | |
| 1 - Quick-Start Guide |
