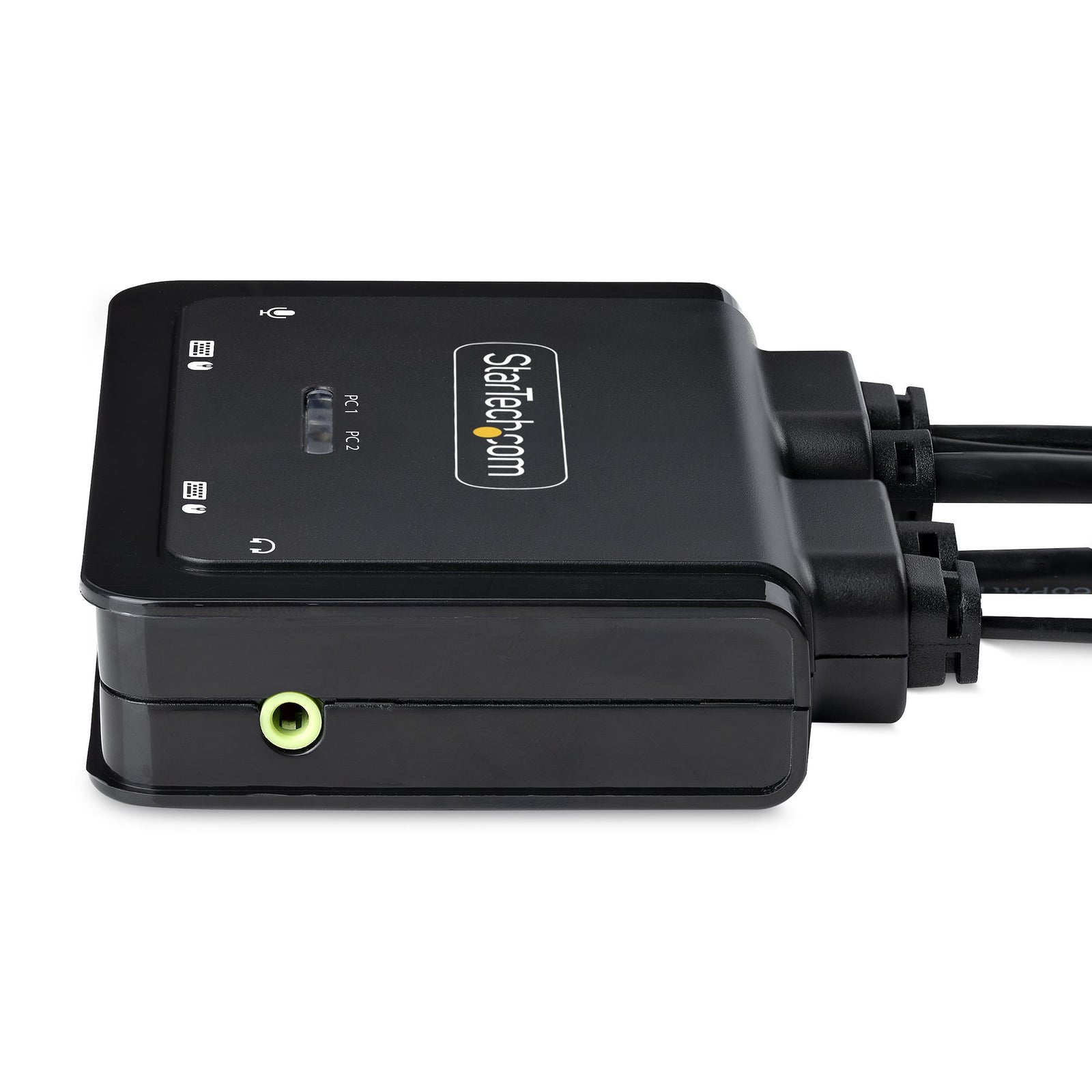

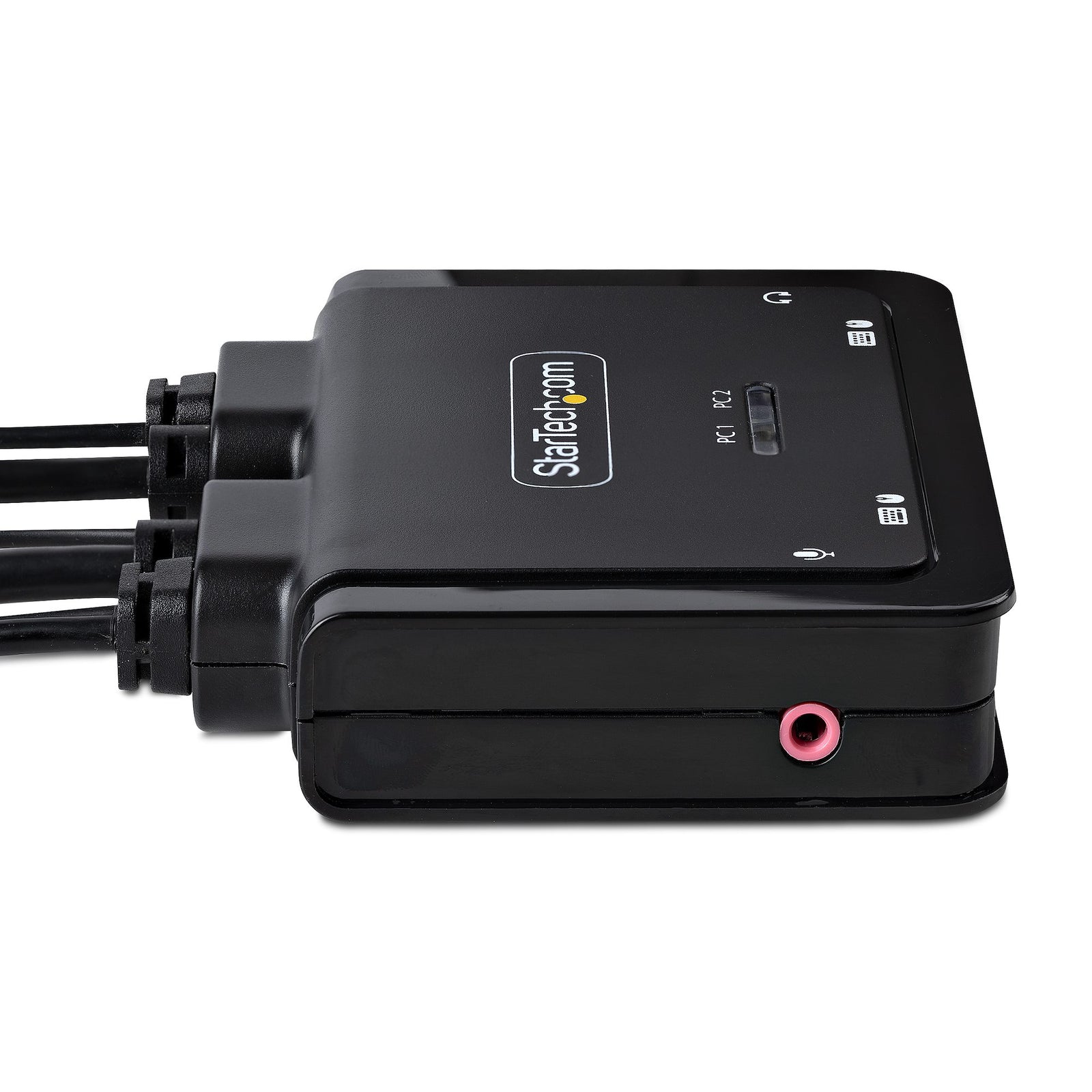

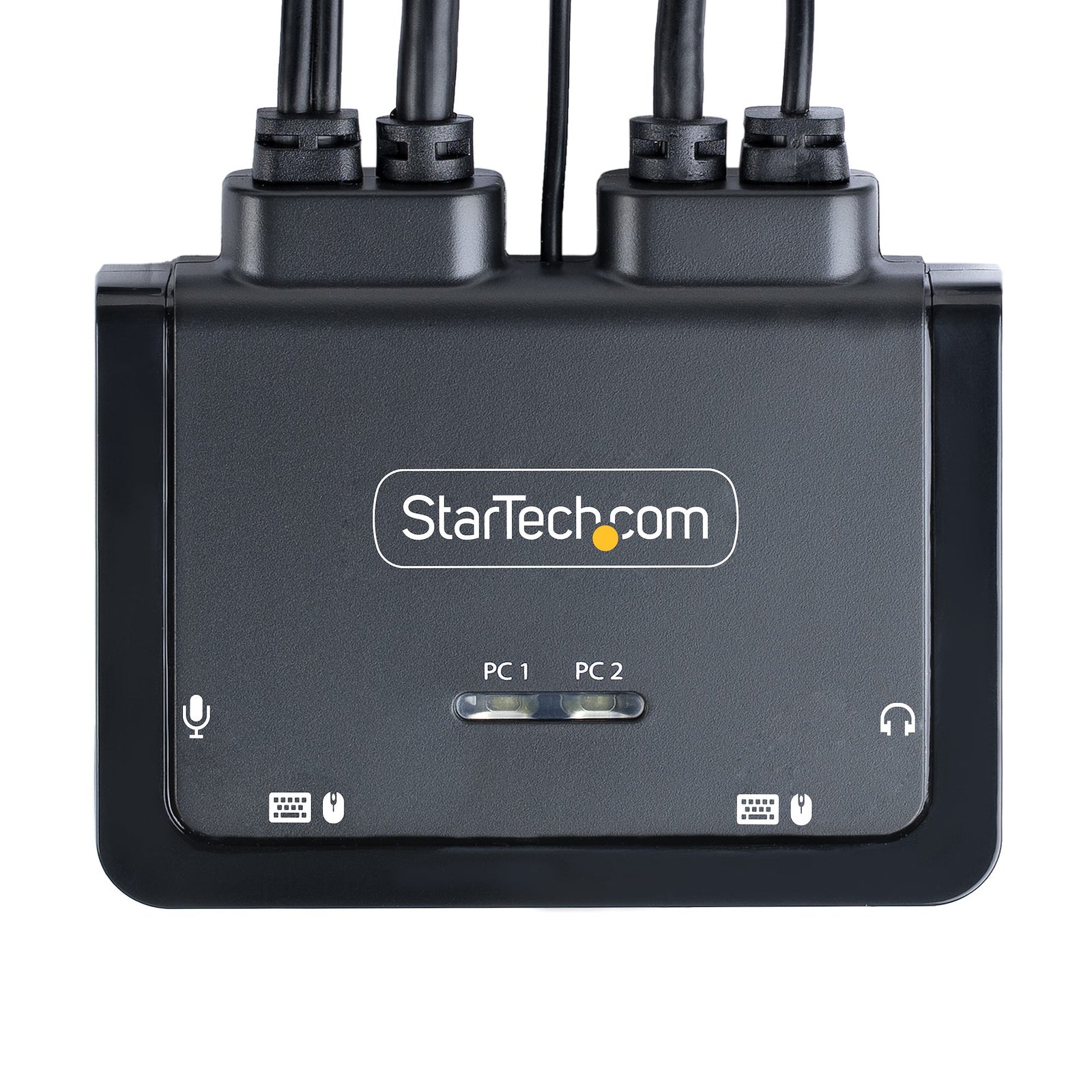

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz DisplayPort monitor, keyboard, mouse, and audio input/output devices.
Hassle-Free Setup

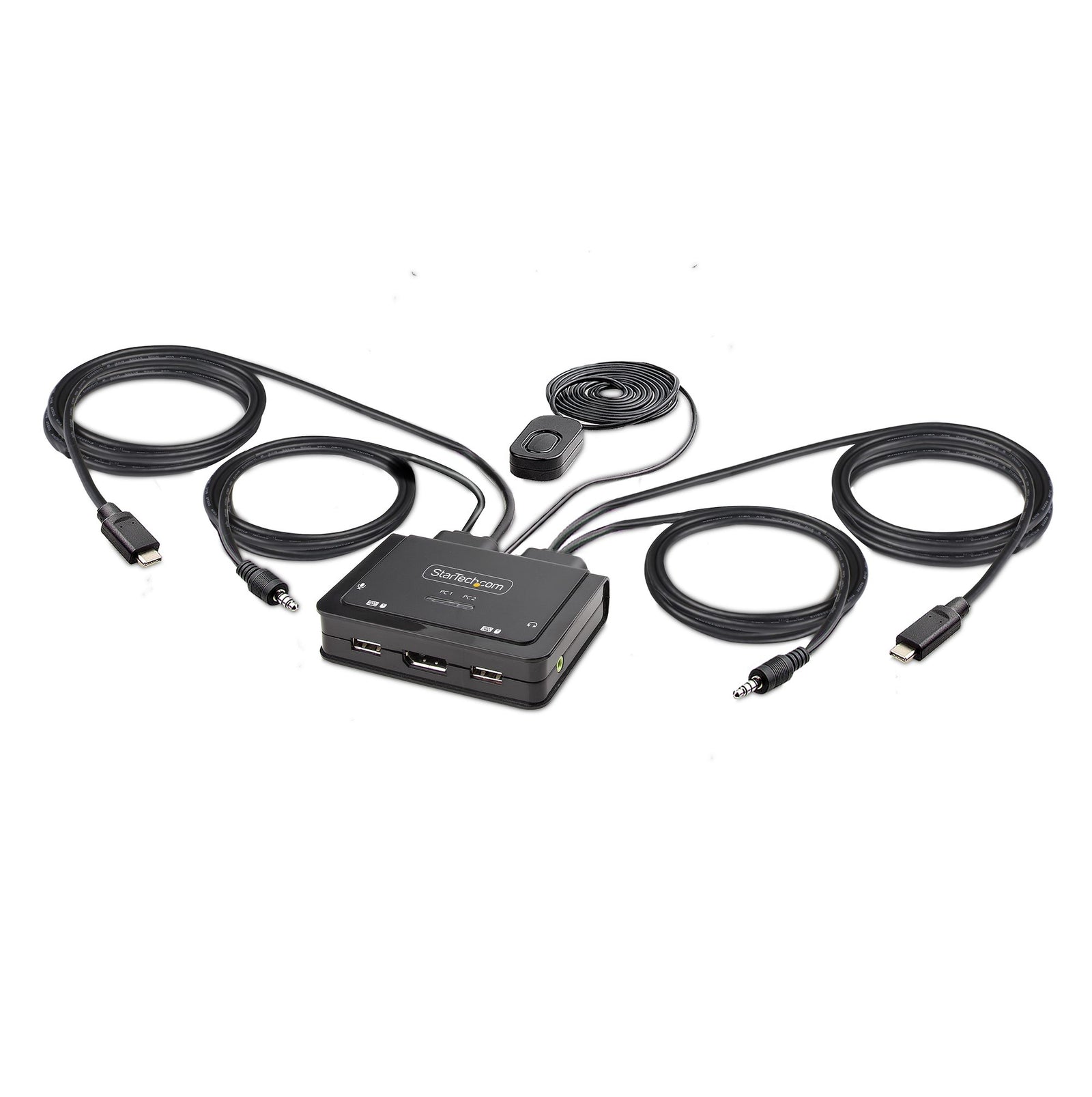

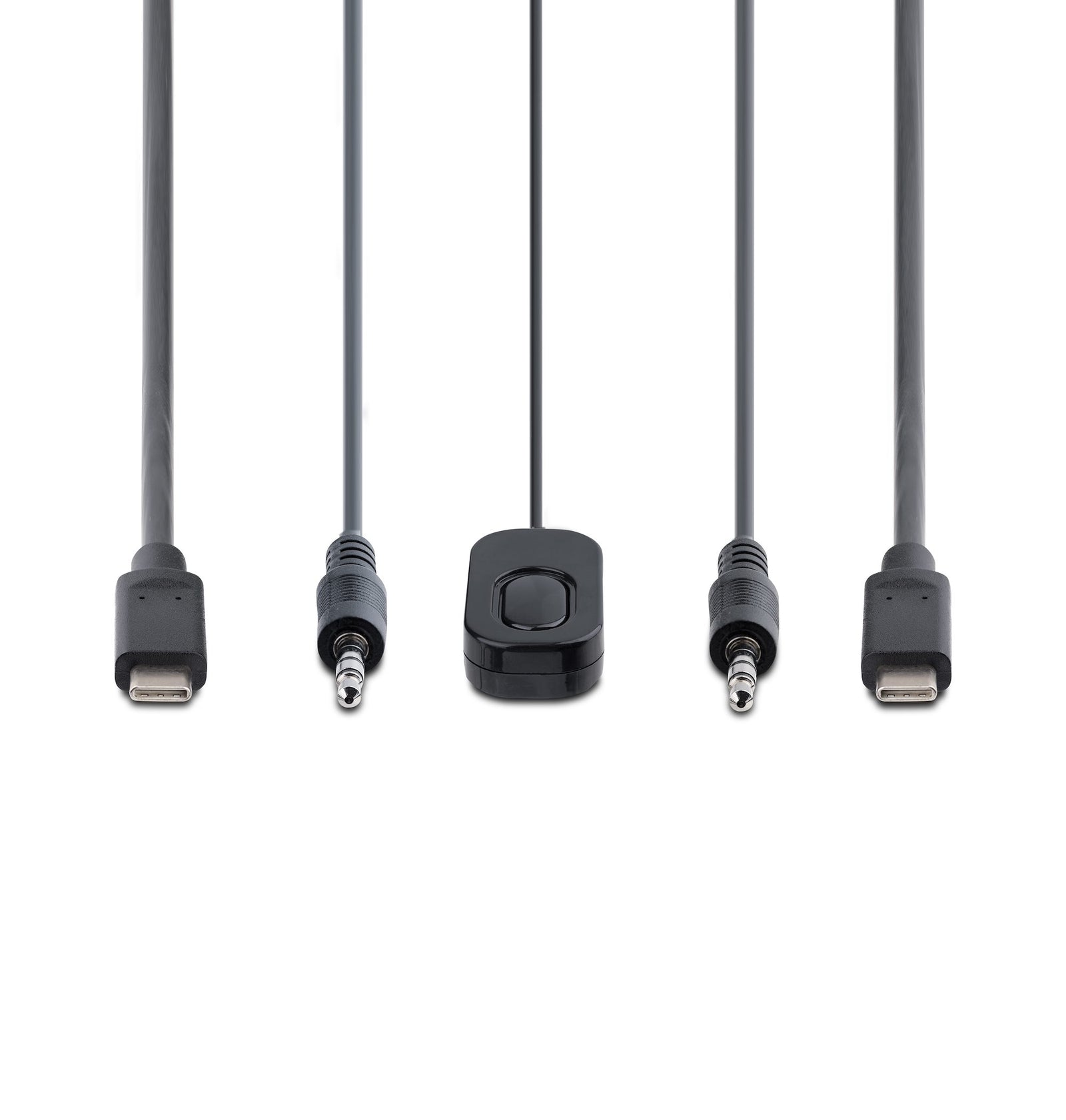

The KVM switch is bus powered and features built-in USB-C and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitor, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push-button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
Advanced Windows Layout Utility: Setup and save custom windows layouts.
MAC Address Pass-Through Utility: Improve network security.
USB Event Monitoring Utility: Track and log connected USB devices.
Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
Applications
Ideal for sharing peripherals between home and office equipment
Great for CAD/CAM, video editing, and content creation applications

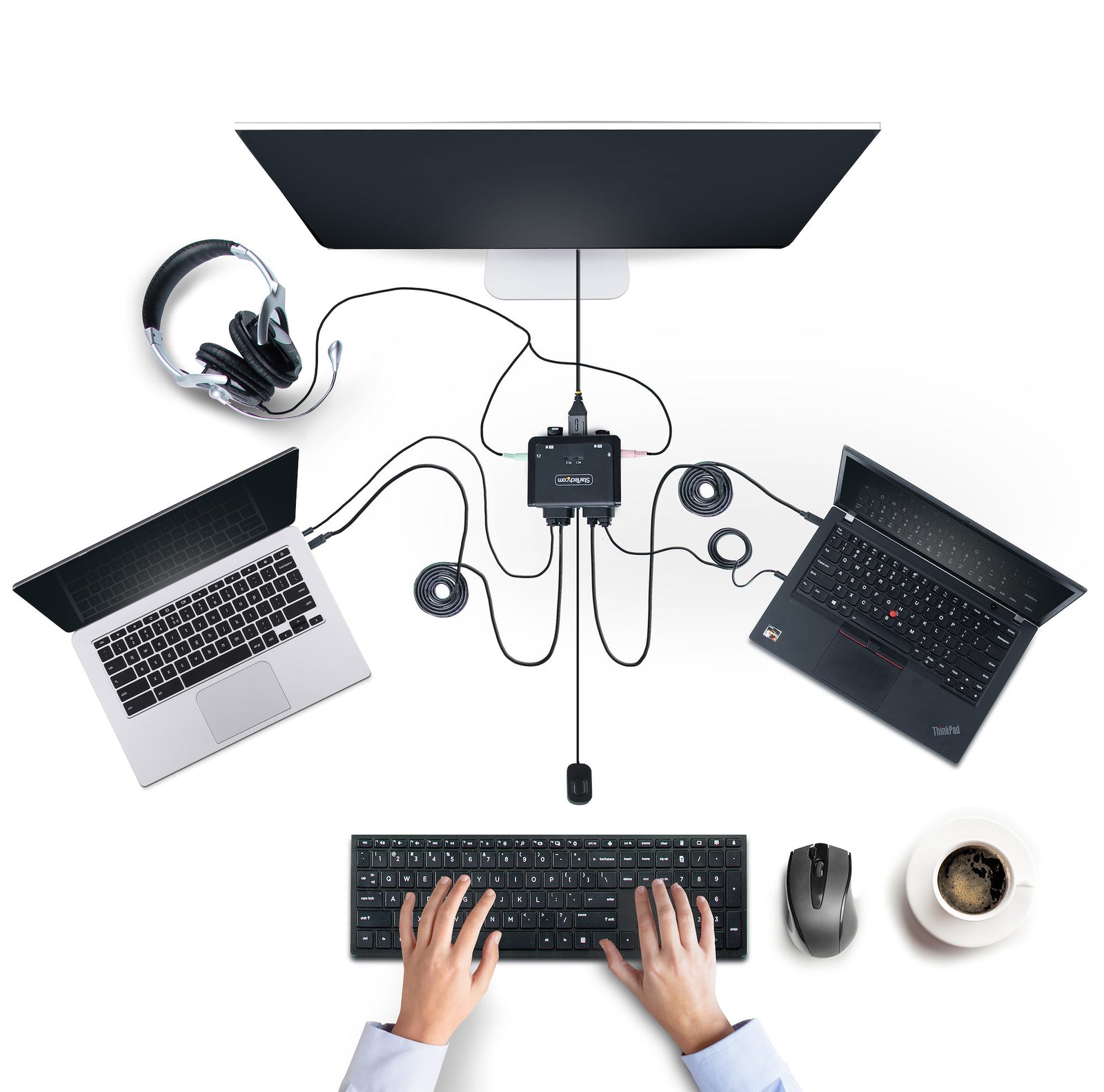

Switch a display, mouse, keyboard, and audio peripherals between two laptops
| Category | Details |
|---|---|
| Warranty Information | |
| Warranty | 2 Years |
| Connector(s) | |

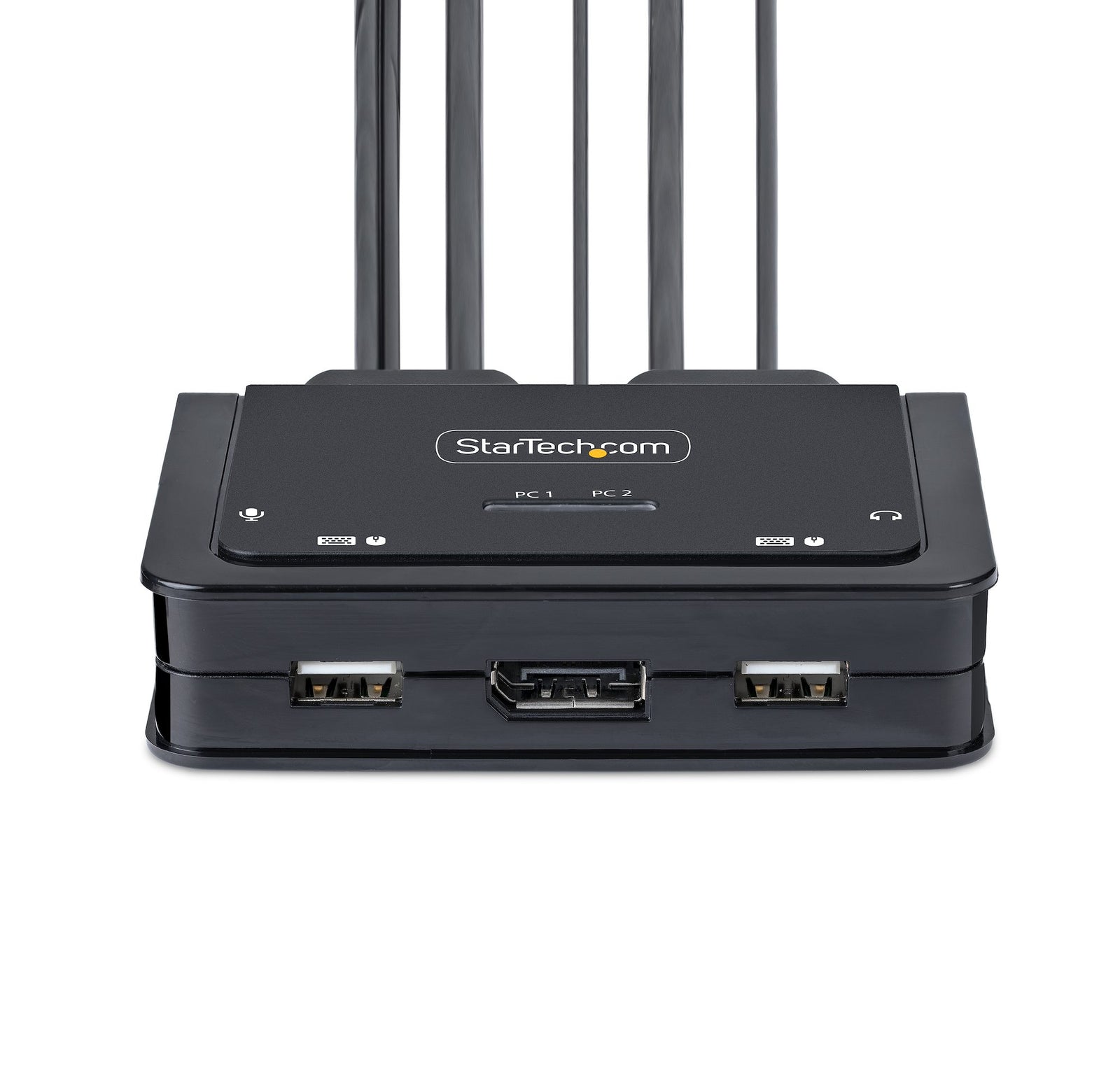

| Console Interface(s) | 1 - DisplayPort (20 pin) 2 - USB 2.0 Type-A (4 pin, 480Mbps) 2 - 3.5mm Stereo Female 3 pos |
| Host Connectors | 2 - USB-C (DP Alt-Mode) 2 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA) |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB-C |
| PC Video Type | USB-C (DP Alt-Mode) |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 1 - Solid Green: Selected PC is Connected 1 - Blinking Green: Selected PC is not detected |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 16.0 cm [6.3 in] |
| Package Width | 21.1 cm [8.3 in] |
| Package Height | 6.0 cm [2.4 in] |
| Shipping (Package) Weight | 350.0 g [12.4 oz] |
| Performance | |
| On-Screen Display | No |
| Video Revision | DisplayPort 1.2 |
| IP Control | No |
| Hot-Key Selection | Yes |
| Supported Resolutions | 3840x2160 60Hz 5120x1440 60Hz 3440x1440 60Hz 3440x1440 100Hz 2560x1440 60Hz 2560x1080 75Hz 1920x1200 60Hz 1920x1080 60Hz |
| Audio Specifications | DisplayPort - 2 Channel Audio Analog Stereo - 2 Channel Audio |
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds |
| Port Selection Support | Push Button, Hotkeys, and Software |
| MTBF | 230,568 Hours |
| Physical Characteristics | |
| Color | Black |
| Product Length | 8.3 cm [3.3 in] |
| Product Width | 9.7 cm [3.8 in] |
| Product Height | 2.5 cm [1.0 in] |
| Weight of Product | 350.0 g [12.4 oz] |
| Material | ABS |
| Cable Length | 1.2 m [3.9 ft] |
| Power | |
| Power Source | Bus Powered |
| Software | |
| OS Compatibility | Windows 7, 8/8.1, 10, 10 ARM, 11, 11 ARM macOS 10.12 - 10.15, 11, 12 ChromeOS |
| Special Notes / Requirements | |
| Note | OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform |
| What's in the Box | |
| Included in Package | 1 - KVM Switch 1 - Quick-Start Guide |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Manuals | Downloads |
