Official Partner
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

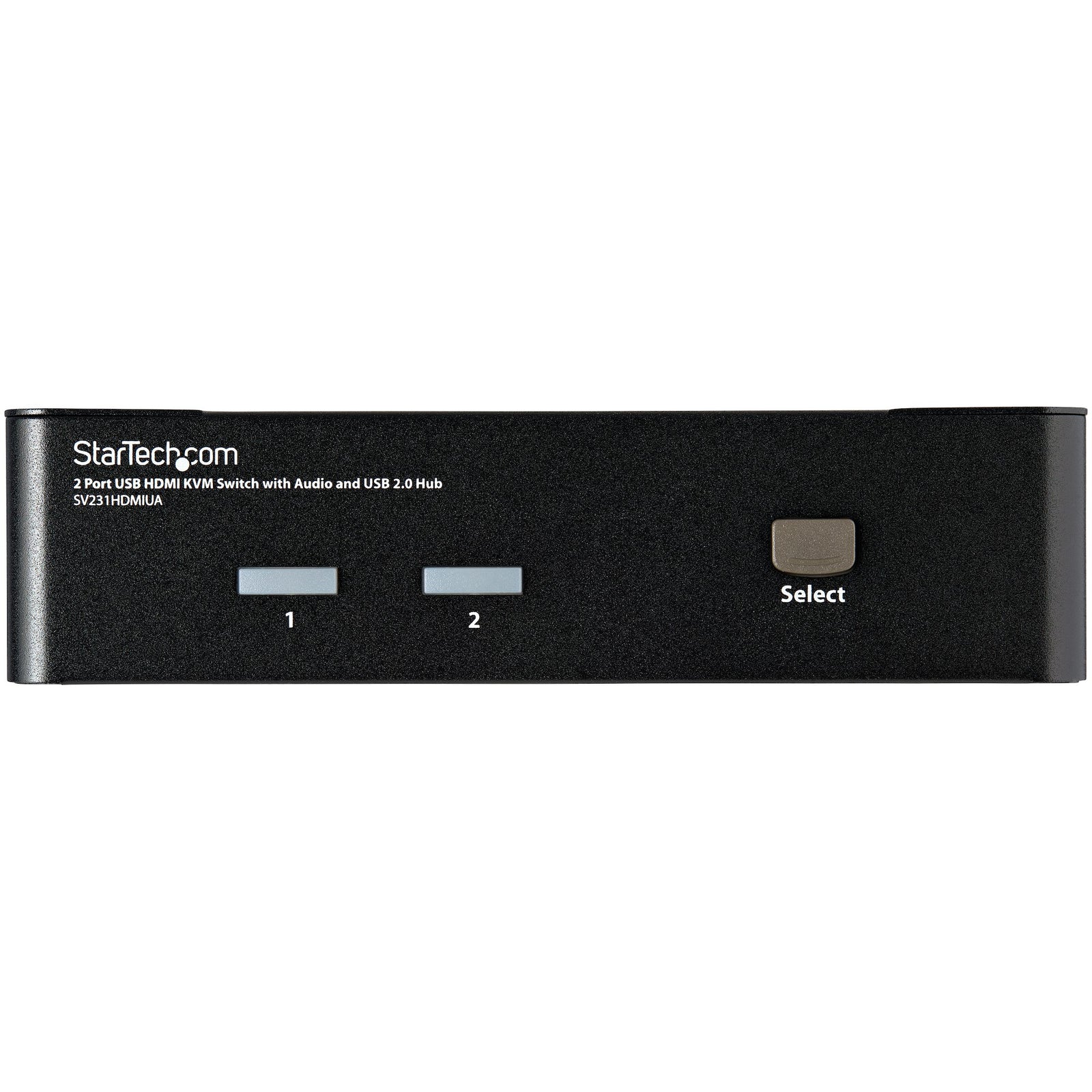

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Applications
Ideal for sharing two newer HDMI® multimedia PCs with an HDMI monitor
Students can use a single monitor and connect their gaming console along side their PC or laptop
Allows multimedia PCs to share peripherals and a single high definition television
Use in the Office to connect two multimedia PCs to a single console connection increasing productivity
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) | 1 - HDMI (19 pin) |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| 4 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors | 4 - 3.5 mm Mini-Jack (3 Position) |
| 2 - HDMI (19 pin) | |
| 2 - USB B (4 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | HDMI |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 2 - Online/Active (Green - Connected PC is online, Red - PC is selected) |
| Packaging Information | |
| Package Height | 3.9 in [9.8 cm] |
| Package Length | 9.9 in [25.2 cm] |
| Shipping (Package) Weight | 2.3 lb [1.1 kg] |
| Package Width | 7.4 in [18.8 cm] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 1920 x 1200 |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 126,813 hours |
| Physical Characteristics | |
| Weight of Product | 22.4 oz [634 g] |
| Color | Black |
| Material | Steel |
| Product Width | 4.9 in [12.5 cm] |
| Product Height | 1.6 in [4 cm] |
| Product Depth | 2.8 in [70 mm] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |

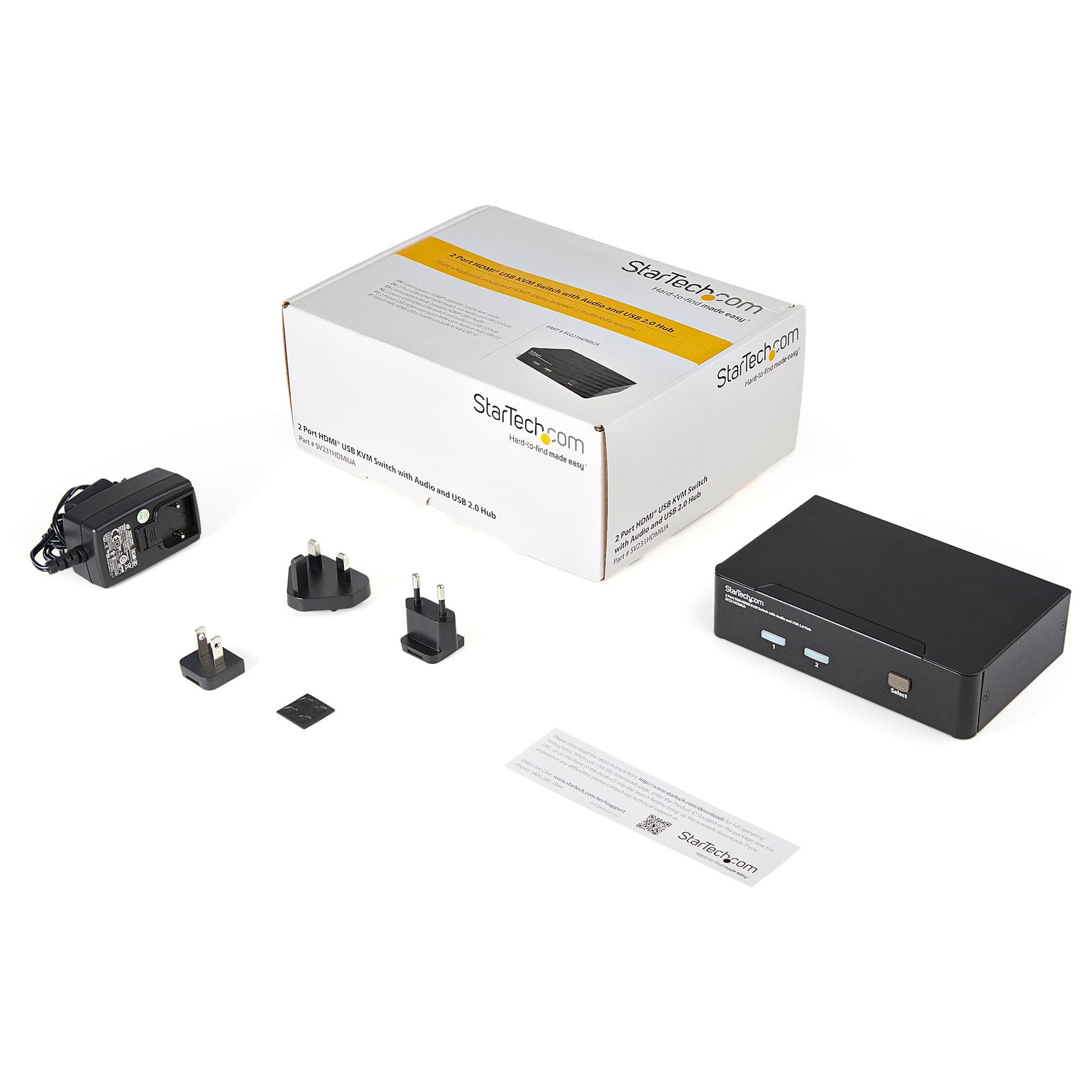

| What's in the Box | |
| Included in Package | 1 - 2 Port HDMI KVM |
| 1 - Package of Rubber feet | |
| 1 - Power Adapter | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
