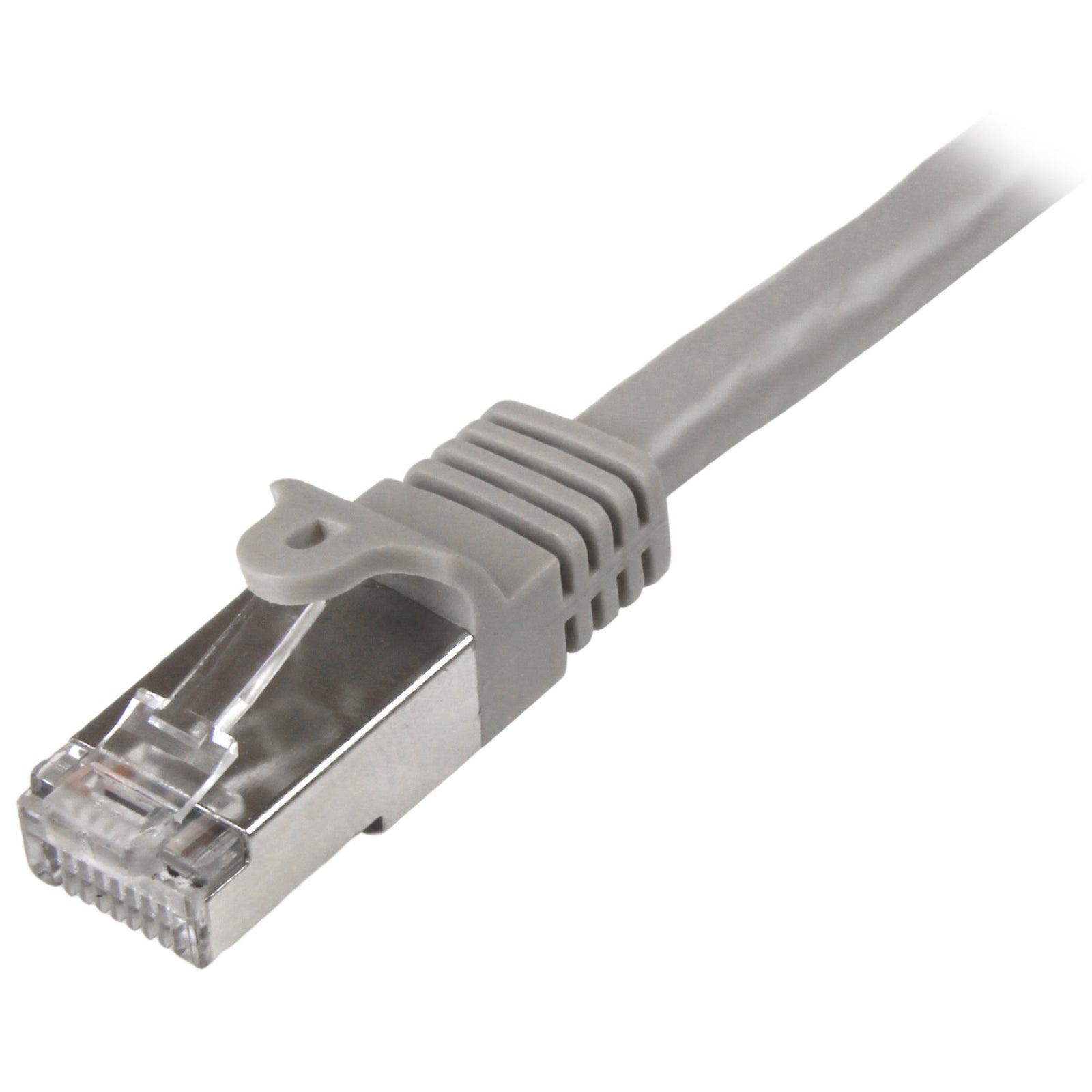

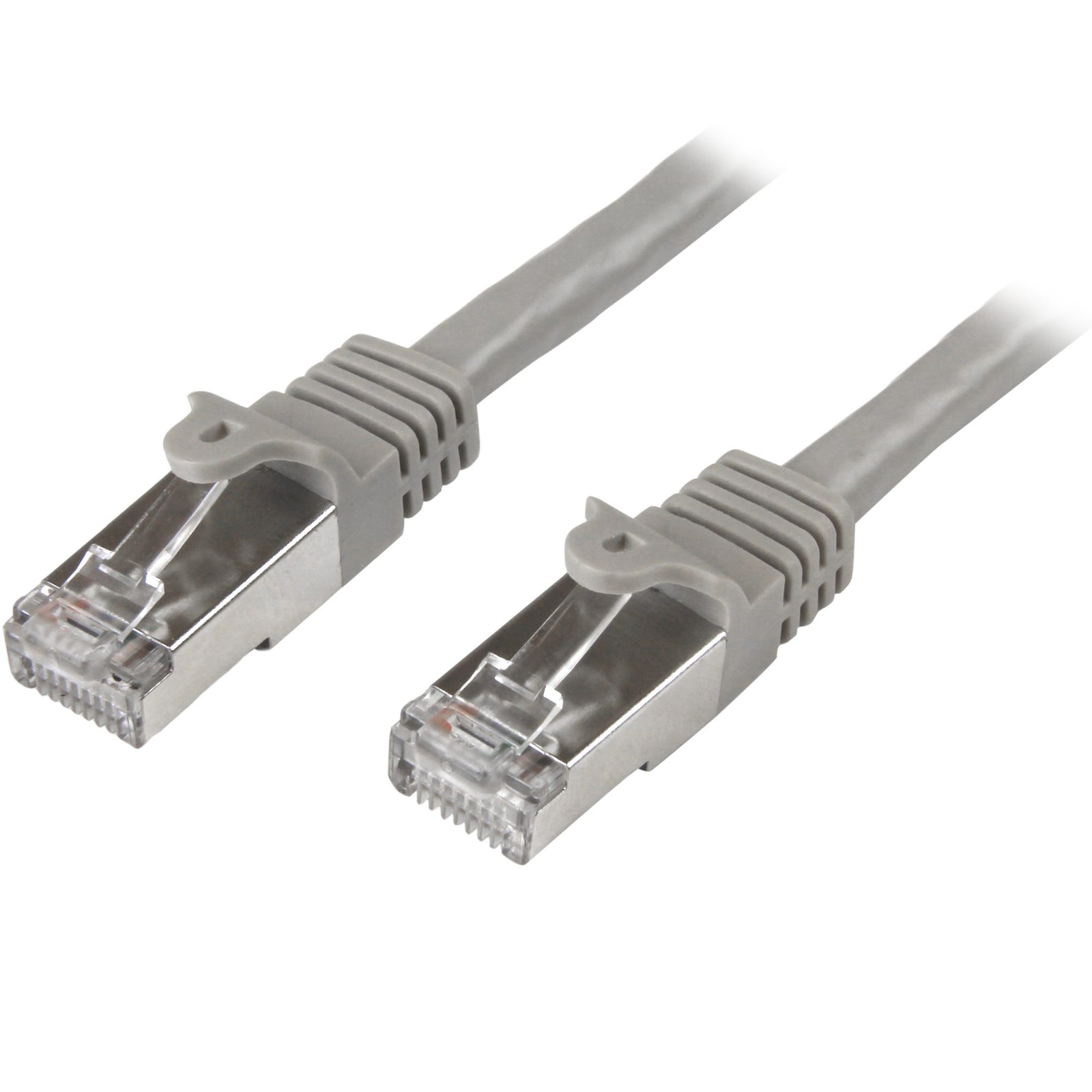

StarTech 2m Gray Cat6 Patch Cable Shielded (SFTP) - N6SPAT2MGR

This 2-meter Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. And the cable is shielded to protect your network against electromagnetic interference (EMI/RFI) and system noise to provide the perfect solution for fast and safe network connections.

Reliable Cat 6 Gigabit connections
Constructed with 100% copper and foil-shielded twisted-pair wiring, this cable delivers high-quality performance. It’s designed to keep the data signals traveling through your network free from interference, so it's perfect in environments that are prone to large amounts of EMI.

The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

Secured network connections
For easier cable runs, the snagless connectors protect the RJ45 clips during installation, making them less prone to snagging or breaking. This ensures a sturdy connection by preventing the cable from becoming loose from the plug.

Plus, the moulded boots offer strain relief that stops the RJ45 connector termination points from bending at sharp angles, which reduces the risk of damage to the cable that could decrease network performance.

The N6SPAT2MGR is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

Applications
Connect PoE-enabled devices to Gigabit networks
Connect between computers, hubs, switches, print servers and patch panels
Connect a workstation to an RJ45 wall outlet
Deliver data, voice and video over Gigabit networks

Warranty Information
Warranty	Lifetime
Connector(s)
Connector A	1 - RJ-45
Connector B	1 - RJ-45
Environmental
Operating Temperature	0 to 50 °C
Storage Temperature	-20 to 60 °C
Humidity	0-95 %
Hardware
Number of Conductors	4 Pair SFTP
Cable Jacket Material	PVC - Polyvinyl Chloride
Fire Rating	CMG Rated (General Purpose)
Cable Type	Shielded Snag-less
Wiring Standard	TIA/EIA-568-B.1-2001 T568B
Packaging Information
Shipping (Package) Weight	93.0 g [3.3 oz]
Package Quantity	1
Package Length	22.0 cm [8.7 in]
Package Width	20.0 cm [7.9 in]
Package Height	10.0 mm [0.4 in]
Performance
Cable Rating	CAT6 - 500 MHz
Physical Characteristics
Product Height	0.0 cm [0.0 in]
Product Width	0.0 cm [0.0 in]
Color	Gray
Wire Gauge	26 AWG (0.404 mm)
Conductor Type	Stranded Copper
Cable Length	2 m [6.6 ft]
Product Length	2.0 m [6.6 ft]
Weight of Product	93.0 g [3.3 oz]
What's in the Box	Included in Package:
	1 - 2m Gray Cat6 Shielded (SFTP) Patch Cable
