Startech 3-Port DisplayPort 1.2 Splitter | MSTDP123DP
SKU: MSTDP123DP
£49.65 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Startech 3-Port DisplayPort 1.2 Splitter
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Connect to any display

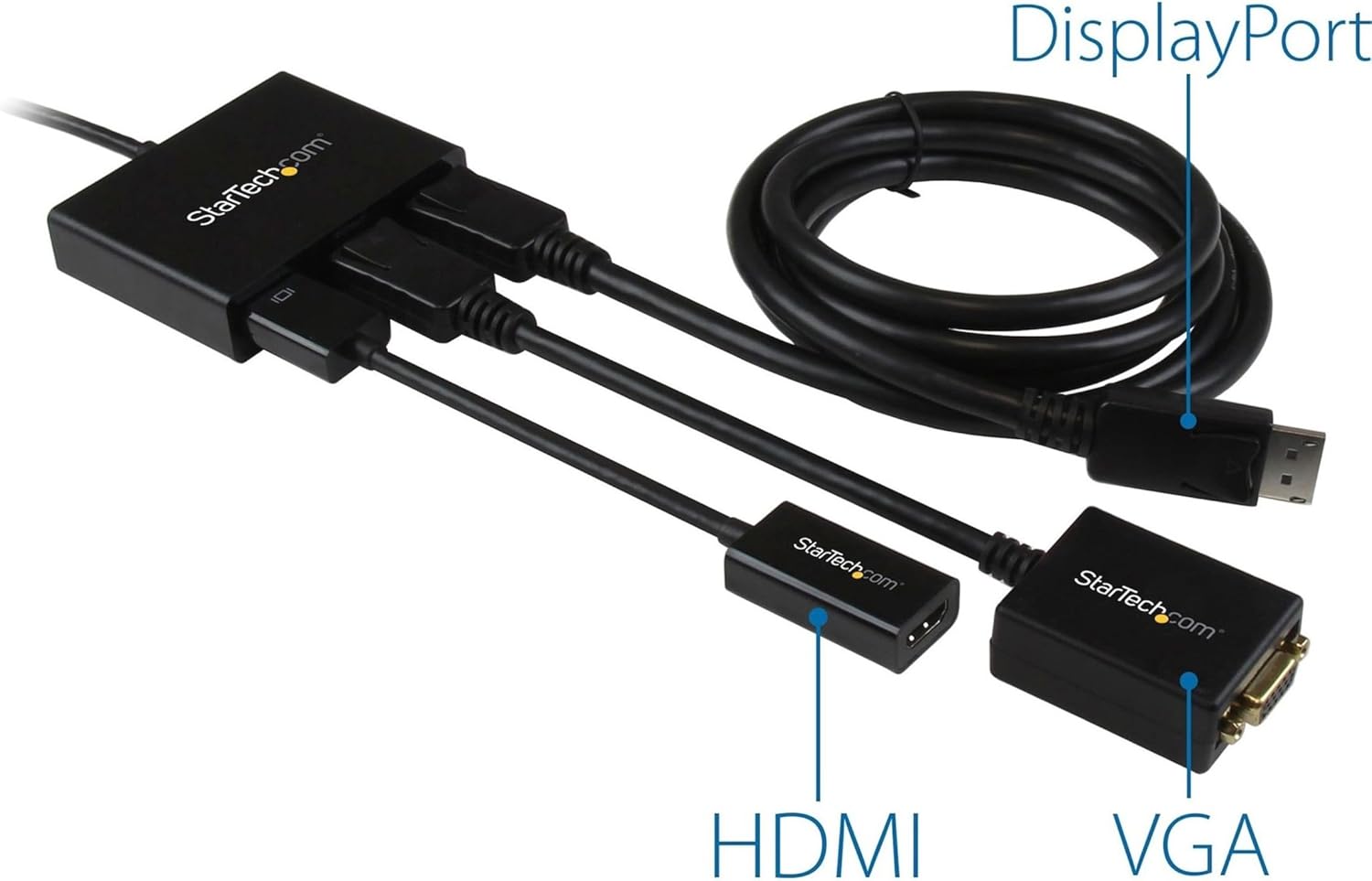

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
Use one screen for reference data such as websites, while composing in another screen
Dock your DP 1.2 device and add three high-resolution displays at your workstation
Create a panoramic video wall for DisplayPort digital signage applications
Edit images, video or audio clips across three displays in any orientation or resolution
Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
Enjoy the panoramic views built into games and display helpful codes/walk-through data on a third display, at the same time -
Category Details Warranty Information Warranty: 3 Years Connector(s) Connector A: 1 - DisplayPort (20 pin) Connector B: 3 - DisplayPort (20 pin) Environmental Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -20°C to 70°C (-4°F to 158°F) Hardware Active or Passive Adapter: Active AV Input: DisplayPort - 1.2 Ports: 3 AV Output: DisplayPort - 1.2 Audio: Yes Chipset ID: MegaChips - STDP4320 Packaging Information Package Height: 6.6 cm [2.6 in] Package Length: 24.4 cm [9.6 in] Shipping Weight: 420 g [14.8 oz] Package Width: 15.4 cm [6.1 in] Package Quantity: 1 Performance Audio Specifications: DisplayPort - 5.1 Channel Audio Maximum Cable Distance: 2 m [6.6 ft] Maximum Digital Resolutions: Up to 4K Wide Screen Supported: Yes Physical Characteristics Weight of Product: 94 g [3.3 oz] Color: Black Material: Plastic Cable Length: 19 cm [7.5 in] Product Length: 20 cm [7.9 in] Product Width: 7.8 cm [3.1 in] Product Height: 2 cm [0.8 in] Power Power Source: AC Adapter Included Input Voltage: 100 - 240 AC Input Current: 0.5 A Output Voltage: 5 DC Output Current: 3A Center Tip Polarity: Positive Plug Type: N Power Consumption: 15 Watts Software OS Compatibility: W -
Description Downloads Startech 3-Port DisplayPort 1.2 Splitter | MSTDP123DP DataSheet Downloads Startech 3-Port DisplayPort 1.2 Splitter | MSTDP123DP Manual Downloads
