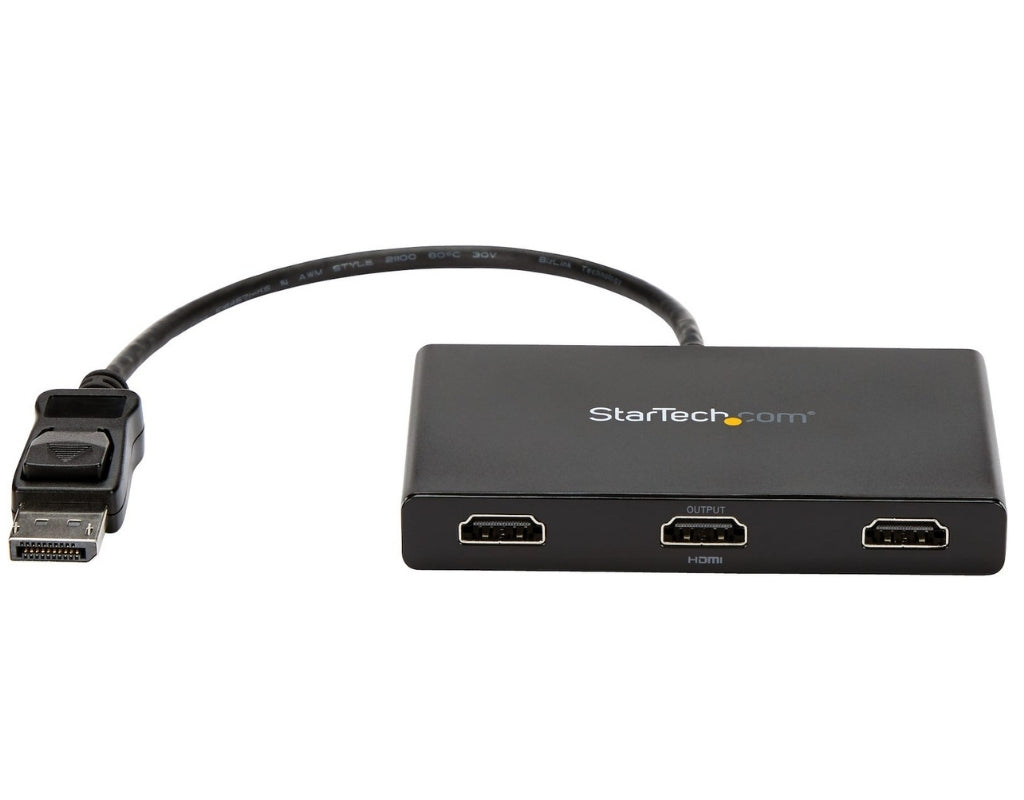

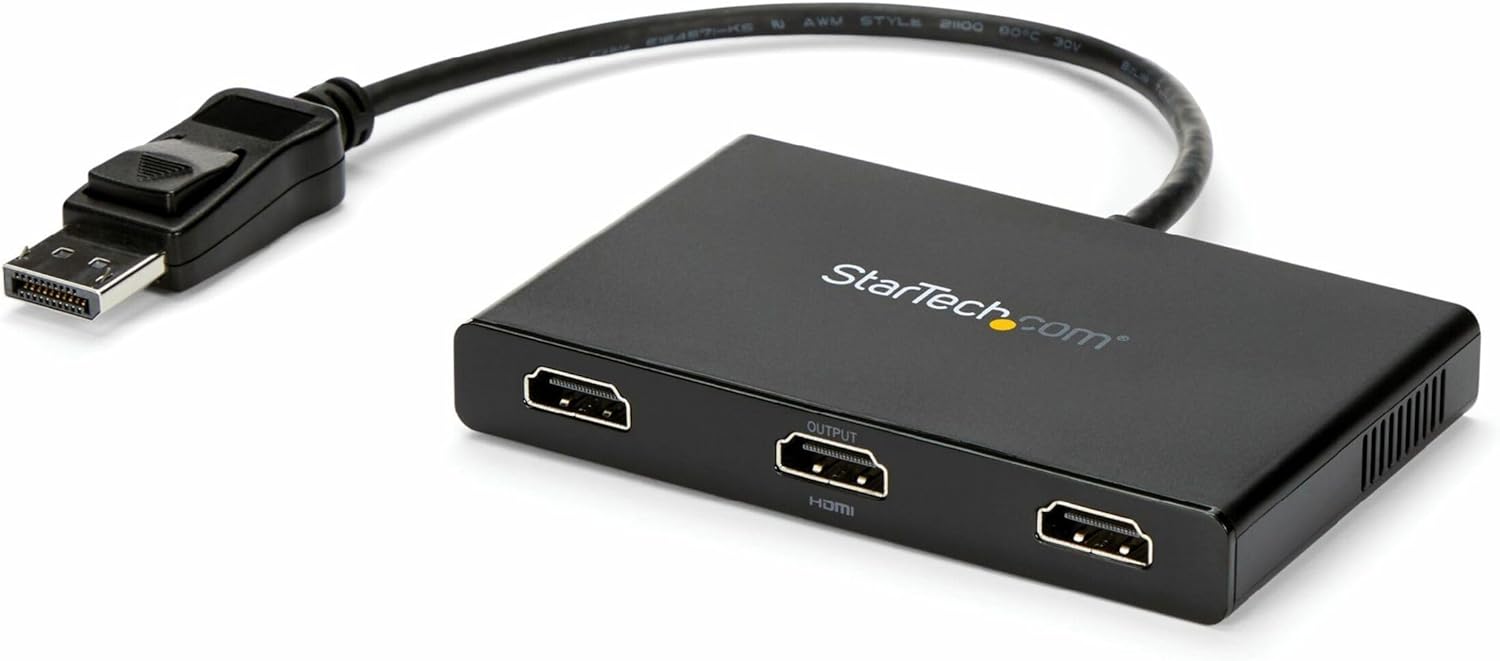

Startech 3-Port Multi Monitor Adapter - DisplayPort 1.2 to 3x HDMI MST Hub
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.
Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display. You can also mirror the same image onto multiple HDMI televisions or projectors for remote viewing applications such as digital signage.
Enjoy amazing video quality without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
The MSTDP123HD supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
Use one screen for reference data such as websites, while composing in another screen

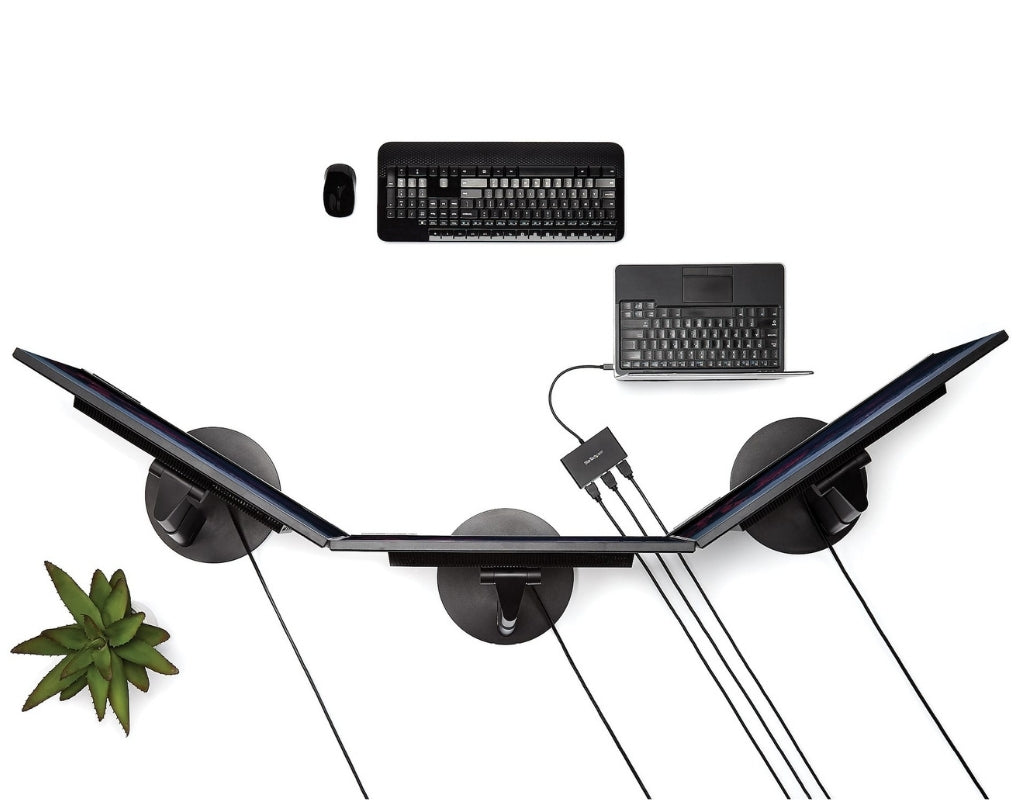

Dock your DP 1.2 device and add three high-resolution displays at your workstation
Create a panoramic video wall for HDMI digital signage applications using your DisplayPort computer
Edit images, video or audio clips across three displays in any orientation or resolution
Perfect for spanning a spreadsheet or worksheet across three displays, to avoid side-scrolling
Enjoy the panoramic views built into games and display helpful codes and walk-through data on a third display, at the same time
| Category | Details |
|---|---|
| Warranty Information | Warranty: 3 Years |
| Connector(s) |
Connector A: 1 - DisplayPort (20 pin) Connector B: 3 - HDMI (19 pin) |
| Environmental |
Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -20°C to 70°C (-4°F to 158°F) Humidity: 50-90% |
| Hardware |
Active or Passive Adapter: Active AV Input: DisplayPort - 1.2 Ports: 3 AV Output: HDMI - 1.4 Audio: Yes Chipset ID: MegaChips - STDP4320 |
| Packaging Information |
Package Height: 2.6 in [6.6 cm] Package Length: 9.5 in [24.2 cm] Shipping (Package) Weight: 1.1 lb [0.5 kg] Package Width: 6.0 in [15.2 cm] Package Quantity: 1 |
| Performance |
Audio Specifications: HDMI - 7.1 Channel Audio Maximum Cable Distance To Display: 49.9 ft [15.2 m] Maximum Digital Resolutions: 3840 x 2160 @30hz Supported Resolutions: Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. |
| Average resolution bandwidth allocation |
1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38% |
| Wide Screen Supported | Yes |
| Physical Characteristics |
Weight of Product: 4.5 oz [127.0 g] Color: Black Material: Plastic Cable Length: 7.5 in [19 cm] Product Length: 13.0 in [33.0 cm] Product Width: 4.1 in [10.5 cm] Product Height: 0.6 in [1.4 cm] |
| Power |
Power Source: AC Adapter Included Input Voltage: 100 - 240 AC Input Current: 0.5 A Output Voltage: 5 DC Output Current: 3A Center Tip Polarity: Positive Plug Type: N Power Consumption (In Watts): 15 |
| Software | OS Compatibility: Windows 11, 10, 8.1, 8 |
| What's in the Box |
Included in Package: 1 - DisplayPort to 3x HDMI MST Hub 1 - Universal power adapter (NA/EU/UK/AU) 1 - Quick install guide |
| Description | Downloads |
|---|---|
| Startech 3-Port Multi Monitor Adapter - DisplayPort 1.2 to 3x HDMI MST Hub | MSTDP123HD DataSheet | Downloads |
| Startech 3-Port Multi Monitor Adapter - DisplayPort 1.2 to 3x HDMI MST Hub | MSTDP123HD Quick Start Guide | Downloads |
