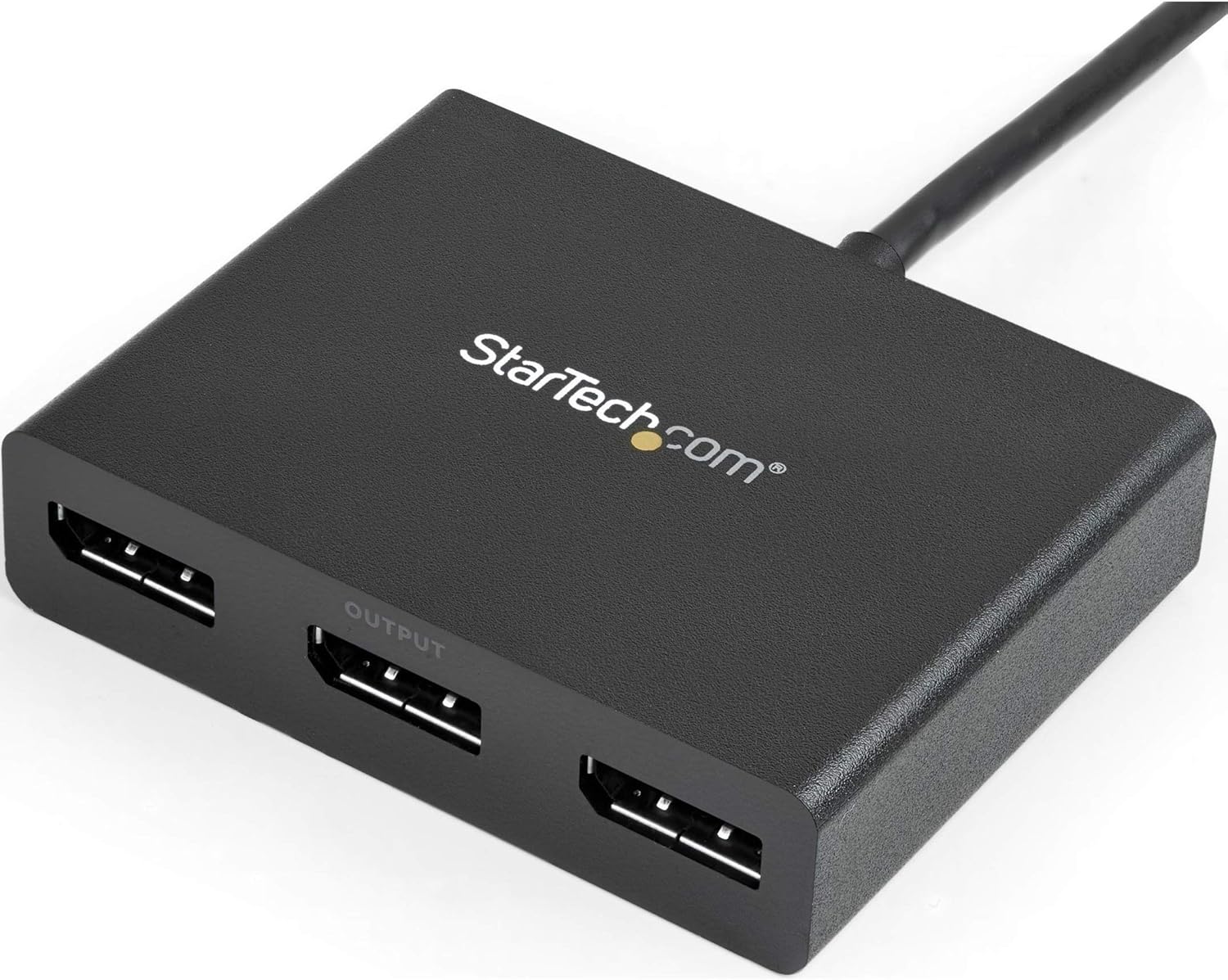

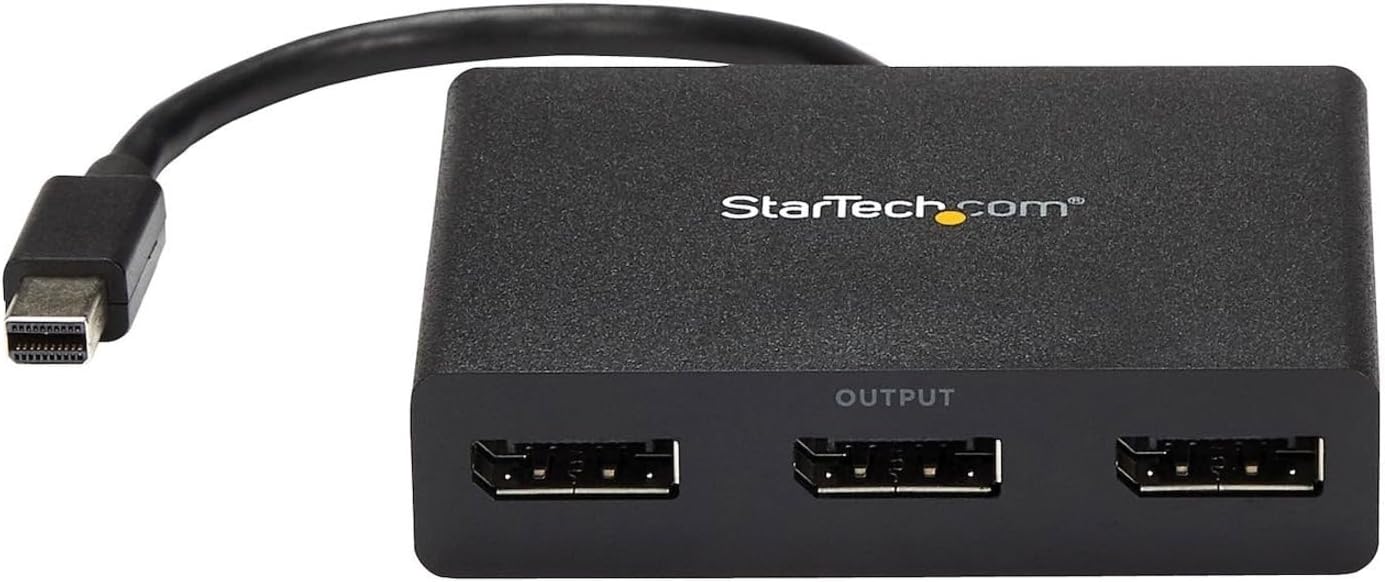

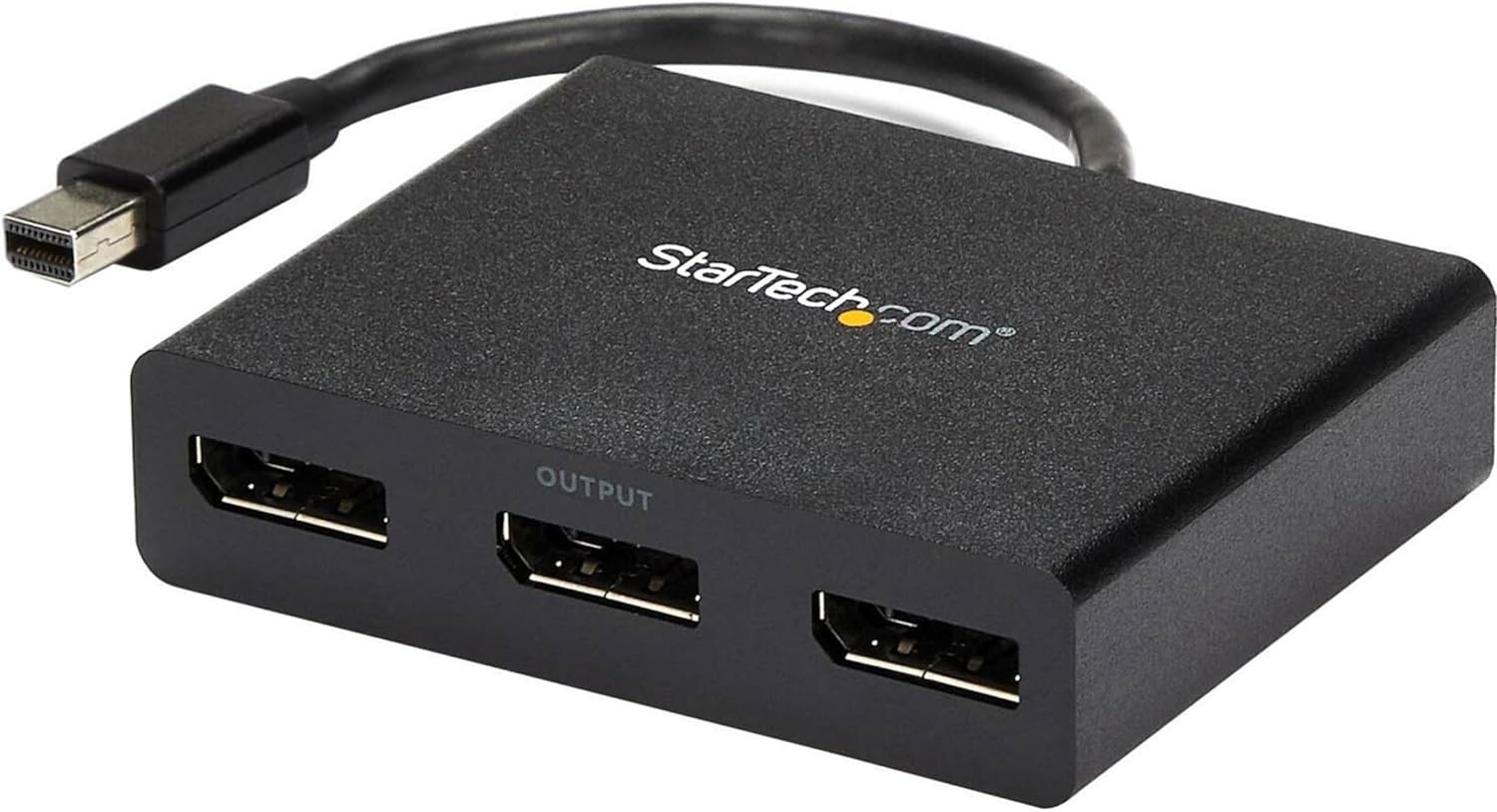

Startech 3-Port Multi Monitor Adapter - Mini DisplayPort to DisplayPort MST Hub
Increase your productivity with multiple monitors
The newest generations of laptops are more portable than ever, unfortunately this means you’re left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Astonishing picture quality that won’t drain your system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.
Works with any monitor, television or projector
With this MST hub, you can use separate mDP video adapters to connect HDMI, VGA or DVI displays, for compatibility with all of your existing monitors. The hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
The MSTMDP123DP has been certified by Microsoft and tested for compatibility with your Microsoft Surface Pro 3, Surface Pro 4 and Surface Book and is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Applications
Add additional displays to your computer
Use one screen for reference data such as websites, while composing in another screen
Edit images, video or audio clips across three displays in any orientation or resolution
Perfect for spanning a spreadsheet/worksheet across all three displays, to avoid side-scrolling
Enjoy panoramic game environments spanning two displays, while displaying helpful codes or walkthrough data on a third display
-
Category |
Details |
Warranty Information |
|
Warranty |
3 Years |
Connector(s) |
|
Connector A |

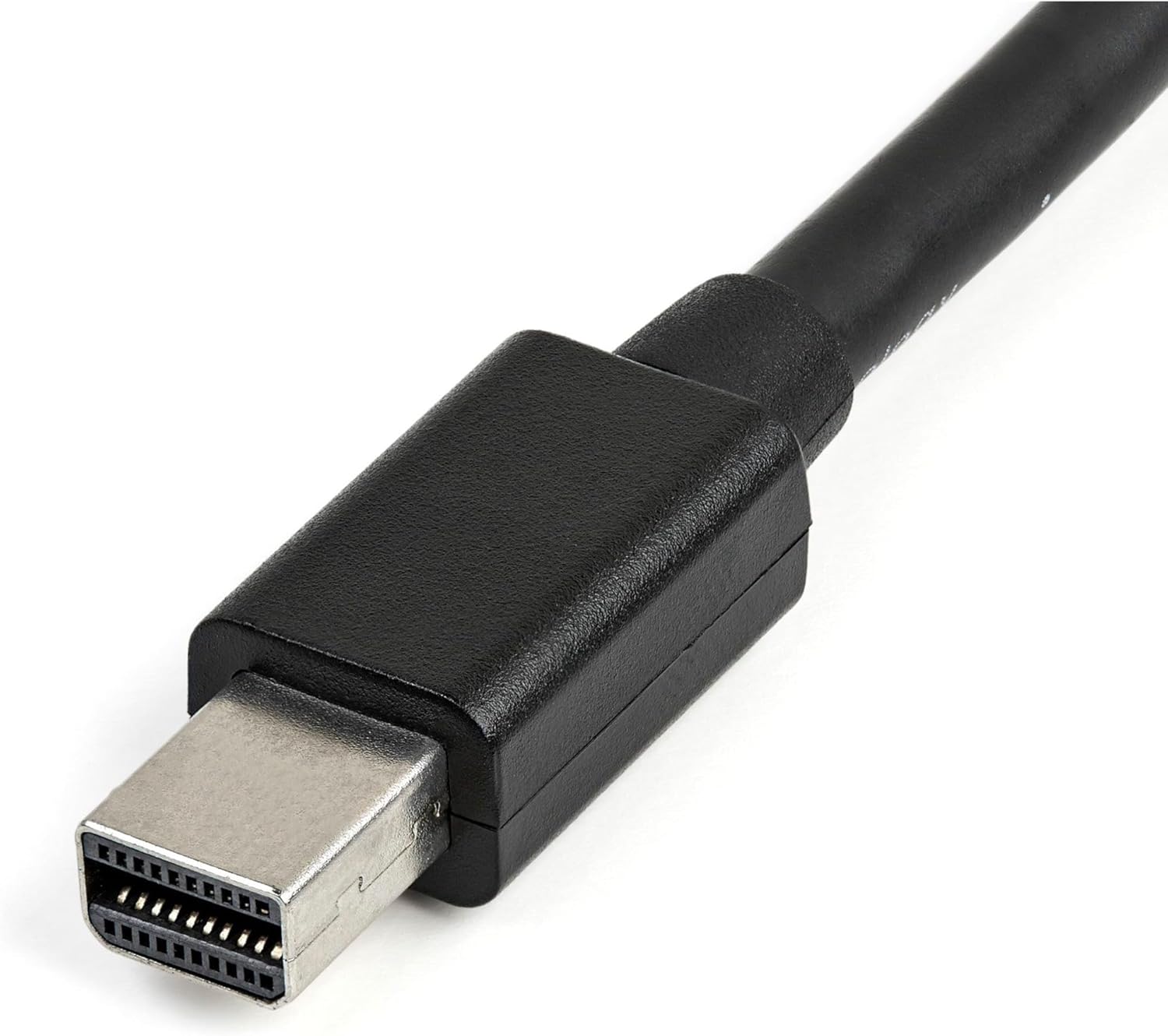

1 - Mini-DisplayPort (20 pin) |
Connector B |
3 - DisplayPort (20 pin) |
Environmental |
|
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
Hardware |
|
Active or Passive Adapter |
Active |
AV Input |
Mini DisplayPort - 1.2 |
Ports |
3 |
AV Output |
DisplayPort - 1.2 |
Audio |
Yes |
Chipset ID |
MegaChips - STDP4320 |
Packaging Information |
|
Package Height |
6.4 cm [2.5 in] |
Package Length |
24.0 cm [9.4 in] |
Shipping (Package) Weight |
440.0 g [15.5 oz] |
Package Width |
15.6 cm [6.1 in] |
Package Quantity |
1 |
Performance |
|
Audio Specifications |
DisplayPort - 5.1 Channel Audio |
Maximum Cable Distance |
2 m [6.6 ft] |
Maximum Digital Resolutions |
Up to 4K |
Supported Resolutions |
Please refer to bandwidth allocation and resolution guidelines provided |
Wide Screen Supported |
Yes |
Physical Characteristics |
|
Weight of Product |
87.0 g [3.1 oz] |
Color |
Black |
Material |
Plastic |
Cable Length |
10.2 cm [4.0 in] |
Product Length |
20.0 cm [7.9 in] |
Product Width |
7.8 cm [3.1 in] |
Product Height |
2.0 cm [0.8 in] |
Power |
|
Power Source |
AC Adapter Included |
Input Voltage |
100 - 240 AC |
Input Current |
0.5 A |
Output Voltage |
5 DC |
Output Current |
3A |
Center Tip Polarity |
Positive |
Plug Type |
N |
Power Consumption |
15 W |
Software |
|
OS Compatibility |
Windows 11, Windows 10 (32/64), Windows 8/8.1 (32/64), Windows 7(32/64) |
Special Notes / Requirements |
|
Note |
DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output |
What's in the Box |
|
Included in Package |
1 - Mini DisplayPort to DisplayPort MST Hub, 1 - Universal Power Adapter (NA/EU/UK/AUS), 1 - Instruction Manual |
-
