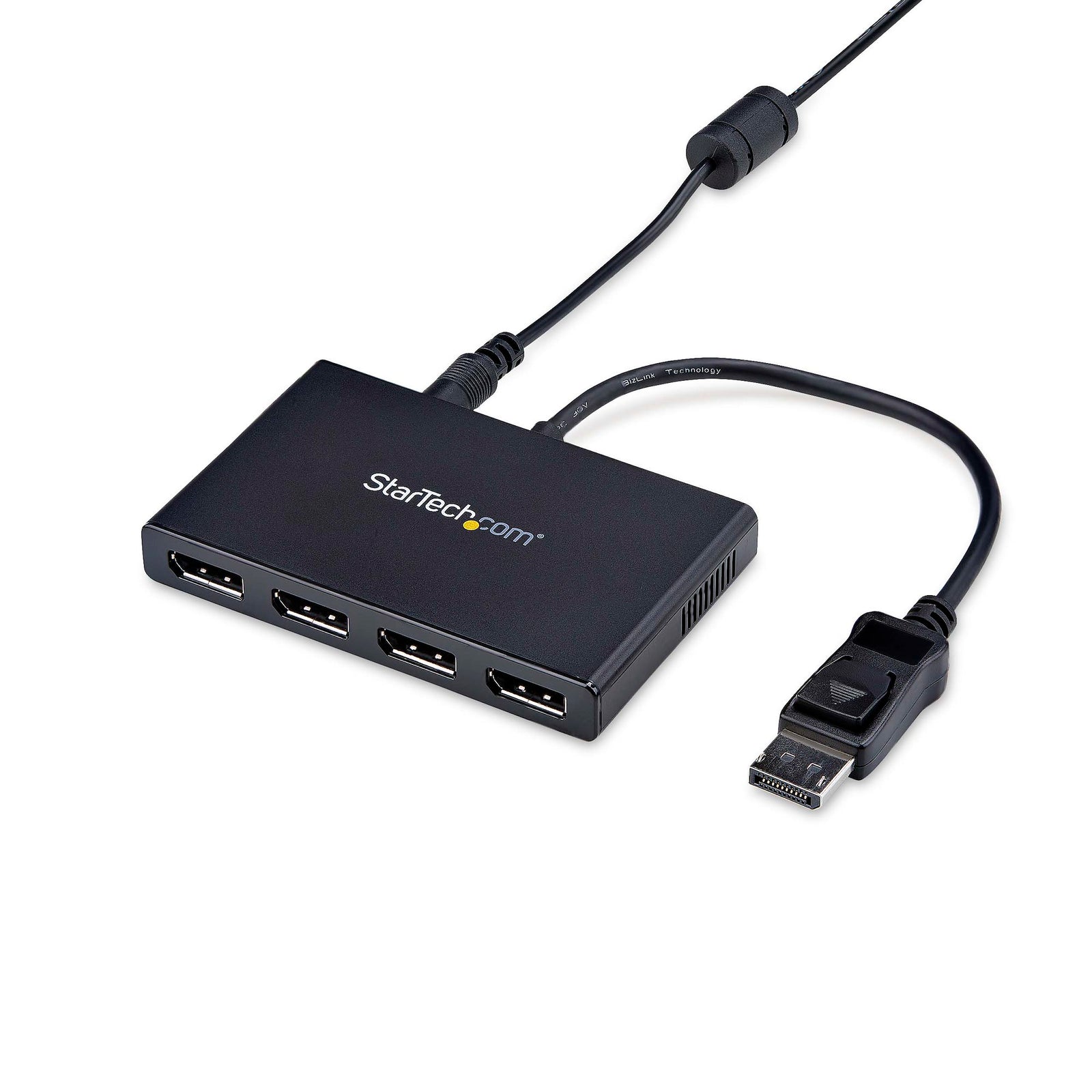

Startech 4-Port DisplayPort 1.2 Video Splitter
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.
Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.
Configure your displays for any environment

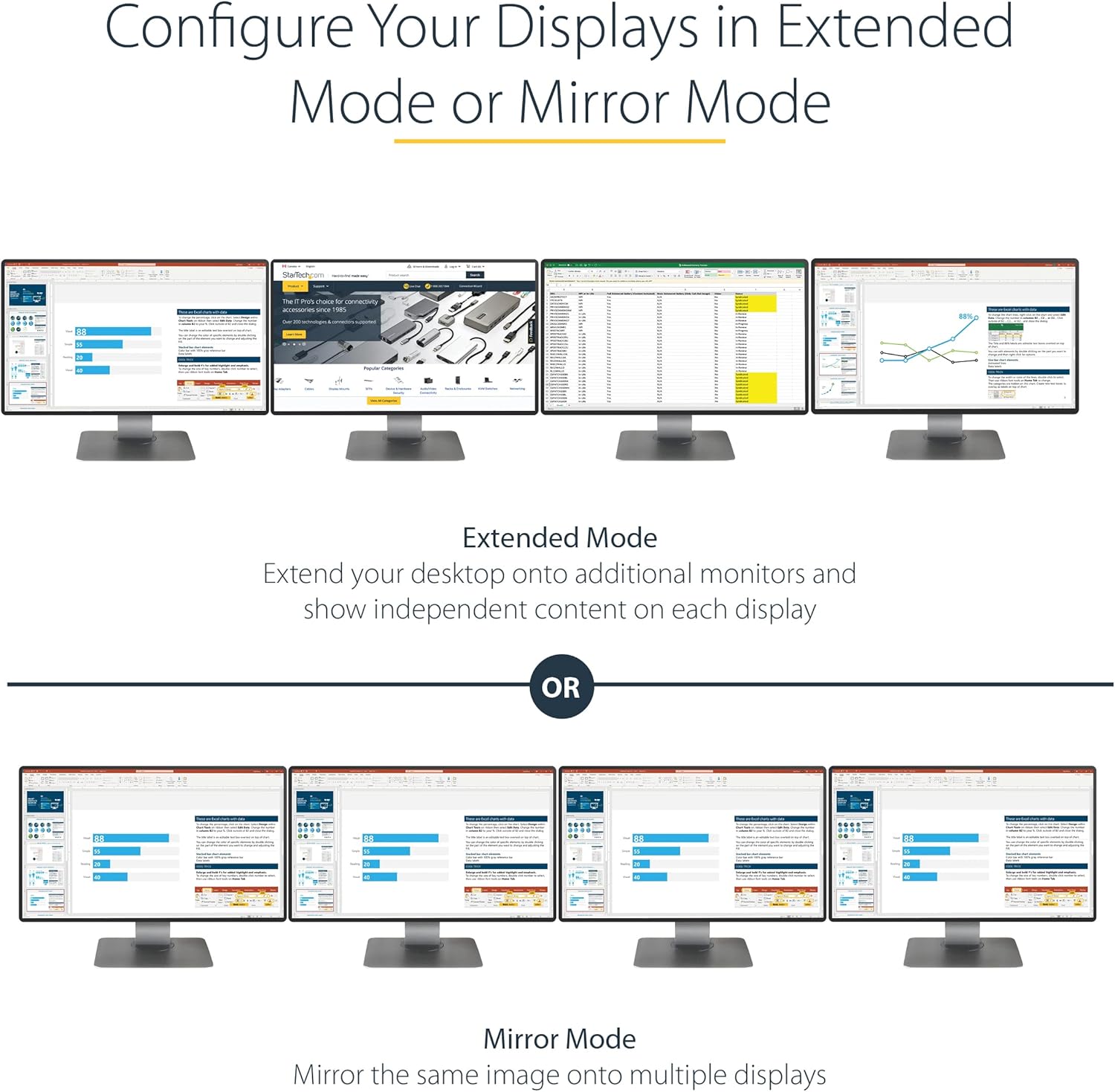

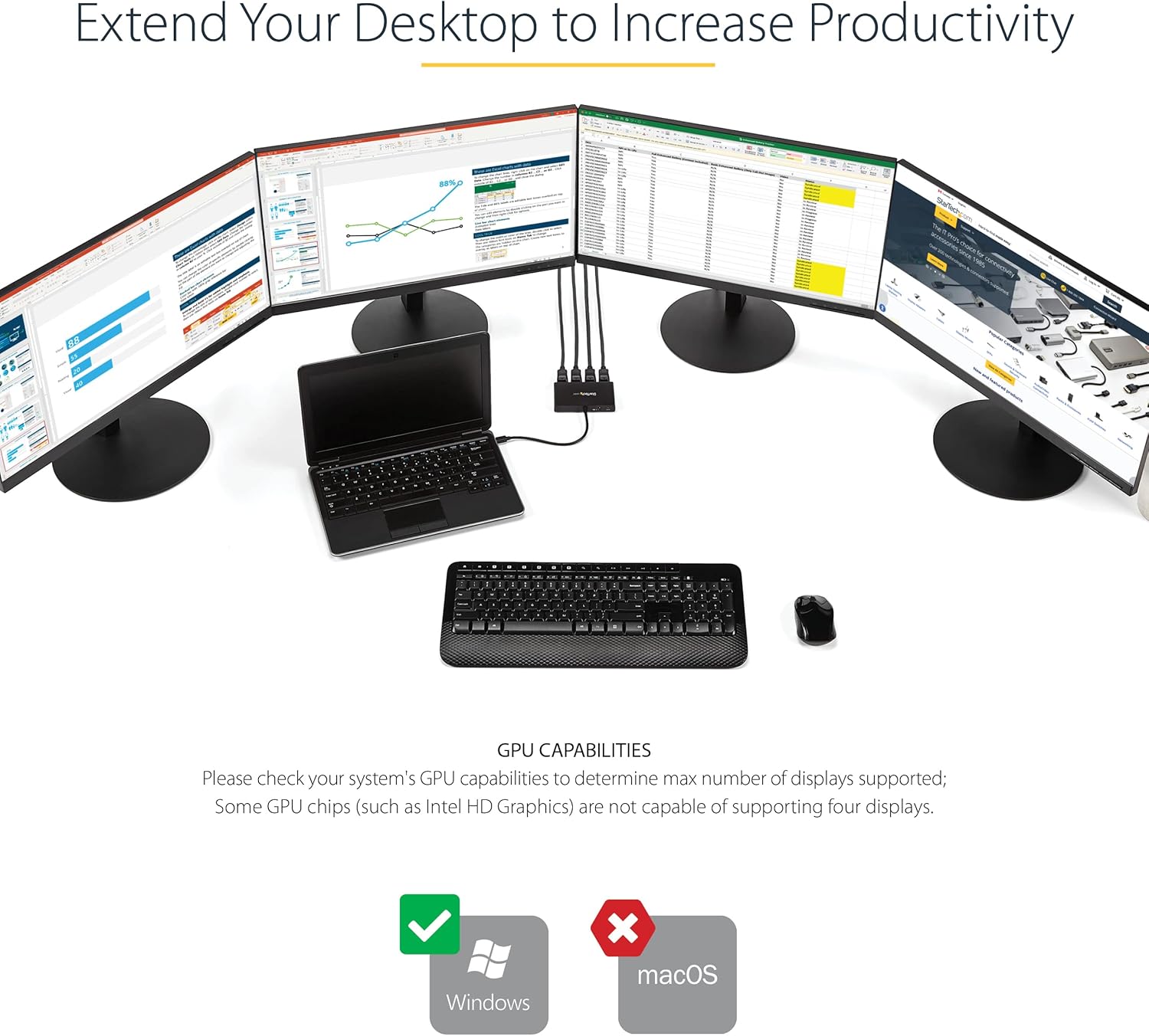

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.
Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Applications
Build a four display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
Use one screen for reference data such as websites, while composing a report on another screen
Dock your DP 1.2 device and add four high-resolution displays to your workstation
Create a panoramic video wall for DisplayPort digital signage applications
Edit images, video or audio clips across four additional displays in any orientation or resolution
Perfect for spanning a spreadsheet/worksheet across additional displays, to avoid side-scrolling
| Specifications | Details |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |

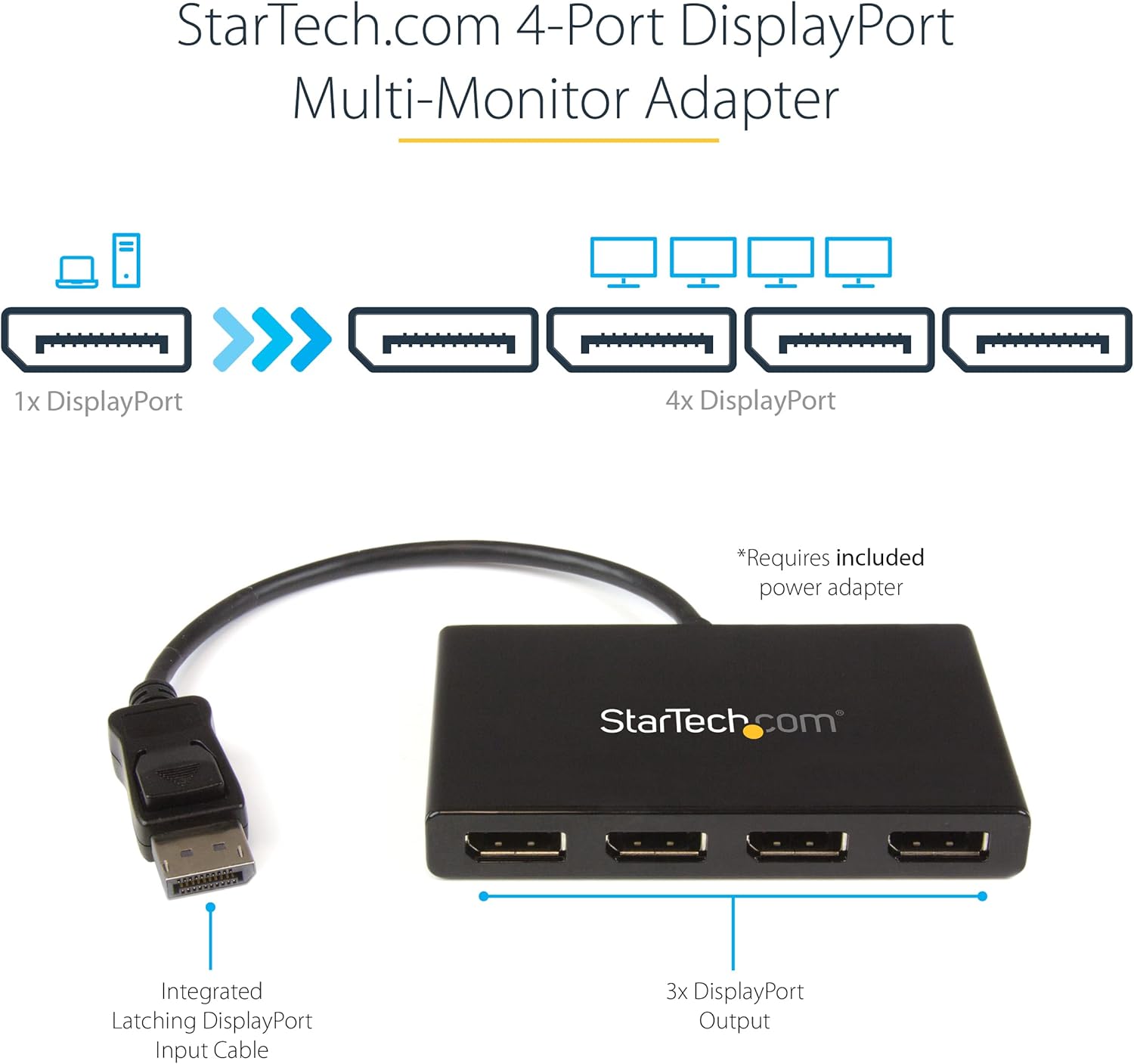

| Connector A | 1 - DisplayPort (20 pin) |
| Connector B | 4 - DisplayPort (20 pin) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Hardware | |
| Active or Passive Adapter | Active |
| AV Input | DisplayPort - 1.2 |
| Ports | 4 |
| AV Output | DisplayPort - 1.2 |
| Audio | Yes |
| Chipset ID | MegaChips - STDP4320 |
| Packaging Information | |
| Package Height | 6.6 cm [2.6 in] |
| Package Length | 24.4 cm [9.6 in] |
| Shipping (Package) Weight | 0.5 kg [1.1 lb] |
| Package Width | 15.4 cm [6.1 in] |
| Package Quantity | 1 |
| Performance | |
| Audio Specifications | DisplayPort - 5.1 Channel Audio |
| Max Cable Distance To Display | 2 m [6.6 ft] |
| Max Digital Resolutions | 3840 x 2160 @30Hz |
| Supported Resolutions | 1024x768, 1280x720 (720p), 1920x1080 (1080p), 1920x1200, 2560x1440, 2560x1600, 3840 x 2160 (4K) @30Hz |
| Wide Screen Supported | Yes |

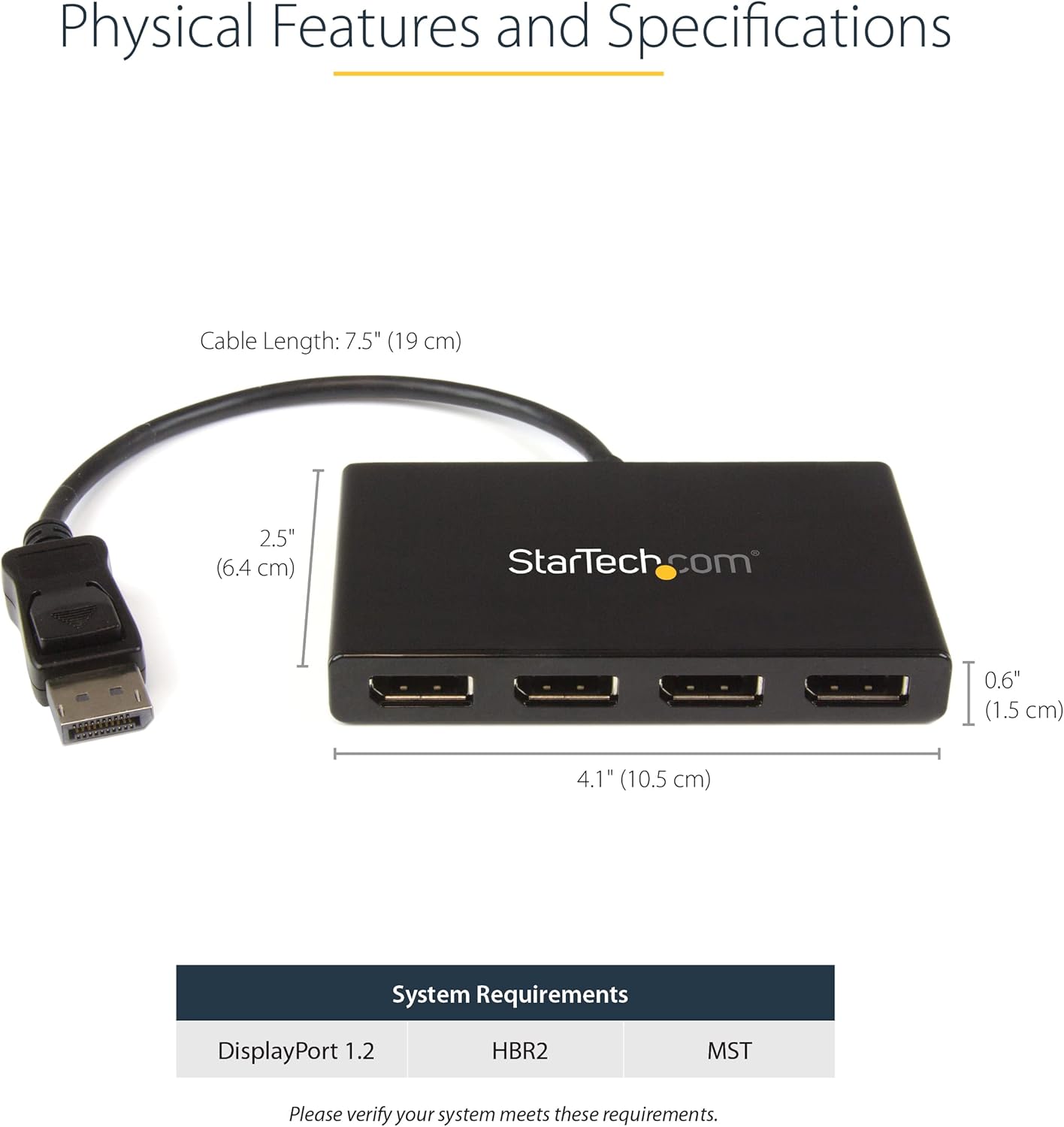

| Physical Characteristics | |
| Weight of Product | 129.0 g [4.6 oz] |
| Color | Black |
| Material | Plastic |
| Cable Length | 19 cm [7.5 in] |
| Product Length | 30.0 cm [11.8 in] |
| Product Width | 10.5 cm [4.1 in] |
| Product Height | 1.5 cm [0.6 in] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.5 A |
| Output Voltage | 5 DC |
| Output Current | 3A |
| Center Tip Polarity | Positive |
| Plug Type | N |
| Power Consumption (In Watts) | 15 |
| Software | |
| OS Compatibility | Windows 11, Windows 10 (32/64), Windows 8/8.1 (32/64), Windows 7(32/64) |
| What's in the Box | |

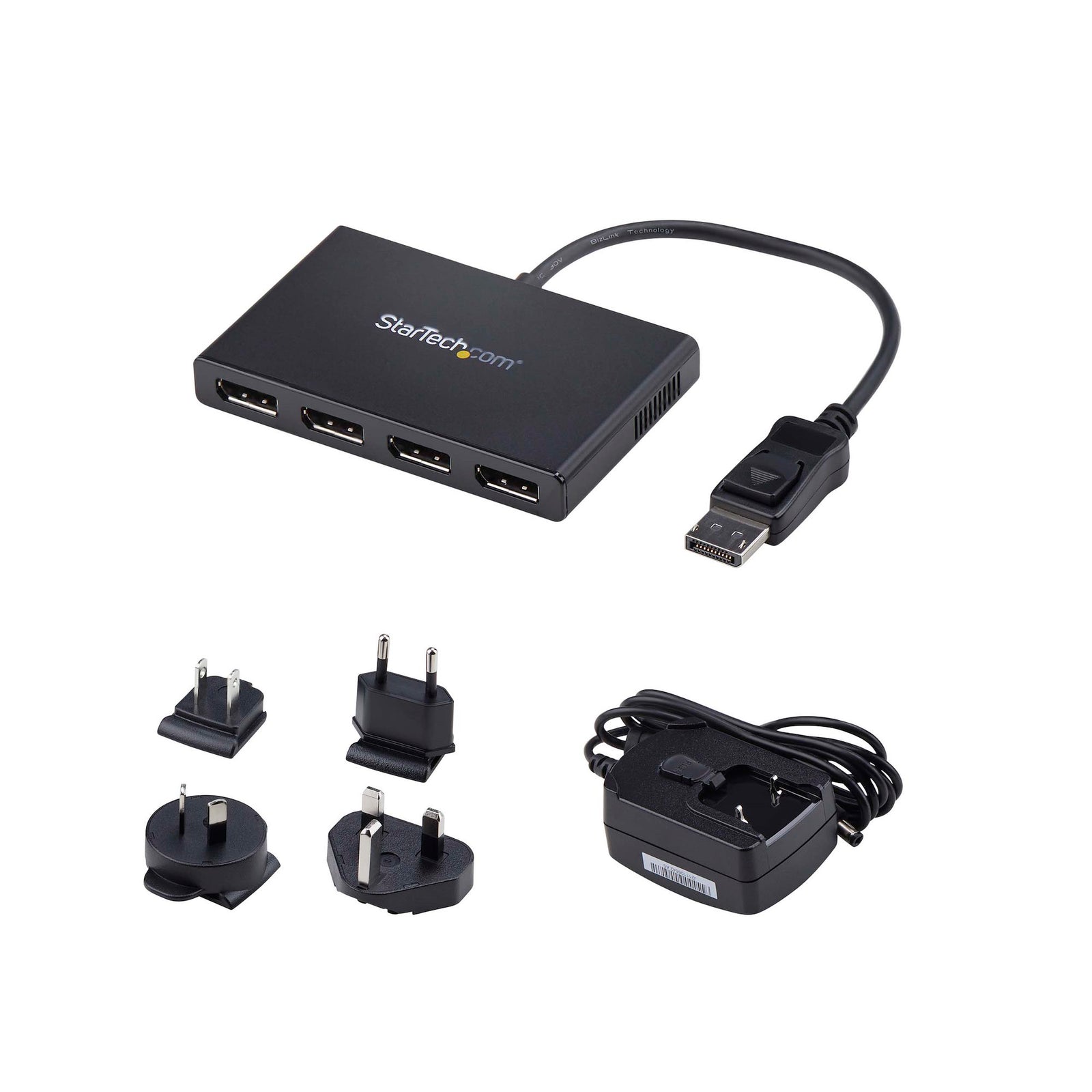

| Included in Package | 1 - 4-Port Multi Monitor DisplayPort™ MST Hub, 1 - Universal power adapter (NA/EU/UK/AUS), 1 - Quick install guide |
| Description | Downloads |
|---|---|
| Startech 4-Port DisplayPort 1.2 Video Splitter | MSTDP124DP DataSheet | Downloads |
| Startech 4-Port DisplayPort 1.2 Video Splitter | MSTDP124DP Quick Install Guide | Downloads |
