This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate

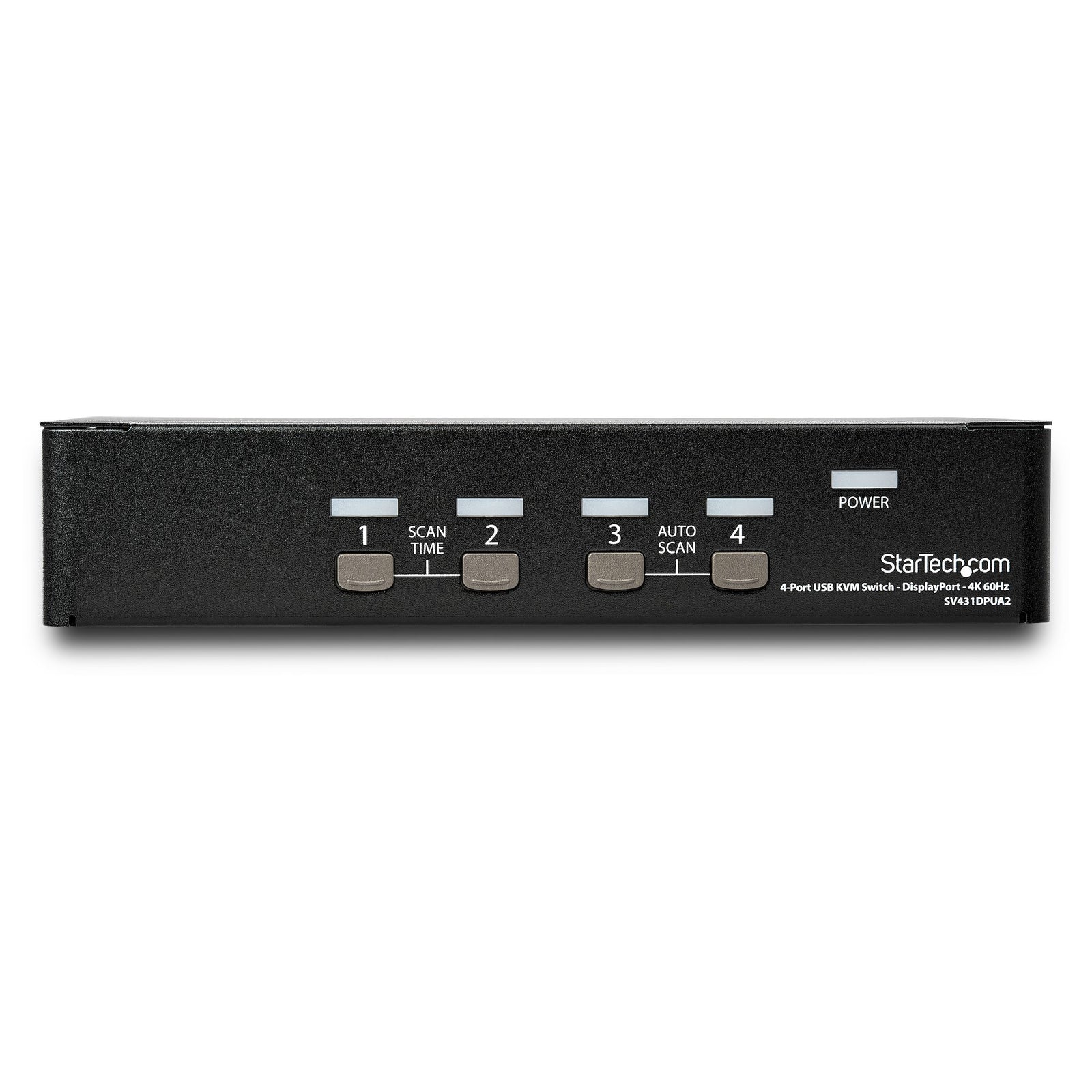

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
Applications
High-res medical imaging
High-res digital signage server control
Multimedia design and production
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |
| Connector(s) | |
| Console Interface(s) | 1 - DisplayPort (20 pin) |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| 2 - USB Type-A (4 pin; HID Port) USB 1.1 | |
| Host Connectors | 8 - 3.5 mm Mini-Jack (3 Position) |
| 4 - DisplayPort (20 pin) | |
| 4 - USB B (4 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Humidity | 0% ~ 80% |
| Hardware | |
| U Height | 1U |
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Optional |
| Cables Included | No |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 4 - Green (Online indicator; One LED per port) |
| 1 - Power | |
| 4 - Red (Select indicator; One LED per port) | |
| Packaging Information | |
| Shipping (Package) Weight | 3.5 lb [1.6 kg] |
| Package Quantity | 1 |
| Package Length | 17.2 in [43.7 cm] |
| Package Width | 3.5 in [9.0 cm] |
| Package Height | 8.4 in [21.4 cm] |
| Performance | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Data Transfer Rate | 480 Mbps (USB 2.0) |
| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60Hz |
| Wide Screen Supported | Yes |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 138,327 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 8.7 in [22.0 cm] |
| Product Width | 5.2 in [13.1 cm] |
| Product Height | 1.8 in [4.5 cm] |
| Weight of Product | 2.3 lb [1.0 kg] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.6 A |
| Output Voltage | 12V DC |
| Output Current | 1.5 A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18 W |
| Software | |
| OS Compatibility | OS independent: No software or drivers required |

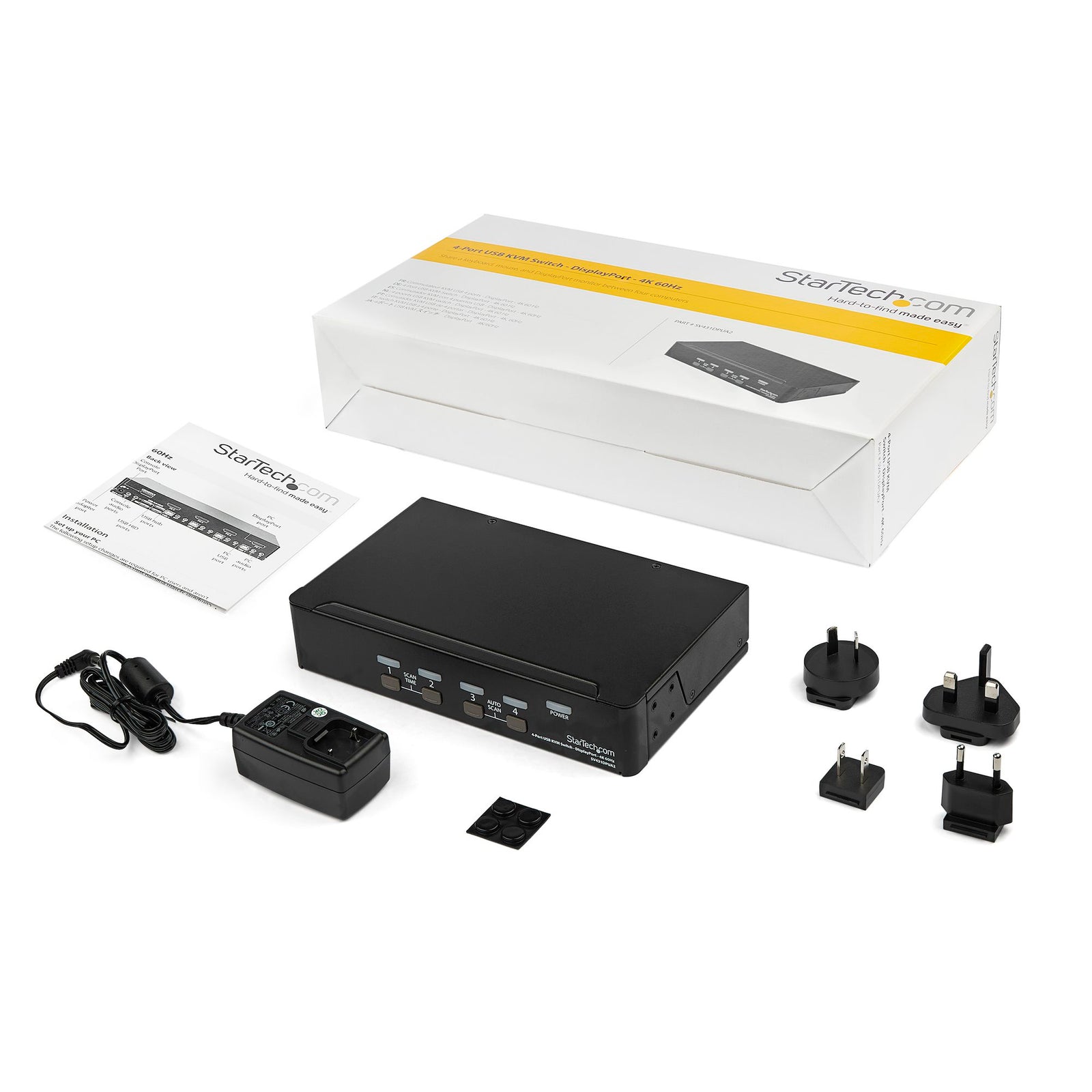

| What's in the Box | |
| Included in Package | 1 - KVM switch |
| 4 - Foot pads | |
| 1 - Universal power adapter (NA/JP, EU, UK, ANZ) | |
| 1 - Quick-start guide |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
