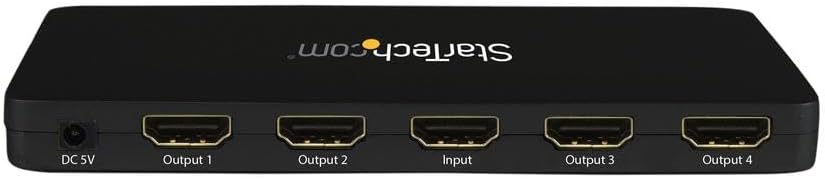

Startech 4-Port HDMI Video 4K Splitter
The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.
Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.
The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
Applications
Display a 4K HDMI signal on four different HDMI displays
Use to showcase 4K displays, by outputing the same video source on multiple displays
Display corporate information or advertising on multiple displays at a shopping center
Use to display a stock ticker or promotional information at financial institutions
Display the same information on multiple displays in waiting rooms in healthcare facilities
The StarTech.com Advantage
Take advantage of 4K (Ultra HD) video with compact HDMI 4K splitter enabling you to handle the latest devices and displays
Ensure your splitter stays where you put it with a solid aluminum housing, unlike lighter plastic splitters that get dragged out of place by attached HDMI cables
Ensure an ideal video output with EDID emulation
| Category | Details |
|---|---|
| Warranty Information | Warranty: 2 Years |
| Connector(s) | Connector A: 1 - HDMI (19 pin) |
| Connector B: 4 - HDMI (19 pin) | |
| Environmental | Operating Temperature: 0°C to 70°C (32°F to 158°F) |
| Storage Temperature: -10°C to 80°C (14°F to 176°F) | |
| Humidity: 5% to 90% | |
| Hardware | Ports: 4 |
| AV Input: HDMI | |
| AV Output: HDMI | |
| Audio: Yes | |
| Industry Standards: HDMI 1.4 | |
| Indicators | LED Indicators: 4 - Active port LED, 1 - Power LED |
| Packaging Information | Shipping (Package) Weight: 1.2 lb [0.5 kg] |
| Package Quantity: 1 | |
| Package Length: 8.5 in [21.6 cm] | |
| Package Width: 5.9 in [15.0 cm] | |
| Package Height: 2.1 in [5.4 cm] | |
| Performance | Maximum Cable Length: 16.4 ft [5 m] |
| Maximum Digital Resolutions: 4K @ 30 Hz | |
| Supported Resolutions: 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p) | |
| Wide Screen Supported: Yes | |
| Audio Specifications | MTBF: 67475 hours |
| Physical Characteristics | Weight of Product: 9.9 oz [280.0 g] |
| Color: Black | |
| Product Length: 5.5 in [14.0 cm] | |
| Product Width: 3.3 in [8.5 cm] | |
| Product Height: 0.5 in [1.2 cm] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.4 A | |
| Output Voltage: 5 DC | |
| Output Current: 2 A | |
| Plug Type: H | |
| Power Consumption (In Watts): 10 | |
| What's in the Box | Included in Package: 1 - 4-port HDMI A/V splitter, 1 - universal power adapter (NA, EU, UK, ANZ), 1 - instruction manual |
| Description | Downloads |
|---|---|
| Startech 4-Port HDMI Video 4K Splitter | ST124HD4K DataSheet | Downloads |
