The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.
Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.
The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.
Applications
Ideal for switching between desktops, workstations and servers requiring Ultra
High resolution displays
Sharing computers and USB devices in the home/SOHO/multimedia environment
Switching USB peripherals between connected PC's
Designed for large and high resolution displays such as Multimedia Display, Apple
Cinema Displays, Stock trading setups, and Medical Displays
| Category | Details |
|---|---|
| Warranty Information | Warranty: 3 Years |

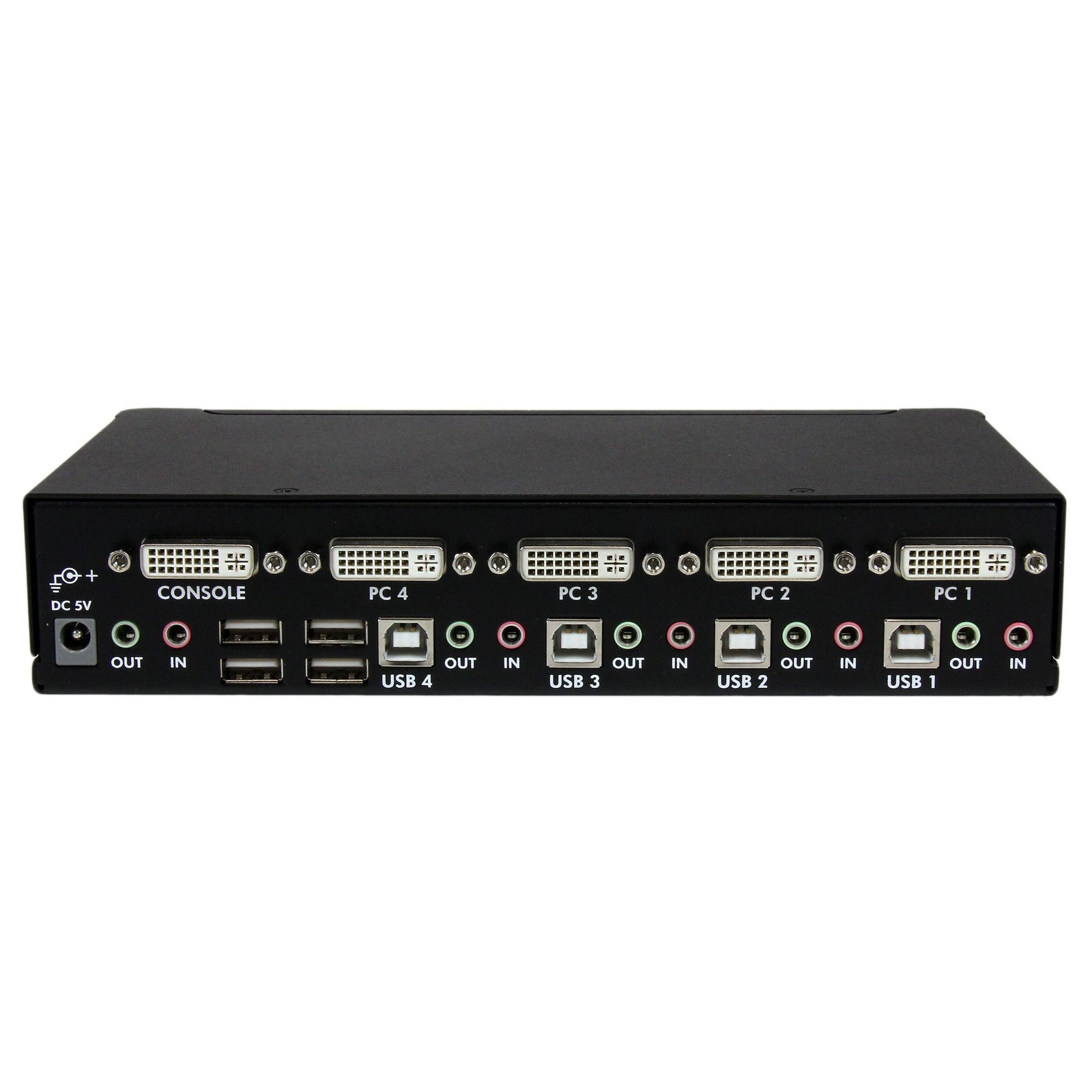

| Connector(s) | Console Interface(s): |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - DVI-I (29 pin) | |
| 2 - 3.5 mm Mini-Jack (3 Position) | |
| Host Connectors: | |
| 4 - DVI-I (29 pin) | |
| 4 - USB B (4 pin) | |
| 8 - 3.5 mm Mini-Jack (3 Position) | |
| Other Interface(s): | |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Environmental | Operating Temperature: 0°C to 40°C (32°F to 104°F) |
| Storage Temperature: -20°C to 60°C (-4°F to 140°F) | |
| Humidity: 0~80% RH | |
| Hardware | Audio: Yes |
| KVM Ports: 4 | |
| PC Interface: USB | |
| PC Video Type: DVI | |
| Number of Monitors Supported: 1 | |
| Rack-Mountable: Optional | |
| Cables Included: No | |
| Daisy-Chain: No | |
| Packaging Information | Package Quantity: 1 |
| Package Length: 41.2 cm [16.2 in] | |
| Package Width: 21.2 cm [8.3 in] | |
| Package Height: 8.8 cm [3.5 in] | |
| Shipping (Package) Weight: 1.7 kg [3.6 lb] | |
| Performance | On-Screen Display: No |
| DVI Support: Yes - Dual Link | |
| IP Control: No | |
| Hot-Key Selection: No | |
| Maximum Digital Resolutions: 2560x1600 @ 60Hz | |
| Wide Screen Supported: Yes | |
| Maximum Number of Users: 1 | |
| Port Selection Support: Push Button | |
| MTBF: 64,000 hours | |
| General Specifications | Note: Only supports digital video signals; no analog VGA support |
| Physical Characteristics | Color: Black |
| Material: Steel | |
| Product Width: 22.0 cm [8.7 in] | |
| Product Height: 4.4 cm [1.7 in] | |
| Product Depth: 130 mm [5.1 in] | |
| Weight of Product: 1.8 kg [3.9 lb] | |
| Power | Power Source: AC Adapter Included |
| Input Voltage: 100 - 240 AC | |
| Input Current: 0.4A | |
| Output Voltage: 5 DC | |
| Output Current: 2A | |
| Center Tip Polarity: Positive | |
| Plug Type: N | |
| Power Consumption (In Watts): 10 | |
| Software | OS Compatibility: OS independent; No software or drivers required |
| Special Notes / Requirements | Note: Higher resolutions available at lower refresh rates, e.g., 3840x2400 @30Hz |

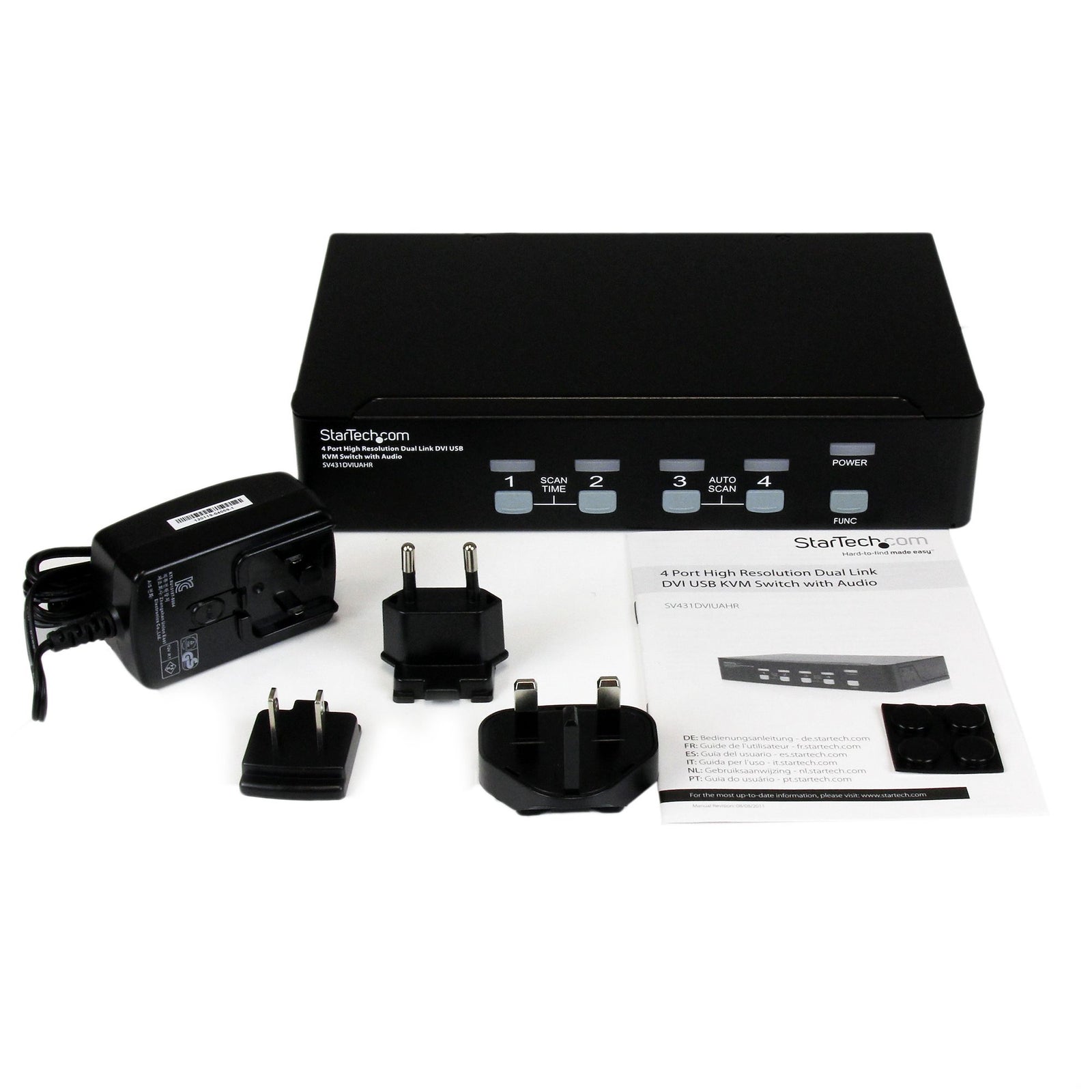

| What's in the Box | Included in Package: |
| 1 - 4 Port Dual Link DVI KVM | |
| 1 - Rubber Foot Pad | |
| 1 - Power Adapter | |
| 1 - User Manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
