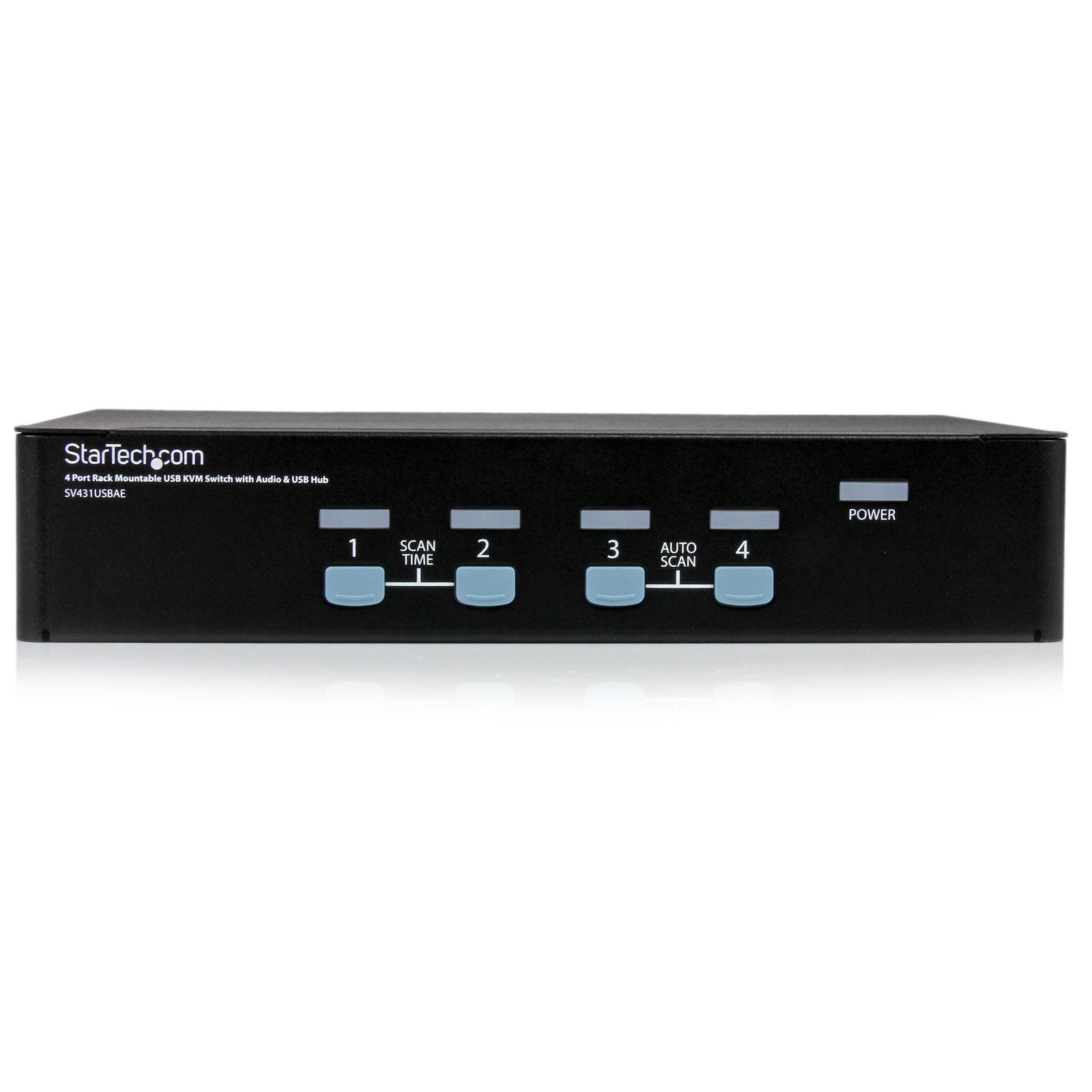

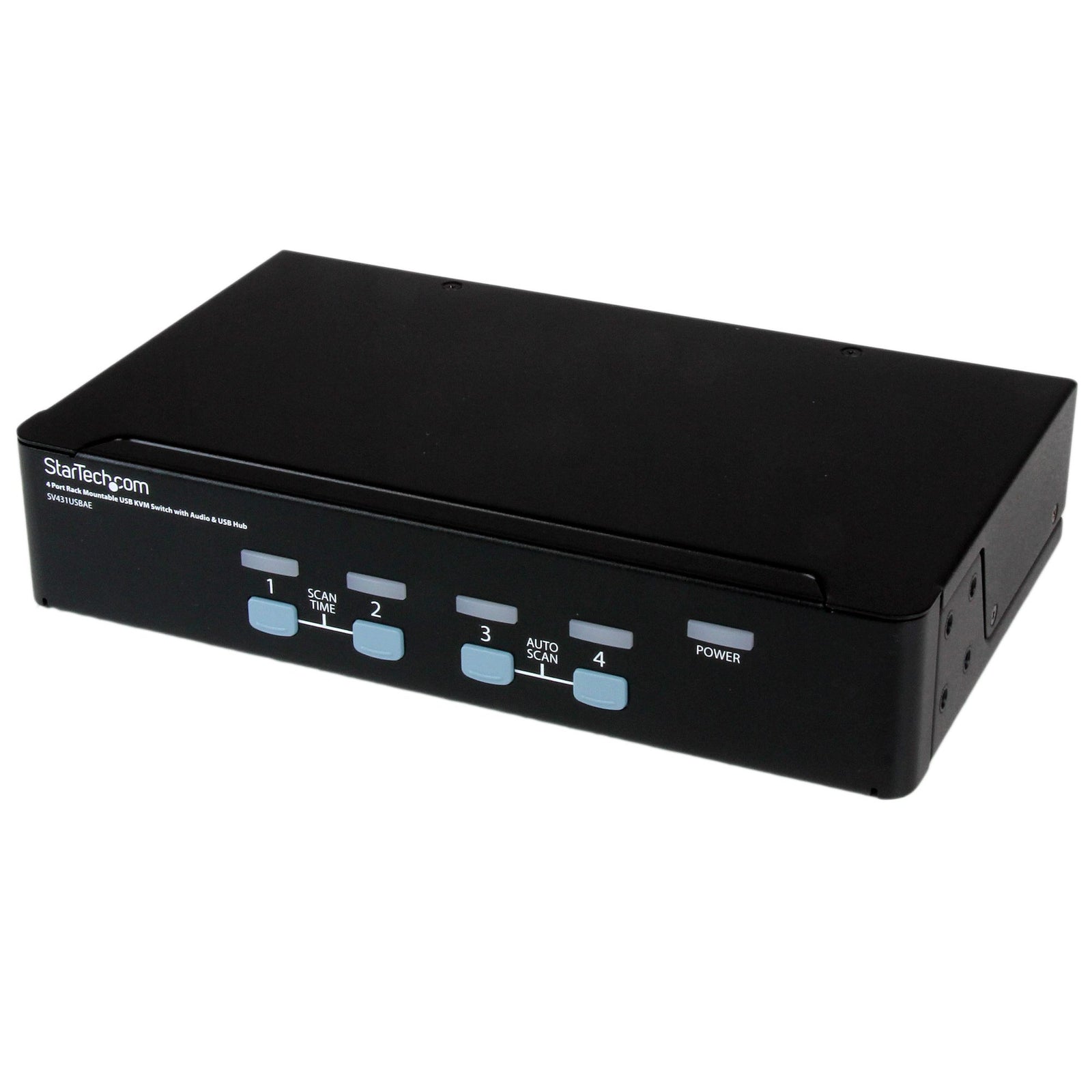

This Rack Mountable USB KVM Switch supports high resolution video applications (up to 1920x1440 pixels supported) and audio switching between connected computers, and provides an integrated USB 2.0 hub that lets the selected computer have access shared high speed USB peripherals.
Providing control of up to four computers from a single USB keyboard and mouse peripheral set, the switch features a sturdy all metal chassis and can be rackmounted in a server rack/cabinet using an optional Rackmount Bracket kit (SV431RACK) - minimizing clutter and saving space.
Applications
Control up to four computers, sharing a single keyboard, mouse, monitor and speakers.
Integrated USB 2.0 hub allows you to share up to three USB peripherals between the four computers.
| Category | Detail |
|---|---|
| Warranty Information | 3 Years |

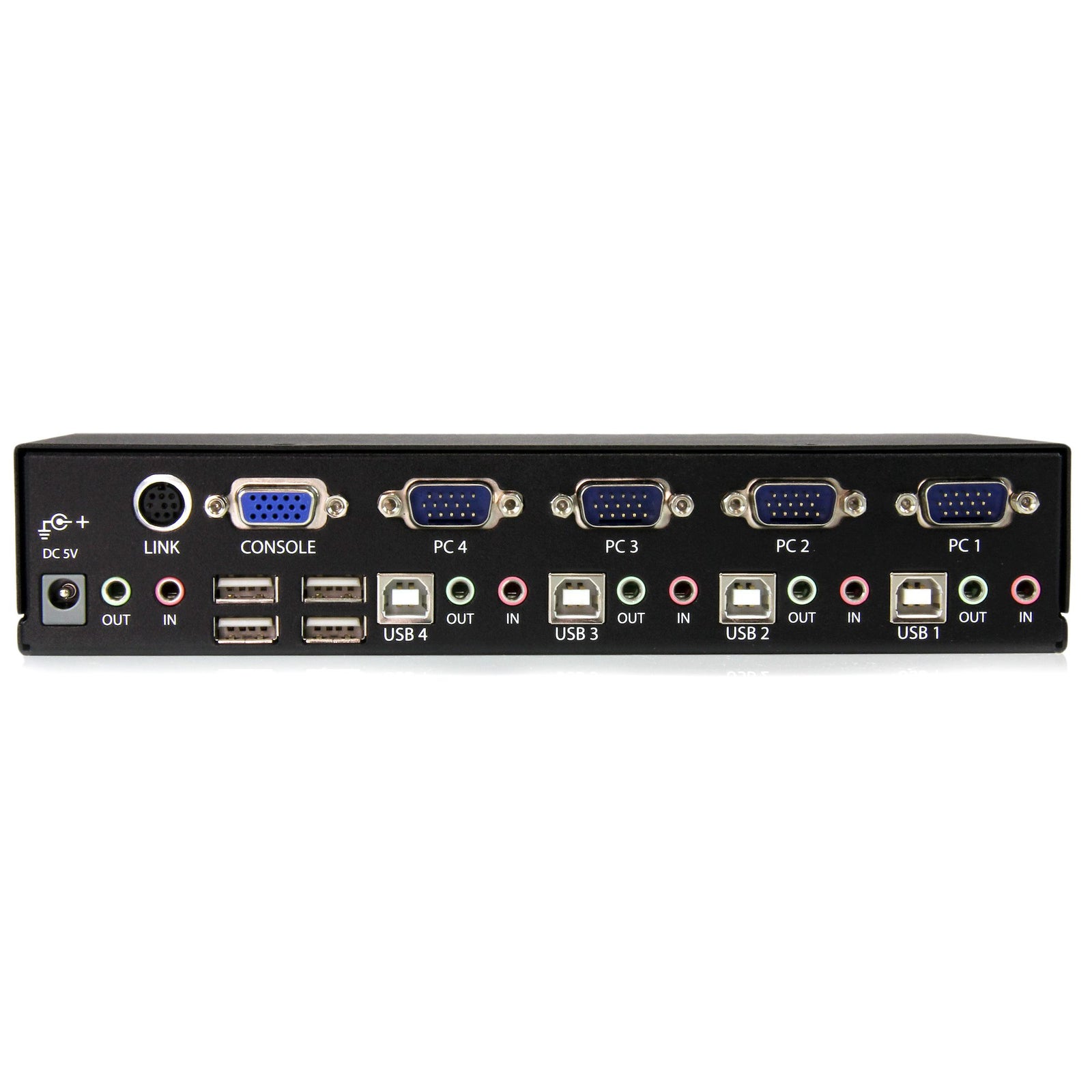

| Connector(s) | |
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) |
| 2 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| 1 - VGA (15 pin, High Density D-Sub) | |
| Host Connectors | 8 - 3.5 mm Mini-Jack (3 Position) |
| 4 - USB B (4 pin) | |
| 4 - VGA (15 pin, High Density D-Sub) | |
| Other Interface(s) | 2 - USB 2.0 Type-A (4 pin, 480Mbps) |
| Hardware | |
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | VGA |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Optional |
| Cables Included | No |
| U Height | 1U |
| Daisy-Chain | No |
| Packaging Information | |
| Package Quantity | 1 |
| Package Length | 41.0 cm [16.1 in] |
| Package Width | 9.0 cm [3.5 in] |
| Package Height | 21.5 cm [8.5 in] |
| Shipping (Package) Weight | 1.7 kg [3.7 lb] |
| Performance | |
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | No |
| Maximum Analog Resolutions | 1920x1440 |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button |
| MTBF | 143,000 hours |
| Physical Characteristics | |
| Color | Black |
| Material | Steel |
| Product Length | 22.0 cm [8.7 in] |
| Product Width | 22.0 cm [8.7 in] |
| Product Height | 4.4 cm [1.8 in] |
| Product Depth | 130 mm [5.1 in] |
| Weight of Product | 1.0 kg [2.3 lb] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.4A |
| Output Voltage | 5V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Power Consumption (In Watts) | 10W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 1 - 4 Port USB KVM Switch With Audio |
| 1 - Pack Rubber Feet | |
| 1 - Power Adapter | |
| 1 - Instruction Manual |
