StarTech 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub | SV431TDVIUA
SKU: SV431TDVIUA
£203.62 (Excl. VAT)
- Description
- Specifications
- Downloads
-

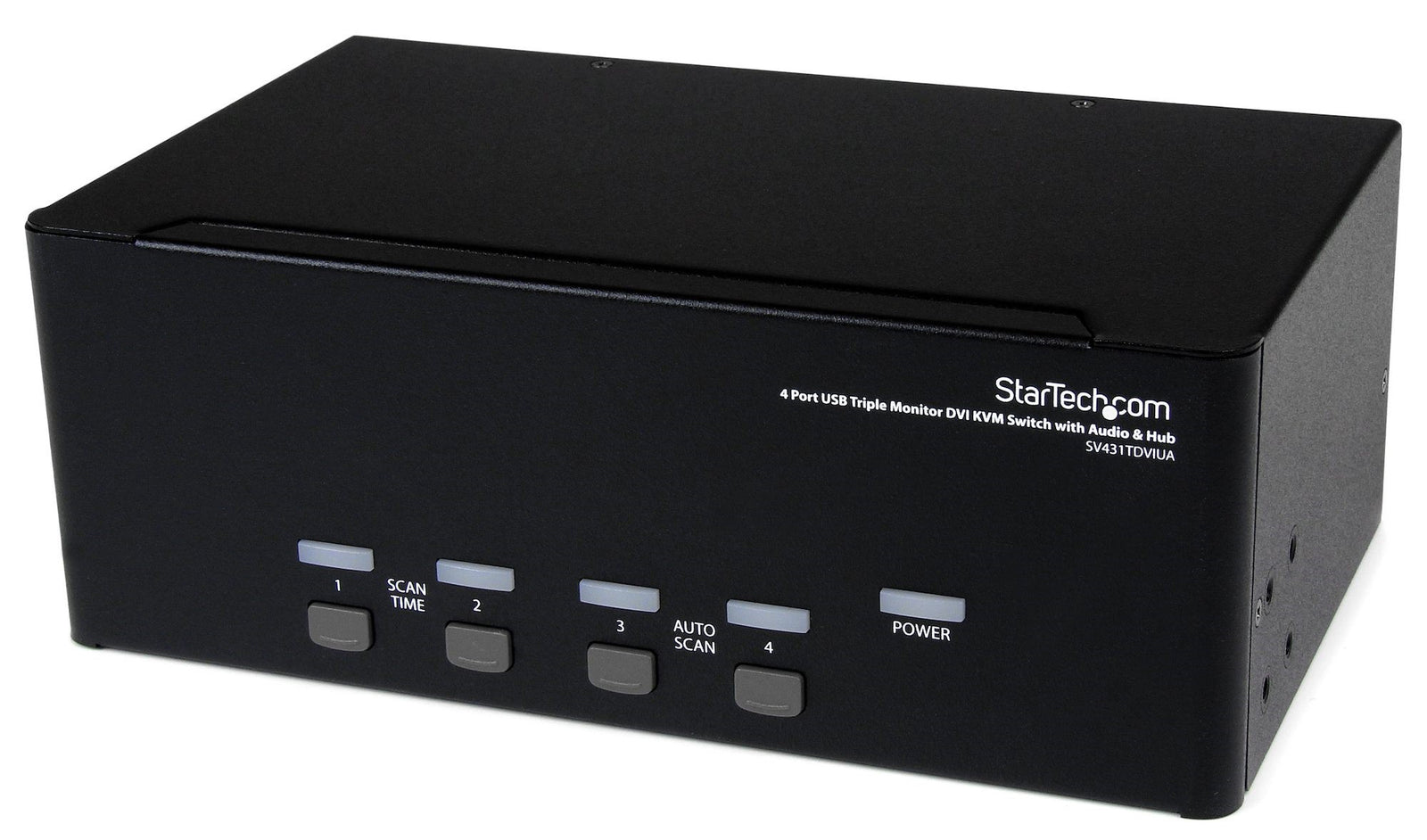

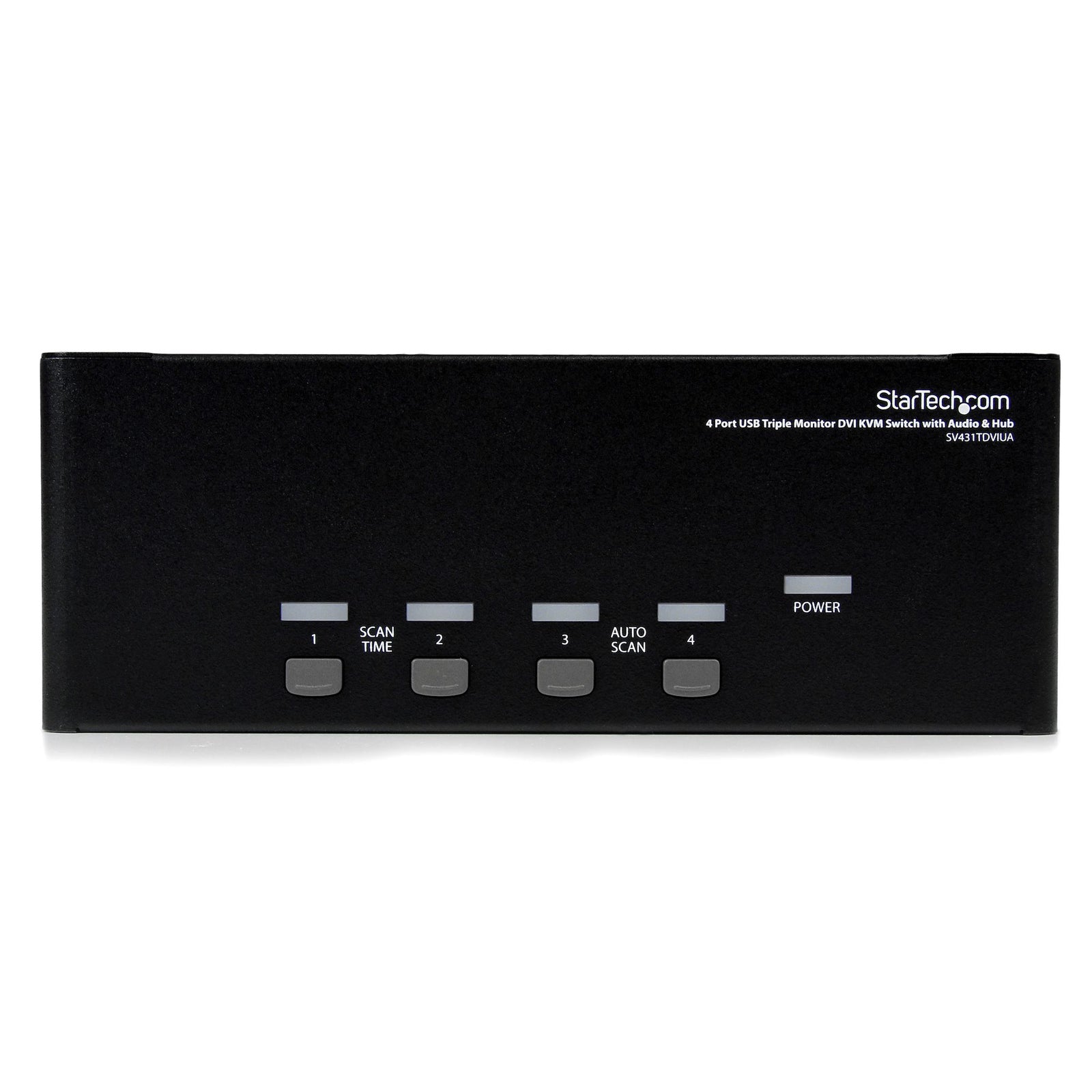

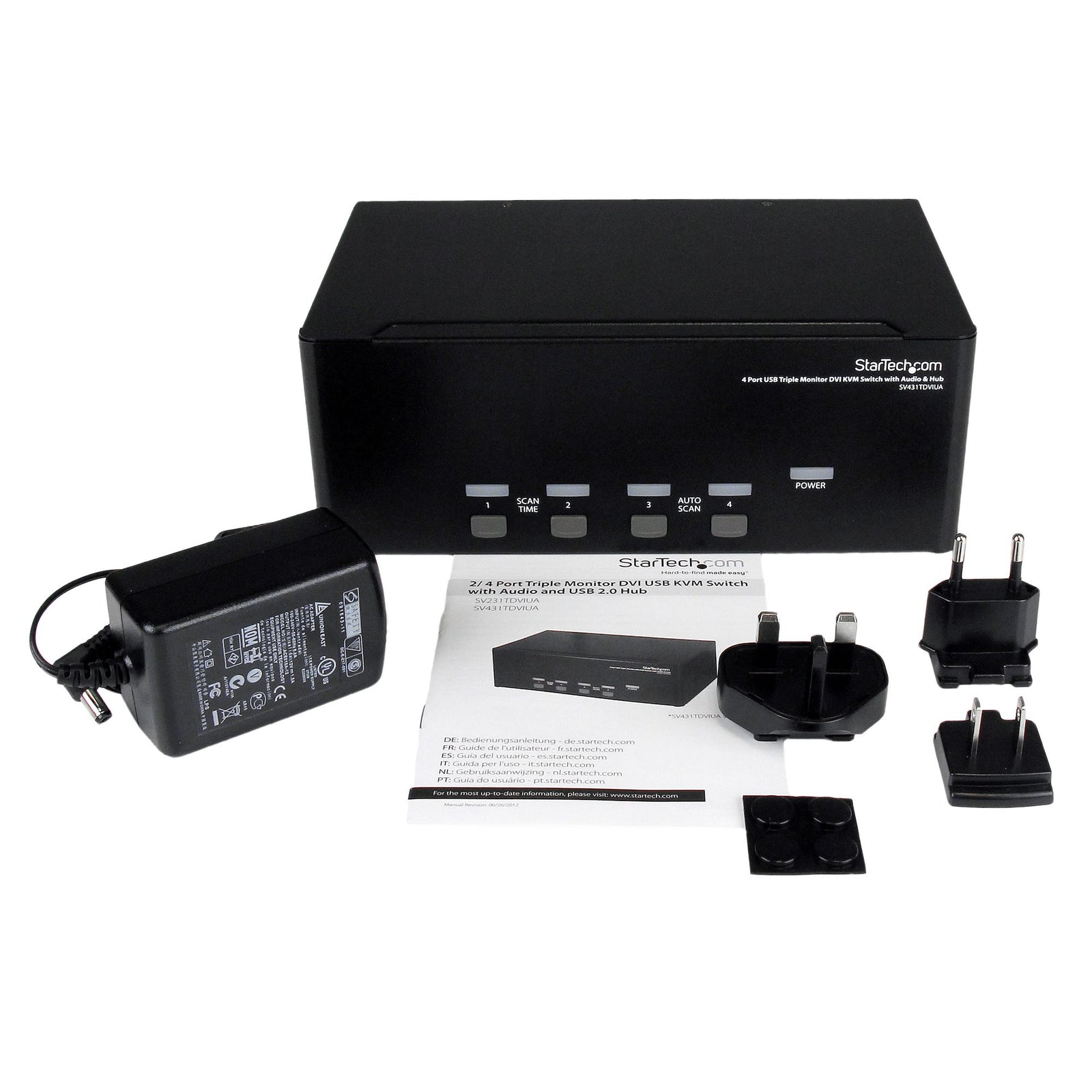

StarTech 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub | SV431TDVIUA
The SV431TDVIUA 4-Port Triple Monitor DVI USB KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Applications
Switch three displays, mouse, keyboard, speakers, microphone, and one USB peripheral between four PCsGraphic design and multimedia production applications
Great for CAD/CAM operators using multiple monitor systems
Financial/banking and trading workstations with multiple monitors
High resolution medical imaging with multiple displays
-

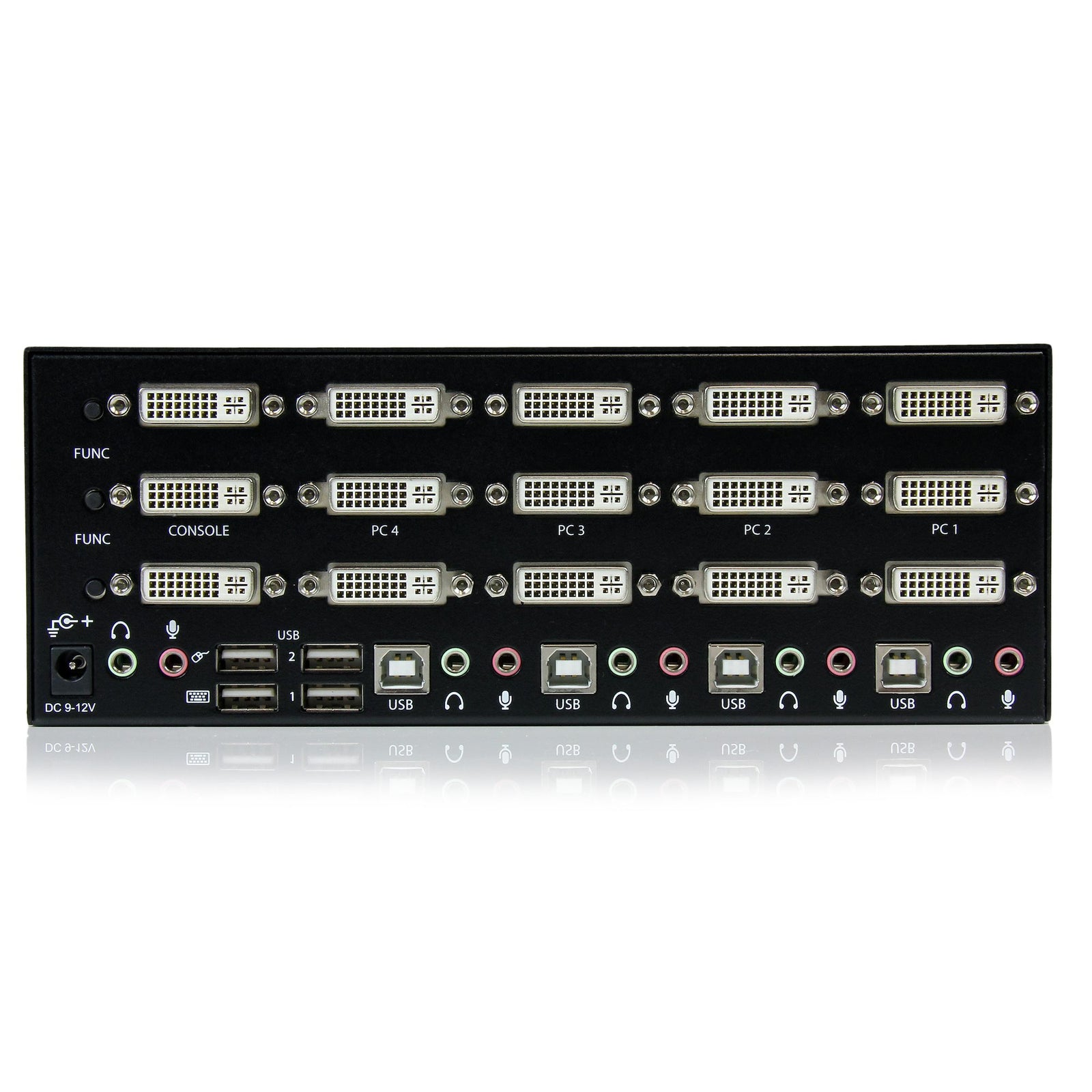

Category Details Warranty Information Warranty: 3 Years Connector(s) Console Interface(s): 2 - 3.5 mm Mini-Jack (3 Position) 3 - DVI-I (29 pin) 4 - USB 2.0 Type-A (4 pin, 480Mbps) Host Connectors: 8 - 3.5 mm Mini-Jack (3 Position) 12 - DVI-I (29 pin) 4 - USB B (4 pin) Environmental Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -10°C to 60°C (14°F to 140°F) Humidity: 0~80% RH Hardware Audio: Yes KVM Ports: 4 PC Interface: USB PC Video Type: DVI Number of Monitors Supported: 3 Rack-Mountable: Optional Cables Included: No Daisy-Chain: No Indicators LED Indicators: 4 - Orange - PC Online 4 - Green - Active PC Packaging Information Package Height: 10.8 cm [4.3 in] Package Length: 29.8 cm [11.7 in] Package Width: 27.2 cm [10.7 in] Package Quantity: 1 Shipping (Package) Weight: 2.2 kg [4.8 lb] Performance On-Screen Display: No DVI Support: Yes IP Control: No Hot-Key Selection: Yes Maximum Digital Resolutions: 1920x1200 Wide Screen Supported: Yes Auto Scan: 3, 8, 15 & 30 seconds Maximum Number of Users: 1 Port Selection Support: Push Button and Hotkeys MTBF: 156,000 hours Physical Characteristics Product Length: 0.0 mm [0.0 in] Color: Black Material: Steel Product Width: 21.9 cm [8.6 in] Product Height: 8.1 cm [3.2 in] Product Depth: 137 mm [5.4 in] Weight of Product: 1.5 kg [3.3 lb] Power Power Source: AC Adapter Included Input Voltage: 100 - 240 AC Input Current: 0.8A Output Voltage: 12V DC Output Current: 1.5A Center Tip Polarity: Positive Plug Type: M Power Consumption (In Watts): 18 Software OS Compatibility: OS independent; No software or drivers required Special Notes / Requirements Note: DVI connector supports single-link DVI-D (digital only) video sources. Recommended to use DVI-D cables across all connections. What's in the Box Included in Package: 1 - 4 Port Triple Display KVM 4 - Rubber Foot Pads 1 - Universal Power Adapter (NA/UK/EU) 1 - User Manual -
Description Downloads Datasheet Downloads User Manual Downloads
