The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

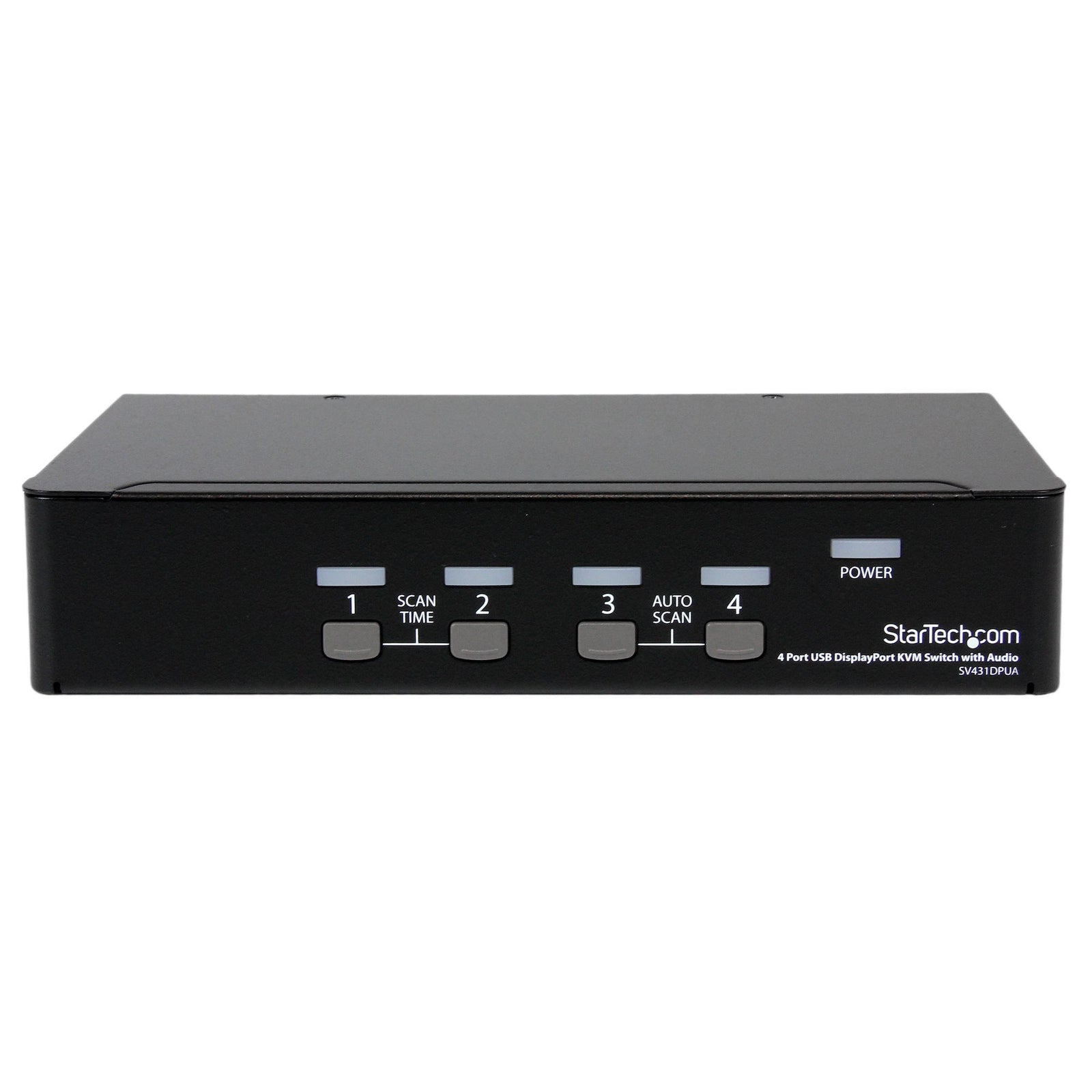

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Applications
Dual system control for a single workstation increasing productivity in the Office
High resolution medical imaging and Health care display, such as MRI and X-Ray display
Perfect for high-res Digital Signage server control, simplifying access to multiple systems
Multimedia design, multimedia post-production and video editing
Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
| Category | Detail |
|---|---|
| Warranty Information | |
| Warranty | 3 Years |

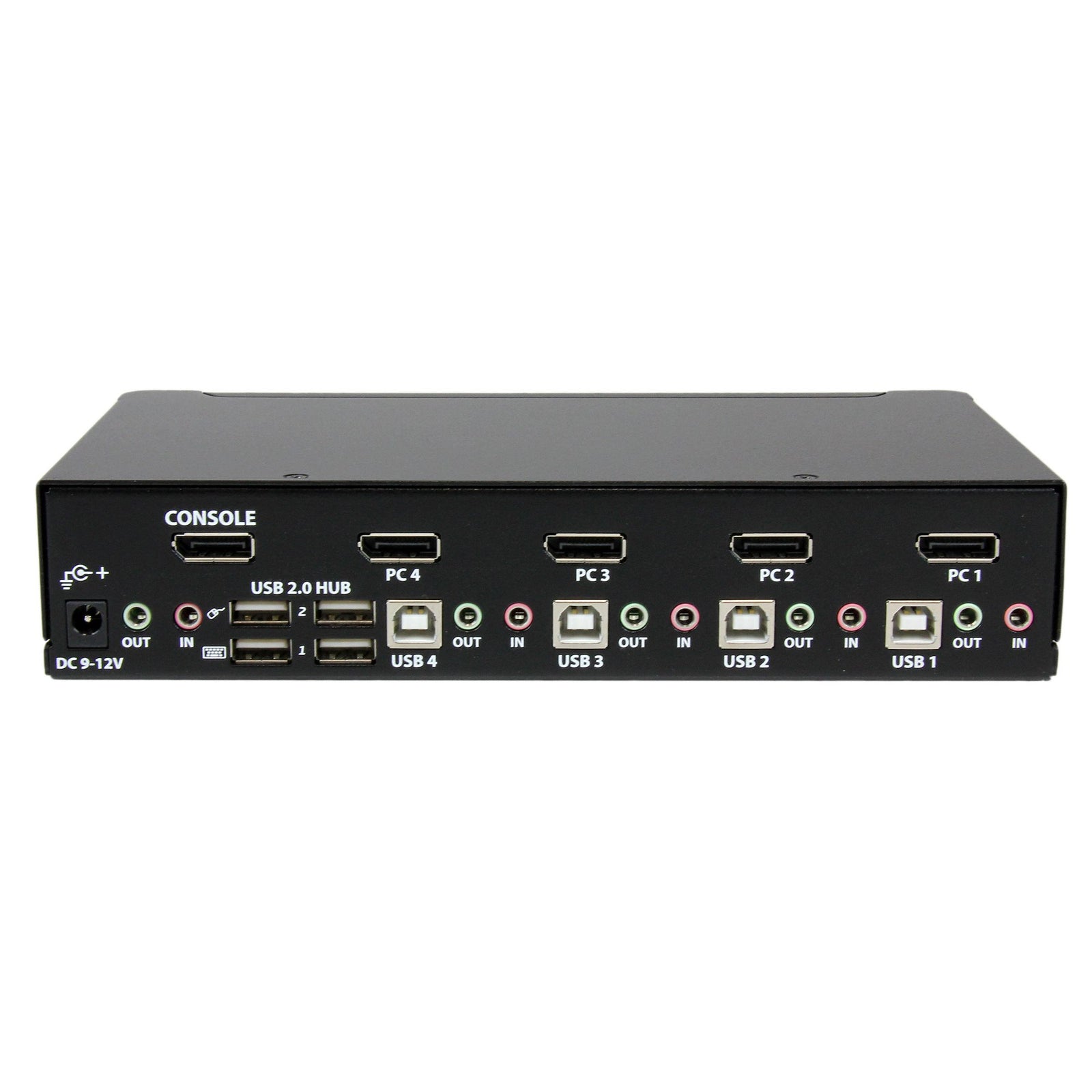

| Connector(s) | |
| Console Interface(s) | 2 - 3.5 mm Mini-Jack (3 Position) |
| 1 - DisplayPort (20 pin) | |
| 4 - USB 2.0 Type-A (4 pin, 480Mbps) | |
| Host Connectors | 4 - USB B (4 pin) |
| 8 - 3.5 mm Mini-Jack (3 Position) | |
| 4 - DisplayPort (20 pin) | |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
| Hardware | |
| Audio | Yes |
| KVM Ports | 4 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 1 |
| Rack-Mountable | Optional |
| Cables Included | No |
| Daisy-Chain | No |
| Indicators | |
| LED Indicators | 4 - Red (Select indicator; One LED per port) |
| 4 - Green (Online indicator; One LED per port) | |
| 1 - Power | |
| Packaging Information | |
| Package Height | 8.8 cm [3.5 in] |
| Package Length | 41.0 cm [16.1 in] |
| Shipping (Package) Weight | 1.6 kg [3.5 lb] |
| Package Width | 21.2 cm [8.3 in] |
| Package Quantity | 1 |
| Performance | |
| On-Screen Display | No |
| DVI Support | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Wide Screen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 136,000 hours |
| Physical Characteristics | |
| Weight of Product | 1.0 kg [2.3 lb] |
| Color | Black |
| Material | Steel |
| Product Width | 22.1 cm [8.7 in] |
| Product Height | 4.4 cm [1.7 in] |
| Product Depth | 130.6 mm [5.1 in] |
| Power | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18W |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |

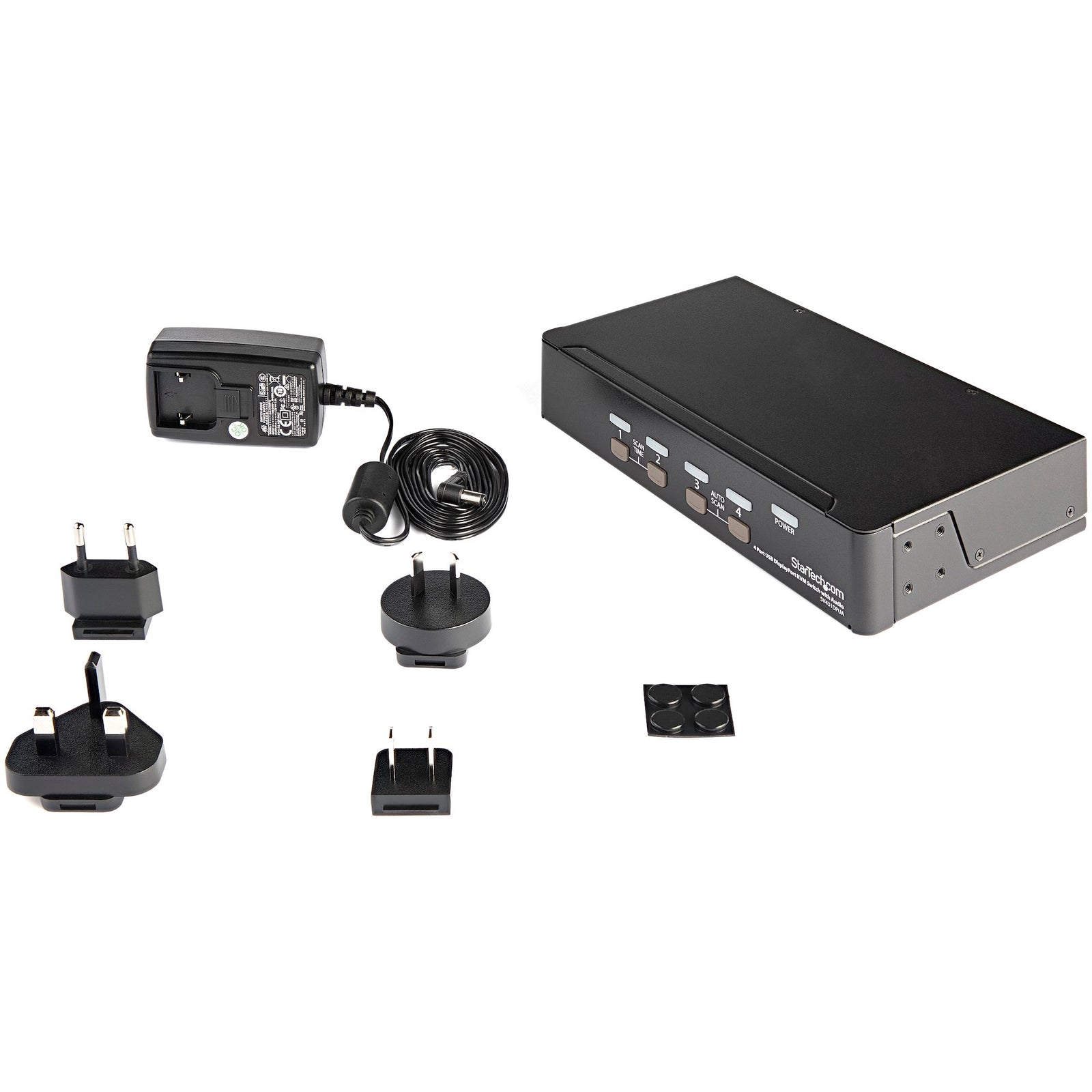

| Included in Package | 1 - 4-port DisplayPort KVM switch |
| 4 - Foot pads | |
| 1 - Universal power adapter (NA/UK/EU/AU) | |
| 1 - Instruction manual |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
