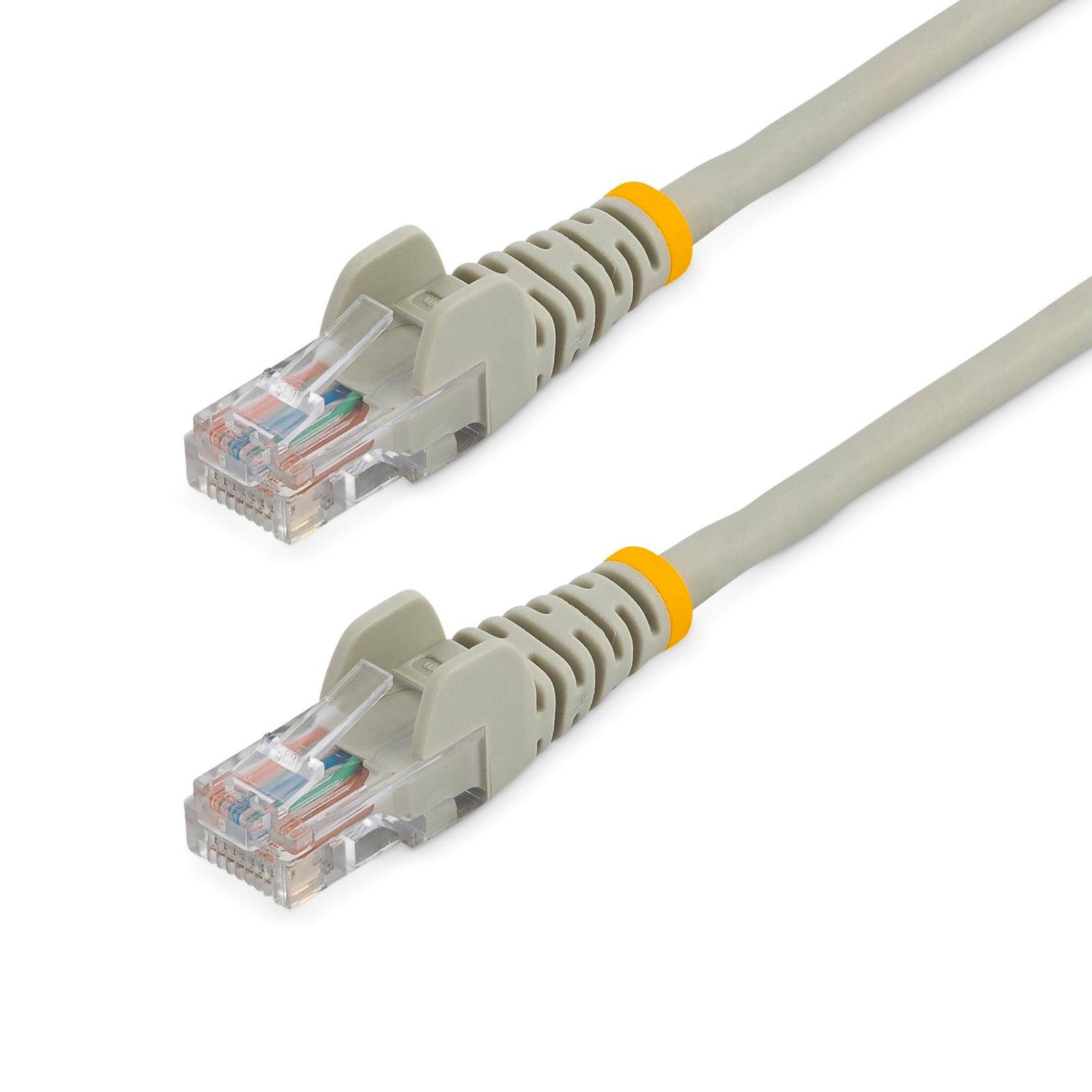

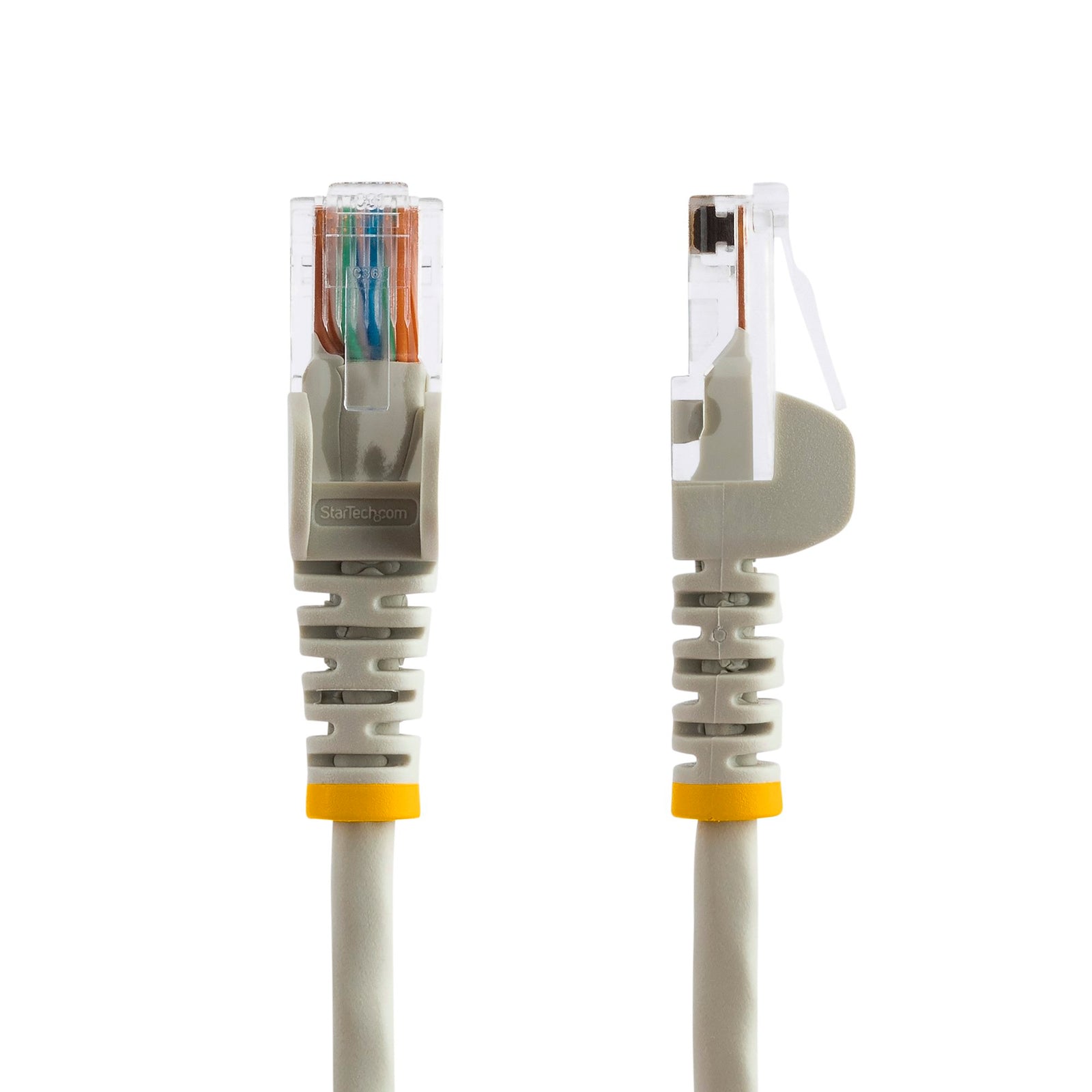

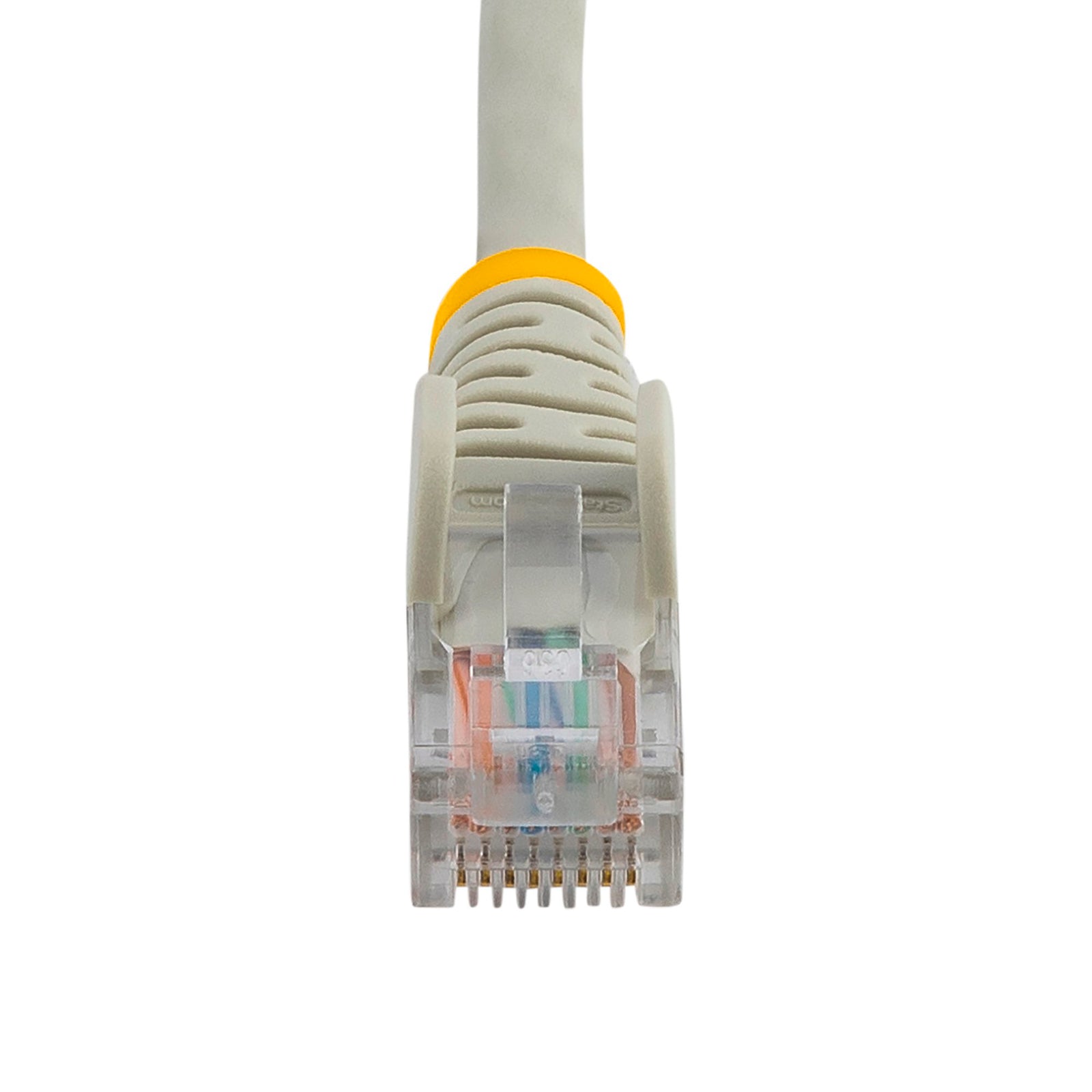

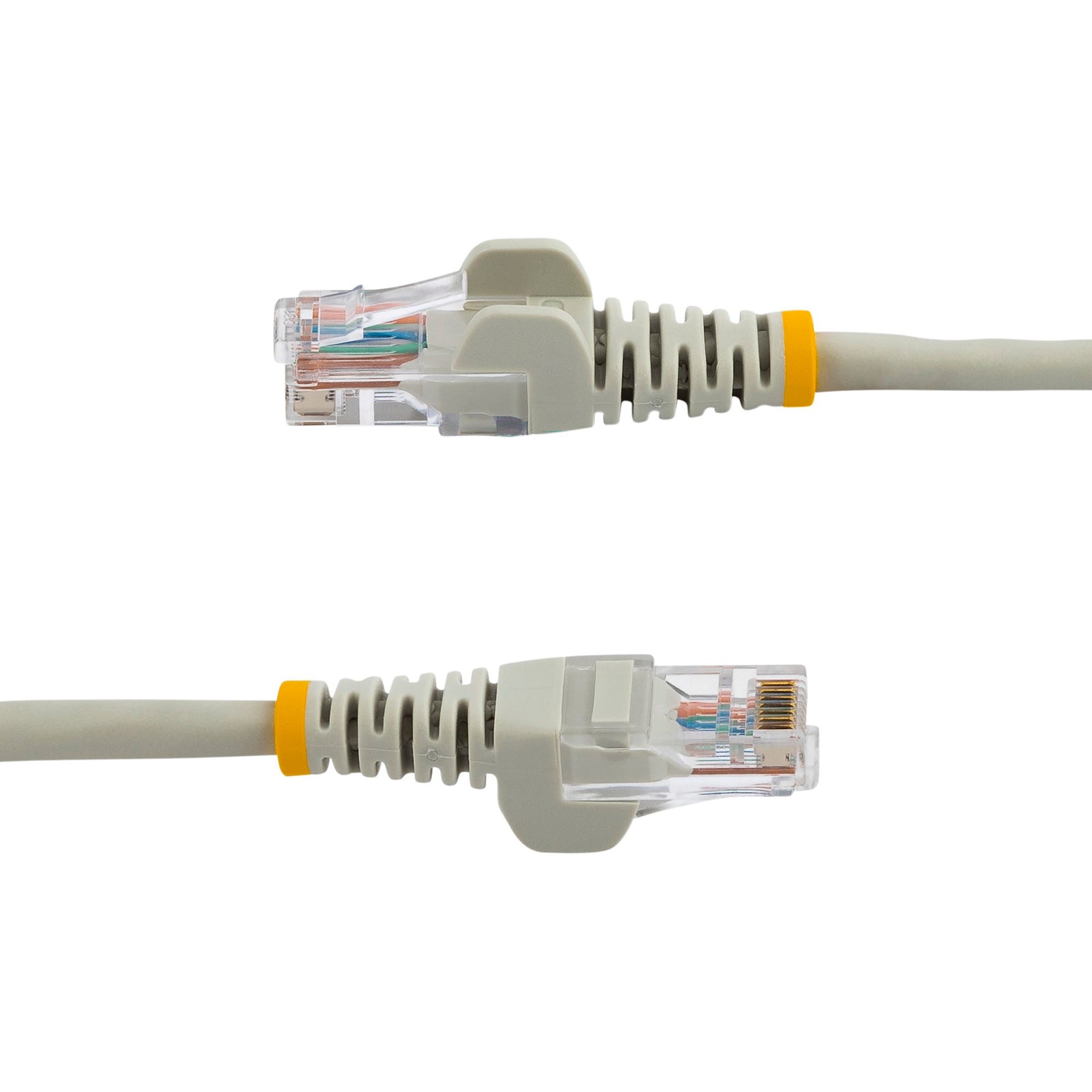

StarTech 45PAT2MGR Cat5e Patch Cable with Snagless RJ45 Connectors - 2m, Gray
The 45PAT2MGR Cat5e patch cable (2m) meets or exceeds all Cat 5e cable specifications to ensure reliable Ethernet network connections, and features a durable gray PVC jacket that enables you to color code your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat5e patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat5e patch cord delivers reliable performance and is backed by our lifetime warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 5e cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
Applications
Designed for use with Fast Ethernet networks
Patches from hub to distribution panel
Connects workstation to wall outlet
-
Warranty Information |
|
Warranty |
Lifetime |
Connector(s) |
|
Connector A |
1 - RJ-45 |
Connector B |
1 - RJ-45 |
Environmental |
|
Humidity |
0 ~ 60% RH |
Operating Temperature |
0°C to 30°C (32°F to 86°F) |
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
Hardware |
|
Number of Conductors |
4 pair UTP |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Fire Rating |
CM Rated |
Cable Type |
Snagless |
Packaging Information |
|
Package Height |
1.6 cm [0.6 in] |
Package Length |
22.0 cm [8.7 in] |
Shipping (Package) Weight |
79.0 g [2.8 oz] |
Package Width |
20.0 cm [7.9 in] |
Package Quantity |
1 |
Performance |
|
Cable Rating |
CAT5e - 350 MHz |
Physical Characteristics |
|
Product Height |
1.6 cm [0.6 in] |
Product Width |
1.3 cm [0.5 in] |
Color |
Gray |
Wire Gauge |
24 AWG |
Conductor Type |
Stranded Copper |
Cable Length |
2 m [6.6 ft] |
Product Length |
2.0 m [6.6 ft] |
Weight of Product |
70.0 g [2.5 oz] |
What's in the Box |
Included in Package |
|
1 - 2m Gray Snagless Cat5e UTP Patch Cable |
-
