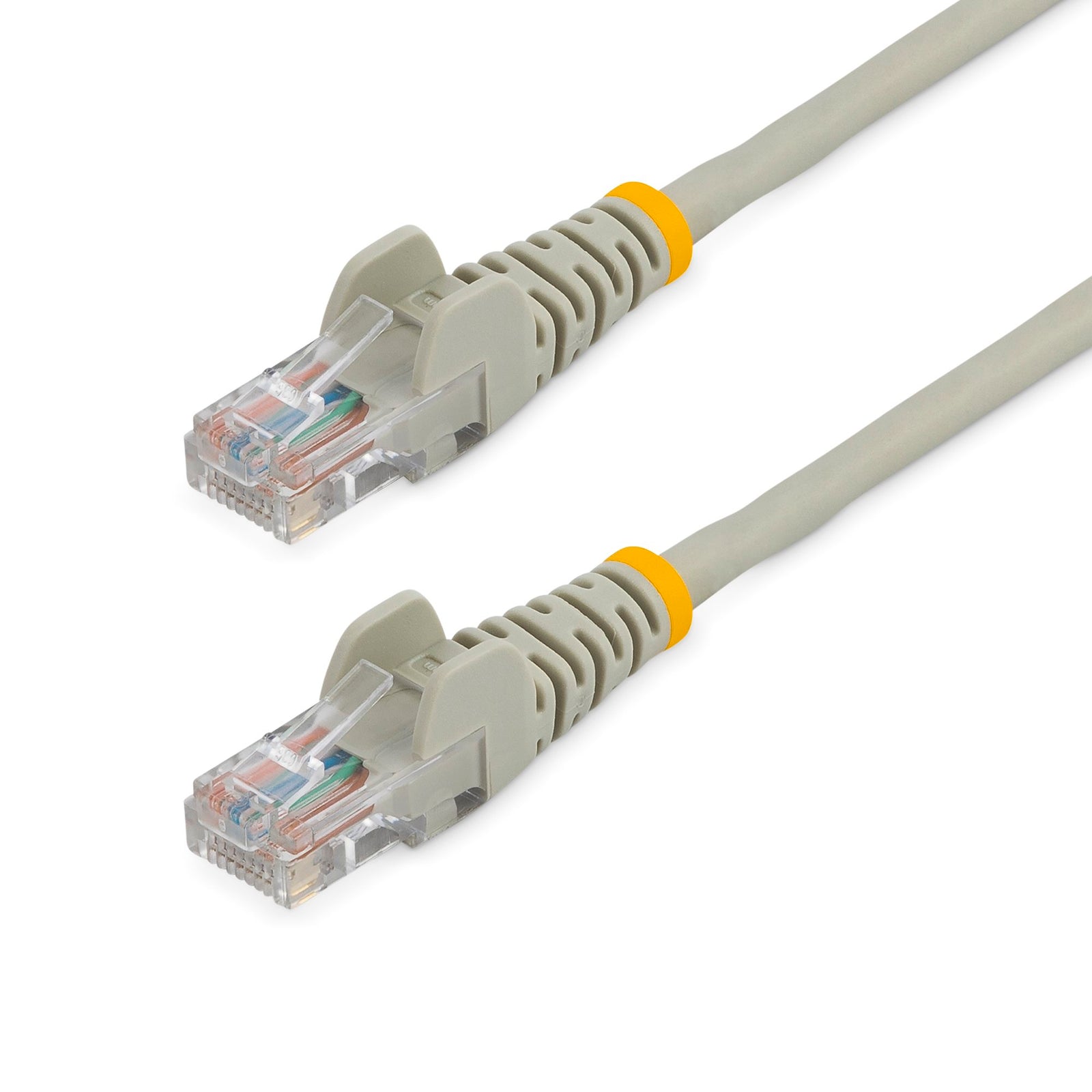

StarTech 45PAT5MGR Cat5e Patch Cable with Snagless RJ45 Connectors - 5 m, Grey

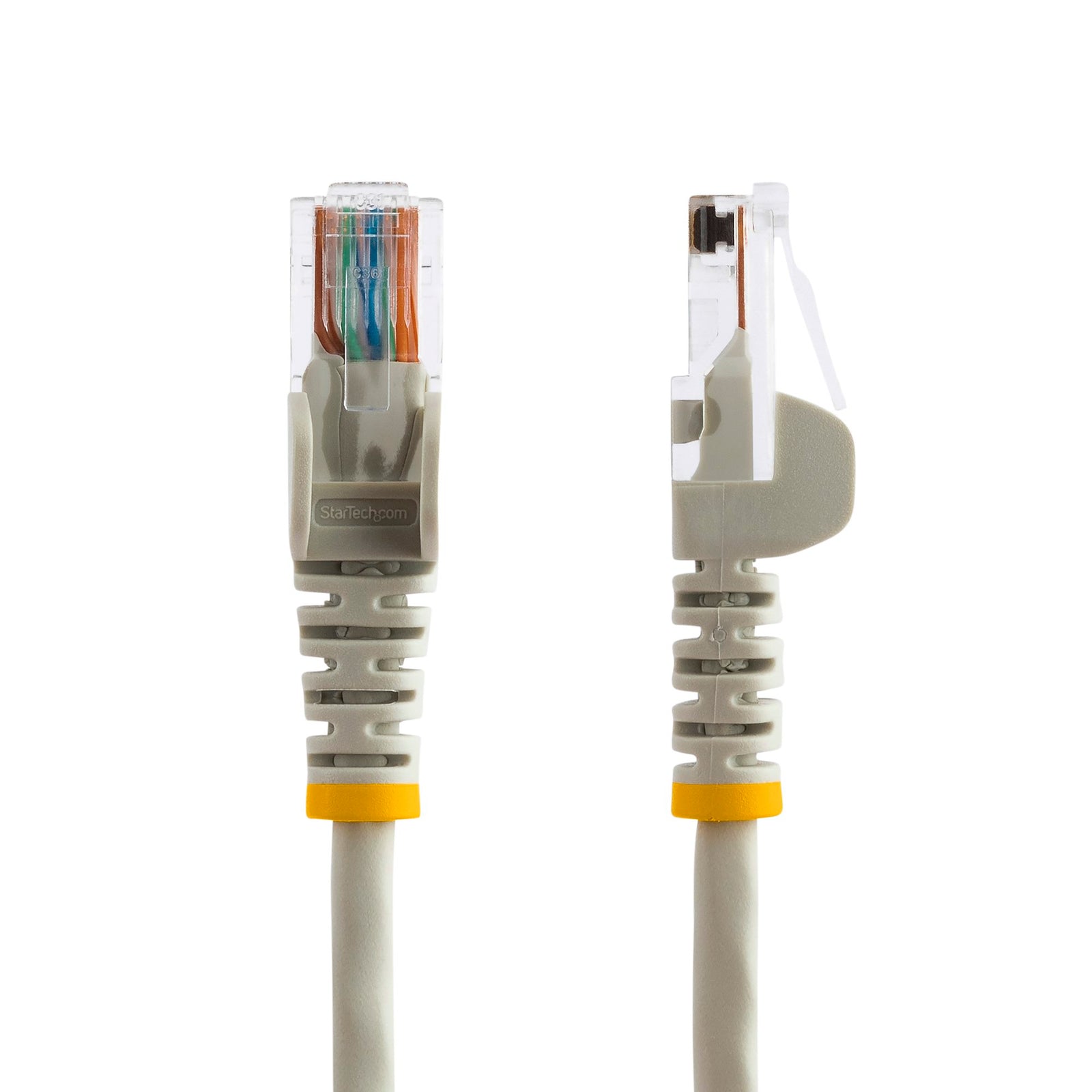

Snagless RJ45 clips help protect your network connections
For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.
The cable features moulded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 5e cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

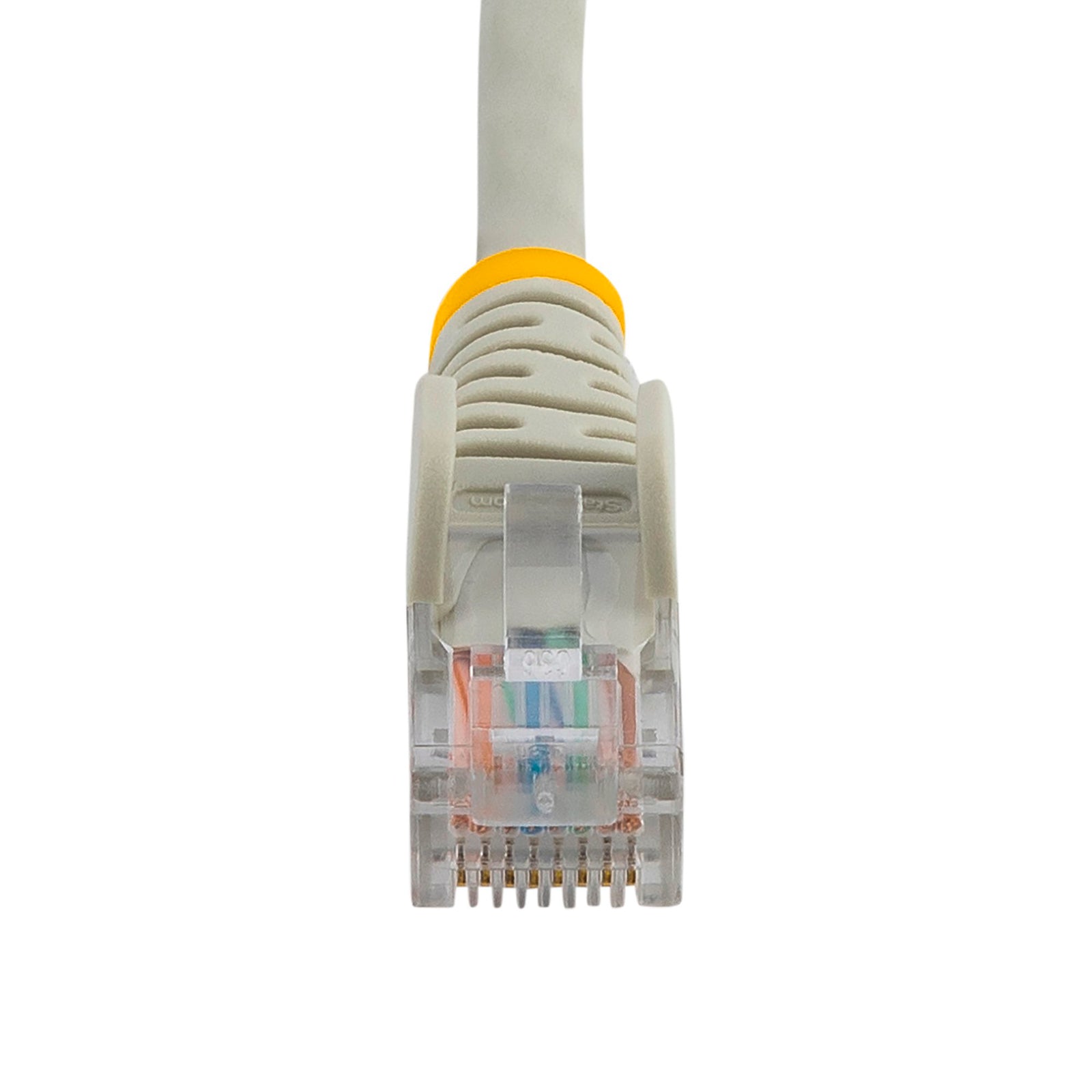

50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The 45PAT5MGR is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Applications
Designed for use with Fast Ethernet networks
Connect between computers, hubs, switches, print servers and patch panels
Connect a workstation to an RJ45 wall outlet
-
Category |
Description |
Warranty Information |
|
Warranty |
Lifetime |
Connector(s) |
|
Connector A |
1 - RJ-45 |
Connector B |
1 - RJ-45 |
Environmental |
|
Humidity |
0 ~ 60% RH |
Operating Temperature |
0°C to 30°C (32°F to 86°F) |
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
Hardware |
|
Number of Conductors |
4 pair UTP |
Cable Jacket Material |
PVC - Polyvinyl Chloride |
Fire Rating |
CM Rated |
Cable Type |
Snagless |
Packaging Information |
|
Package Height |
2.0 cm [0.8 in] |
Package Length |
22.0 cm [8.7 in] |
Shipping (Package) Weight |
184.0 g [6.5 oz] |
Package Width |
20.0 cm [7.9 in] |
Package Quantity |
1 |
Performance |
|
Cable Rating |
CAT5e - 350 MHz |
Physical Characteristics |
|
Product Height |
1.4 cm [0.5 in] |
Product Width |
1.2 cm [0.5 in] |
Color |
Gray |
Wire Gauge |
24 AWG |
Conductor Type |
Stranded Copper |
Cable Length |
5 m [16.4 ft] |
Product Length |
5.0 m [16.4 ft] |
Weight of Product |
178.0 g [6.3 oz] |
What's in the Box |
|
Included in Package |
1 - 5 m Cat5e Patch Cable - Gray |
-
