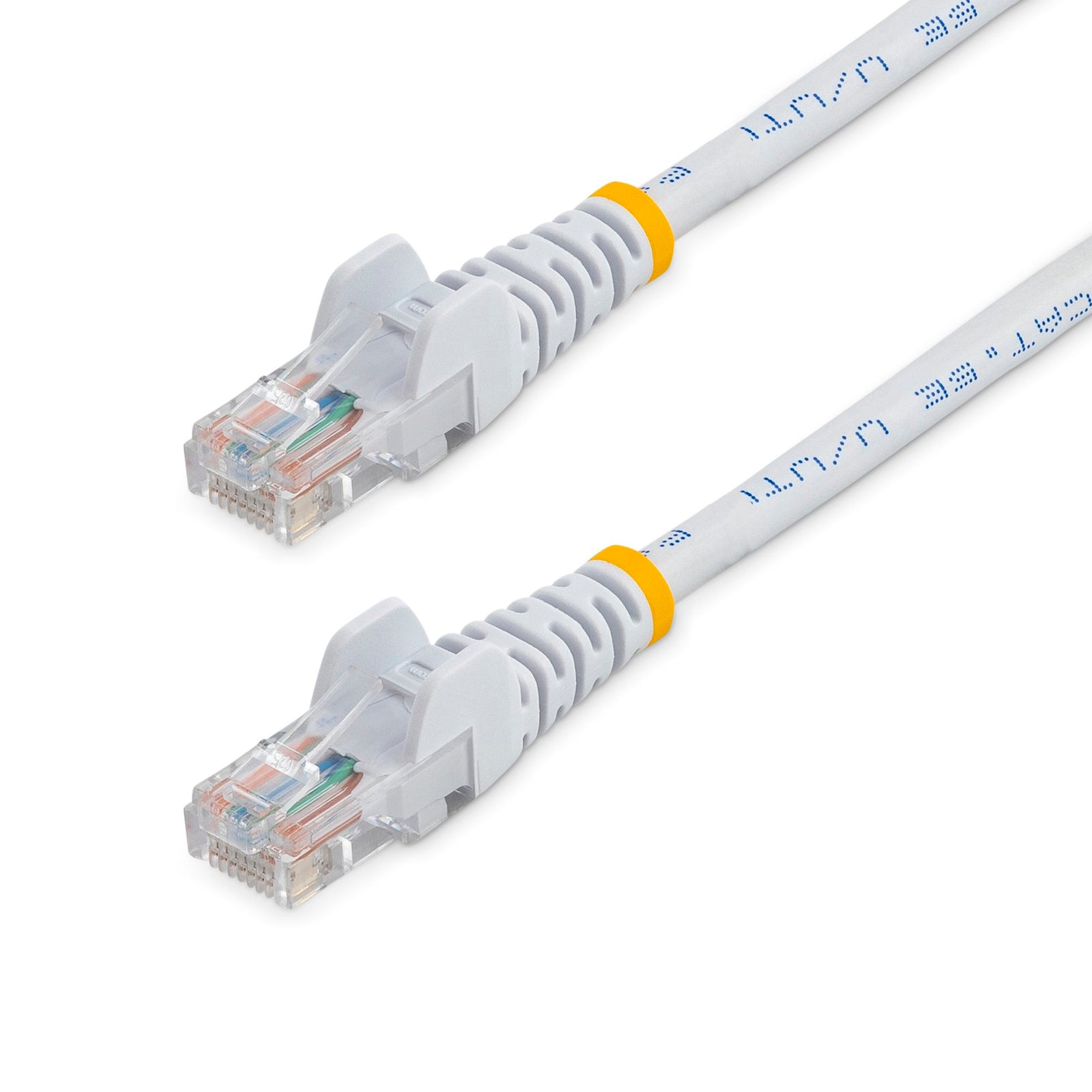

This Cat5e patch cable delivers reliable network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need
This 5-meter white network cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall- jack.
For easier network installations, our Cat 5e cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

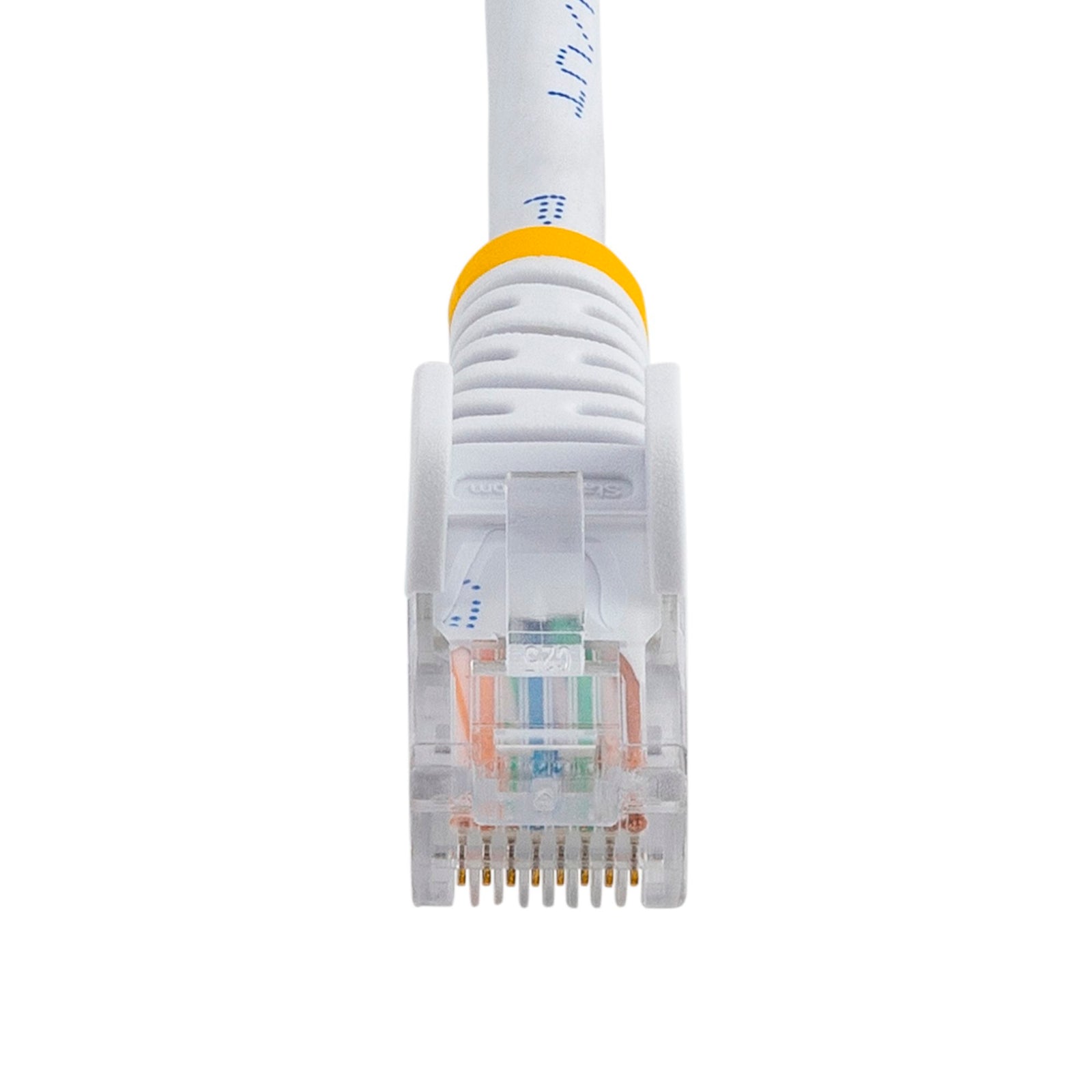

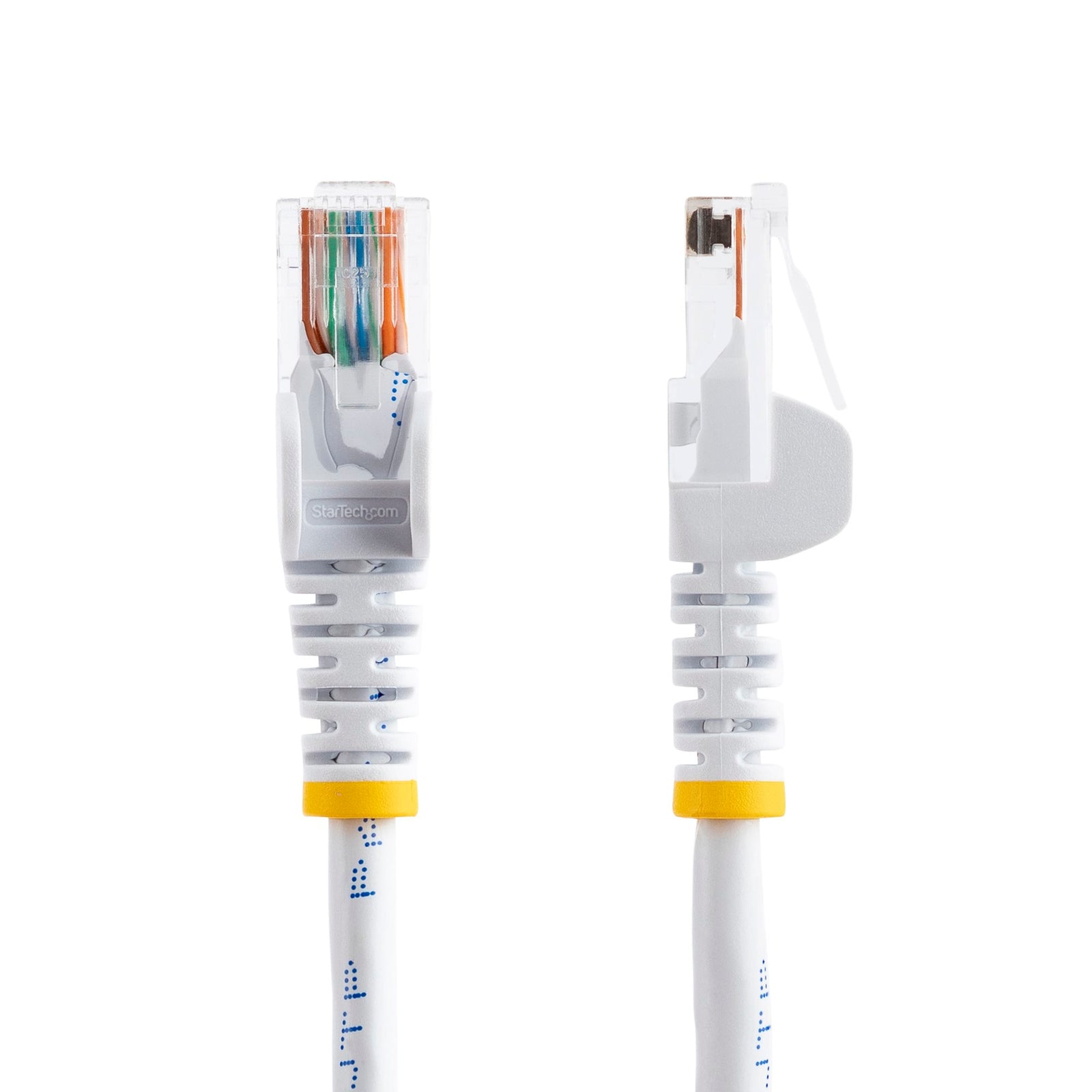

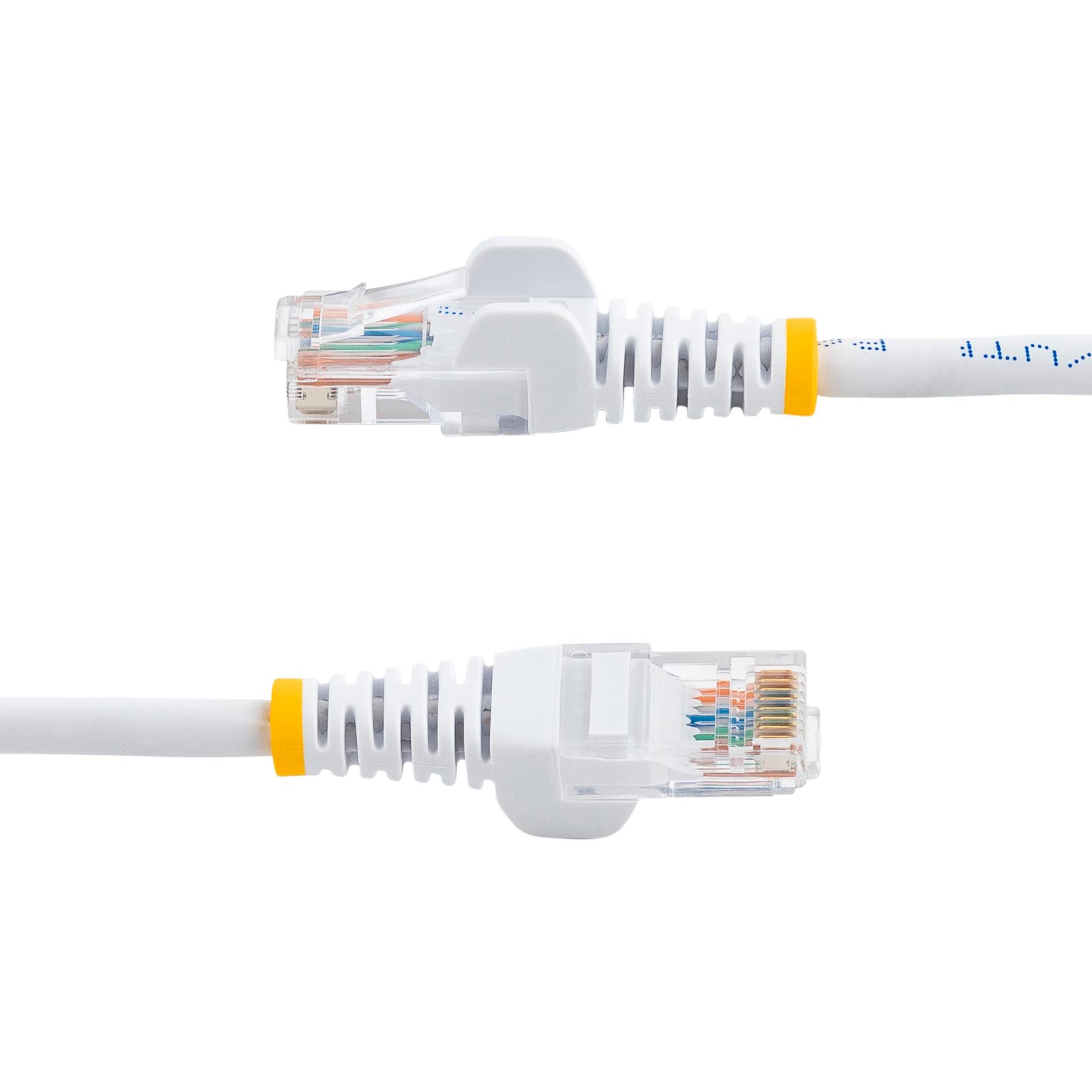

Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moulded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat5e Ethernet cables, each one manufactured using high-quality copper conductors. They are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity, while eliminating signal loss due to oxidation or corrosion.
The 45PAT5MWH is backed by StarTech.com’s lifetime warranty for guaranteed reliability.
Applications
Designed for use with Fast Ethernet networks
Connect between computers, hubs, switches, print servers and patch panels
Connects workstation to wall outlet
| Category | Description |
|---|---|
| Warranty Information | |
| Warranty | Lifetime |
| Connector(s) | |
| Connector A | 1 - RJ-45 |
| Connector B | 1 - RJ-45 |
| Environmental | |
| Humidity | 0 ~ 60% RH |
| Operating Temperature | 0°C to 30°C (32°F to 86°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Hardware | |
| Number of Conductors | 4 pair UTP |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CM Rated |
| Cable Type | Snagless |
| Packaging Information | |
| Package Height | 1.7 cm [0.7 in] |
| Package Length | 22.0 cm [8.7 in] |
| Package Width | 20.0 cm [7.9 in] |
| Package Quantity | 1 |
| Shipping (Package) Weight | 180.0 g [6.4 oz] |
| Performance | |
| Cable Rating | CAT5e - 350 MHz |
| Physical Characteristics | |
| Product Height | 1.6 cm [0.6 in] |
| Product Width | 1.3 cm [0.5 in] |
| Color | White |
| Wire Gauge | 24 AWG |
| Conductor Type | Stranded Copper |
| Cable Length | 5 m [16.4 ft] |
| Product Length | 5.0 m [16.4 ft] |
| Weight of Product | 180.0 g [6.4 oz] |
| What's in the Box | |
| Included in Package | 1 - Cat5e patch cable |
| Description | Downloads |
|---|---|
| 45PAT5MWH:Datasheet | Downloads |
