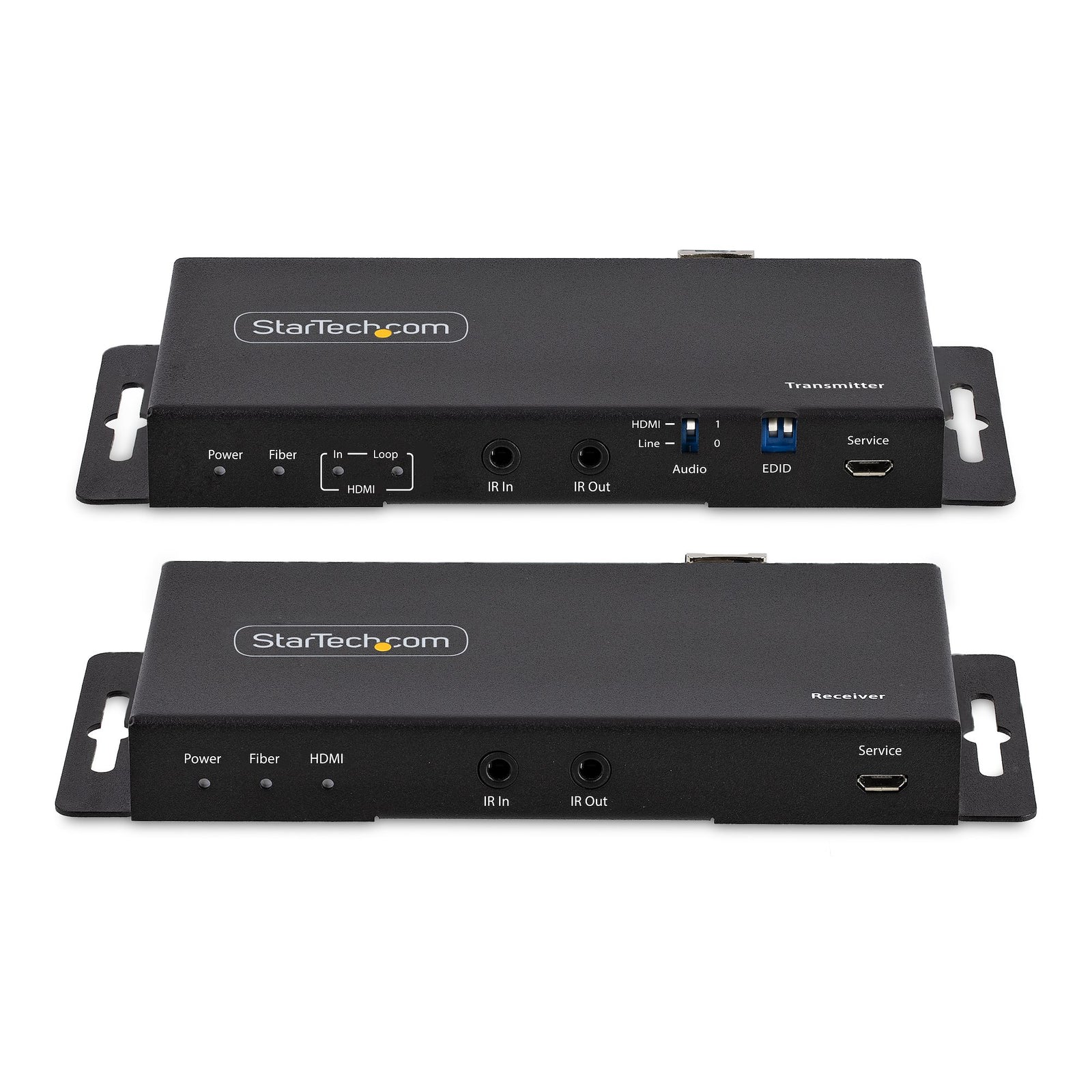

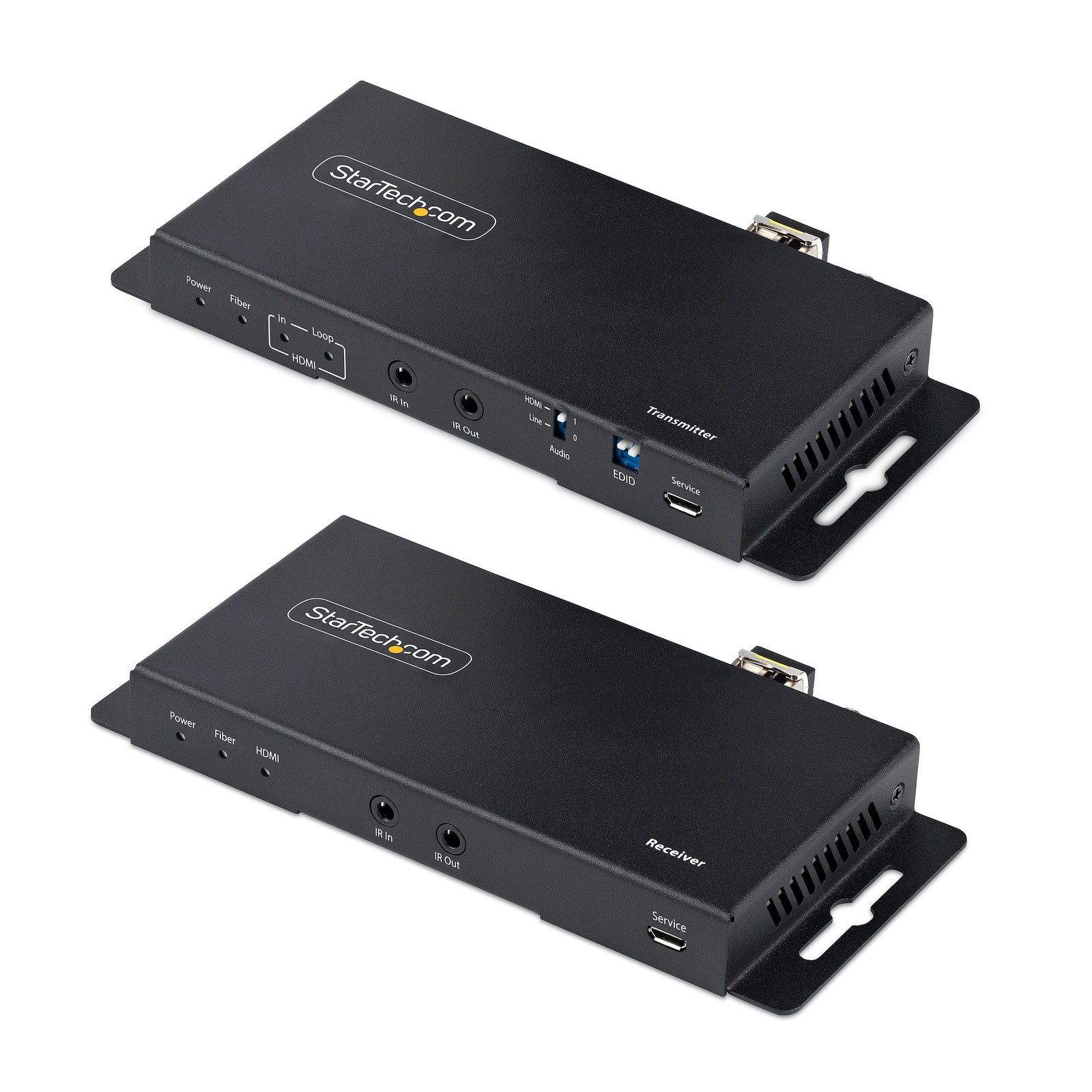

StarTech 4K 60Hz HDMI over Fiber Extender Kit | ST121HD20FXA2
SKU: ST121HD20FXA2
£410.23 (Excl. VAT)
- Description
- Specifications
- Downloads
-
StarTech ST121HD20FXA2 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR, HDCP, 3.5mm Audio/RS232/IR Extender, Transmitter and Receiver Kit
Works with Single Mode or Multimode Fiber
This HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation

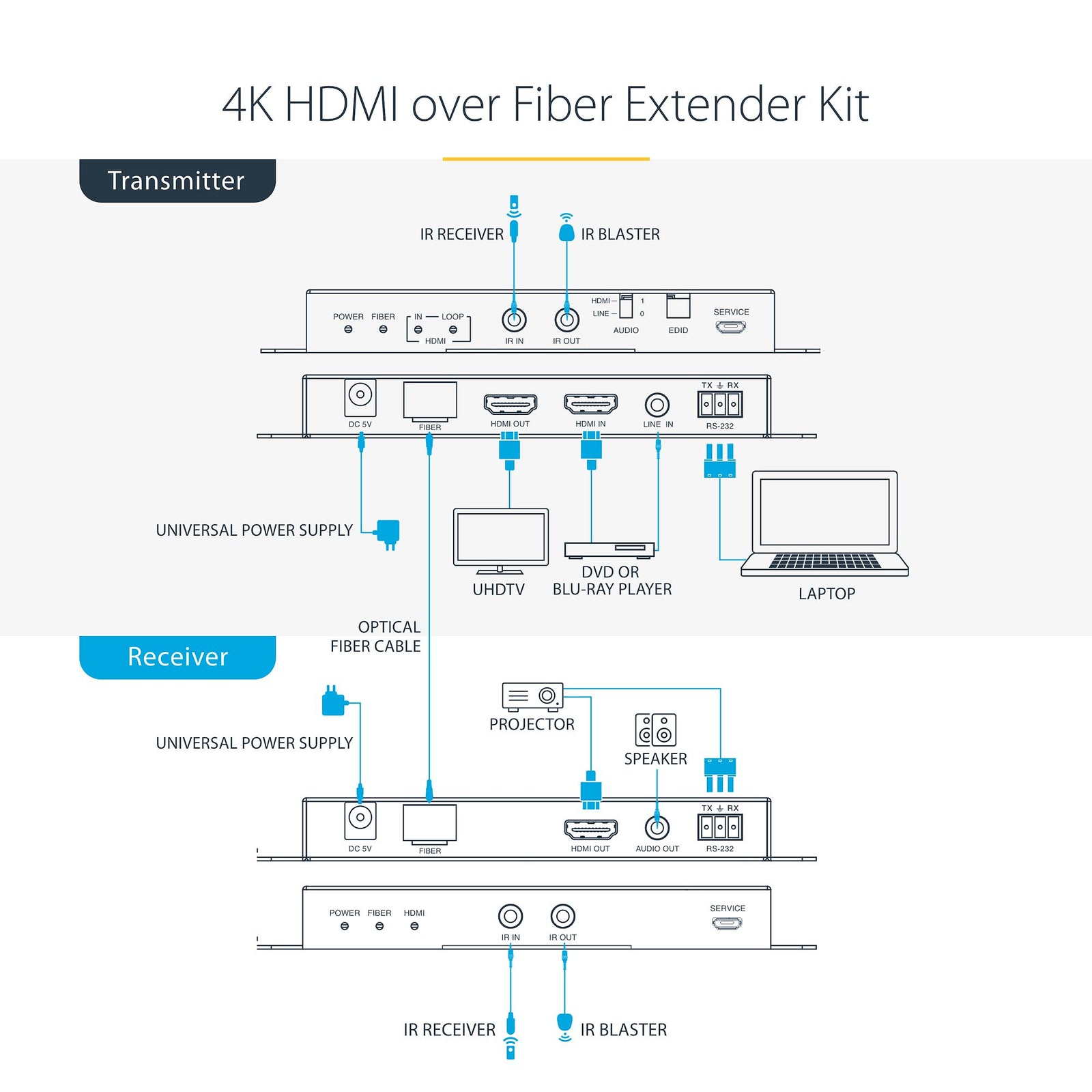

The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Applications
Ideal for Digital Signage where the display is far away from the source device
Extend an HDMI video source in a hospital, with no Electromagnetic/Radio Frequency Interference (EMI/RFI)
Connect a local video source to a remote display that is located across a building complex -

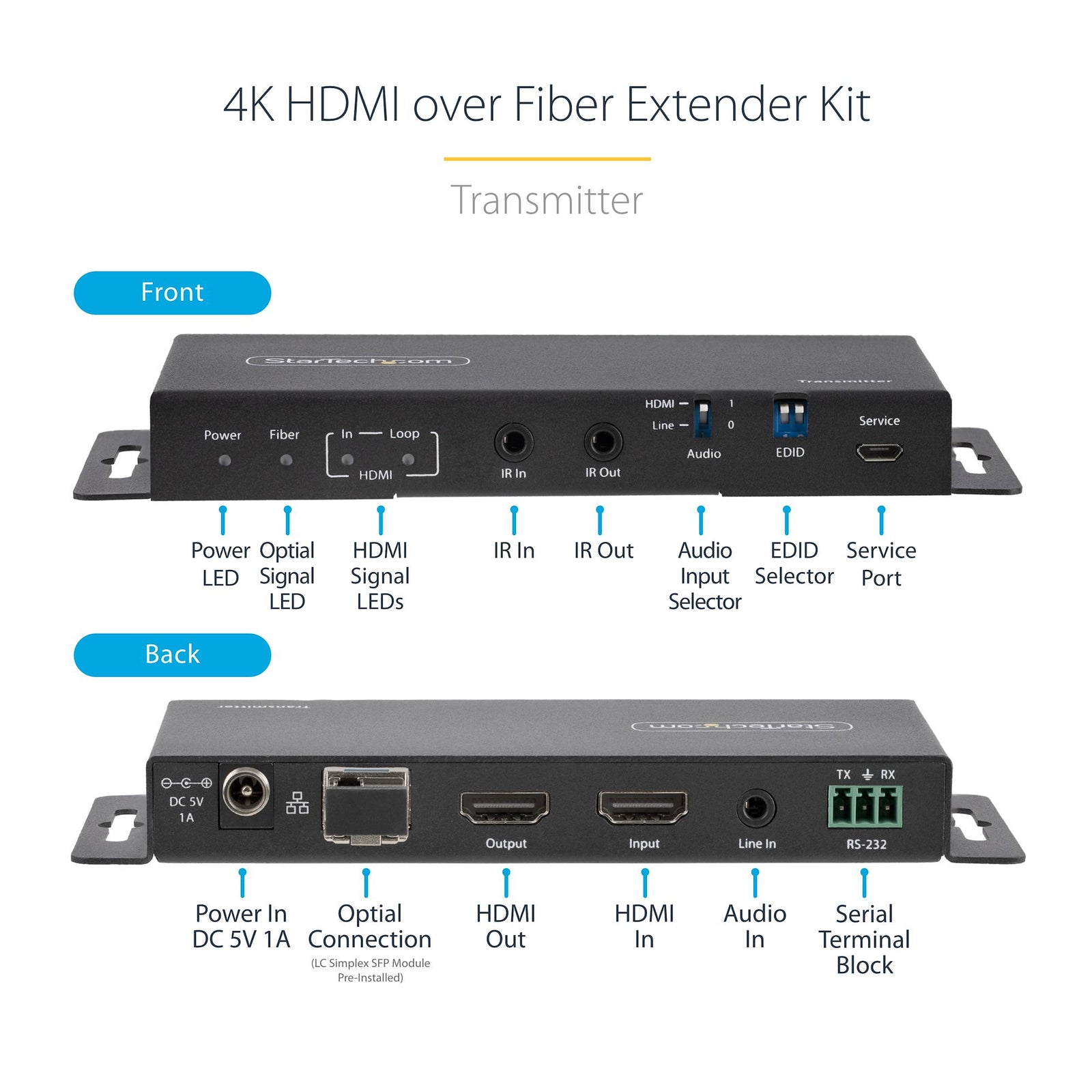

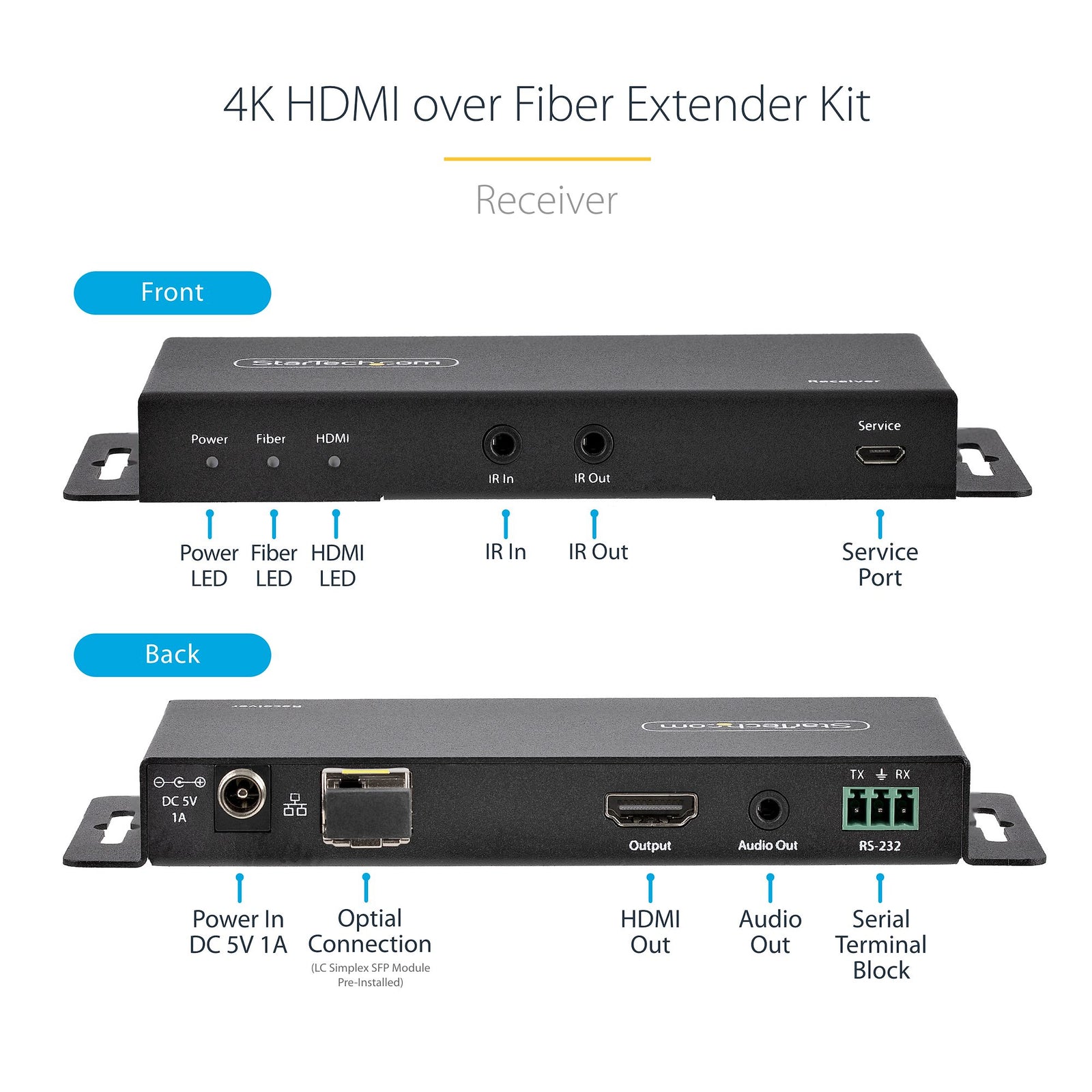

Category Specification Warranty 2 Years Local Unit Connectors 1 - HDMI, 1 - HDMI, 1 - 3.5mm Stereo Female 3 pos, 1 - M-Type Barrel (2.1 mm x 5.5 mm), 1 - Terminal Block (3 Wire), 1 - 3.5mm Stereo Female 3 pos, 1 - Infrared IR DA, 1 - USB Micro-B (5 pin), 1 - LC Remote Unit Connectors 1 - HDMI, 1 - 3.5mm Stereo Female 3 pos, 1 - Terminal Block (3 Wire), 1 - M-Type Barrel (2.1 mm x 5.5 mm), 1 - Infrared IR DA, 1 - Infrared IR DA, 1 - USB Micro-B (5 pin), 1 - LC Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 20% ~ 90% RH (non-condensing) Ports 2 Cabling Fiber Optic Audio Yes Rack-Mountable No Industry Standards HDMI 2.1 TMDS, HDCP 2.2 and DVI 1.0 compliant Chipset ID SiFotonics SD1503/SD1513 Indicators 1 - Red - Power, 1 - Green - Fiber Connection Active, 1 - Green - HDMI Input detected (Transmitter Only), 1 - Green - HDMI Loop (Local HDMI Output, Transmitter Only), 1 - Green - HDMI Output (Receiver Only) Package Length 30.0 cm [11.8 in] Package Width 20.0 cm [7.9 in] Package Height 6.0 cm [2.4 in] Shipping Weight 1.0 kg [2.3 lb] Package Quantity 1 Maximum Data Transfer Rate 18 Gbps Maximum Cable Length 1000 m [3280.0 ft] Max Distance 1 km (0.6 mi) Maximum Digital Resolutions 4K 60Hz Supported Resolutions Single Mode: 3300ft/1km at 4096 x 2160 60Hz, Multimode: 1000ft/300m at 4096 x 2160 60Hz Wide Screen Supported Yes Audio Specifications HDMI - 7.1 Channel Audio Supported Baud Rate 4800 ~ 115200 bits/s Supported IR Frequency 20 ~ 60KHz HDMI Audio Formats LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Color Black Product Length 13.4 cm [5.3 in] Product Width 6.8 cm [2.7 in] Product Height 1.8 cm [0.7 in] Weight of Product 0.6 kg [1.2 lb] Material Metal Power Source AC Adapter Included Input Voltage 100 - 240 AC Input Current 0.35A Output Voltage 5 DC Output Current 1A Center Tip Polarity Positive Plug Type M Power Consumption 0.1W OS Compatibility No Drivers or Software Required System and Cable Requirements OM3 Multimode or OS1 Single Mode cabling or higher recommended for optimal performance Note Only the pre-installed SFP transceivers are supported. HDMI CEC is not supported by this product. Included in Package 1 - Local HDMI Transmitter Unit, 1 - Remote HDMI Receiver Unit, 2 - IR Blaster, 2 - IR Receiver, 2 - Power Adapter, 2 - RS-232 Terminal Block Connector, 1 - Quick-Start Guide -
Description Downloads Datasheet Downloads Connection Diagram Downloads
