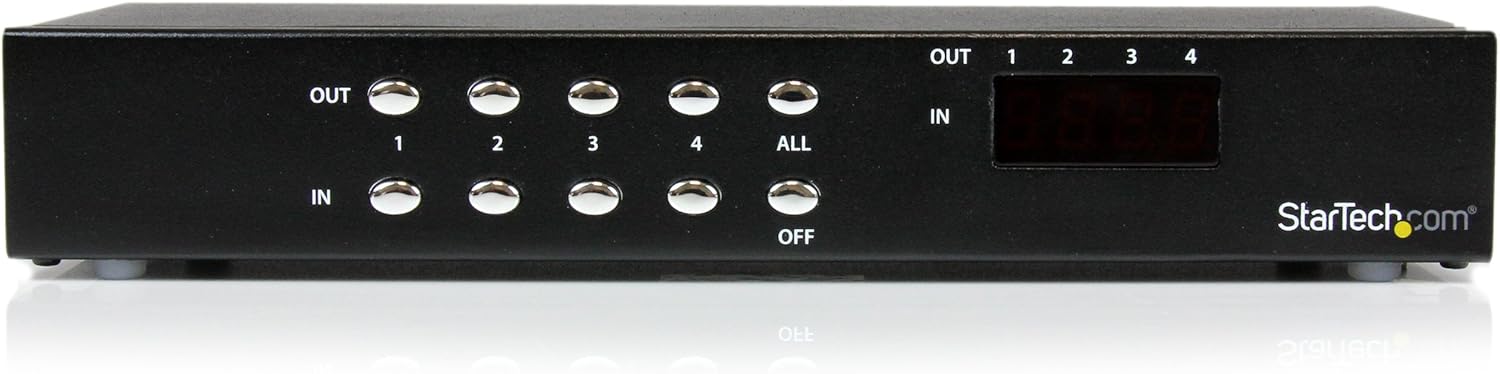

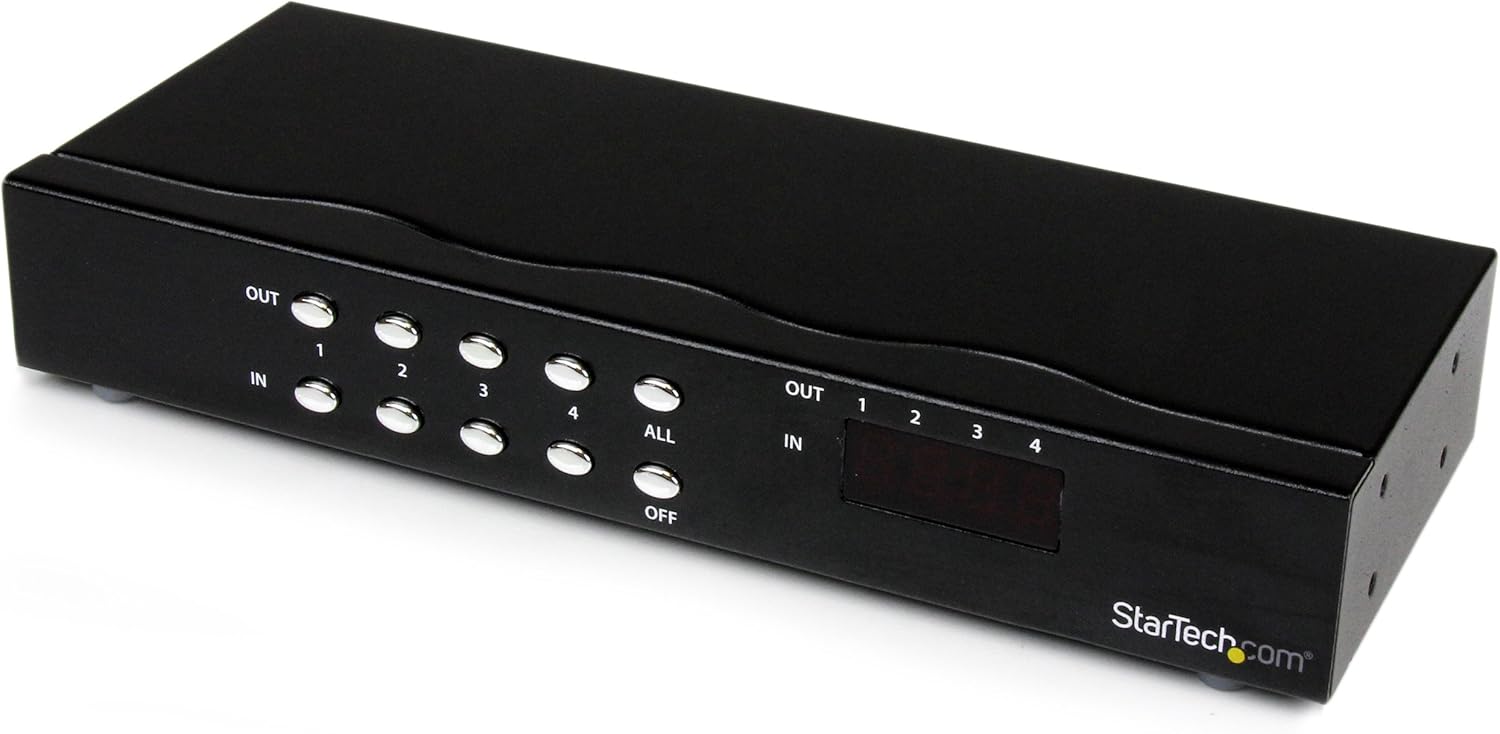

The ST424MX 4x4 VGA Matrix Switcher/Splitter allows users to share up to four distinct VGA inputs (as well as a corresponding audio source) between four independent displays or projectors.
Providing convenient push button control, the VGA Matrix Switcher/Splitter allows each of the four input VGA signals and the corresponding audio, to be switched individually meaning that you can have a different source showing on each display or one source showing on both offering maximum flexibility and control.
To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the ST424MX VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source device, while maintaining flawless signal integrity.
Designed to provide maximum control while saving space and eliminating clutter, the ST424MX can be used as a standalone solution or rack mounted using the (included) ear-mounts.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Take full control of your sources and displays/projectors - select any source on any display
Run multimedia presentations with supporting data showing on another display in business conference rooms or at trade-shows
Perfect for digital signage applications in retail environments requiring more than one media player or PC to be connected
Allow trainees/students to see what is on your display and then switch them back to their own display after the demonstration completes
Ideal for connecting/switching multiple sources in Test Bench Facilities, Data Centers, Help Desks and Video Broadcasting Facilities
The StarTech.com Advantage
Matrix switching functionality gives you full control of what source is shown on each display with the touch of a button
Built-in signal amplifier lets you extend your connection by up to 210 feet
| Category | Details |
|---|---|
| Warranty Information | Warranty: 2 Years |
| Connector(s) |

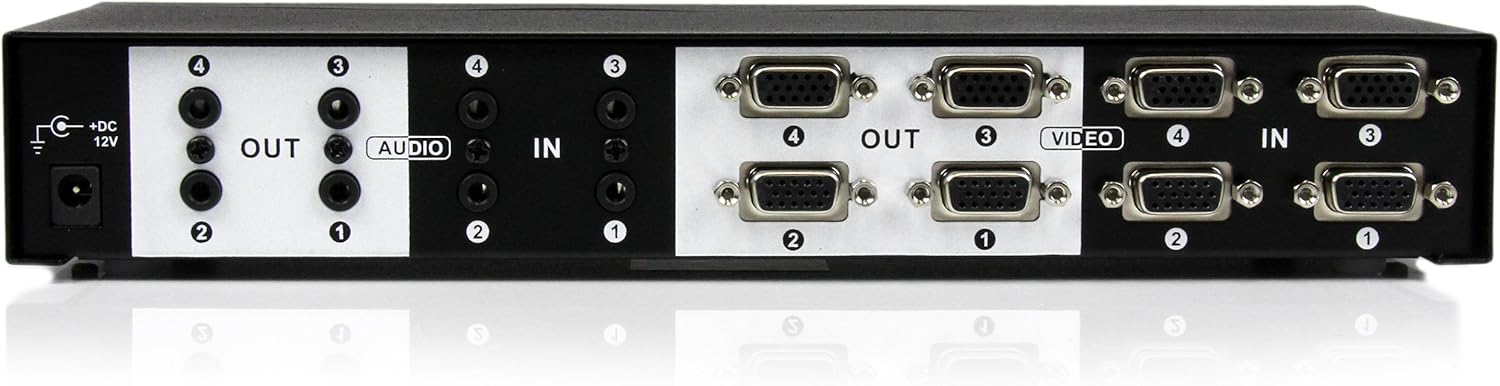

Connector A: 4 - VGA (15 pin, High Density D-Sub), 4 - 3.5 mm Mini-Jack (3 Position) Connector B: 4 - VGA (15 pin, High Density D-Sub), 4 - 3.5 mm Mini-Jack (3 Position) |
| Hardware |
Ports: 4 AV Input: VGA AV Output: VGA Audio: Yes Rack-Mountable: Yes Industry Standards: DDC, DDC2, DDC2B Daisy-Chain: Yes |
| Packaging Information |
Shipping (Package) Weight: 3.9 lb [1.8 kg] Package Quantity: 1 Package Length: 14.1 in [35.7 cm] Package Width: 3.2 in [8.2 cm] Package Height: 11.0 in [27.9 cm] |
| Performance |
Maximum Cable Length: 213.2 ft [65 m] Maximum Analog Resolutions: 1920x1440 @ 85Hz Bandwidth: 350 MHz |
| Physical Characteristics |
Weight of Product: 2.3 lb [1.1 kg] Color: Black Material: Steel Product Length: 10.6 in [26.9 cm] Product Width: 4.3 in [10.8 cm] Product Height: 1.7 in [4.2 cm] |
| Power |
Power Source: AC Adapter Included Input Voltage: 100 - 240 AC Input Current: 0.3A Output Voltage: 12V DC Output Current: 1.25A Center Tip Polarity: Positive Power Consumption (In Watts): 15 |
| What's in the Box | Included in Package: 1 - VGA 4x4 Matrix Switch, 2 - Ear-mounts for rack-mounting, 1 - Bag of Screws, 1 - Universal Power Adapter (US/UK/EU/AUS), 1 - Instruction Manual |
| Description | Downloads |
|---|---|
| Startech 4x4 VGA Matrix Video Switch Splitter with Audio | ST424MX DataSheet | Downloads |
| Startech 4x4 VGA Matrix Video Switch Splitter with Audio | ST424MX Manual | Downloads |
